✅ Designed for DJI O4 Light / O4 Pro ✅ 75 mm Whoop frame for 1–2S ✅ Extremely strong in PA12-CF, also very solid in PETG-CF ✅ 25.5 × 25.5 FC mount ✅ Modular 2S LiHV battery holder ✅ Meteor75 canopy compatible If you like this frame and it helps your build, a boost is highly appreciated and supports future drone designs.

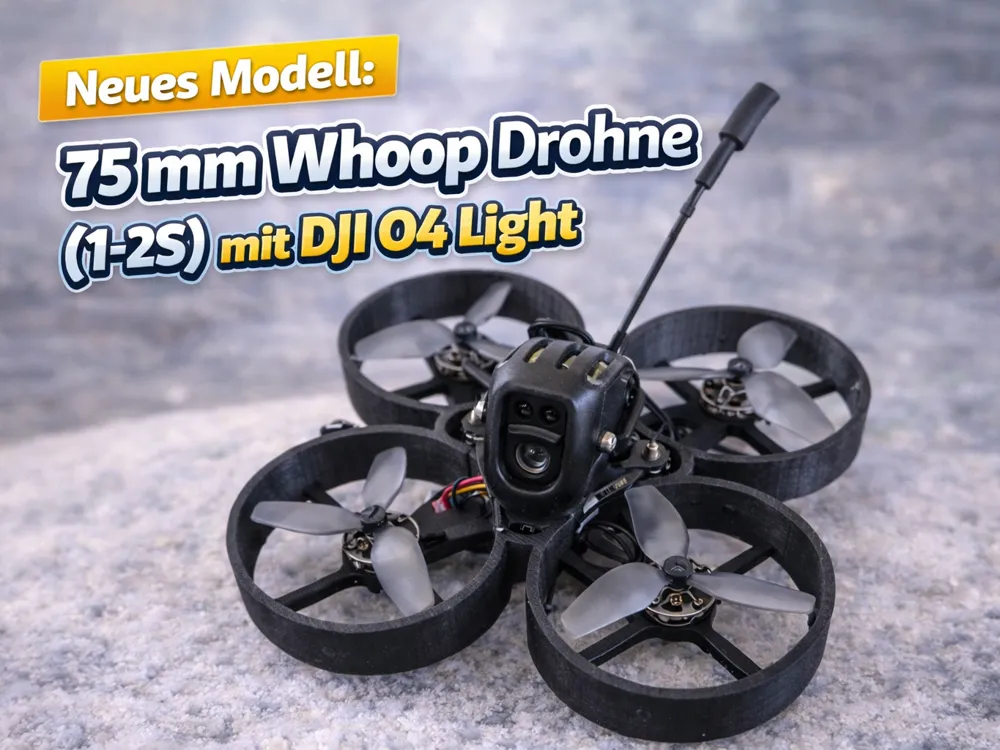

75 mm Whoop Drone (1–2S) with DJI O4 Light
75 mm Whoop frame for 1–2S operation, optimized for DJI O4 Light / O4 Pro.
The design is engineered for high stability and durability
and intended for printing in PA12-CF (very robust) or alternatively PETG-CF (also very stable)
The frame offers a 25.5 × 25.5 mm flight controller mount.
A GOKU F405 HD 1–2S 12A ELRS AIO V2 (O4 / O4 Pro) was tested and installed

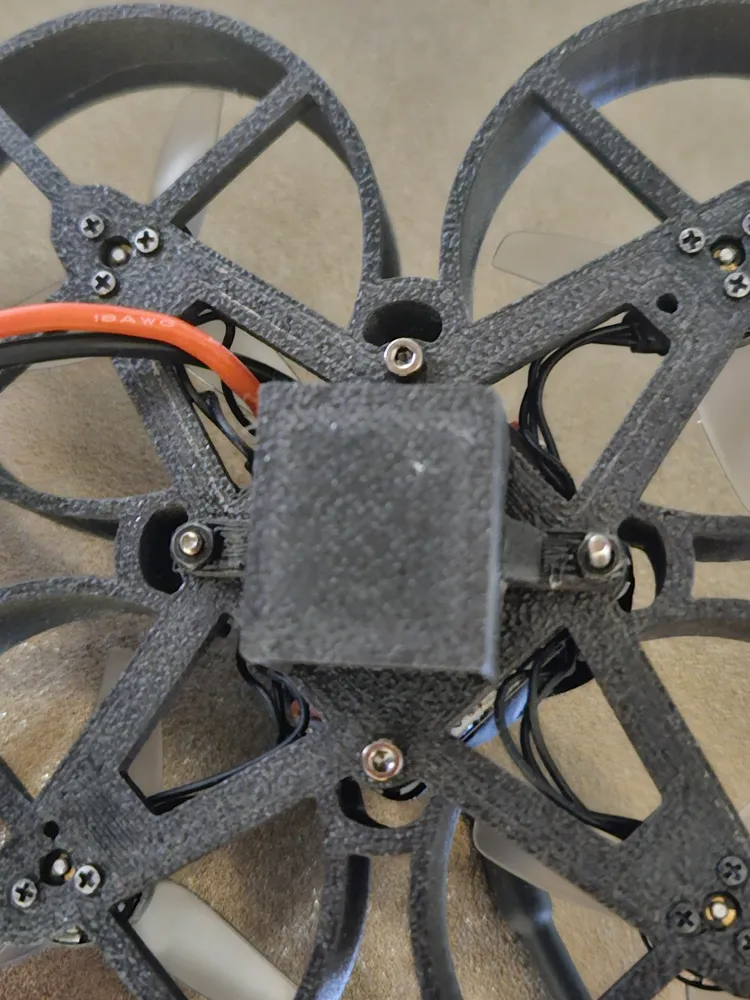

The 2S LiHV battery holder is screwed on the bottom and thus easily replaceable.
Adjustments are easily possible – either through modification or by a custom-designed adapter
Compatibility & Setup:

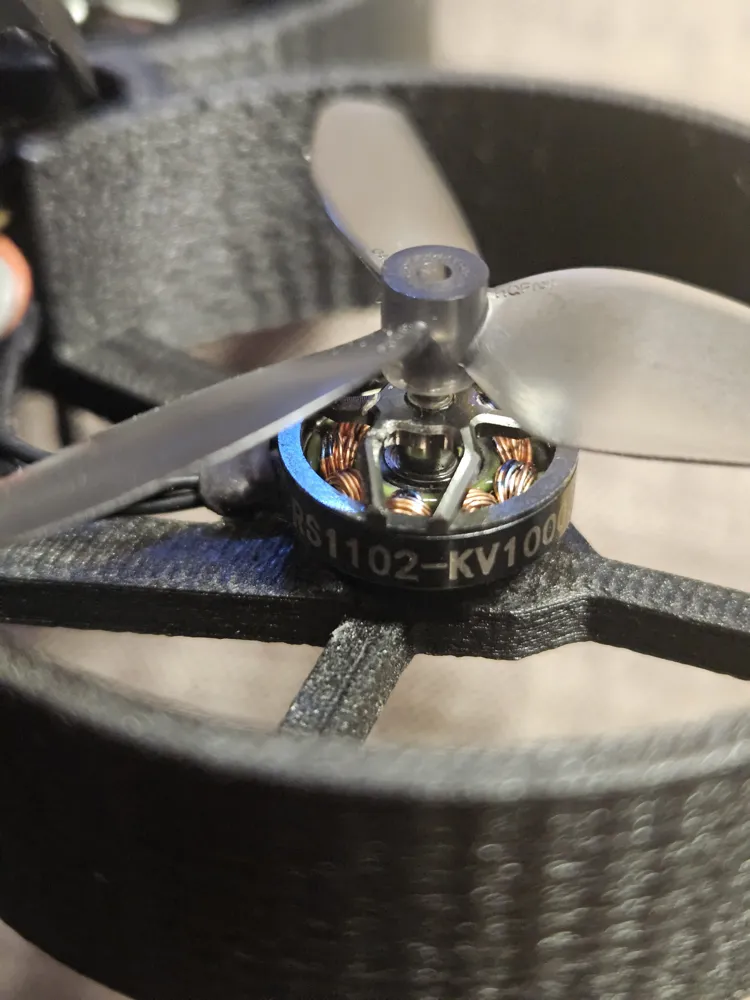

- Motors: Happymodel RS1103 KV10000
- Compatible with the original BetaFPV Meteor75 Canopy
- Additional canopy included in the download
- suitable for TPU or PETG-CF

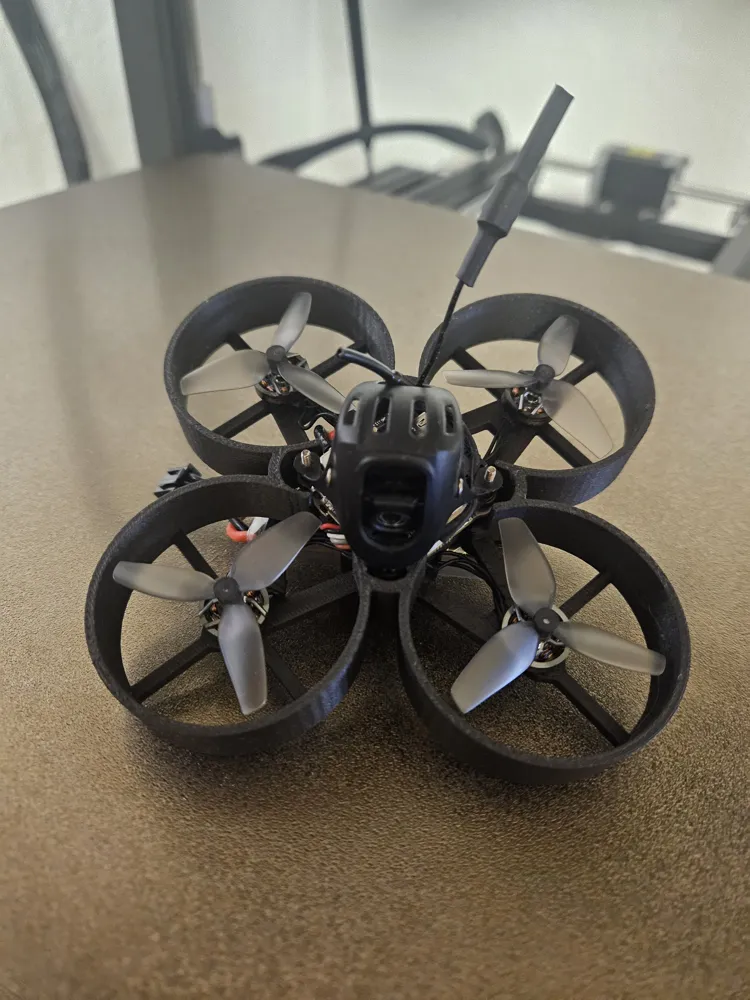

For me, the Whoop flies very stable, agile, and controlled – a reliable build both indoors and outdoors
