[LED MOD] Arasaka Thermal Katana CyberPunk 2077

! PLEASE NOTE !

This is ONLY the LED MOD for the Arasaka Thermal Katana CyberPunk 2077, not the entire katana.
The model of the entire katana can be found at this link:
Arasaka Thermal Katana CyberPunk 2077


Please click if you appreciate my work :)

This is a modification of a single element of the Arasaka Thermal Katana, allowing the LED cable to be routed from the handle.

The 3mm LED strip fits into the element, giving it a seamless appearance.

Useful for cosplaying as a power bank.


🛠 Instruction:

I use a 3mm LED strip 5V LINK
for a katana, about 100 cm is enough

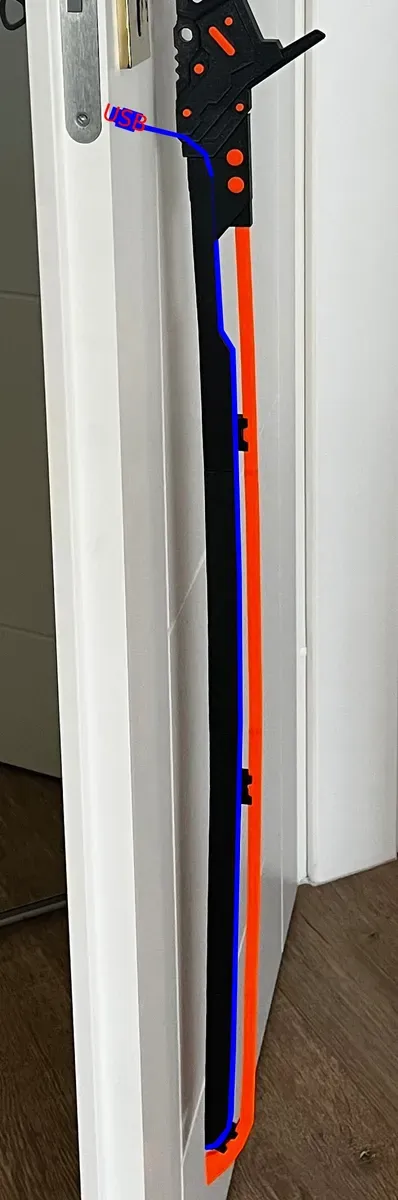

• Attach the LED as shown in the image blue color, but leave about 10cm exposed in front of the holder.

• Trim the LED with scissors so that the end fits inside the katana. (The LED strip has markings for cutting.)

• Pull the male USB cables through the hole on the side toward the LED strip.

• Solder the cables with a soldering iron:
  - Red to 5V+
  - Black to 5V-

• Connect the USB to the power bank to test if everything works.

• If ok secure the connection (heat shrink wrap, insulating tape, cyanoacrylate).

• Pull the USB cable to fit the LED strip inside the katana and glue it all the way in.

• Done :)
