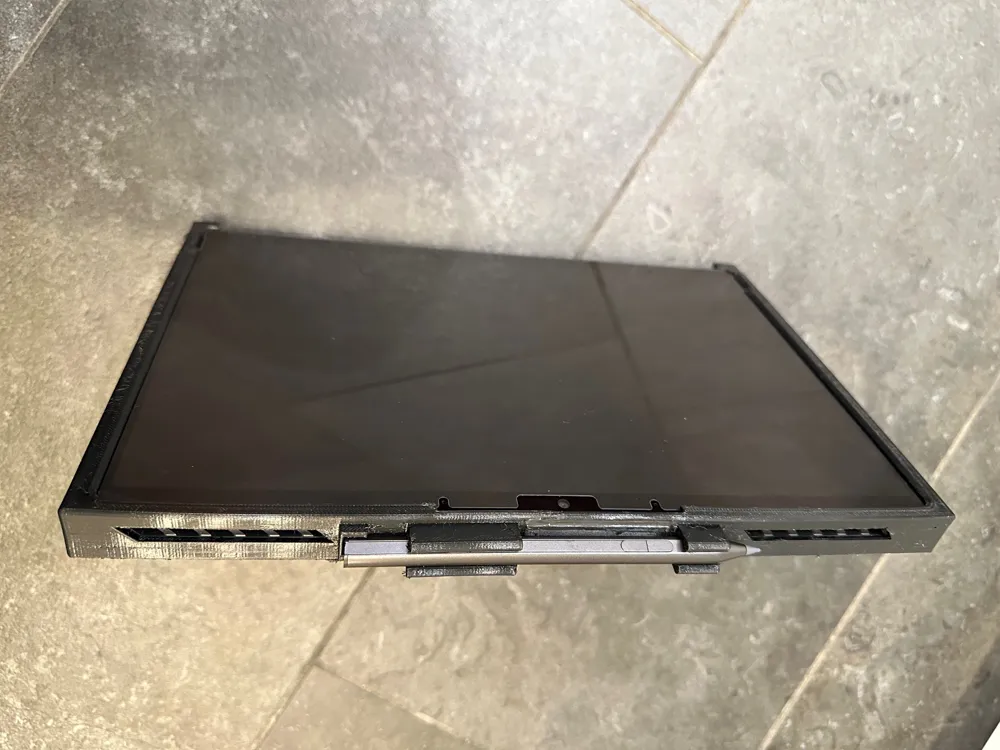

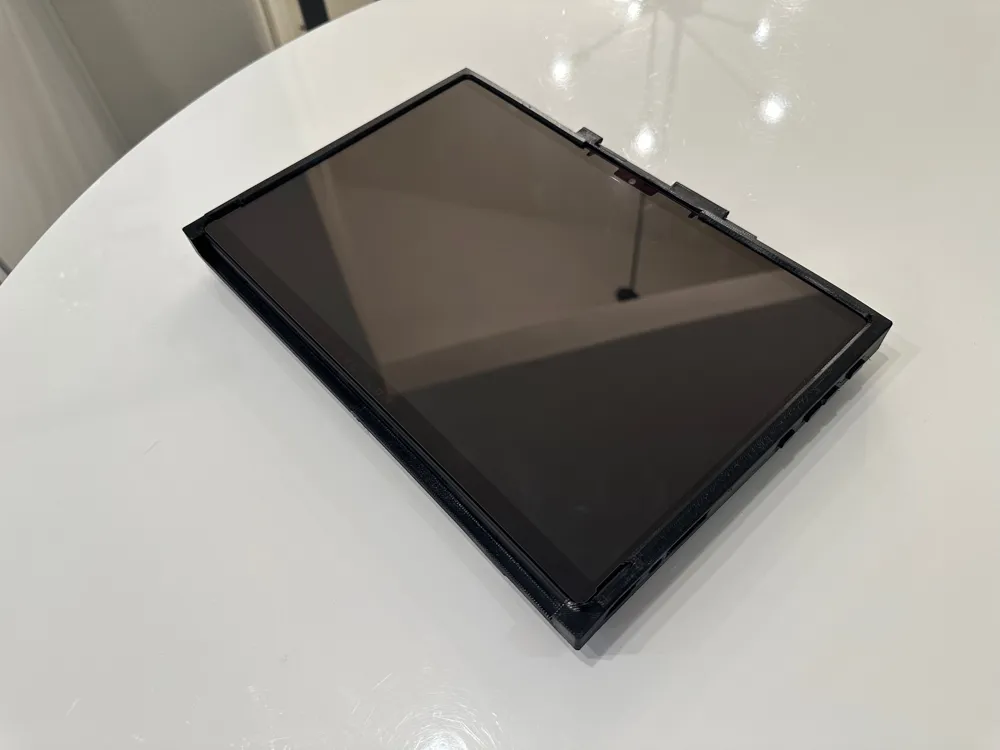

Asus Rog Flow Z13 Case

Case for an Asus Rog Flow Z13 2025.

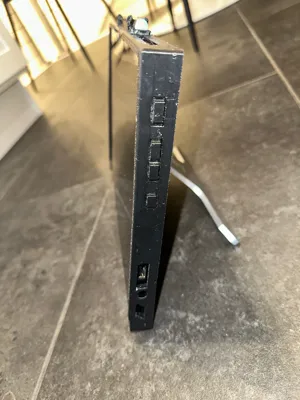

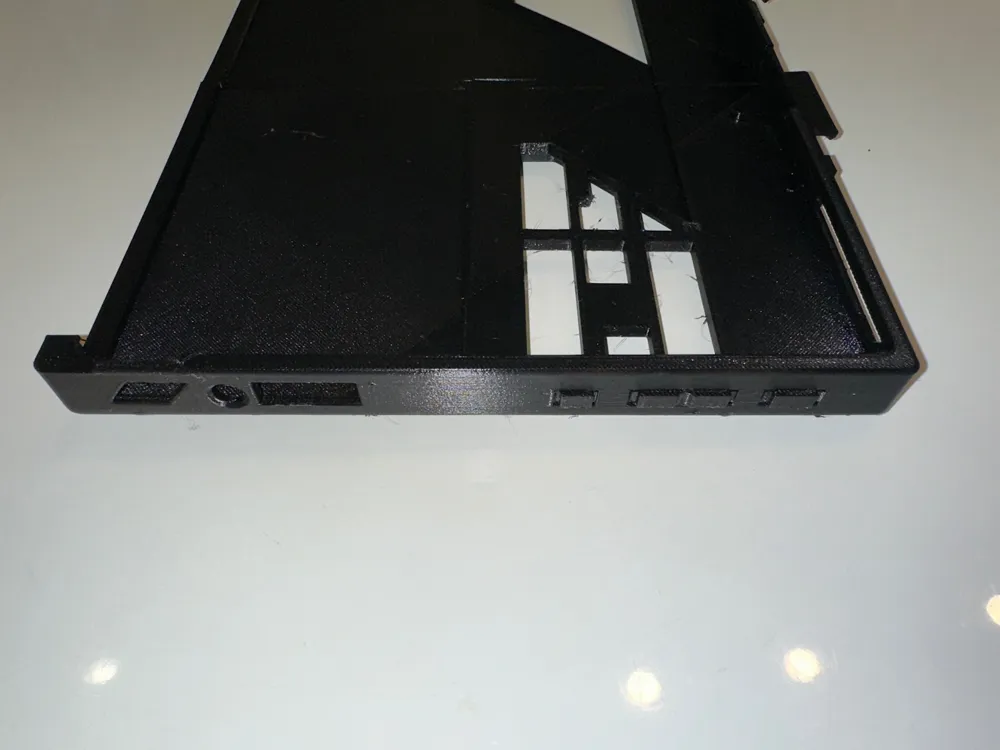

Modified to have slimmer sides and easier to press buttons.

There are two versions of the case:

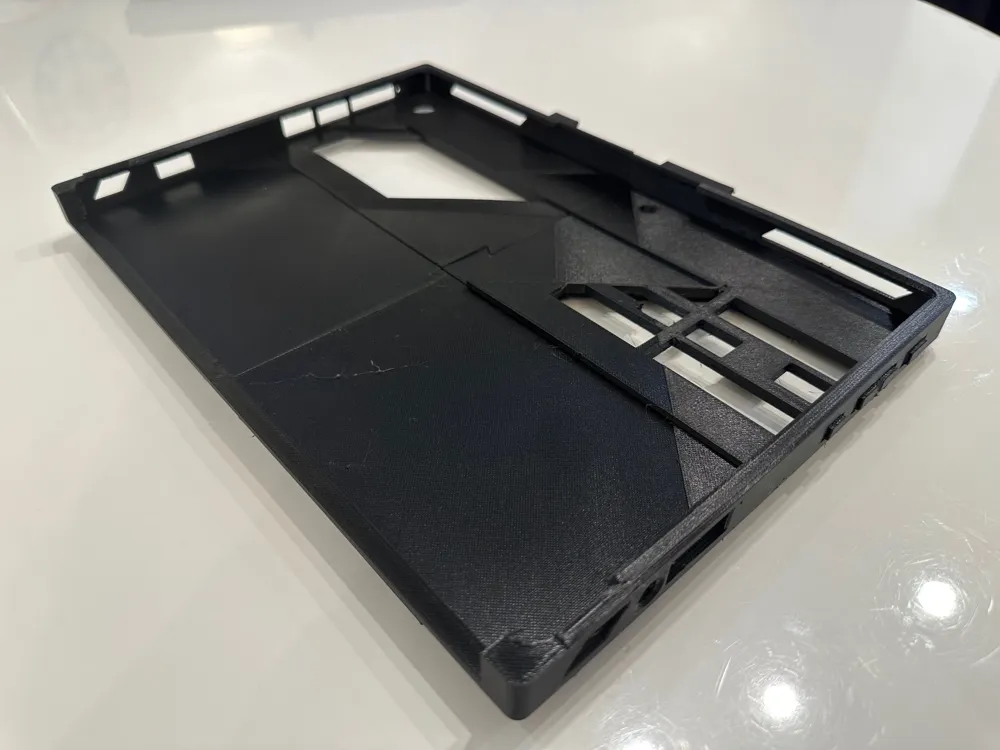

1. Rog Flow Tablet Only Case
   • Case for the tablet only and doesn't include a opening for the kickstand

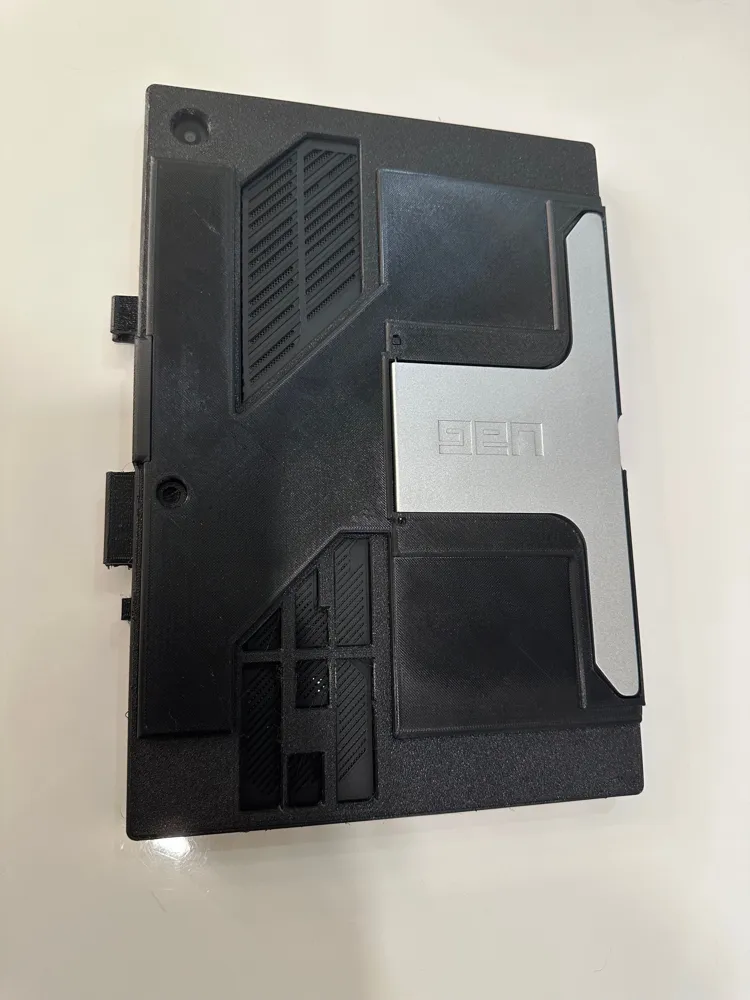

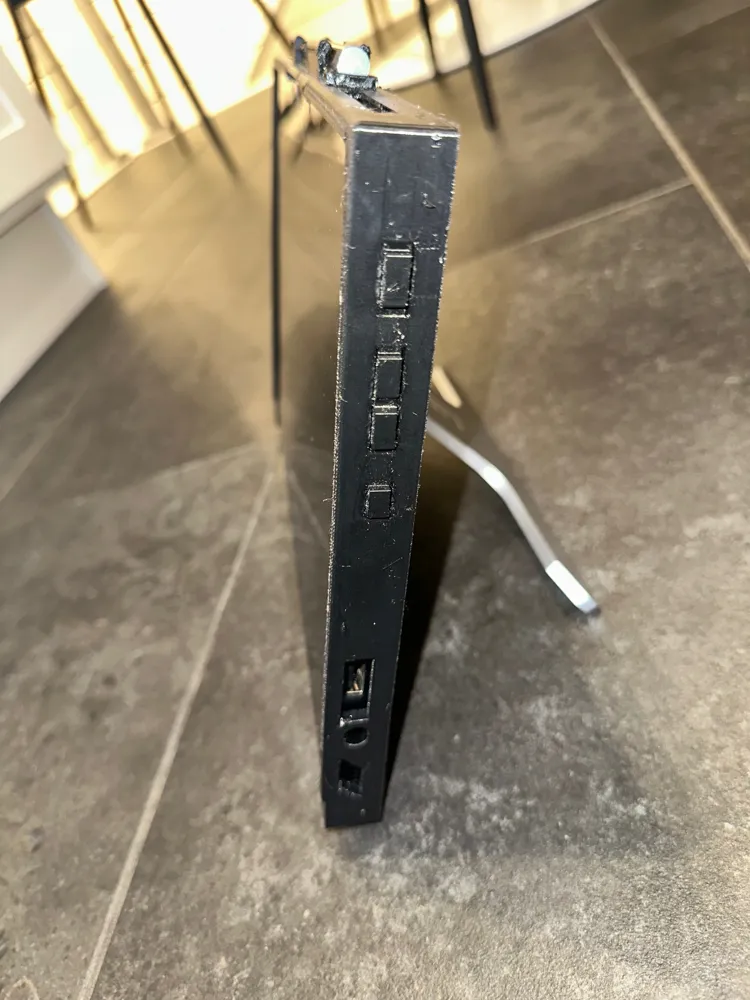

2. Rog Flow Full Case

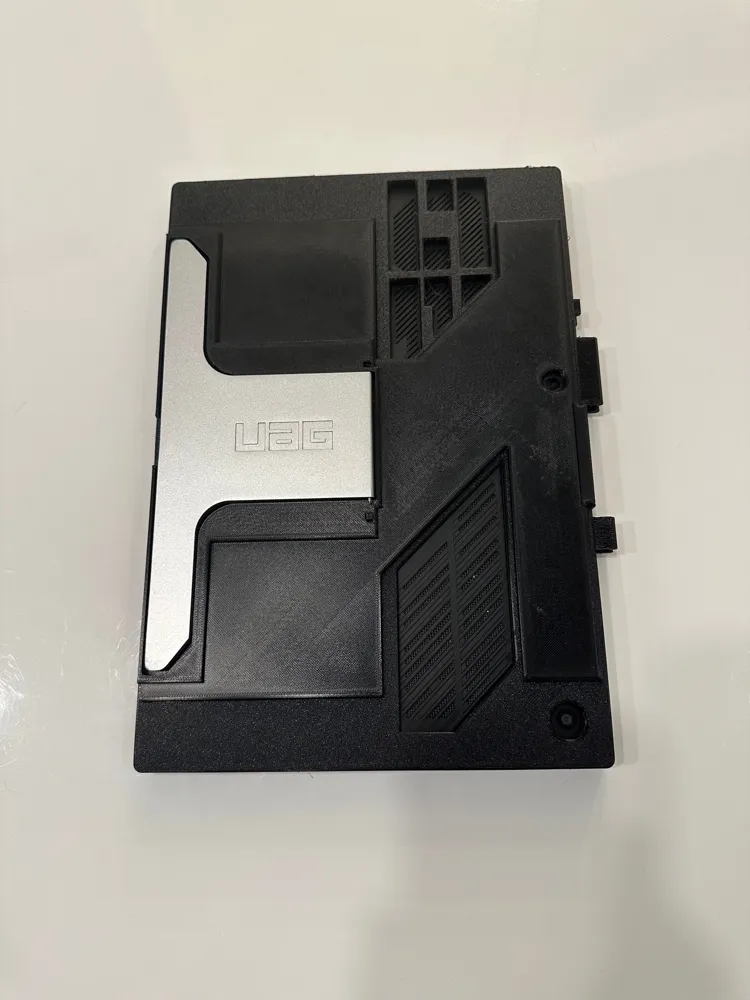

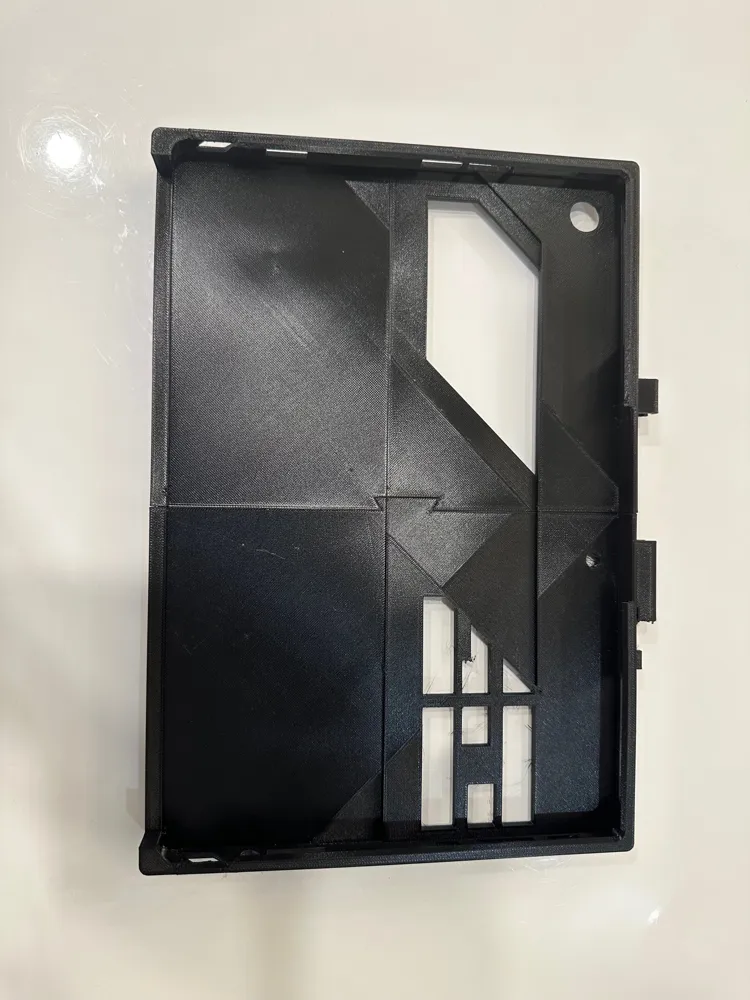

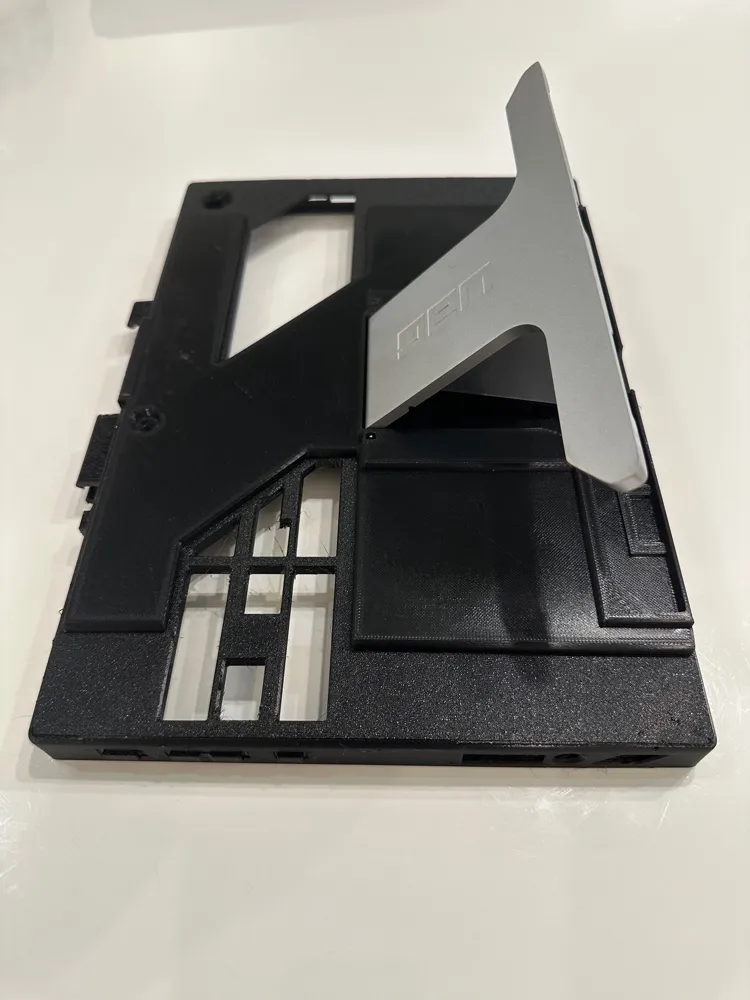

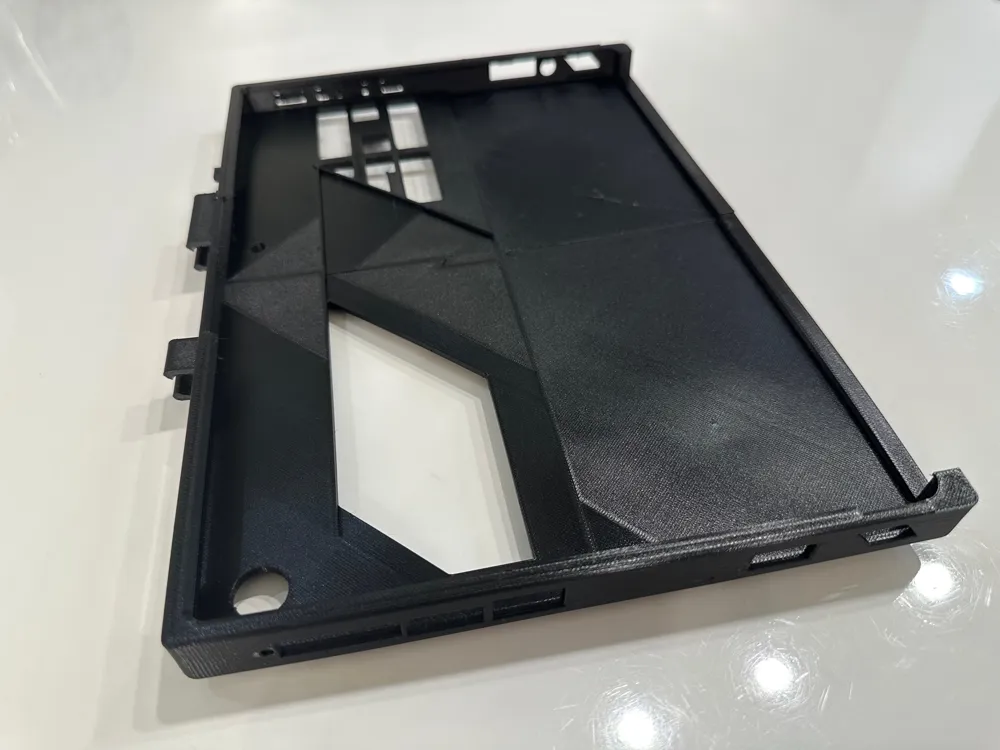

   • Case that includes a backplate to mount a Surface Pro UAG case metal kickstand.
   • TPU portion of the case will need to be glued to the backplate.

Print the case body in TPU with 100% infill.

Print the backplate in PETG  with 100% infill.

Rog Flow Full Case Backplate assembly:

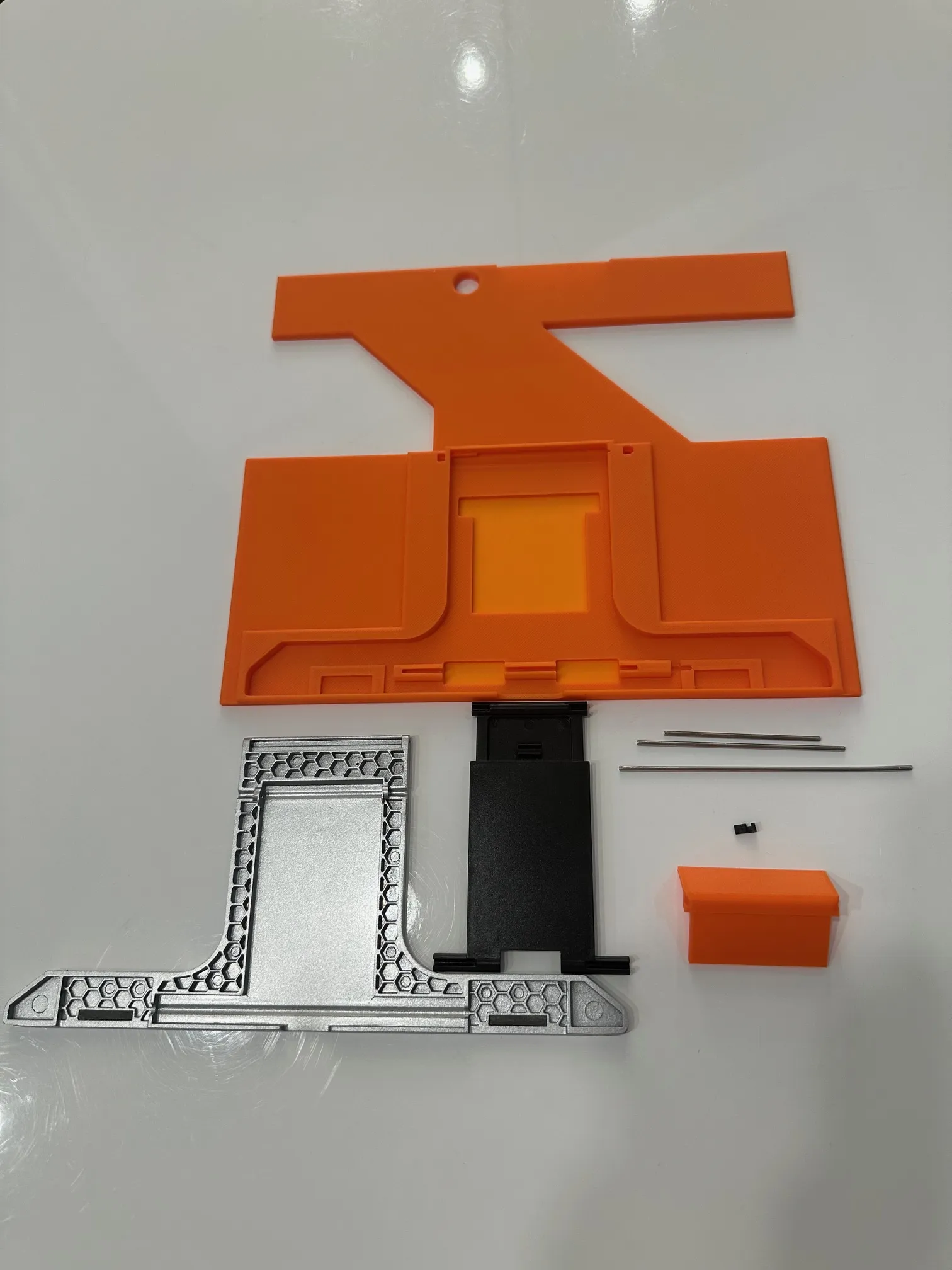

Parts needed

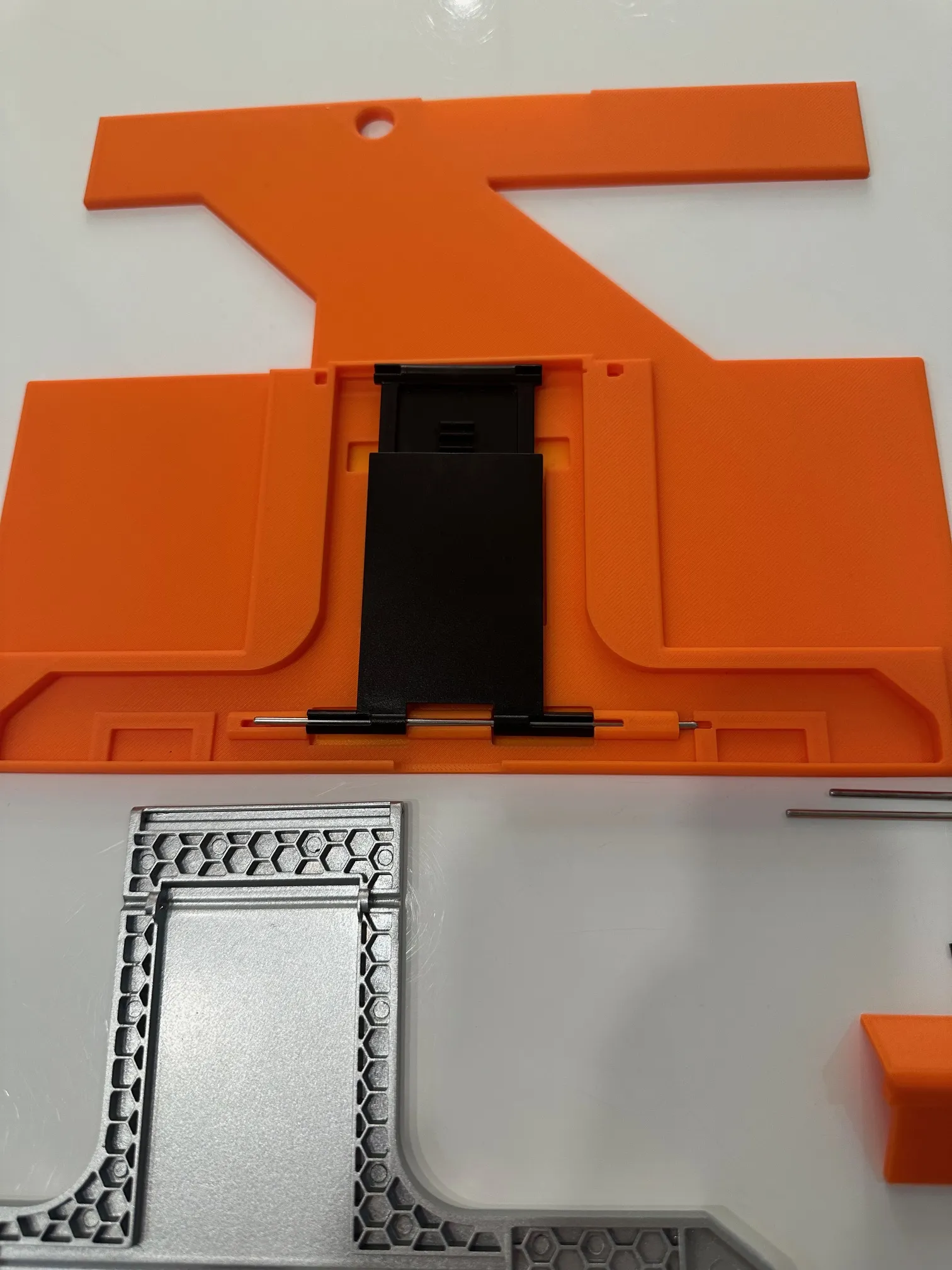

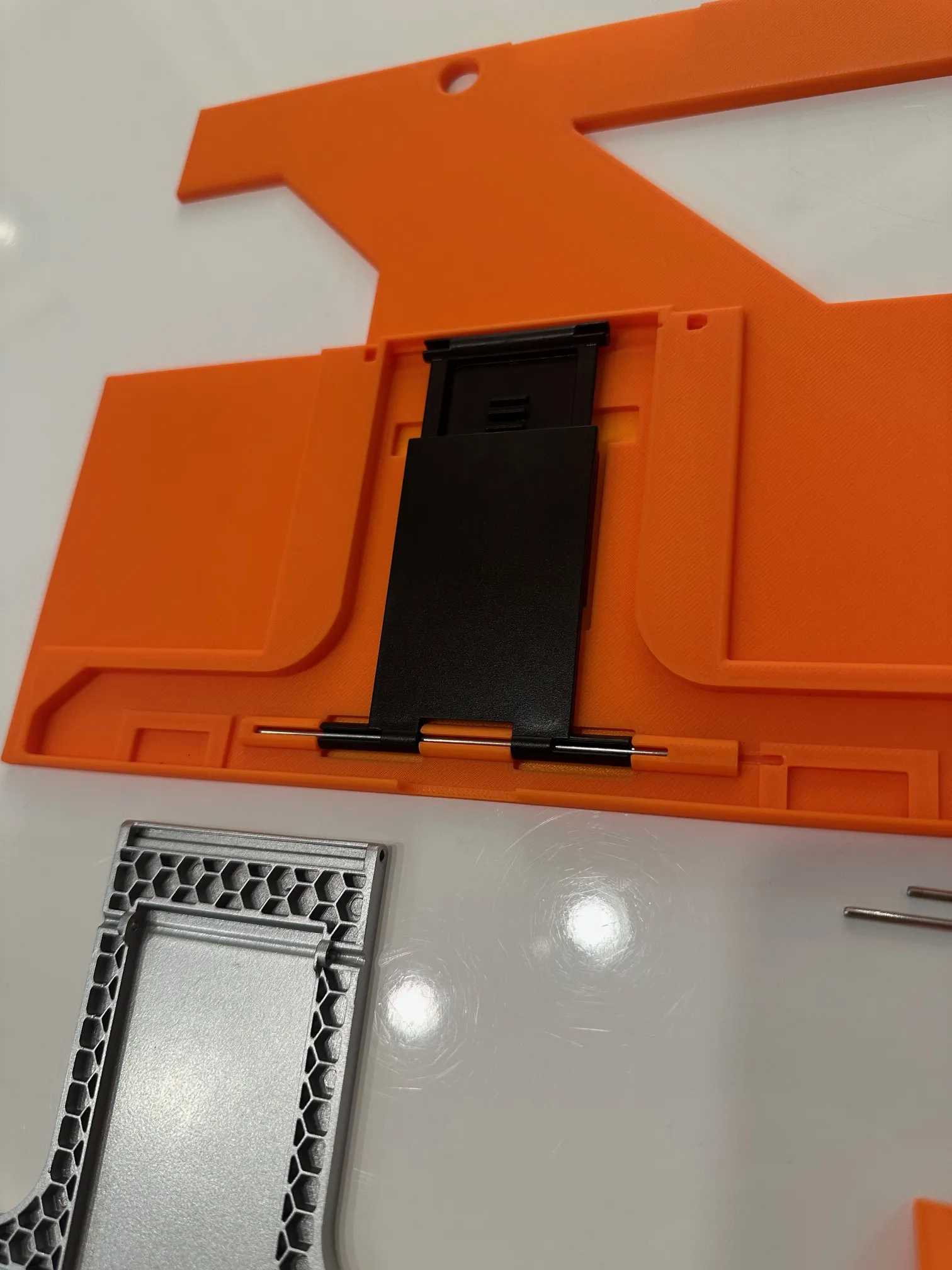

1.  First start with the stand mechanism and the longest pin push it into the right side



2. Once its pushed through click the rest of the pin into place



3. Next push the pin all the way to the left to lock it into place.

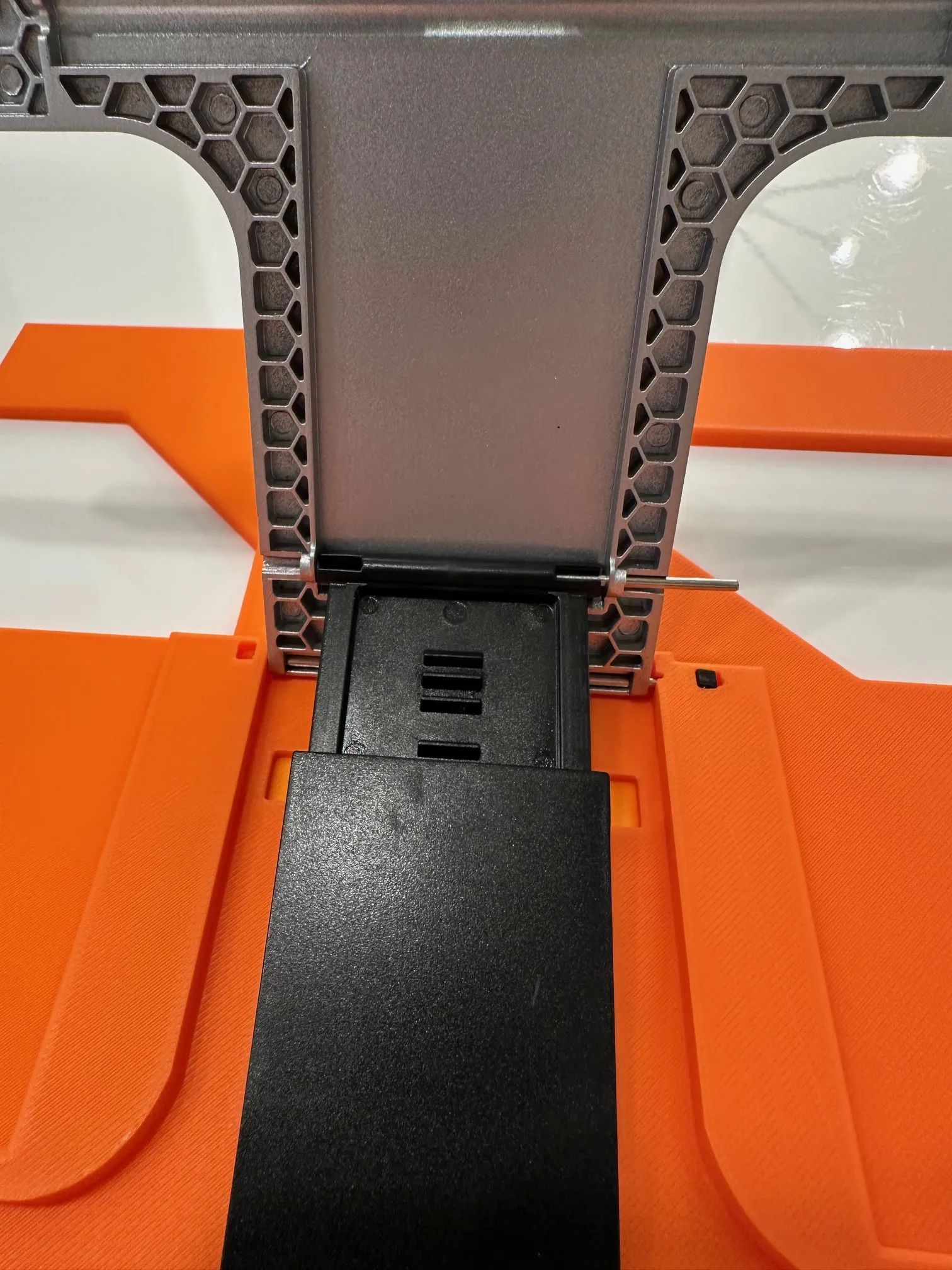

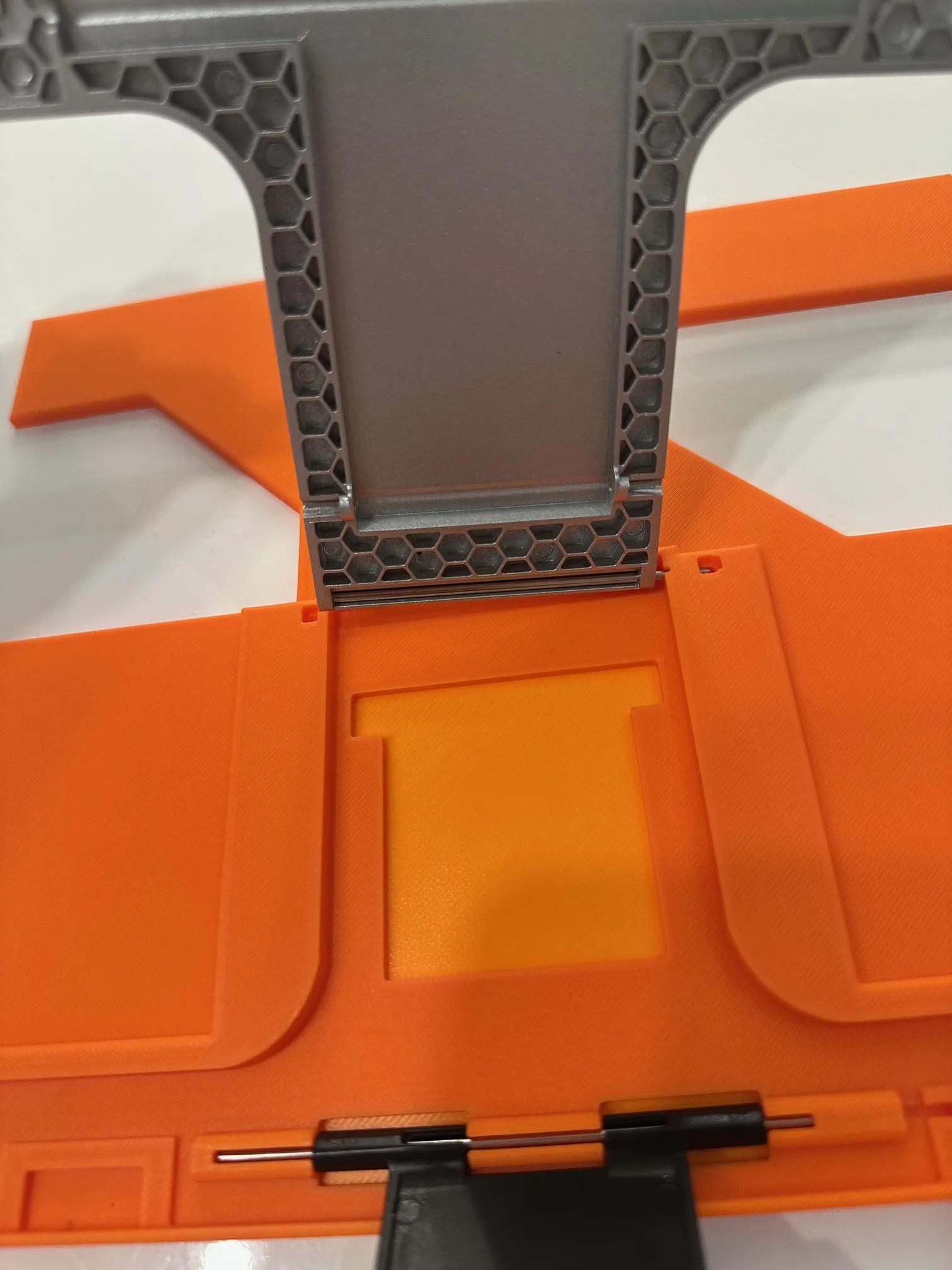

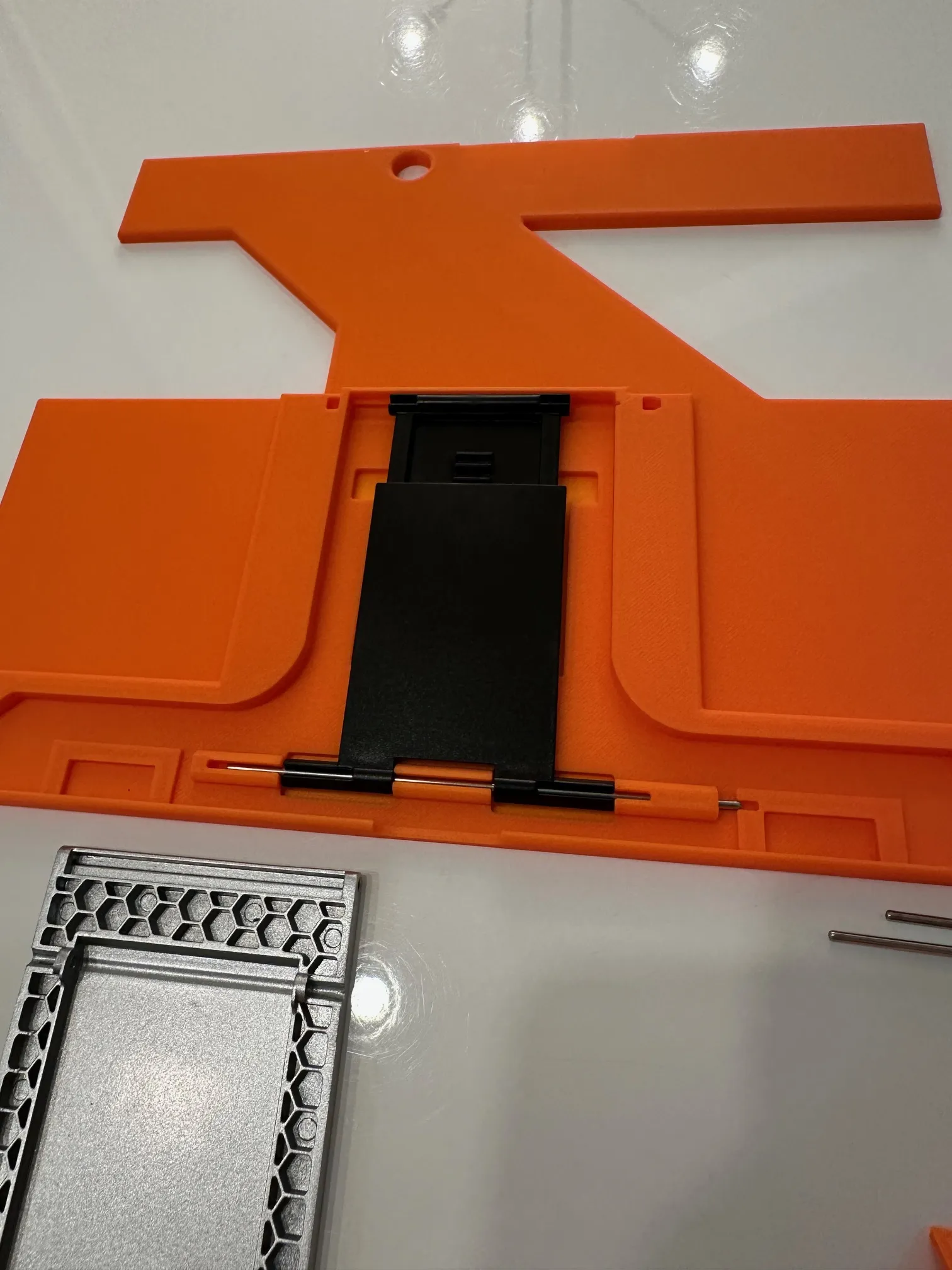

4. Take the kickstand and the medium length pin and insert it on the right side first



5. After that use tweezers on something thin to push the pin all the way to the left side.

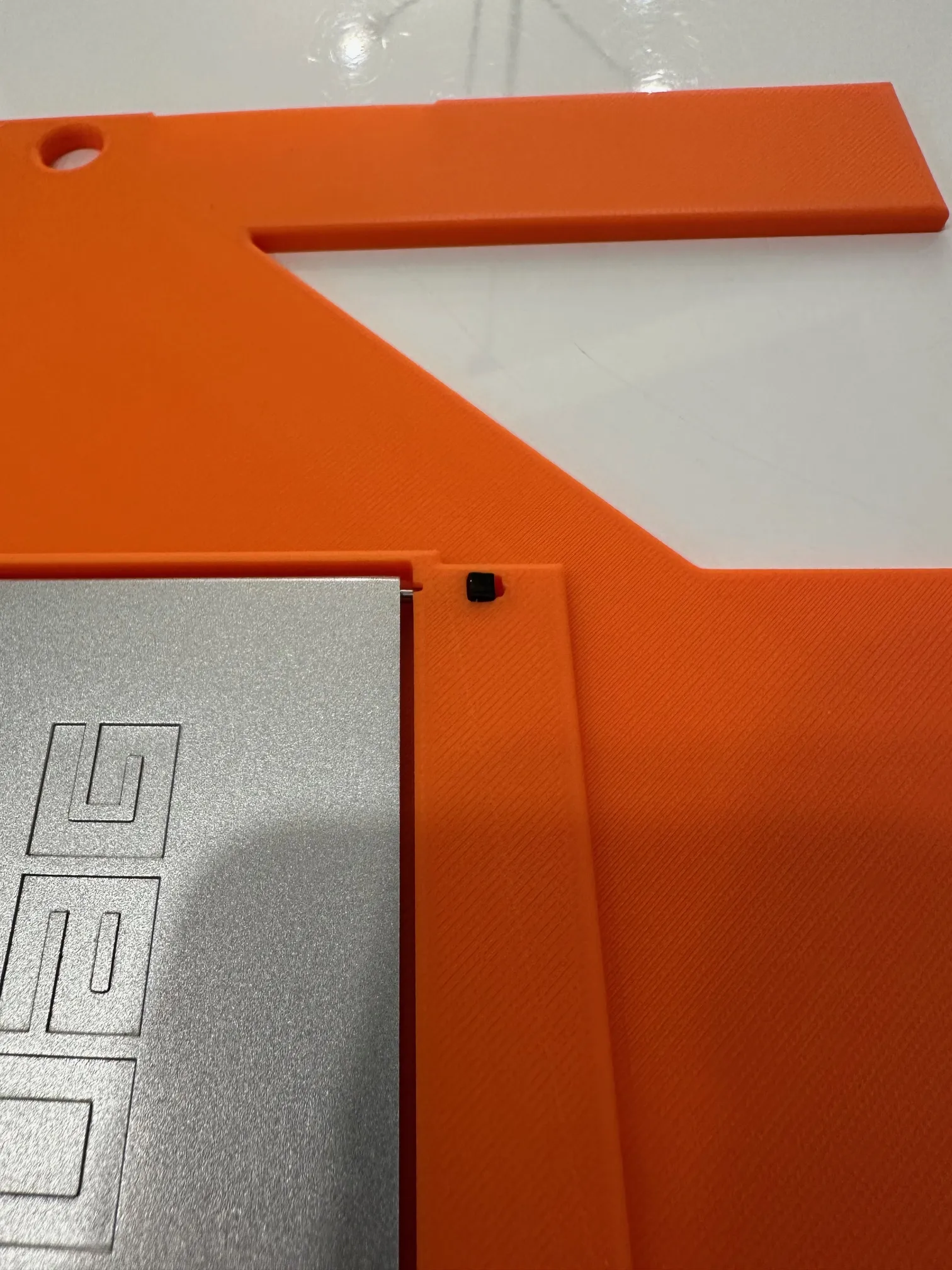

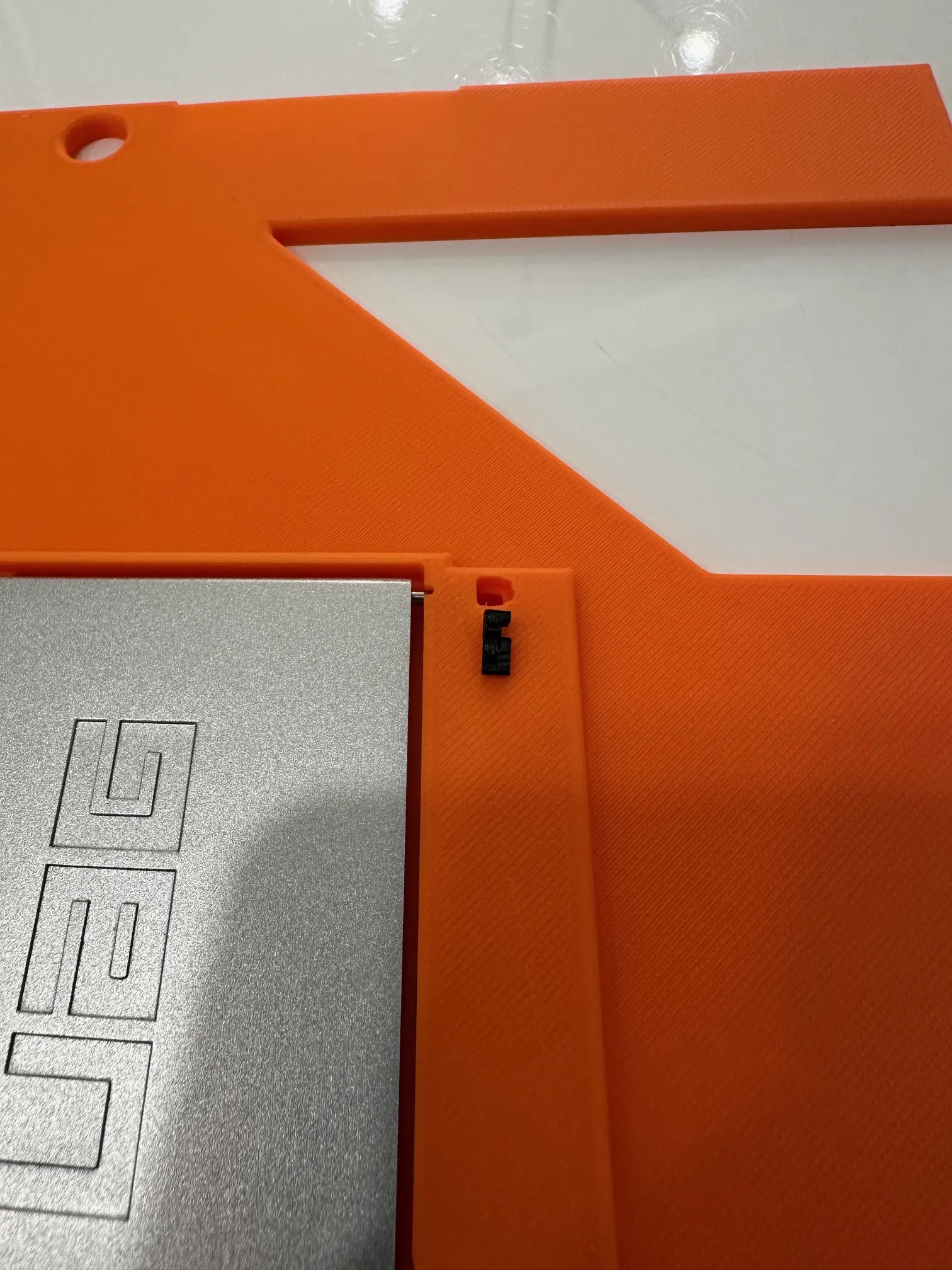

6. Next take the part that was labeled backplate plug and insert it with the notched portion facing to the right. This will help lock the pin place.

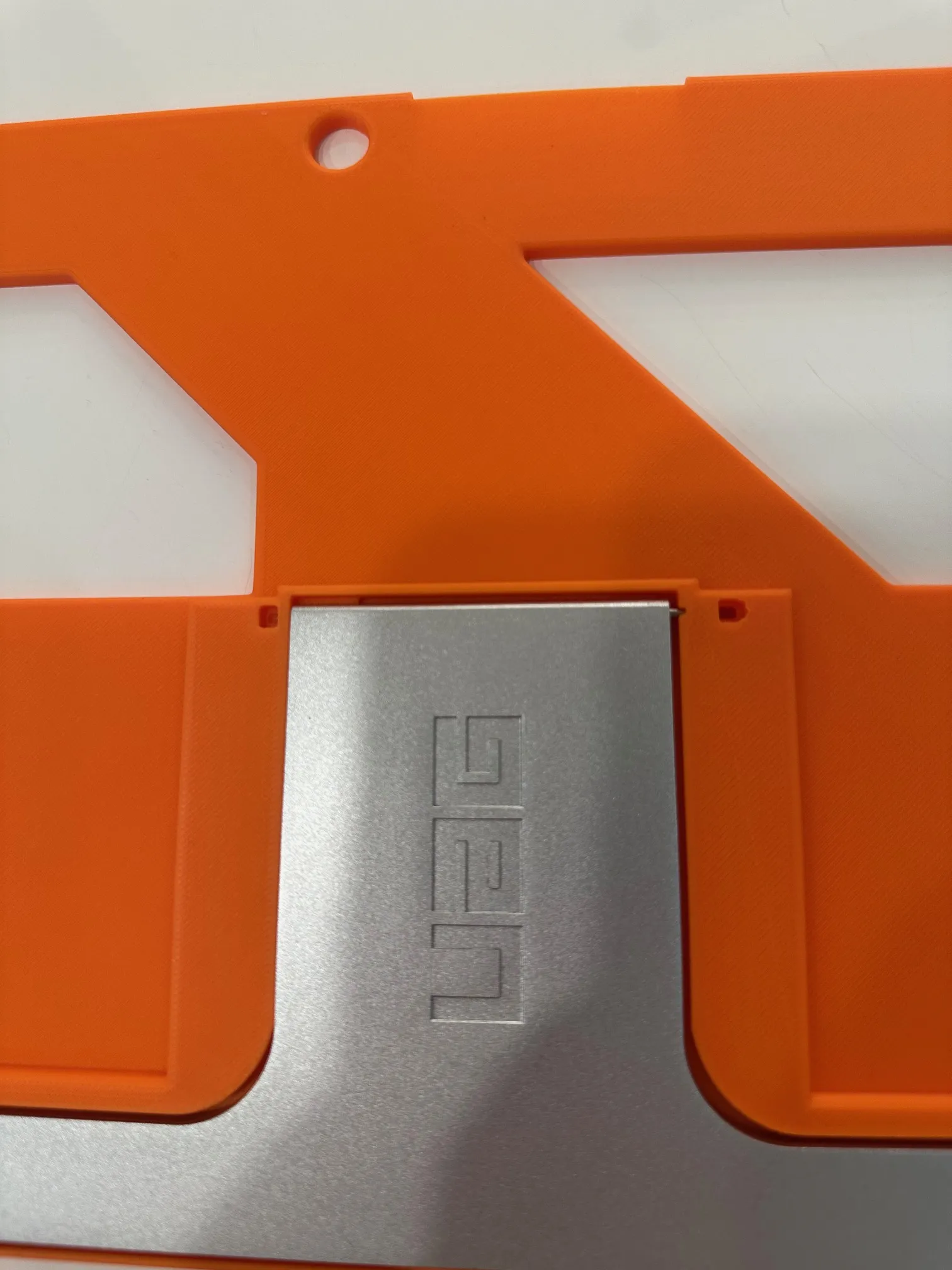

7. Take the smallest pin and push it through the stand mechanism and kickstand.

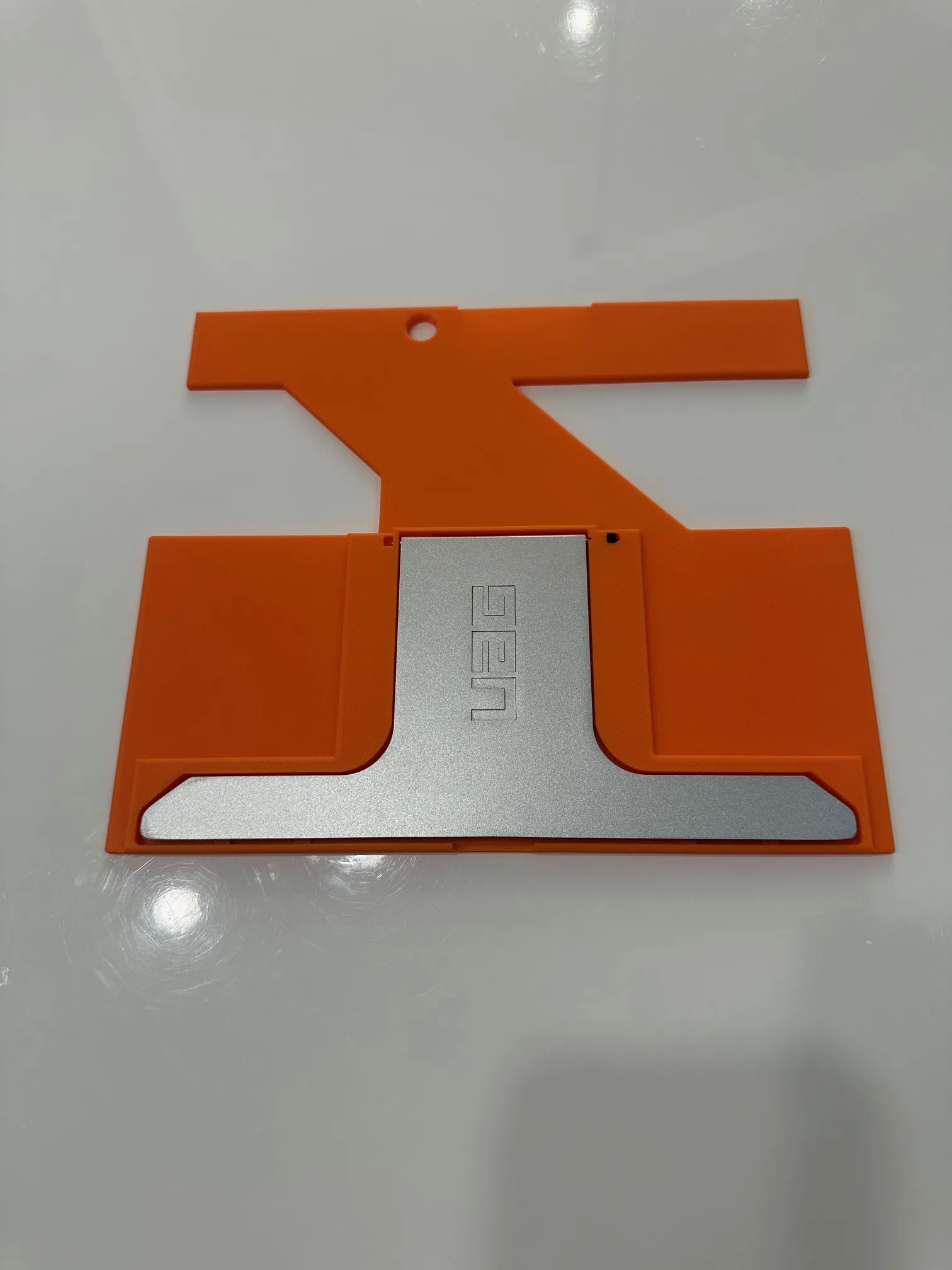

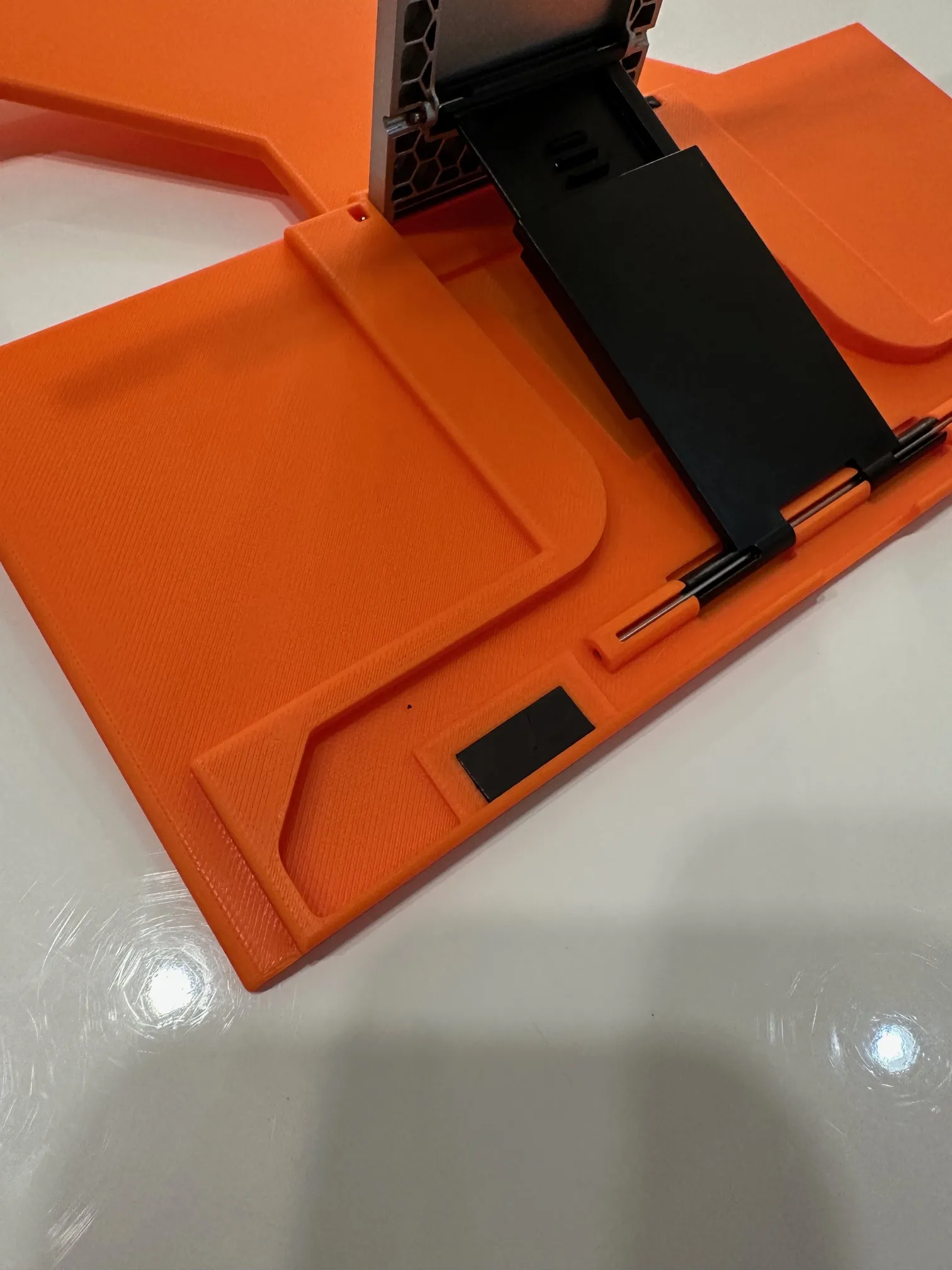

8. Once that's done it should look like this

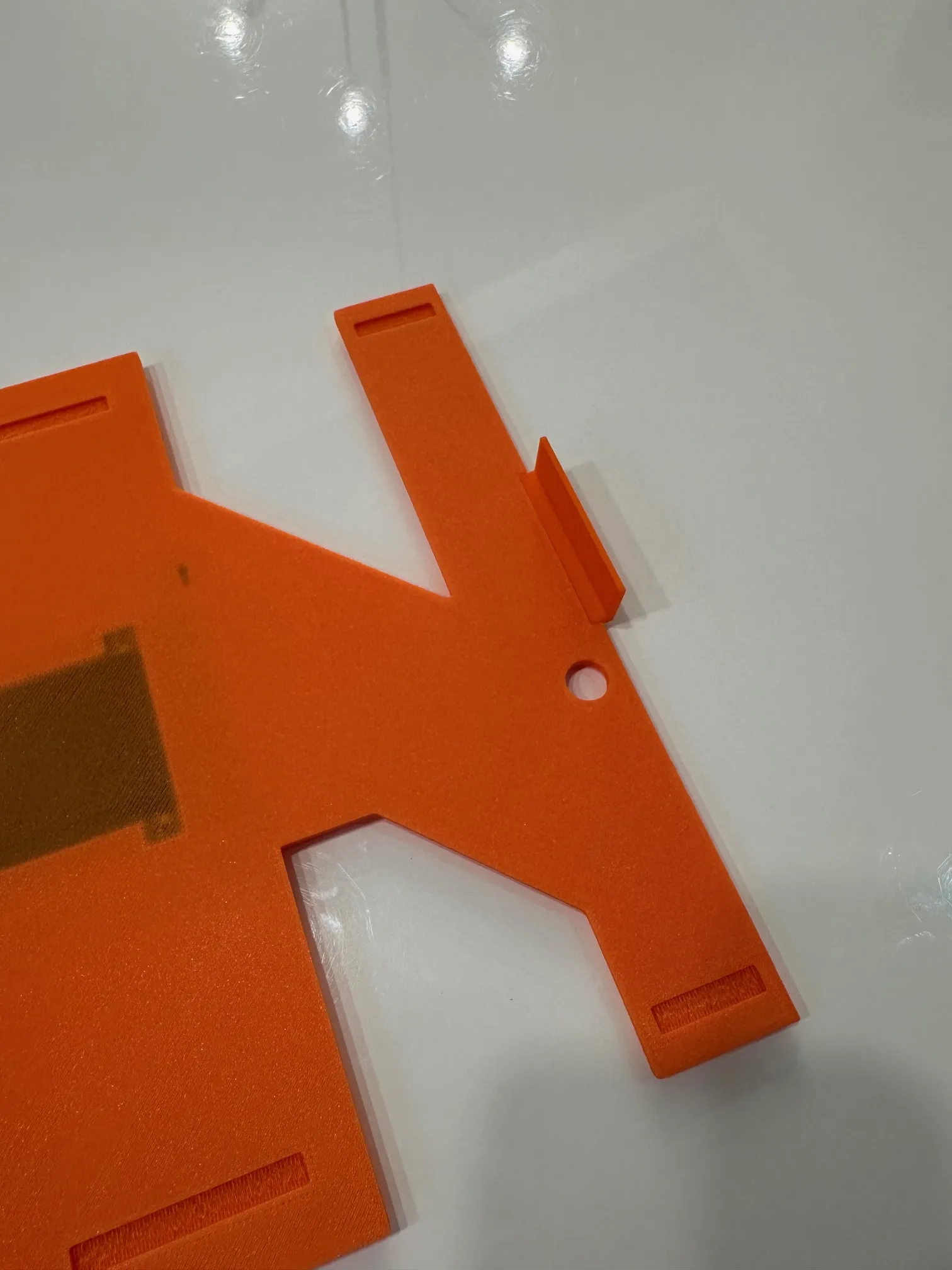

9. Next take the part labeled case backplate 2 and insert it into backplate 1 with some superglue or epoxy to secure them together.

   Make sure the orientation of the part is correct before gluing.

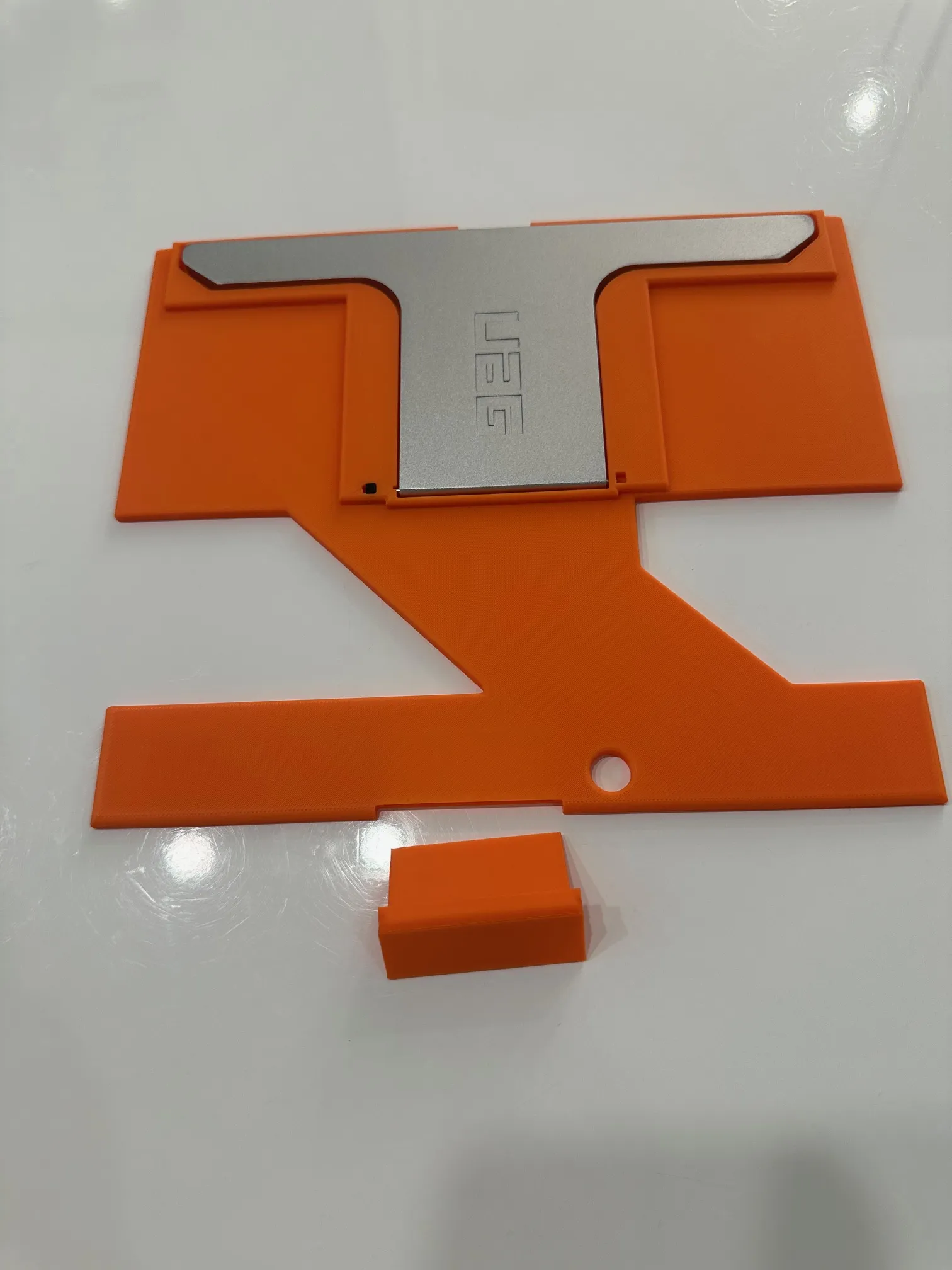

10. You can reused the magnets from the UAG case or cut your own and glue them into place like below.

    After that the assembly for the backplate is complete.
