Print Profile(2)
Bill of Materials
- Metal Spring x 1: (7-8mm diameter x 23-25mm)
Description
Boost Me (for free)
Enjoying this model? Give it a Boost so more makers can find it!

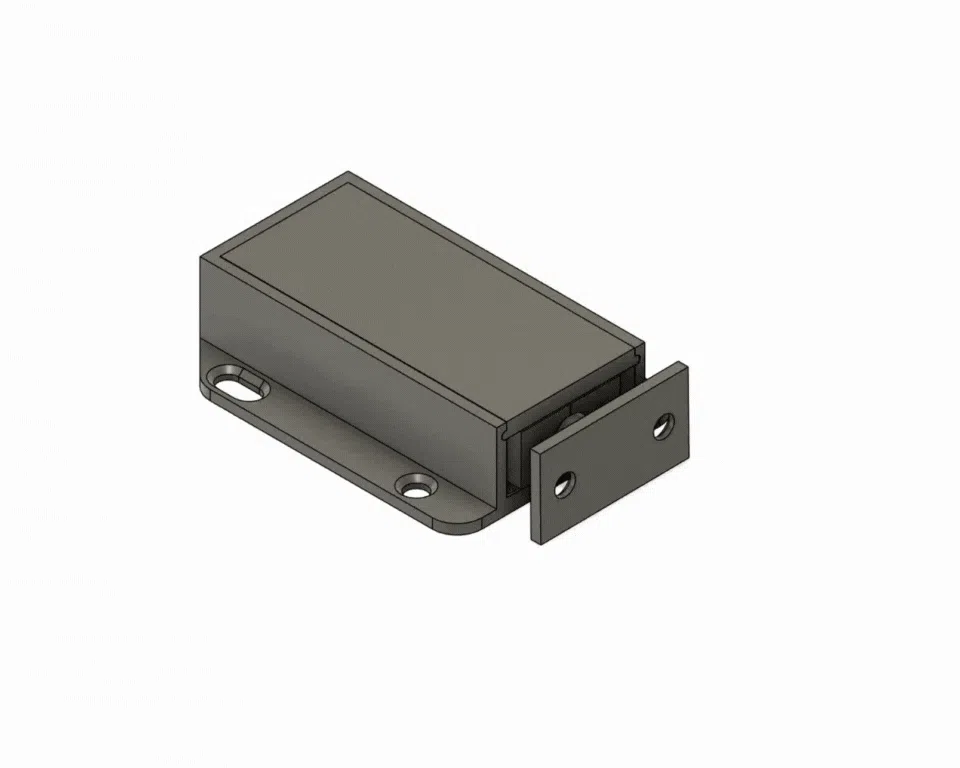

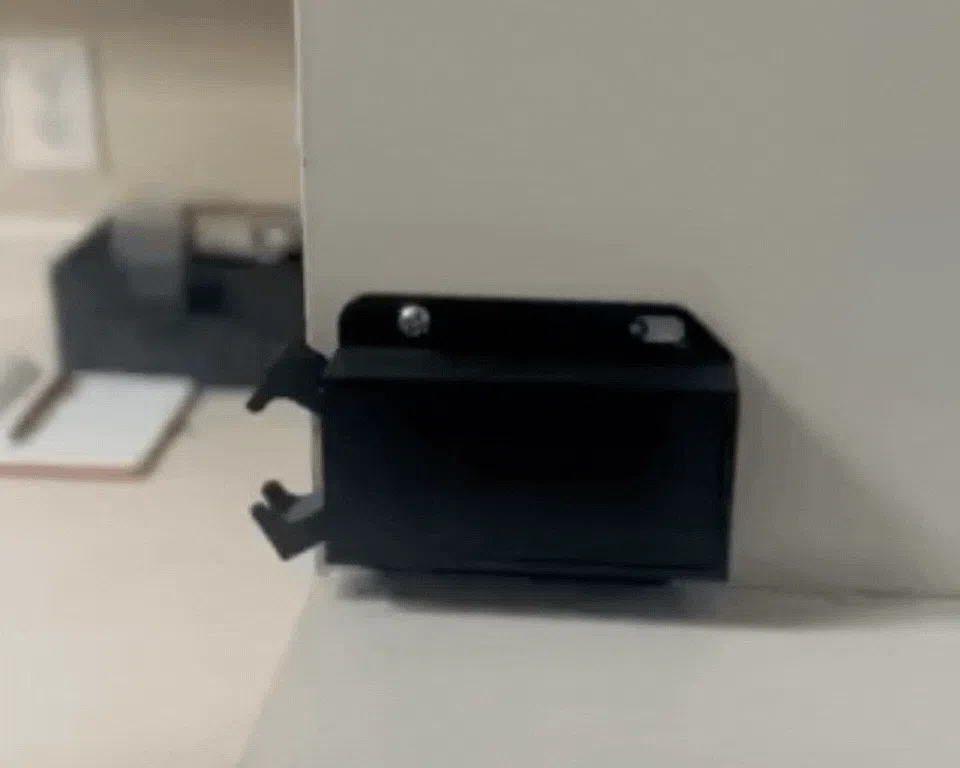

A clean, handle-free latch designed for modern cabinetry. It securely holds doors closed and releases with a simple press, making operation smooth and intuitive. Durable 3D printed construction ensures reliable performance, perfect for DIYers or minimalist home designs.
The only external part you will need is a Metal Spring (7-8mm diameter x 23-25mm).
Light sanding may improve smooth activation of slide and catches
Optional Part:
A Mounting Guide Tool is provided to ensure the latch is positioned precisely 4 mm from the front edge of the cabinet. This will only have to be printed once.
Assembly:

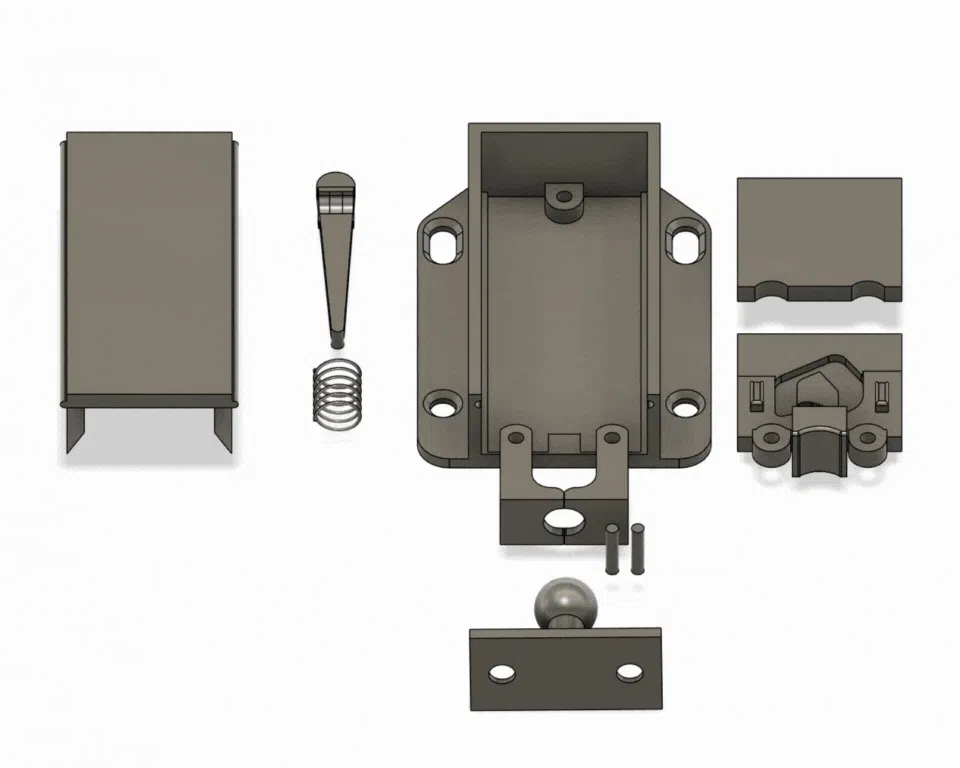

Included as a gif in model pictures
