Dewalt Slab Flattening Jig on 20UU Bearings
Print Profile(1)
Description

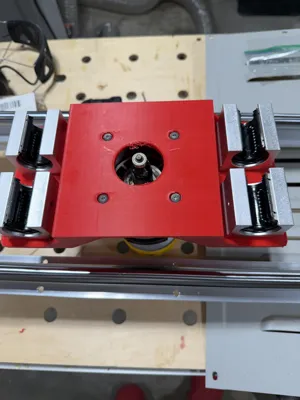

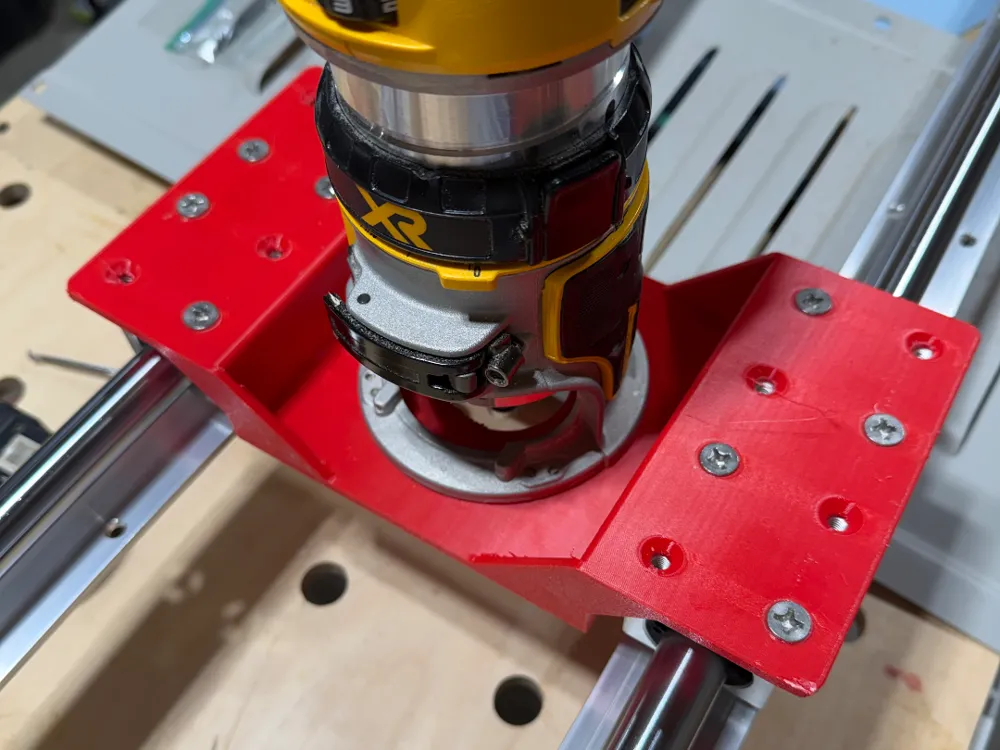

Router sled for the cordless dewalt trim router and four 20uu pillow block bearings.
Bearings have 35mm on center holes for reference.
Sled - printed as a solid part
Sled Riser - optional depending on your slab thickness/setup. 15mm thick

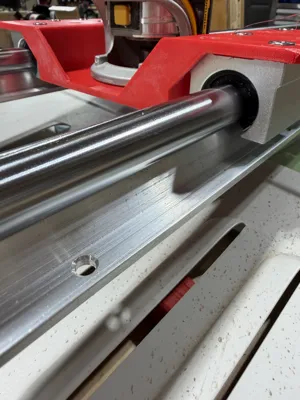

Sled Stiffener - rails that stretch across the sled and you secure them in place with the bearing screws. Provides great strength for zero deflection.
Rail Stiffener - 20mm rod, slips on the end of the rails in order to help prevent binding/racking on longer setups.
It's basically printed as a solid part, I used petg-cf. The support blocks are standard infill though.
Links for parts:
SBR Rails - purchase them in any length you desire based upon the size of flattening you need.
This remix is based on
