Rocket Socket (Hex Sockets) With Stand

IP Report

Print Profile(1)

All
P1S
X1
H2D
H2S
H2C
X1E
P2S
X1 Carbon
A1 mini
H2D Pro
A1
P1P
X2D
A2L

0.2mm layer, 6 walls, 25% infill
0.2mm layer, 6 walls, 25% infill
Designer
5.2 h
2 plates
4.9(27)

Open in Bambu Studio
Boost
106
315
43
26
421
280
Released

Description

Boost Me (for free)

If you like my work, boost me for more!

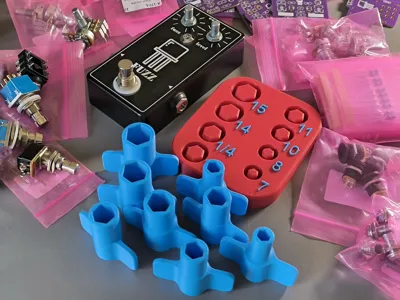

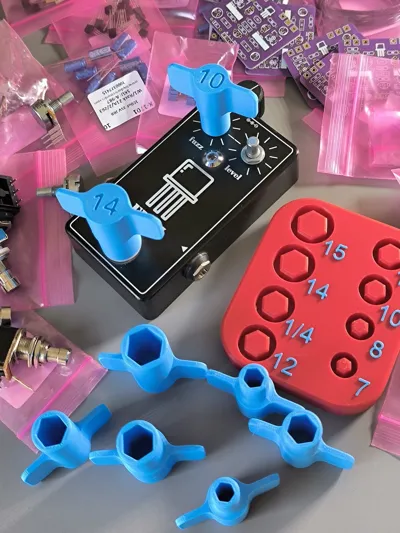

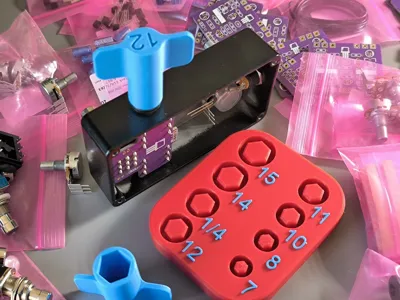

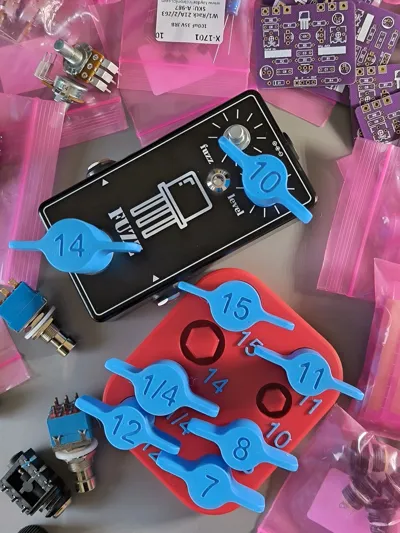

These Hex Socket Tool set designed base on "Socket Rocket" features sturdy nut drivers designed for tightening hardware on pedals, guitars, amps, and a wide range of electronics projects.
These sockets are gentle on metal parts and won’t scratch hardware, though care is recommended when working near painted or delicate finishes. Each driver includes a comfortable, winged grip for excellent control and ergonomic torque.

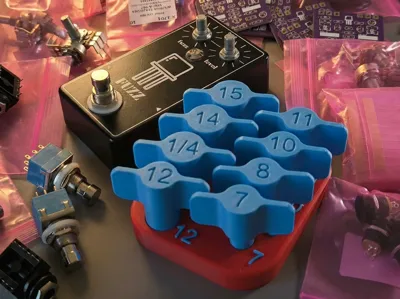

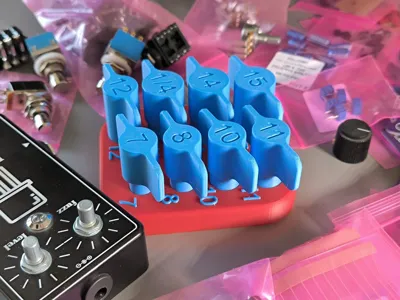

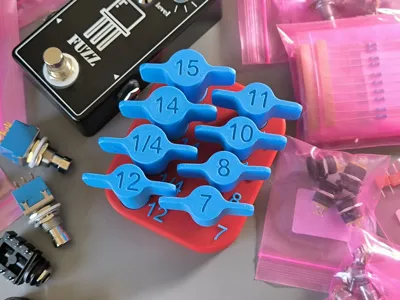

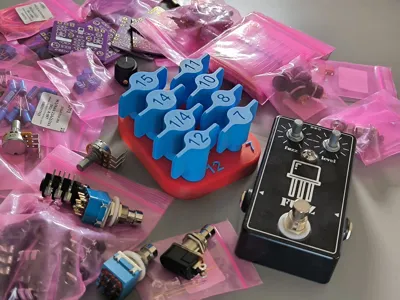

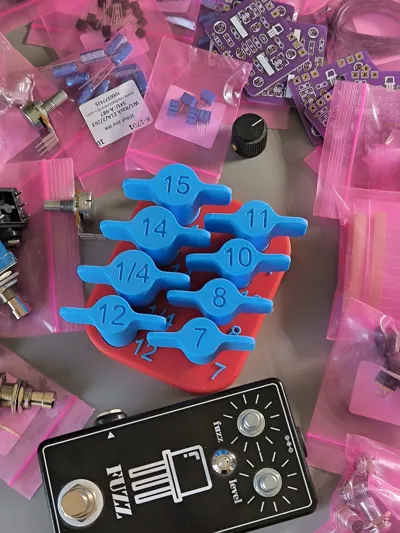

The set also includes a dedicated stand, keeping all sockets neatly organized and within easy reach on your bench.

Set Includes 8 Common Sizes

7 mm – Sub-miniature toggle switches

8 mm – Miniature toggle switches

10 mm – Most potentiometers

11 mm – Some enclosed and barrel-nut 6.35 mm (1/4") jacks

12 mm – Some enclosed-style 6.35 mm (1/4") jacks

1/2" – Most open-frame 6.35 mm (1/4") jacks

14 mm – 3PDT footswitches and DC jacks

15 mm – Various footswitches and DC jacks

Comment & Rating (43)

(0/1000)

Excellent design. I use hundreds of sub-miniature toggle switches a year and this is way faster that using your fingers to start that nut. I added a ring to block the nut from going any deeper than the open end of the socket.
The designer has replied
2
Reply
Tnx! I love your remix!
0
Reply
made mine out of green/white PLA for the sockets and orange PLA for the base. these came out great! thanks for sharing
The designer has replied
1
Reply
Looking great! Hope they will serve you well!
0
Reply
Thanks for your effort! Correct me if I'm wrong, but isn't the nut labeled “1/4” not actually a “1/2” nut?
The designer has replied
1
Reply
I believe you're right. 😅
0
Reply
Replying to @jikulec :
glad to help ;-)
1
Reply
1/4, or 1/2 not included in the stl's. Only if you download the direct files for the bambu printer.
The designer has replied
1
Reply
Hey, thanks for letting me know. I figured out why that happened... the object 1/4 had a “/” (slash) in its name, which isn’t allowed in file names, so it couldn’t be generated. It’s now called 1-4, and it downloads correctly like the rest. Sorry for the inconvenience.
(Edited)
0
Reply
Excellent work! My printed set isn't nearly as nice as these, and I appreciate you taking the time!
The designer has replied
1
Reply
Thank you, I am glad you like it! I always tend to design useful things.
0
Reply
printed perfect in pla, sturdy enough to loosen any bolt
1
Reply
Print Profile
0.2mm layer, 6 walls, 25% infill
perfect print. printed in pla but it seems strong enough for working on guitar pedals.
profile
1
Reply
Print Profile
0.2mm layer, 6 walls, 25% infill
needed a 7mm socket to change the cabin filter ony car, worked perfectly 👌
profile
1
Reply
Print Profile
0.2mm layer, 6 walls, 25% infill
even in petg it still slipped on the nut
profile
1
Reply
Boosted
Print Profile
0.2mm layer, 6 walls, 25% infill
Saved me from buying a special tool. I needed to tighten nuts from a metal shelf. I had to use the 15mm and oversize it to make it work for 17mm as I needed.
profile
1
Reply
