RC - Supercharger KIT | Scale, 1:8 - 1:10 - 1:12

Supercharger / Air Intake / Exhaust Kit - for RC Vehicle size 1:8 - 1:10 and 1:12

• This kit offers 13 plates,
  4 - plates for 1:10 and 1:12 scales

  5 - plates for 1:8 scale

  This kit is fully modular, the air intakes can be interchanged as well as the exhaust pipes




• Important points, Tips, tricks and materials.


  - Print in PLA Tough+ offering better strength, heat resistance and less brittle than Classic PLA

  - This model does not require strong glue

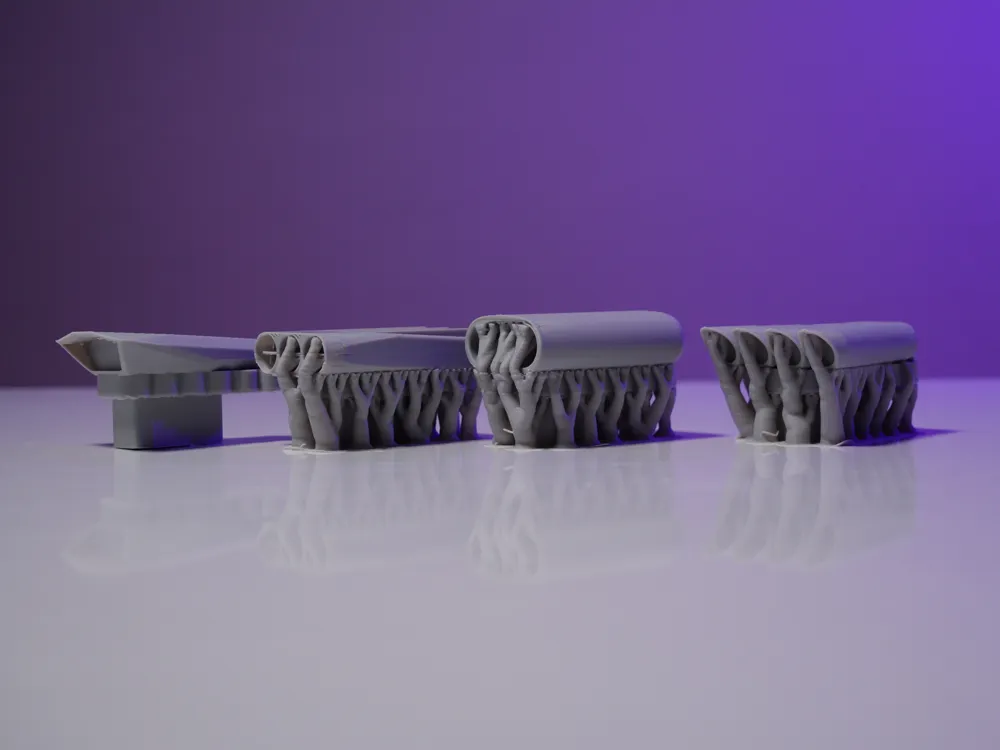

  - (Supports printed in PLA Tough+)
  It may be recommended to print with a dedicated support filament to remove supports more easily.

  - Each part was printed on an A1 mini with a 3D effect plate - Carbon Fiber, You can use a Textured PEI plate but for easier removal, use a Smooth PEI plate


• You will need the following in this complete kit:

  x1 : Precision cutter
  x11 : M3 domed head screws Ø 3x6 mm
  x1 : 3 mm metal drill bit to make holes in the various car bodies



• Each print plate has been renamed to categorize the different scales more easily for understanding
  I have also added various colors to better guide the user



• You can complete this kit with 👉 Spoiler Kit

  ⚠️Please print only the parts you need, if it's for 1:10, do not print the rest




• 👇read carefully



  Various configurations :

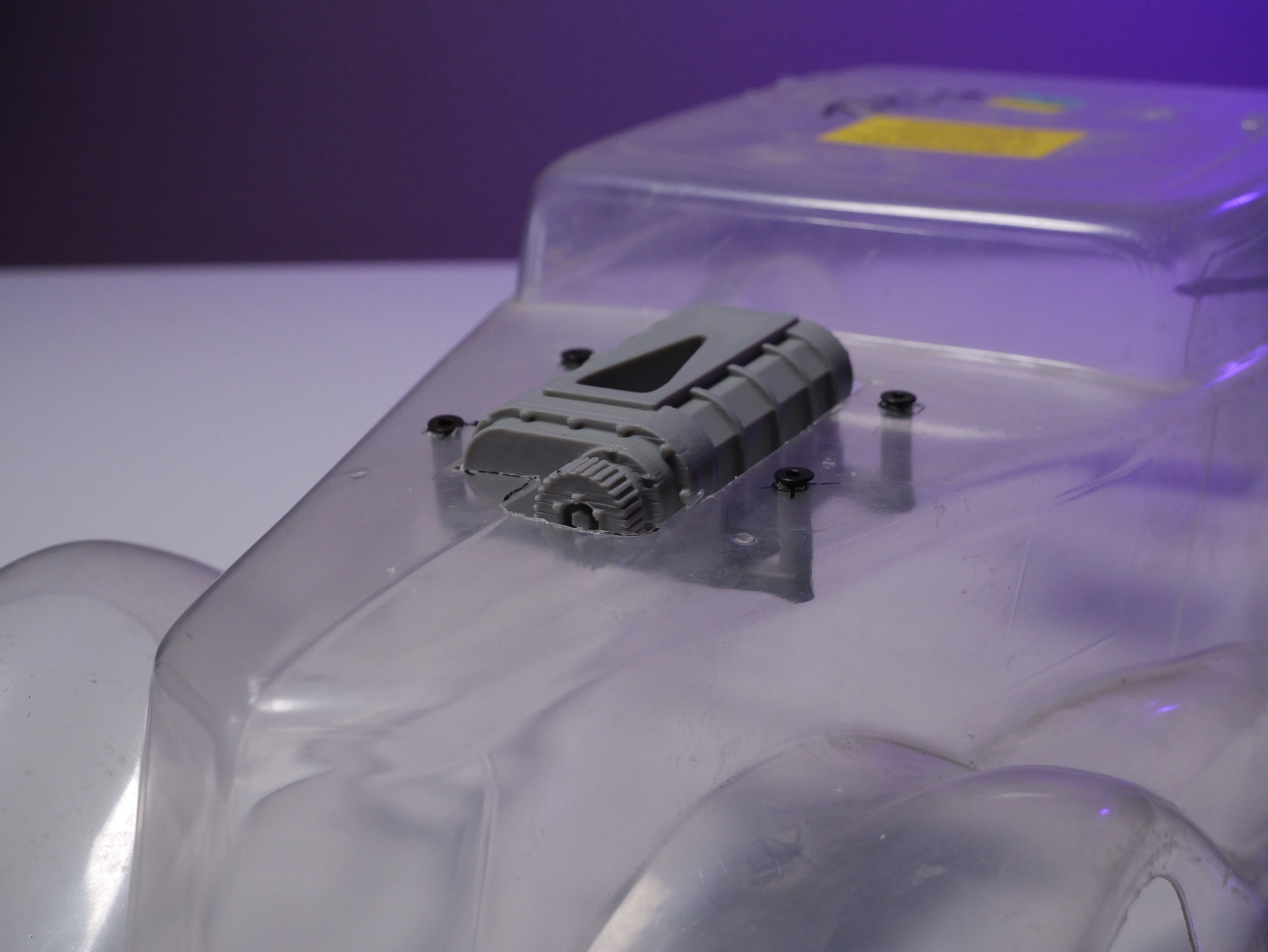

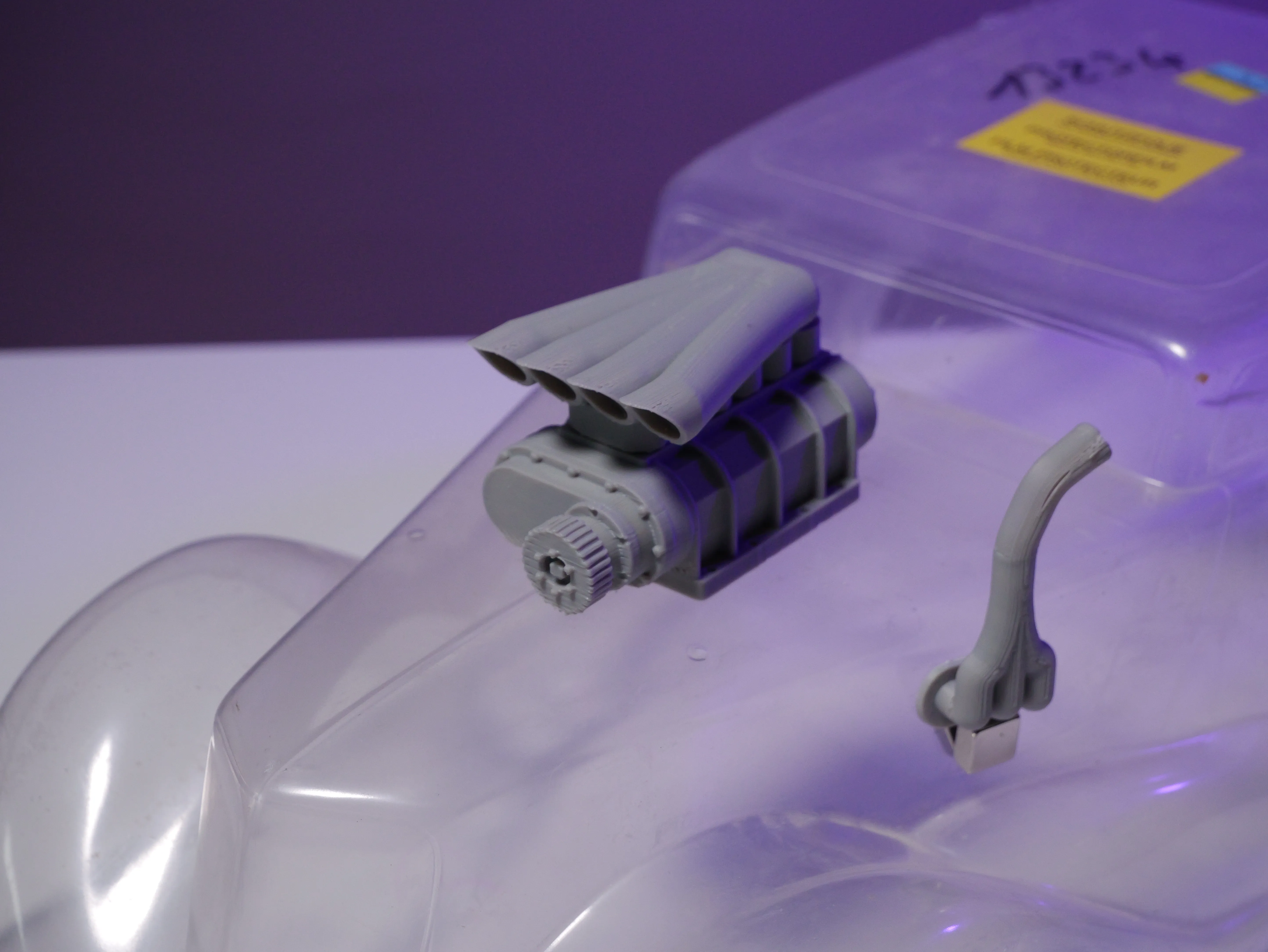

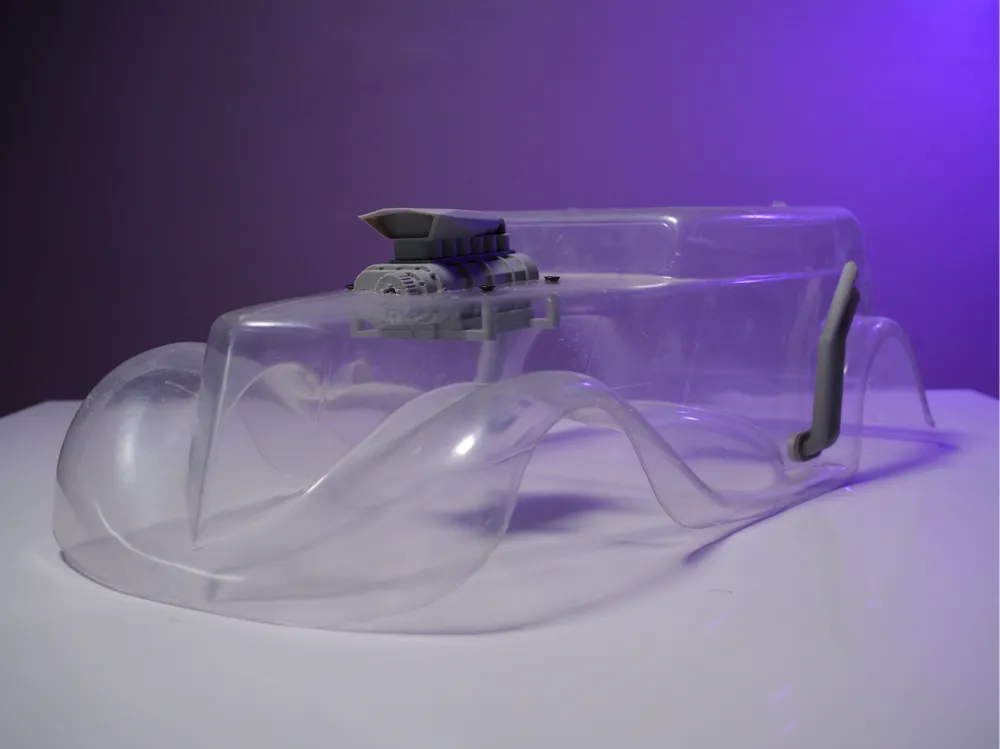

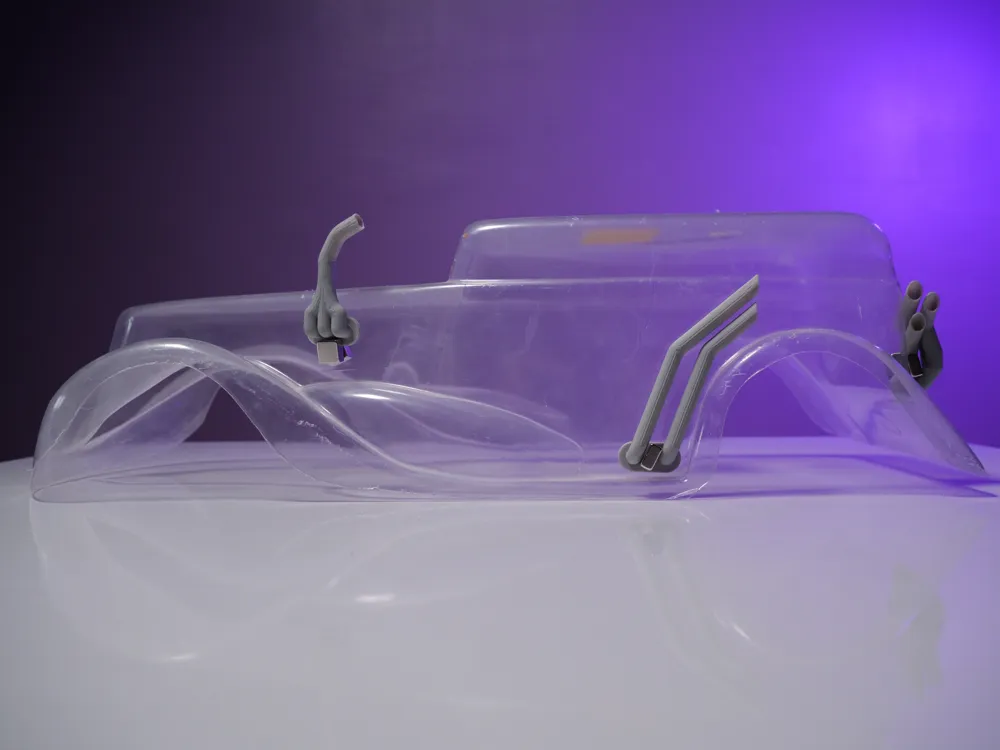

  Configuration 1 : Supercharger fixed on the car body

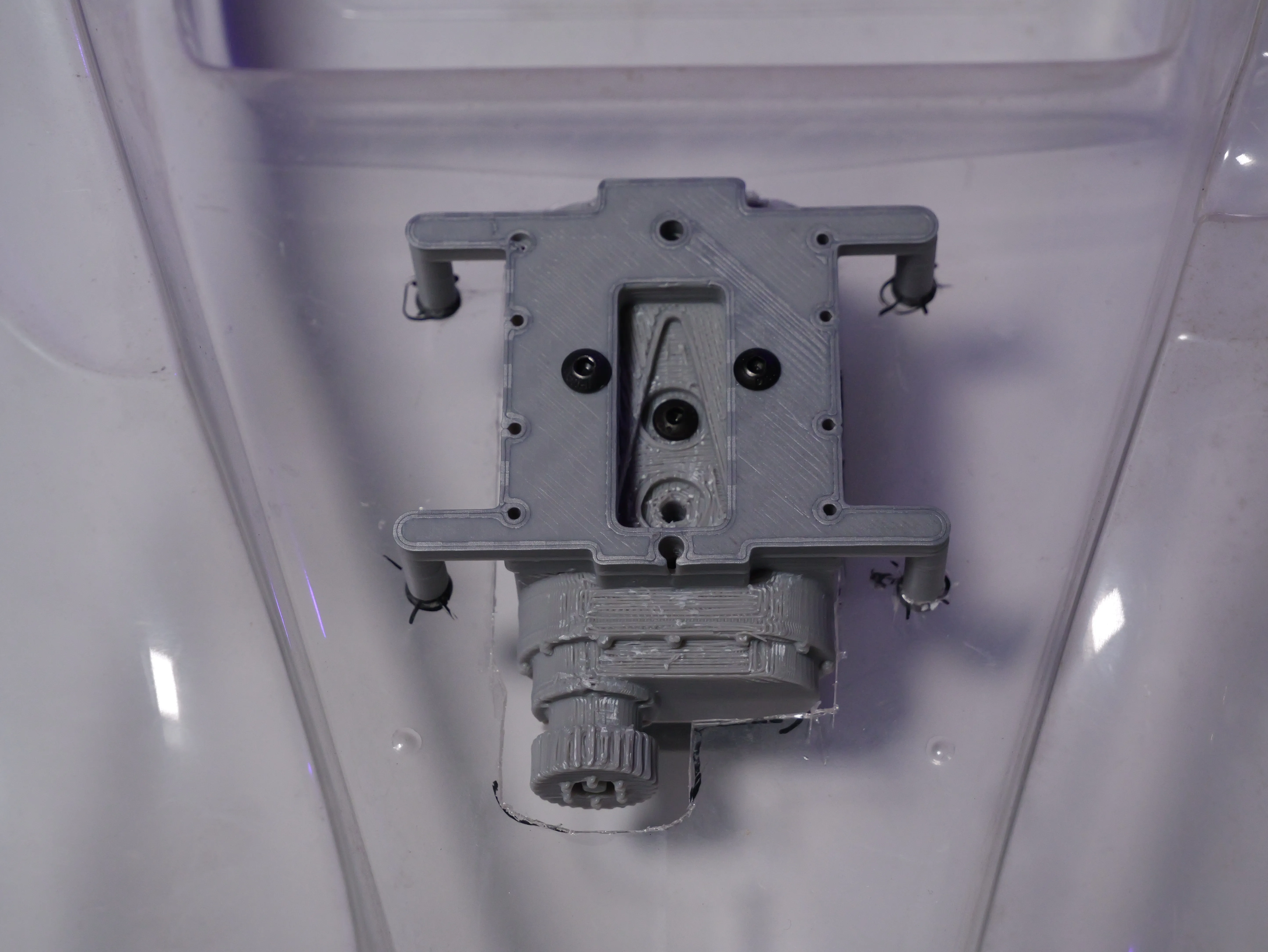

  Configuration 2 : Supercharger, fixed on the dedicated support, then fixed under the car body



  PS : only one screw is needed to fix the air intake on the Supercharger






  Plates - 1 to 4, 1:12 scale

  ⚠️If you start with a 1:12 model. printing plates 5 to 8 and plates 9 to 13 is not necessary.

  Plate - 1

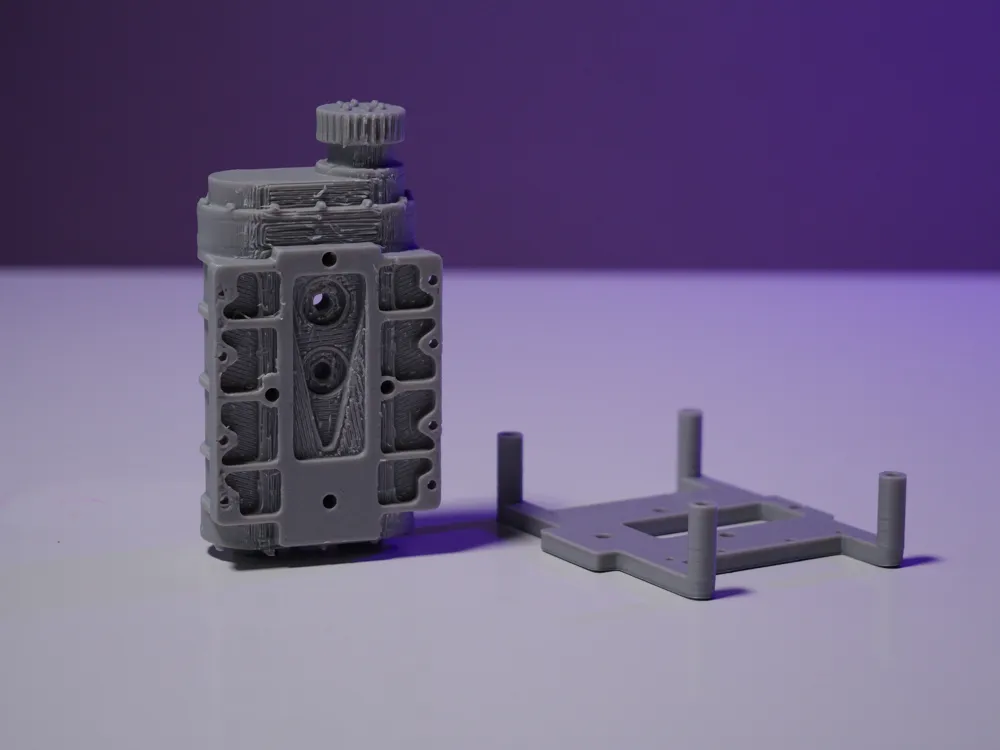

  x1 : Supercharger at 1:12 scale

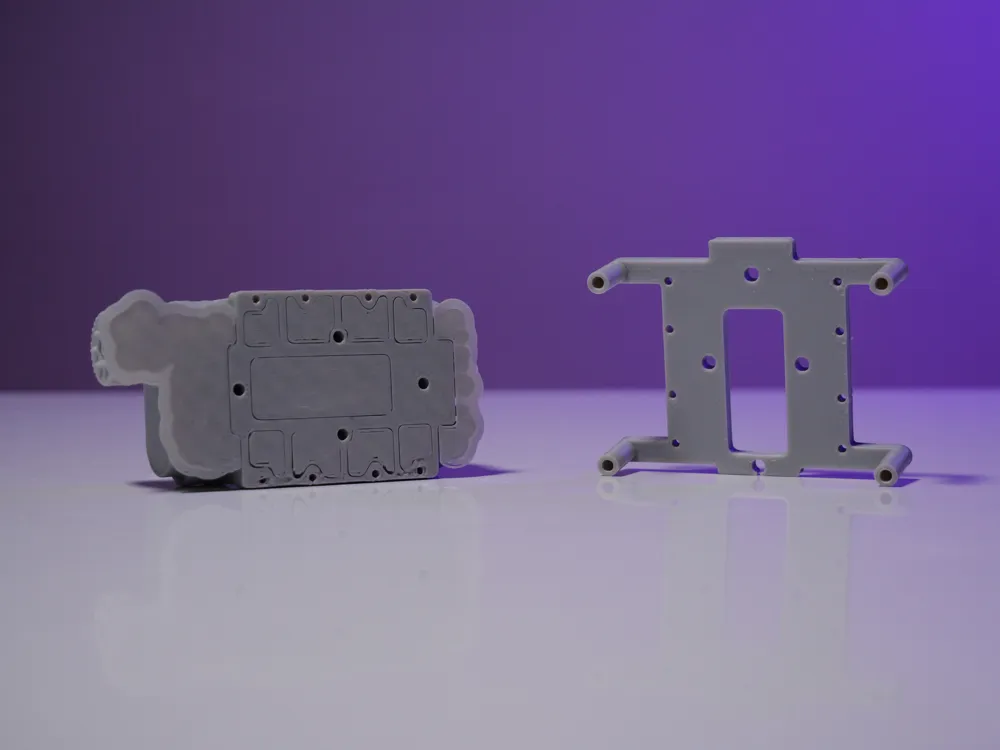

  x1 : Supercharger support at 1:12 scale

  Plate - 2

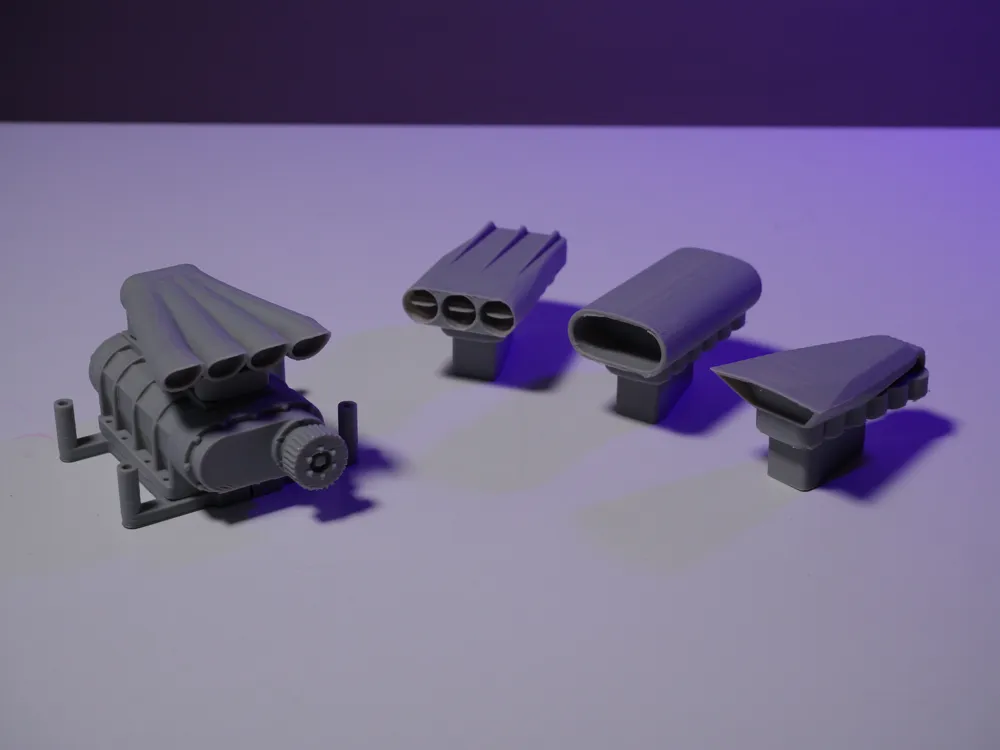

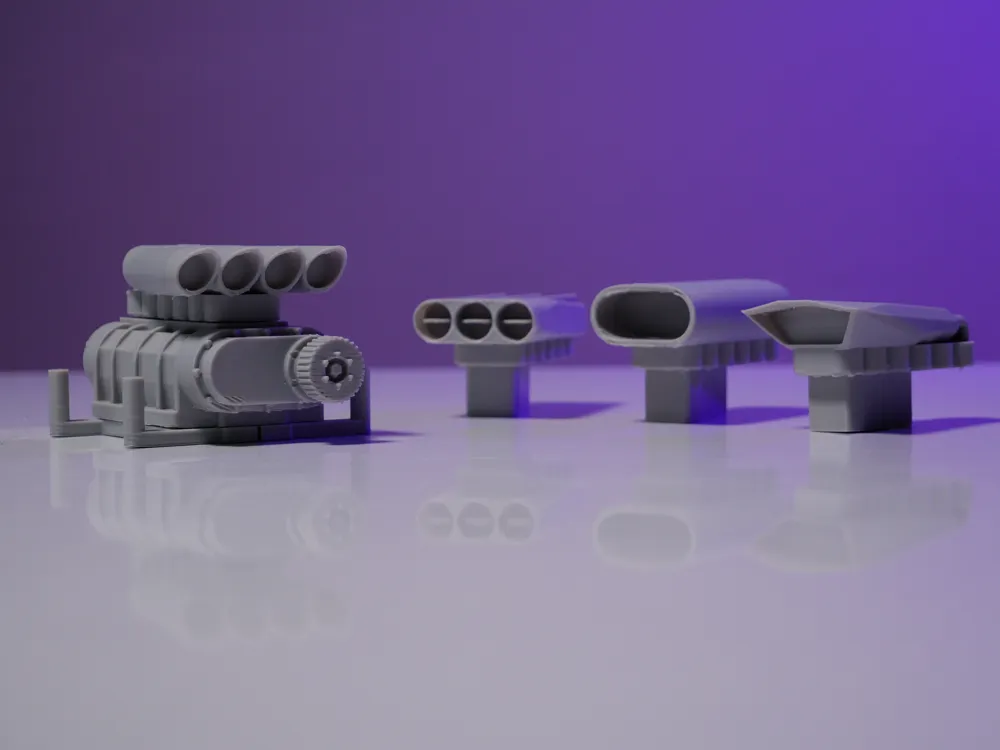

  x4 : Air intake at 1:12 scale
  Four different looks

  Plate - 3

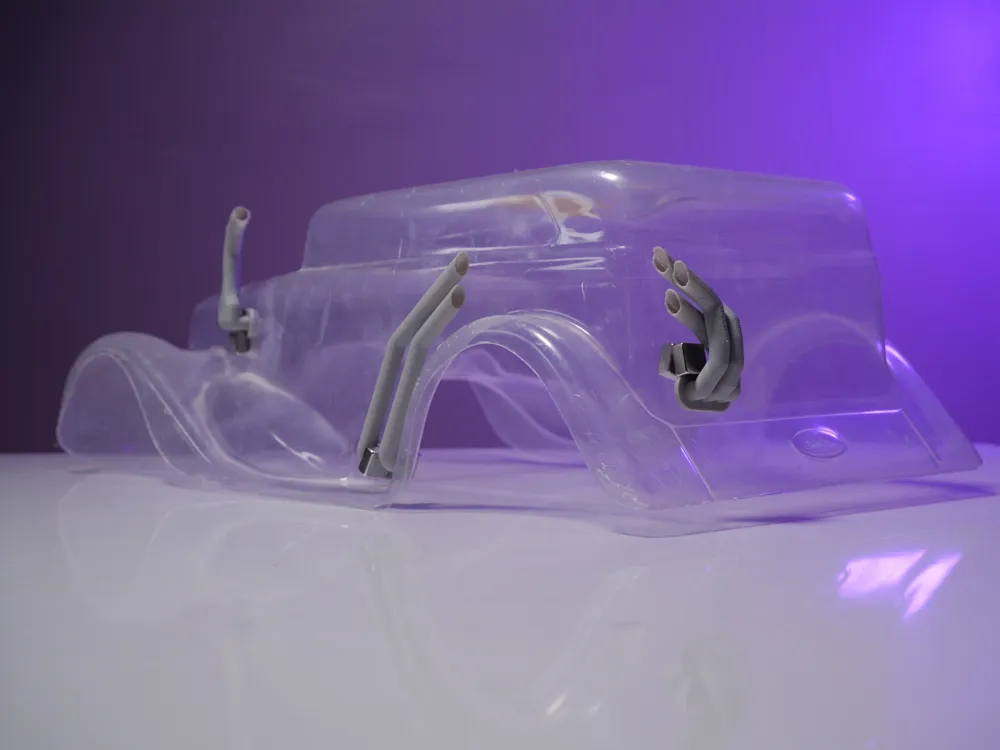

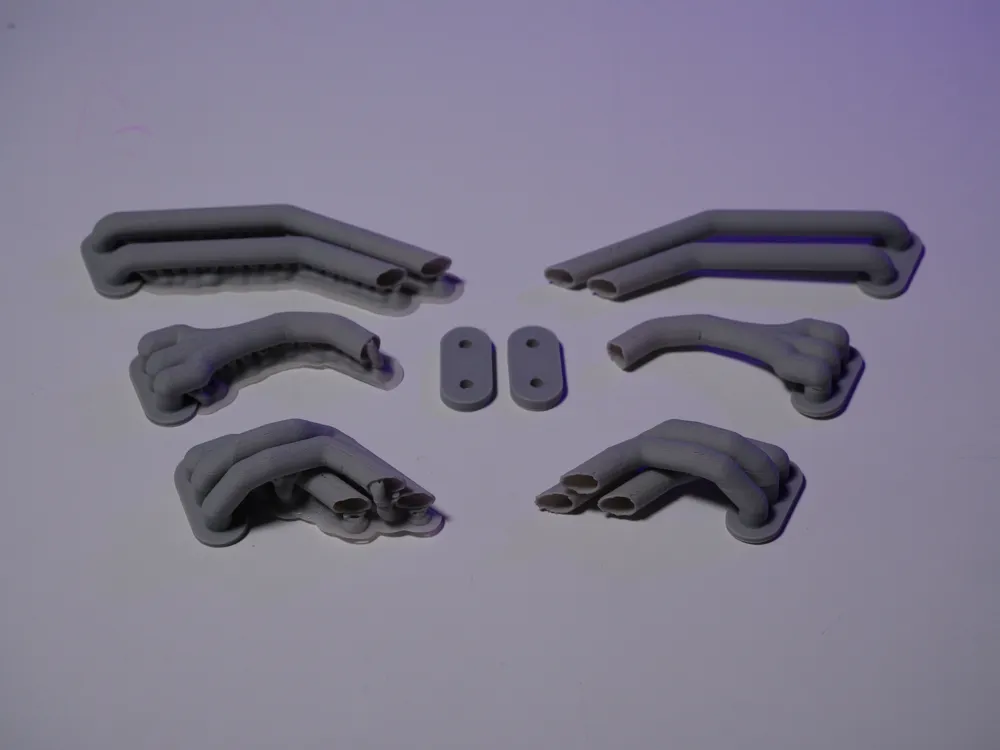

  x1 : 3-outlet exhaust pipe in 1 Left 1:12
  x1 : 3-outlet exhaust pipe in 1 Right 1:12

  x2 : Exhaust pipe mounting support 1:12

  Plate - 4

  x1 : 2-outlet exhaust pipe Left 1:12
  x1 : 2-outlet exhaust pipe Right 1:12
  x1 : 3-outlet exhaust pipe Left 1:12
  x1 : 3-outlet exhaust pipe  Right 1:12





  Plates - 5 to 8, 1:10 scale

  ⚠️If you start with a 1:10 model. printing plates 1 to 4 and plates 9 to 13 is not necessary.

  Plate - 5
  x1 : Supercharger at 1:10 scale
  x1 : Supercharger support at 1:10 scale

  Plate - 6
  x4 : Air intake at 1:10 scale
  Four different looks

  Plate - 7
  x1 : 3-outlet exhaust pipe in 1 Left 1:10
  x1 : 3-outlet exhaust pipe in 1 Right 1:10

  x2 : Exhaust pipe mounting support 1:10

  Plate - 8

  x1 : 2-outlet exhaust pipe Left 1:10
  x1 : 2-outlet exhaust pipe Right 1:10
  x1 : 3-outlet exhaust pipe Left 1:10
  x1 : 3-outlet exhaust pipe  Right 1:10


  Plates - 9 to 13, 1:8 scale

  ⚠️If you start with a 1:8 model. printing plates 1 to 4 and plates 5 to 8 is not necessary.

  Plate - 9
  x1 : Supercharger at 1:8 scale
  x1 : Supercharger support at 1:8 scale

  Plate - 10 and 11
  x4 : Air intake at 1:8 scale
  Four different looks

  Plate - 12
  x1 : 3-outlet exhaust pipe in 1 Left 1:8
  x1 : 3-outlet exhaust pipe in 1 Right 1:8

  x2 : Exhaust pipe mounting support 1:8

  Plate - 13

  x1 : 2-outlet exhaust pipe Left 1:8
  x1 : 2-outlet exhaust pipe Right 1:8
  x1 : 3-outlet exhaust pipe Left 1:8
  x1 : 3-outlet exhaust pipe  Right 1:8



  ⚠️let the plate cool down before detaching the 3D parts⚠️
