Pavo20 Pro Battery Lock System & Landing Gear
Print Profile(1)
Description
Boost Me (for free)
Find this useful? A Boost is greatly appreciated and helps support future designs!

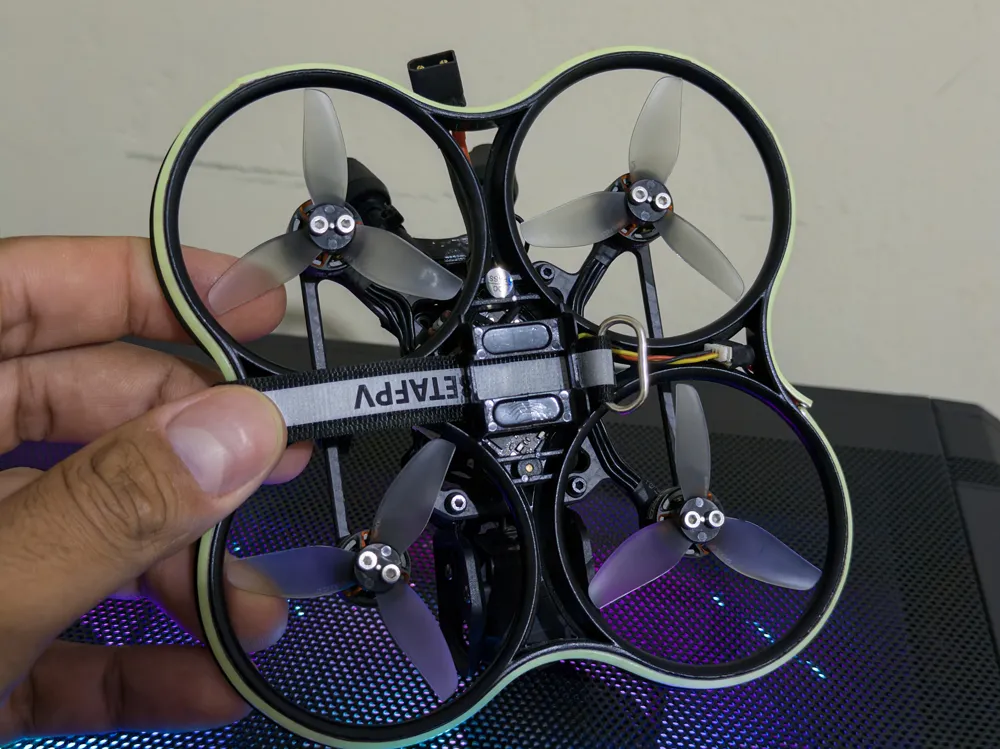

Summary: A dedicated "Snap-on" upgrade for the BetaFPV Pavo20 Pro. This system replaces the unreliable stock foam pad with a mechanical interlocking mount that keeps your Lava 3S 550mAh battery perfectly centered, secure, and level.

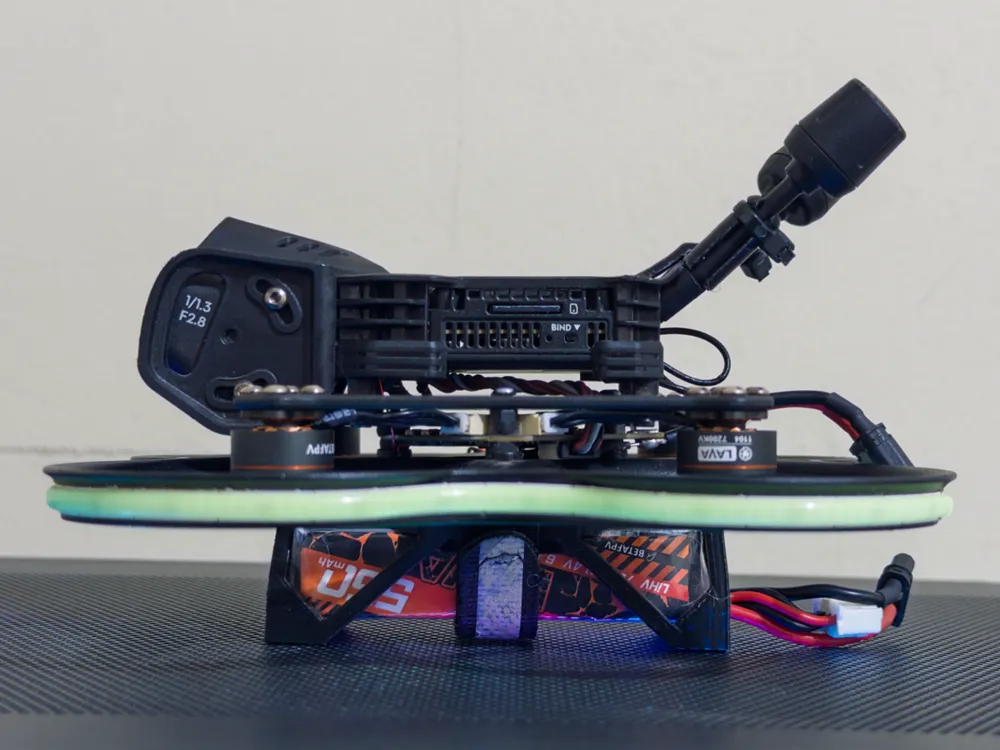

Why you need this for your Pavo20 Pro: The stock foam pad on the Pavo20 Pro is slippery, and the drone often sits unevenly on the ground. This mod solves both problems giving you a flat, stable surface for takeoffs.
The System (2 Parts):

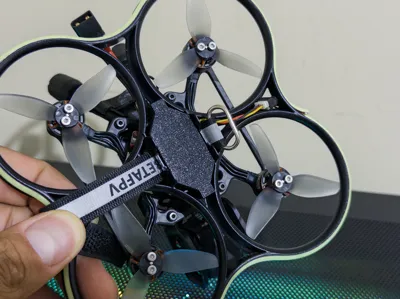

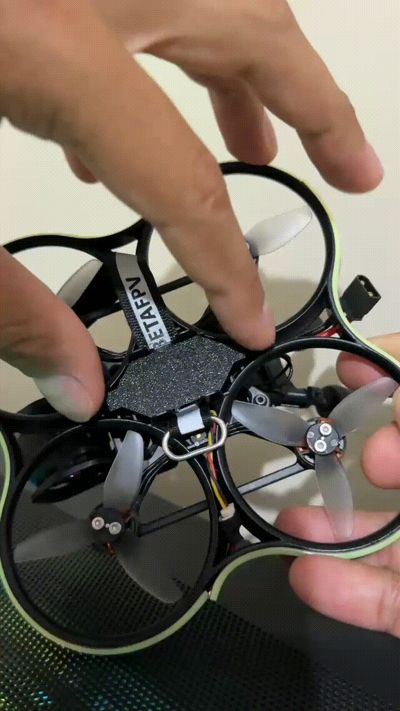

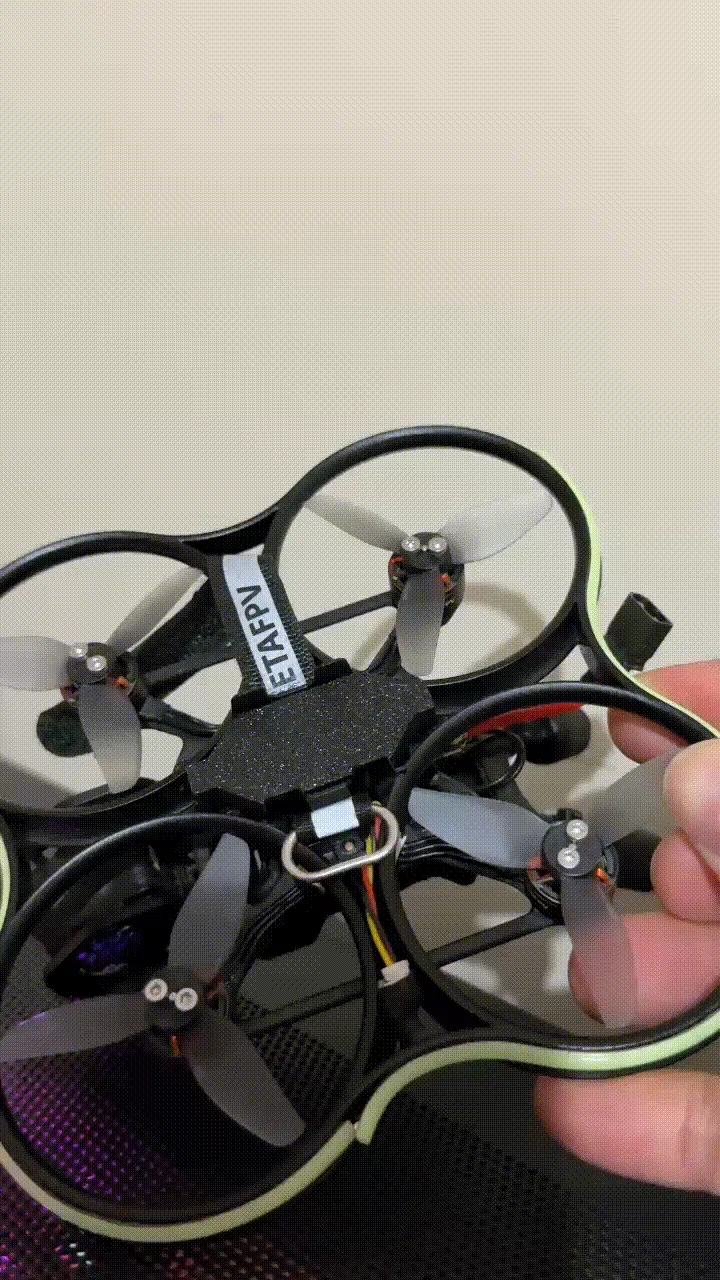

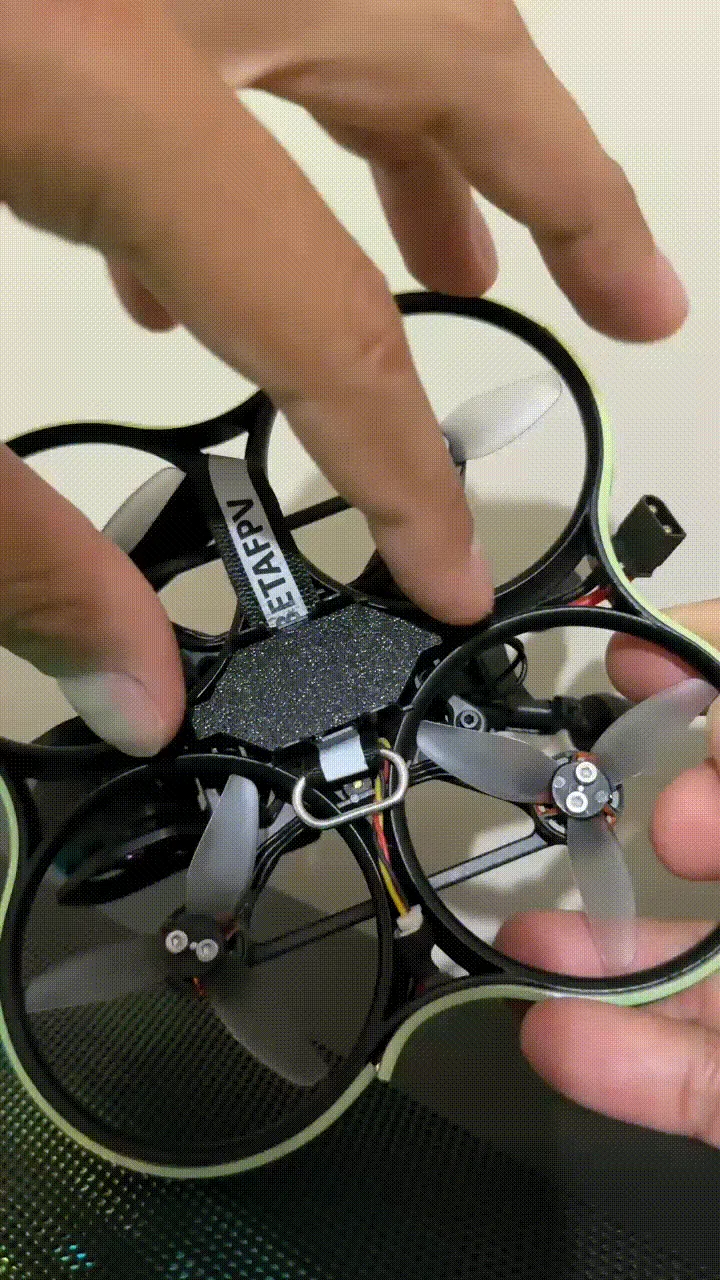

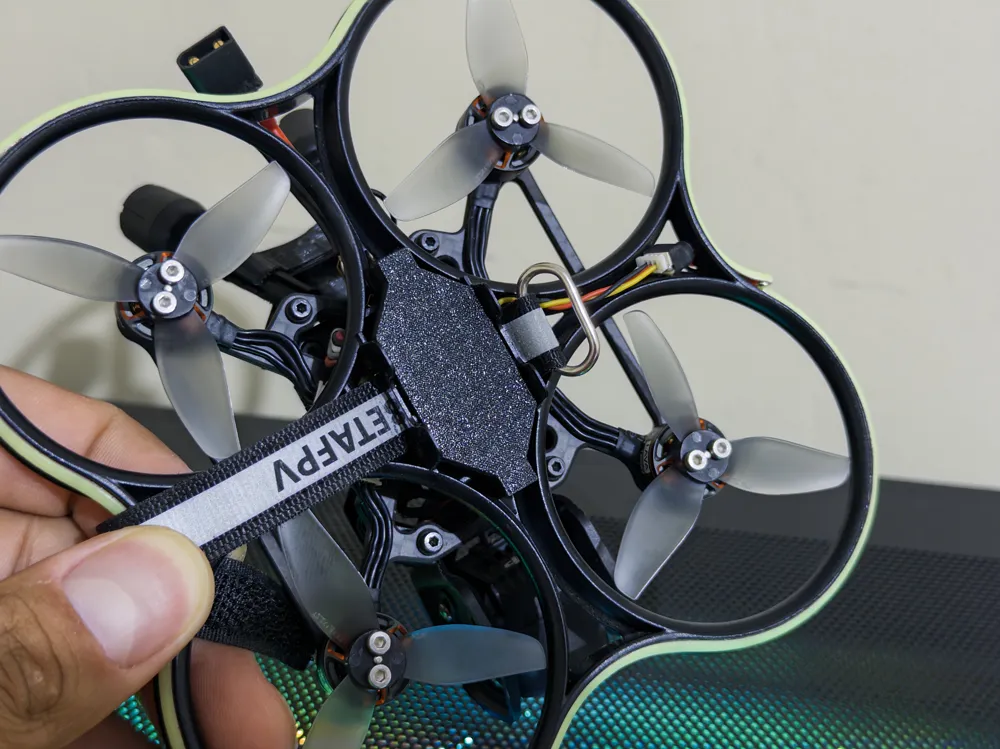

- Frame Mount: Designed specifically to fit the Pavo20 Pro frame geometry without glue. It stays in place mechanically.

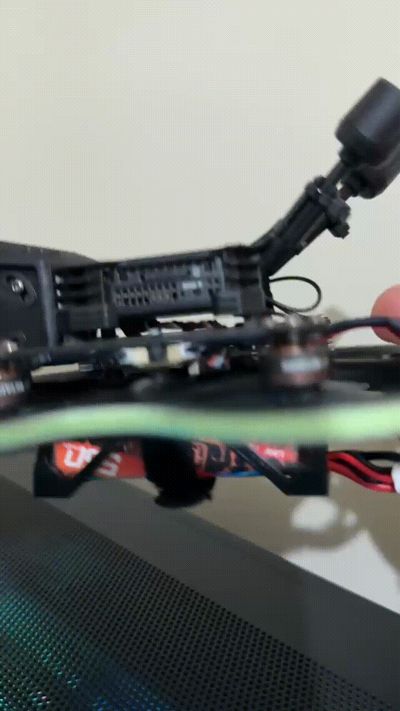

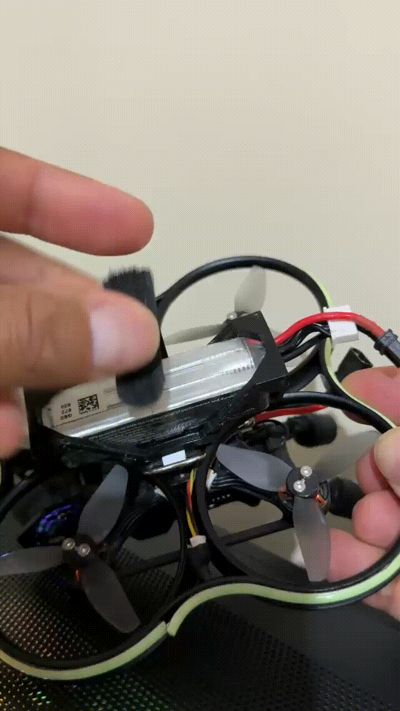

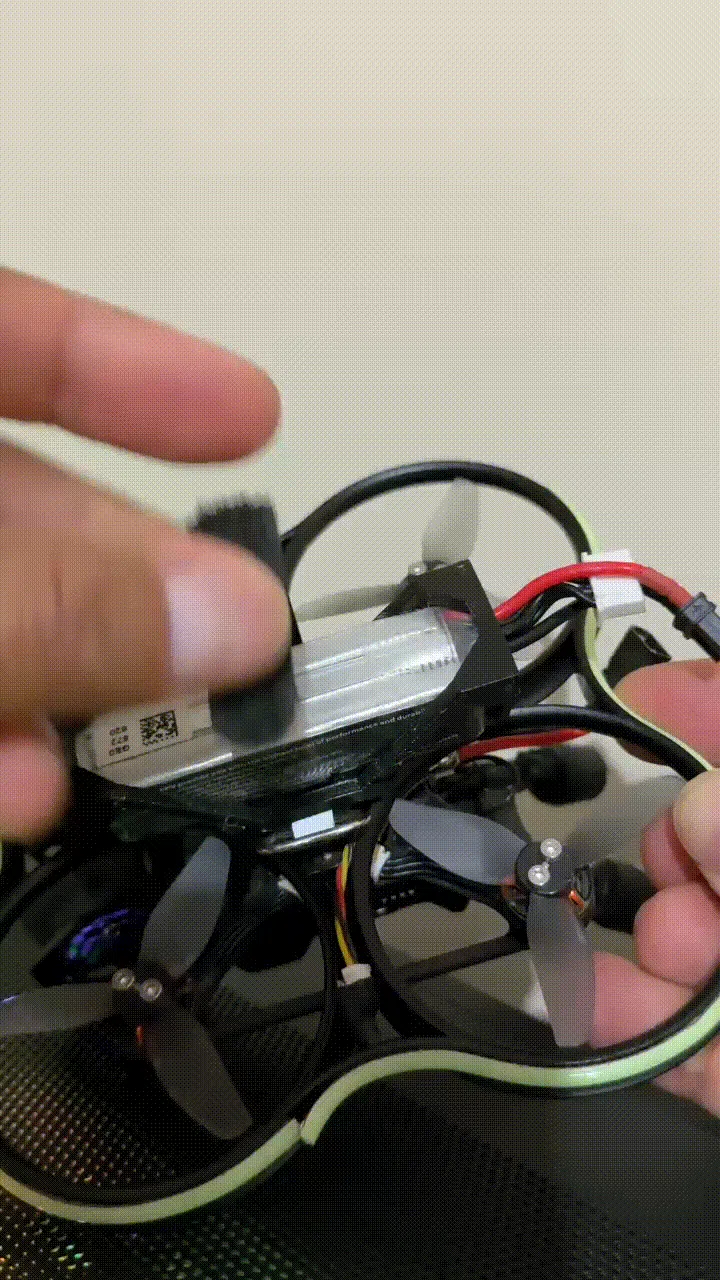

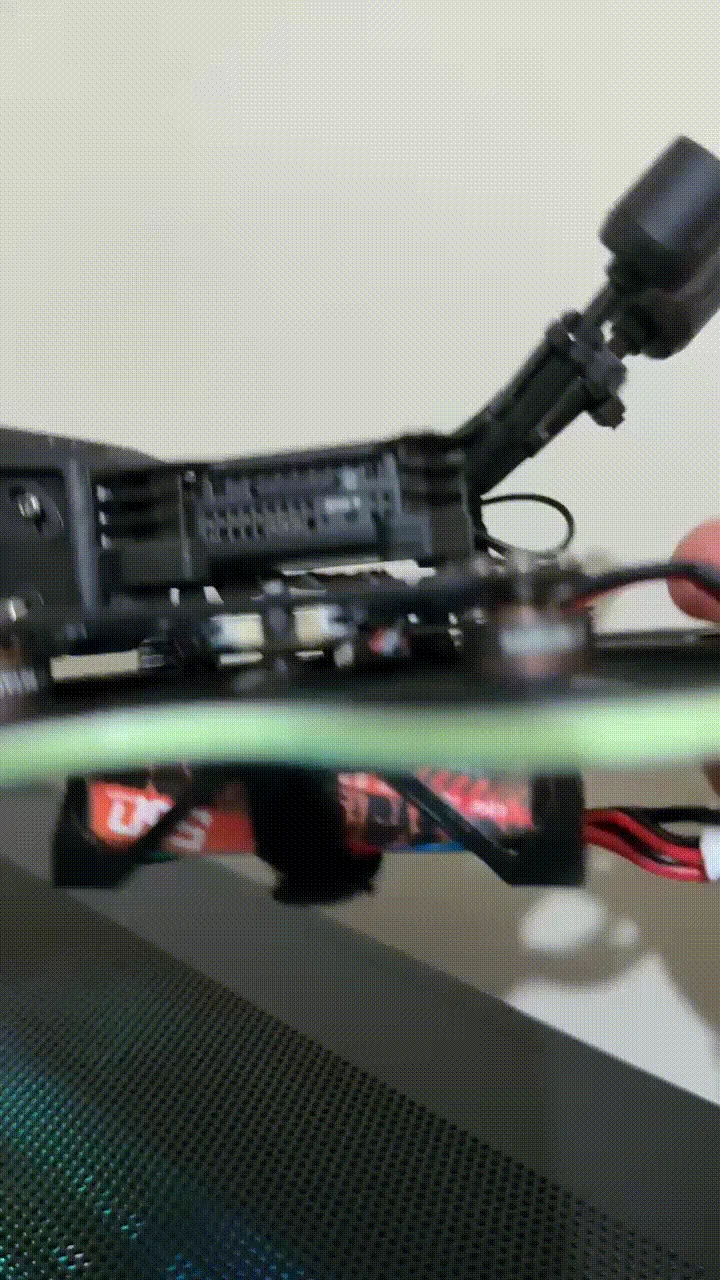

- Battery Armor: Clips onto your battery. It features integrated landing feet and interlocks with the frame mount.
Compatibility:
- Drone: BetaFPV Pavo20 Pro
- Target Battery: Lava 3S 550mAh
- Dimensions: Fits batteries with approximately 67mm (Length) x 20mm (Width) x 15.5mm (Height).
Print Settings (Tested on Bambu Lab A1):
- Material: TPU 95A (Required for flexibility and impact absorption).
- Layer Height: 0.2mm.
- Walls (Perimeters): 3 Walls (Essential for durability).
- Infill: 20% Grid.
- Supports: Tree Supports (Required).
