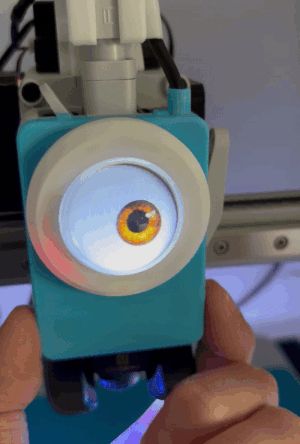

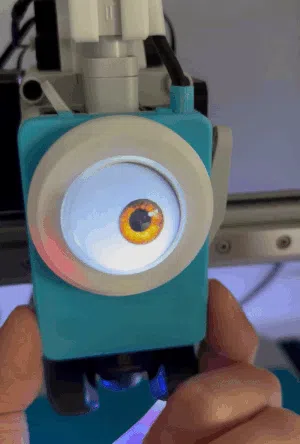

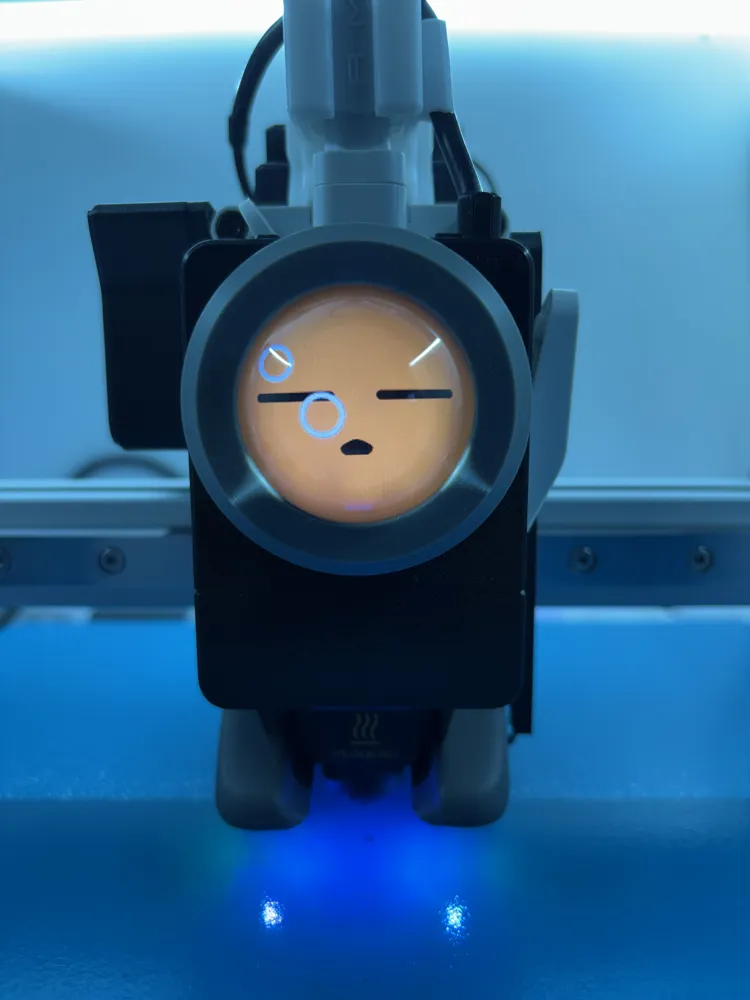

Panda KNOMI 3D Enclosure for A1 & A1mini Extruder

New extruder casing design for the PANDA KNOMI 3D or PANDA KNOMI V1 for A1 & A1 mini models

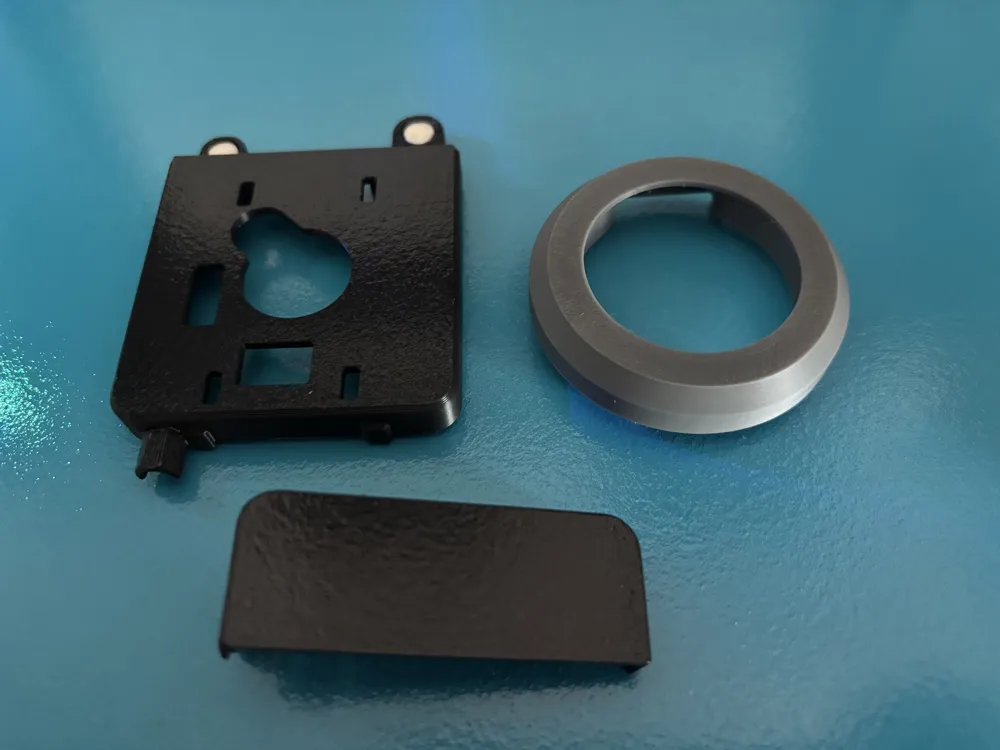

Designed in 2 parts to facilitate access to the nozzle with a magnetic lower cover

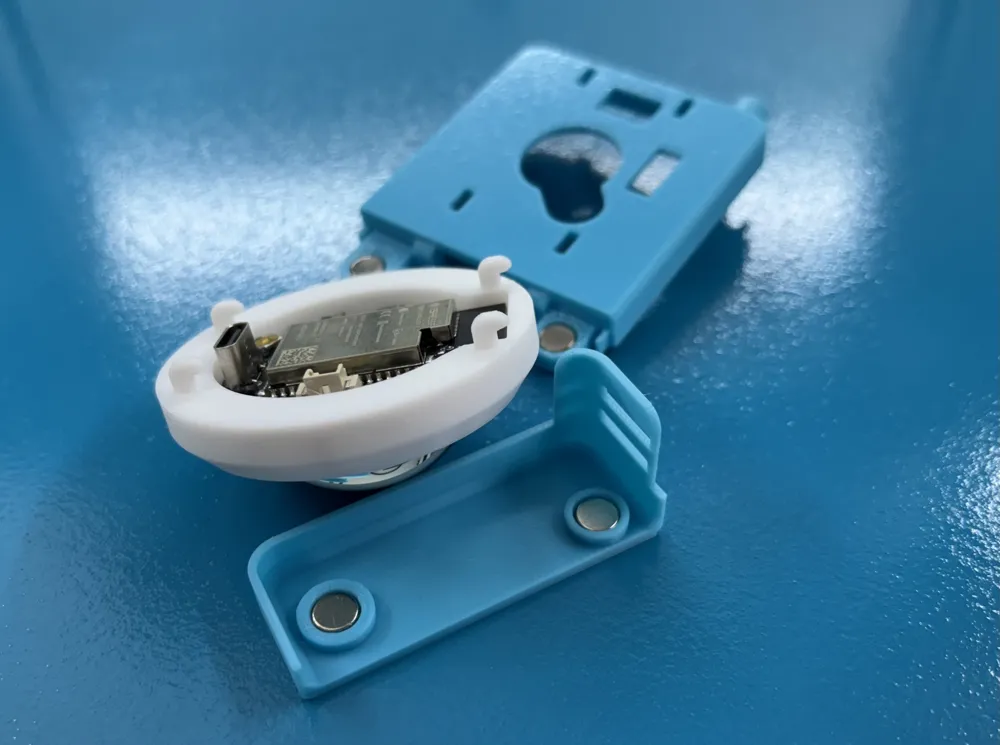

You will need to fix 4 small 6x3mm magnets in the designated slots. The cover's secure hold is thus fully ensured, especially during your prints

Model adjusted for A1 and A1 mini extruders

You have the choice between a screen holder for the PANDA KNOMI 3D (taking into account the insertion of the hemispherical lens) and a screen holder for the PANDA KNOMI Standard (V1)

When gluing the magnets, pay close attention to their orientation

Before installation: make sure to remove the original front face of your Bambu Lab extruder as well as its wheel

The fit is precise and does not require forcing the KNOMI screen into its holder

Depending on the quality of the filament used, it may be necessary in some cases to lightly deburr (with a cutter) the 4 attachment tabs of the window on the upper cover (do not force, at the risk of breaking a tab)

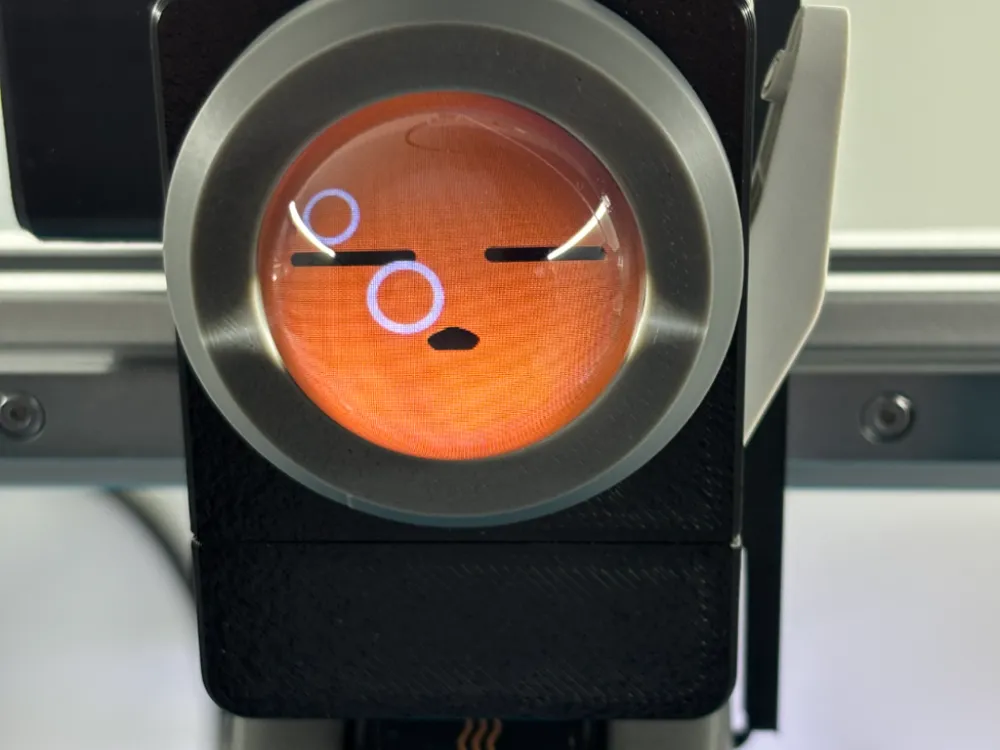

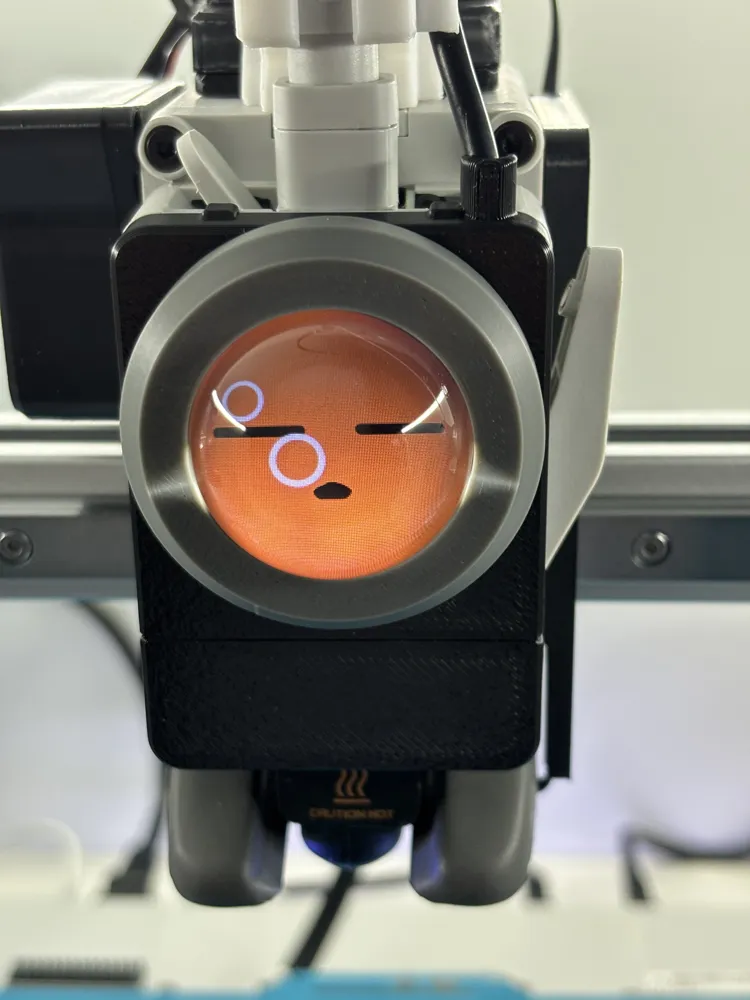

A refined model that will highlight your PANDA KNOMI screen while providing convenient access to your extruder's nozzle

Can be printed in PLA or PETG and in multiple colors (with or WITHOUT AMS)

Find other casing models for the PANDA KNOMI 3D on my profile or here:

Portable and adjustable holder:

Portable & Adjustable Panda Knomi 3D Casing Holder - Free 3D Printing Model - MakerWorld

Holder for A1 front screen:

Panda Knomi 3D Holder for Bambu A1 Front Screen - Free 3D Printing Model - MakerWorld

Happy printing,

Thank you for your support
