Samyang/Rokinon 135mm Lens Mount with Focuser
Print Profile(1)
Description
Samyang/Rokinon Cradle with Astro Focuser

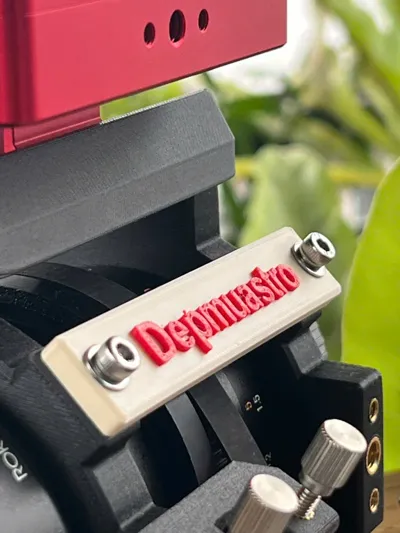

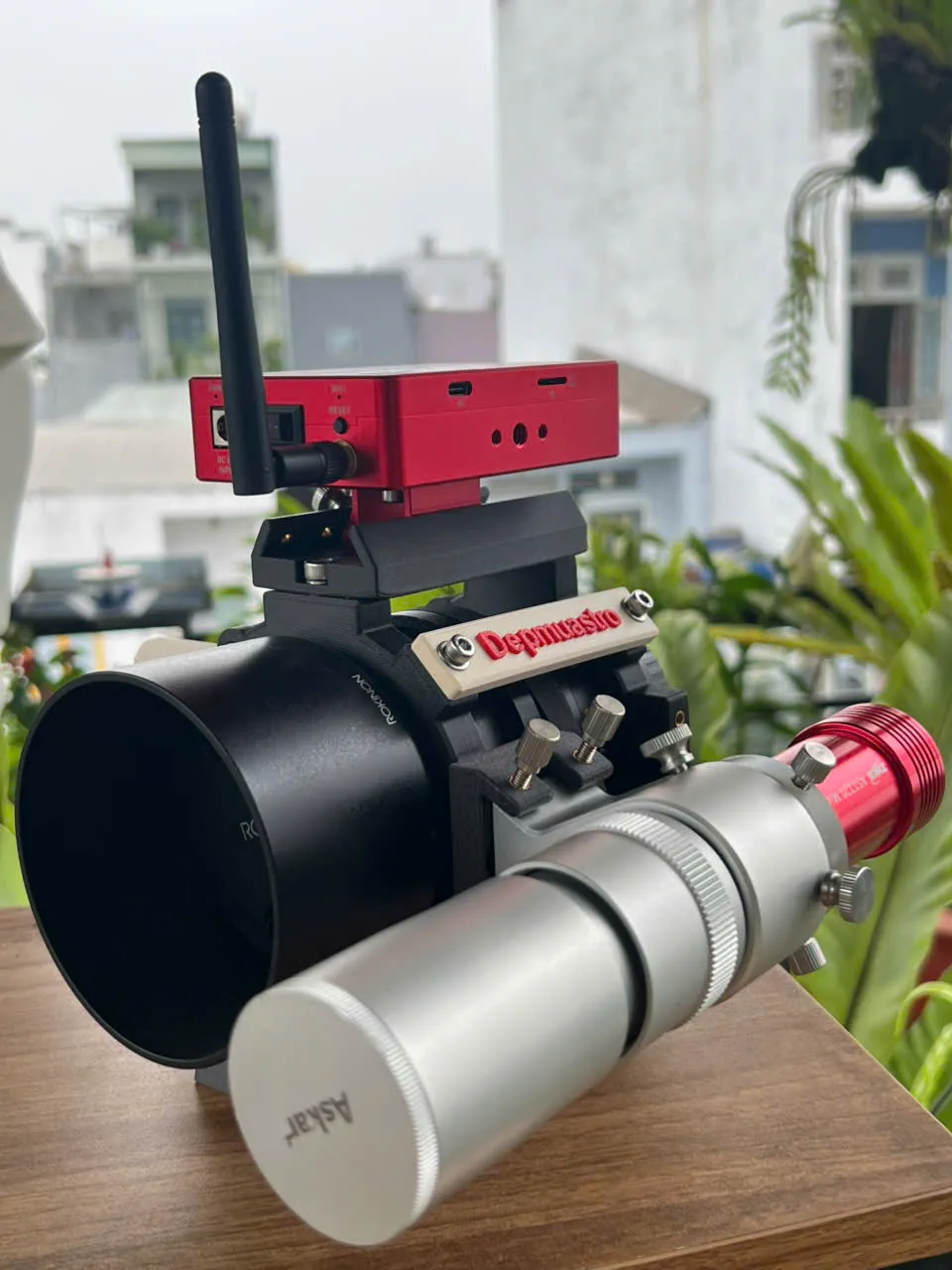

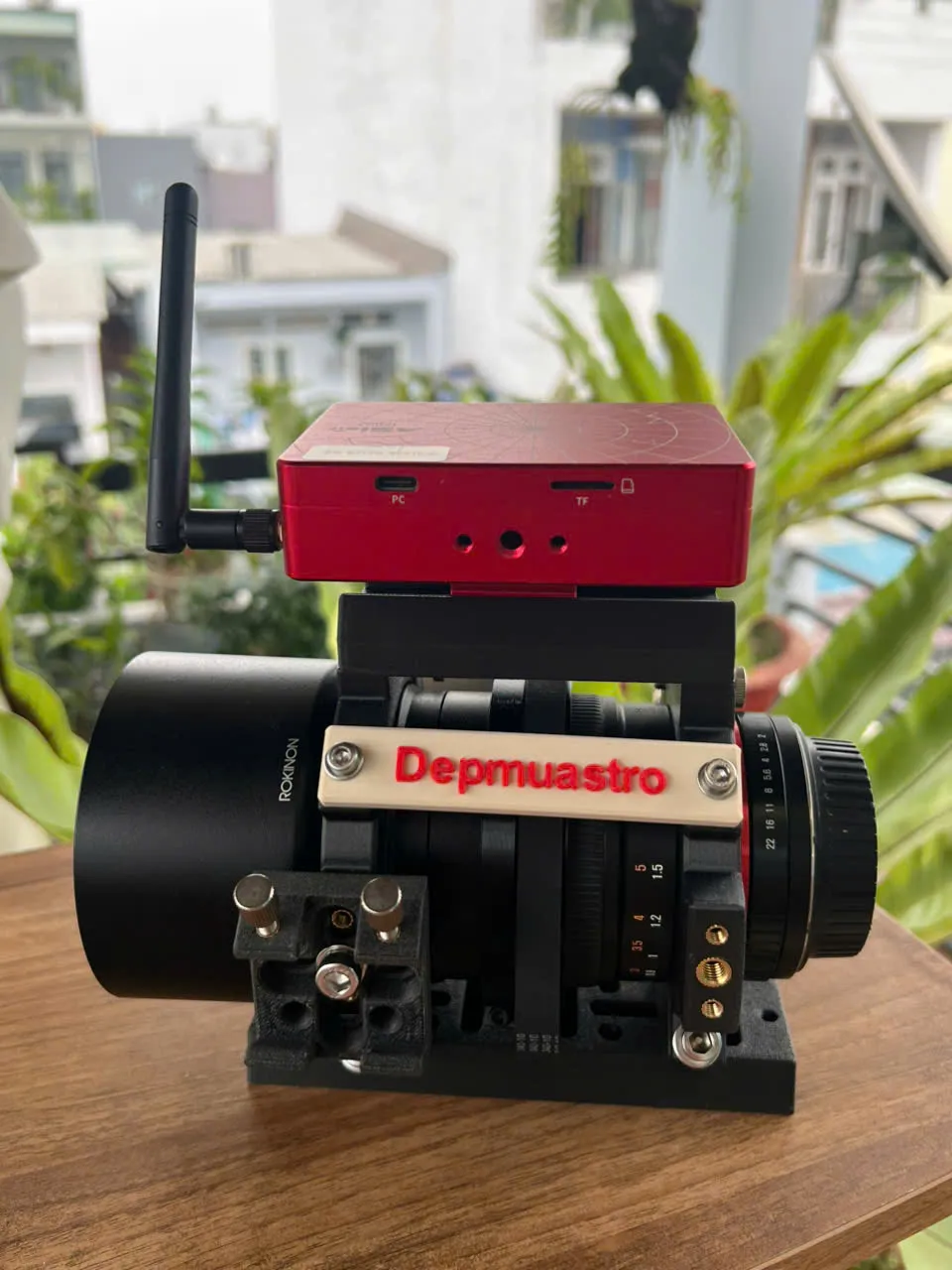

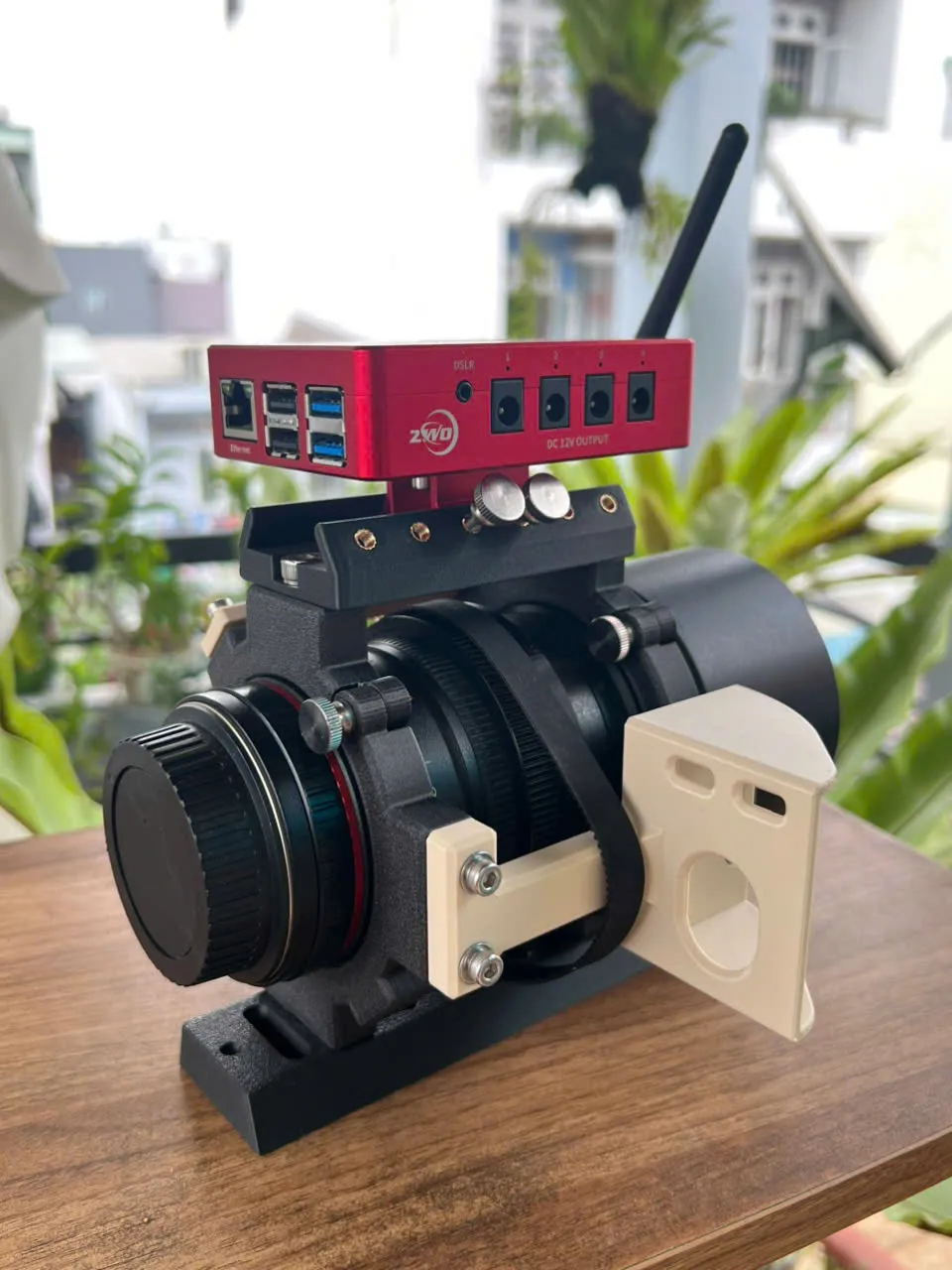

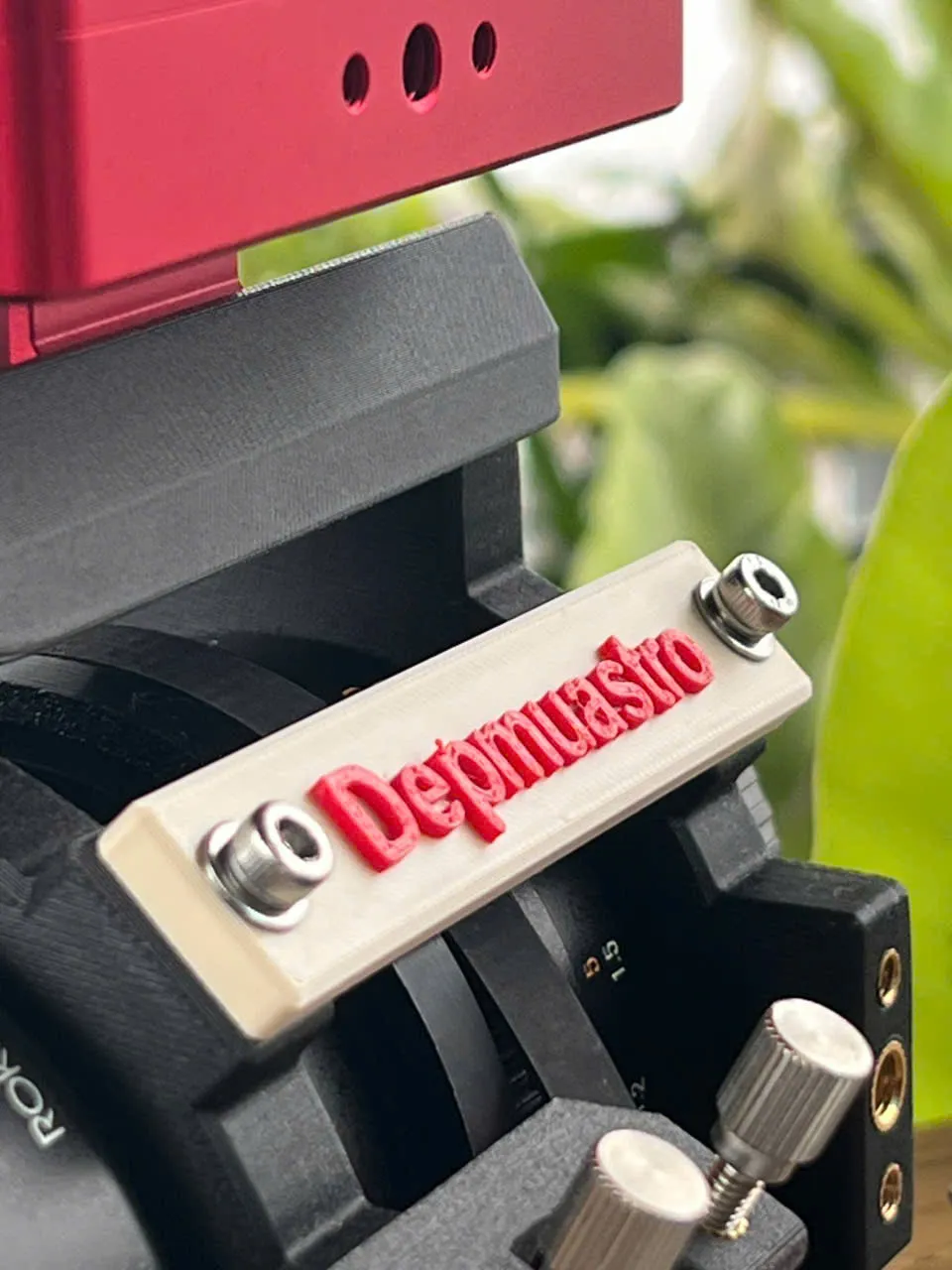

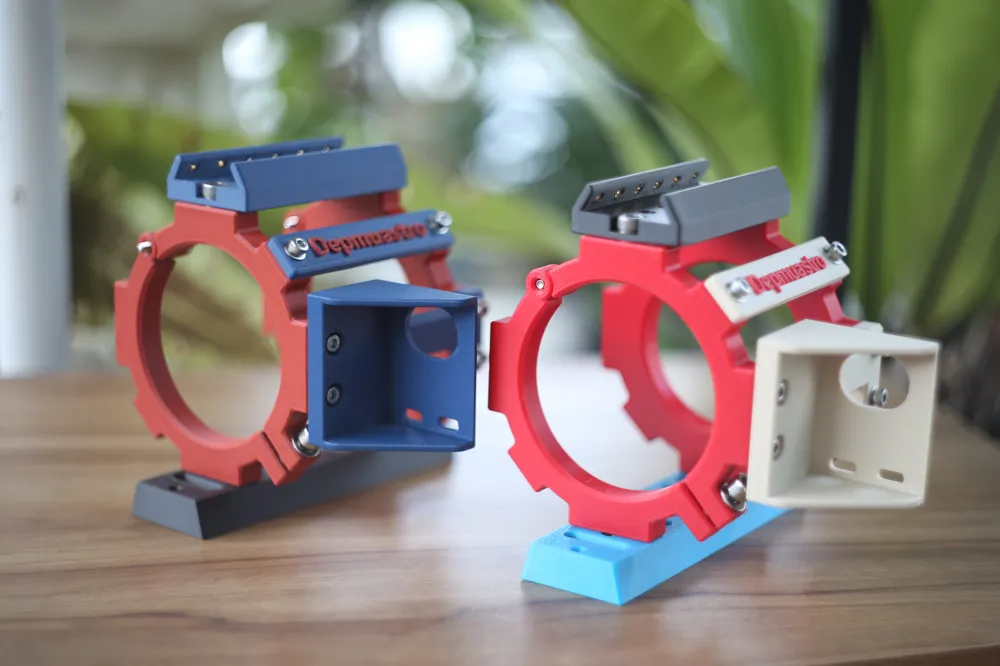

Samyang/Rokinon Cradle with Astro Focuser This custom cradle is designed for the Samyang/Rokinon 135mm lens and is fully compatible with ZWO electronic focusers. Featuring a dual‑ring structure (small rings at the lens base and larger rings near the front), it ensures excellent stability and secure mounting during long‑exposure sessions.
🔧 Key Features:
- Compact design, easy to assemble.
Heat-set inserts for durability and strength.
- BOM:
- M6x10-12mm screws
- M3x15mm screws + M3 nut x 1 (for Focus Gear)
- M4x10-12mm screws
- M6x5-7mm inserts
- M4x4mm inserts (For MCP83)
- M4x4-8mm inserts

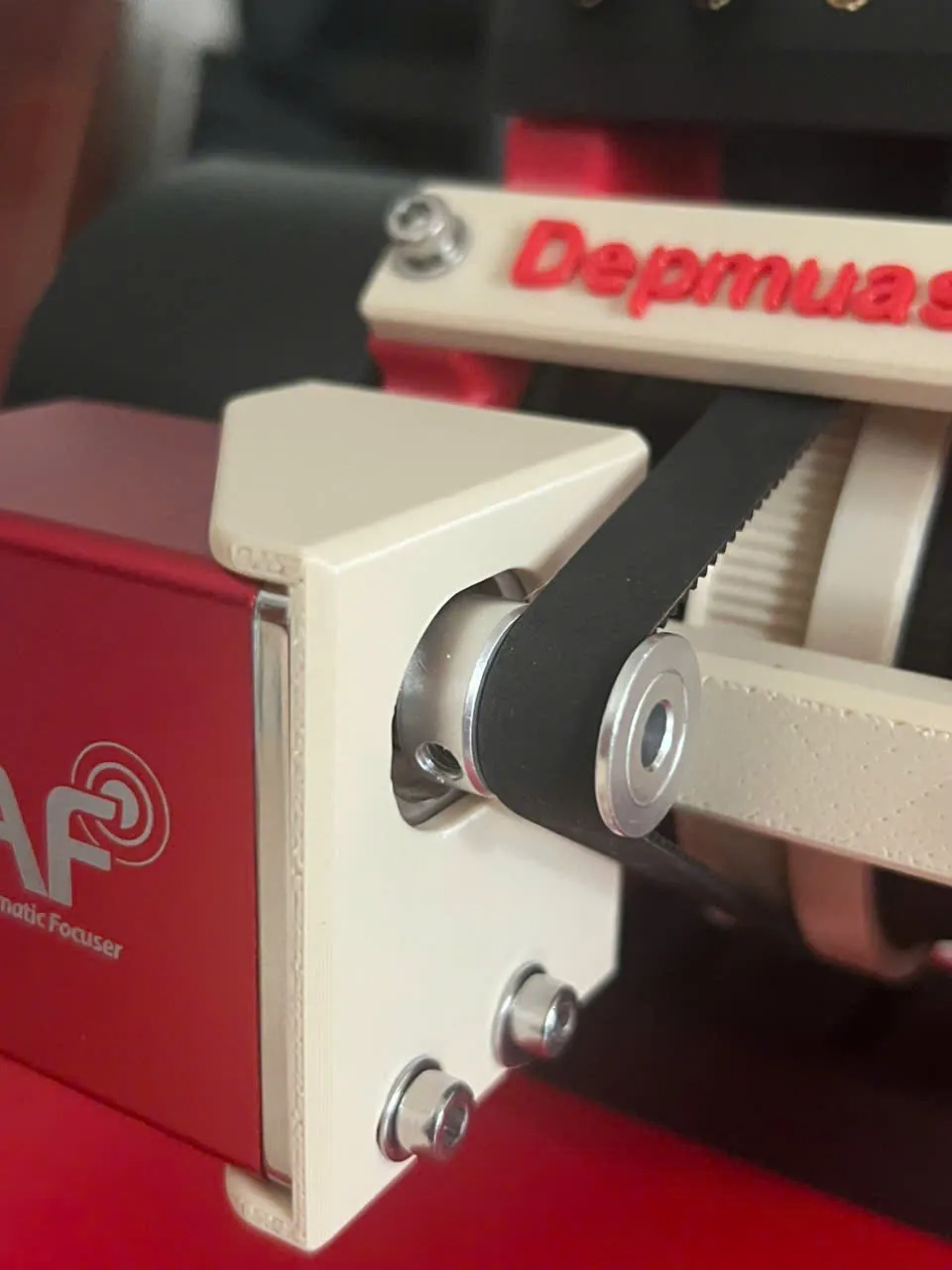

- 16T or 20T Pulley 10mm (5mm ID)

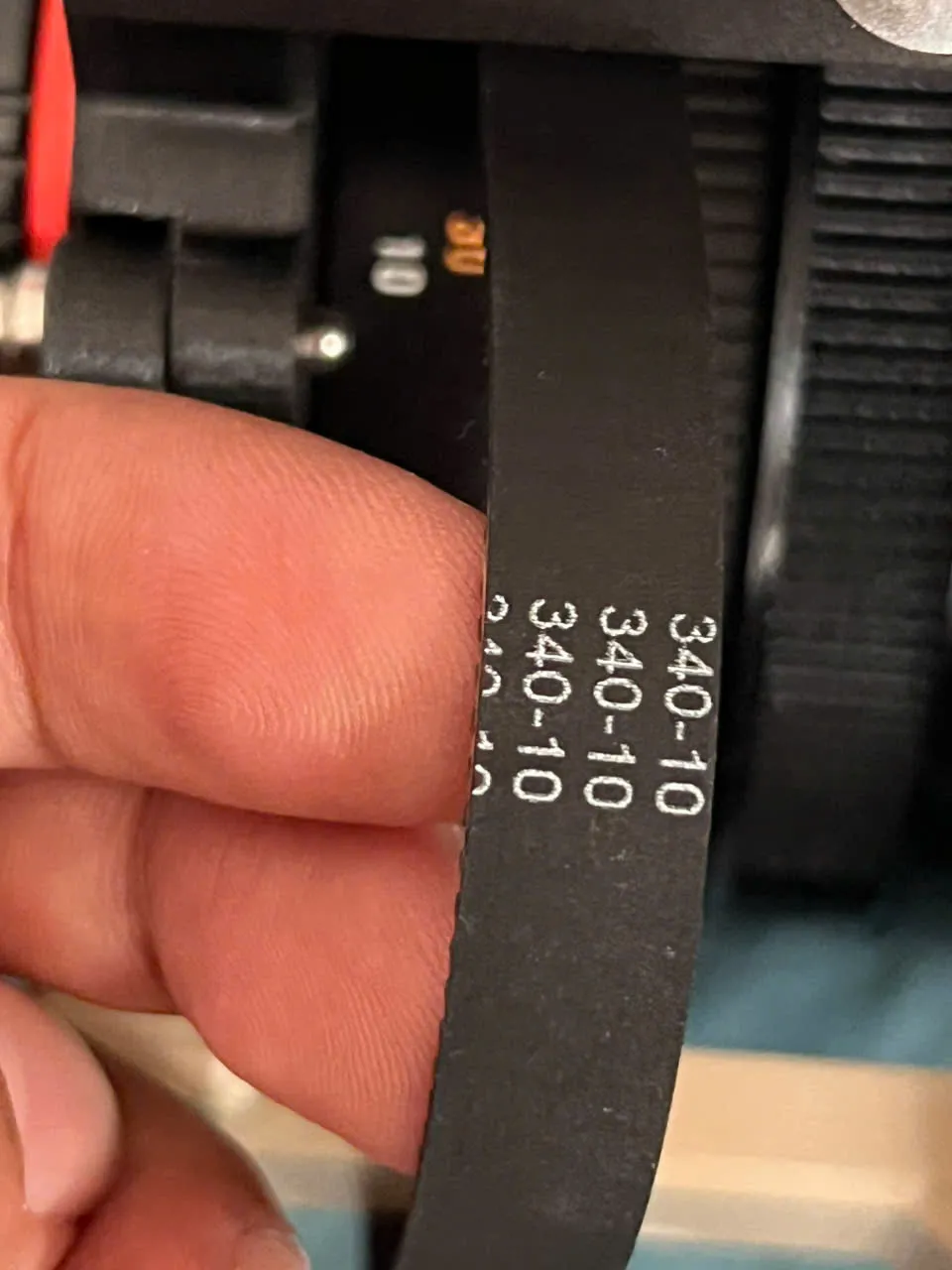

- GT2 Belt 340-10
- It is recommended to use additional flat washers to improve stability and protect the surface when tightening.
- Using flat washers is advised to ensure even pressure distribution and prevent damage to plastic parts.
📌 Note: This version is compatible with a Filterwheel, allowing extended astrophotography capabilities.
💡 If there are any mistakes, I would greatly appreciate your feedback to improve the design.
⚠️ The EAF holder is only supported in the previous version.
