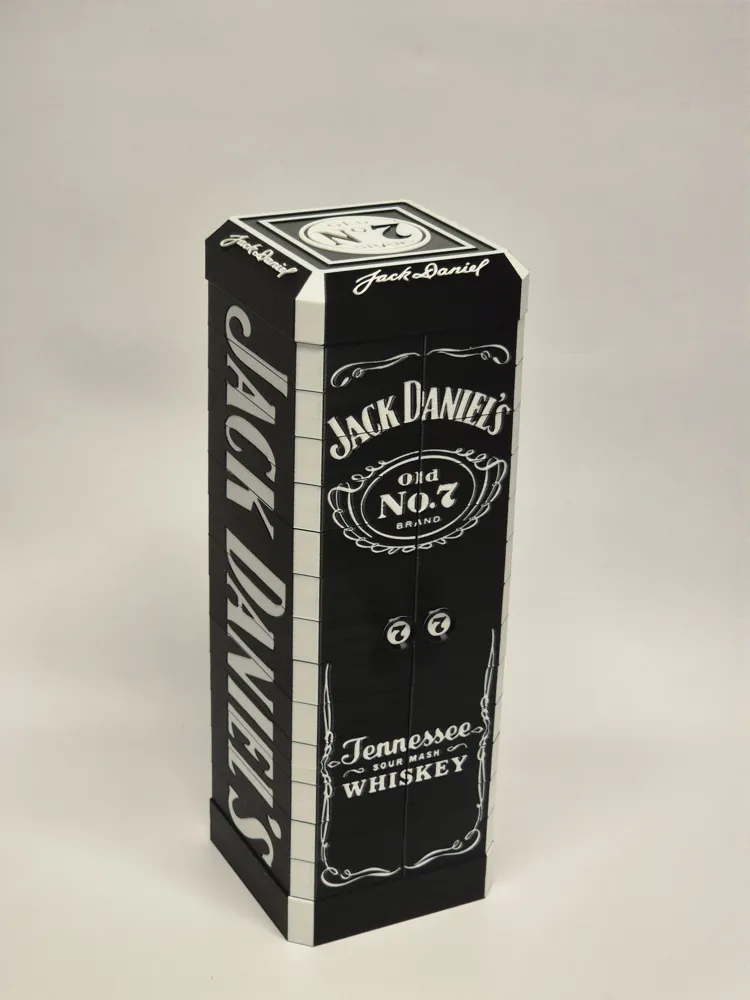

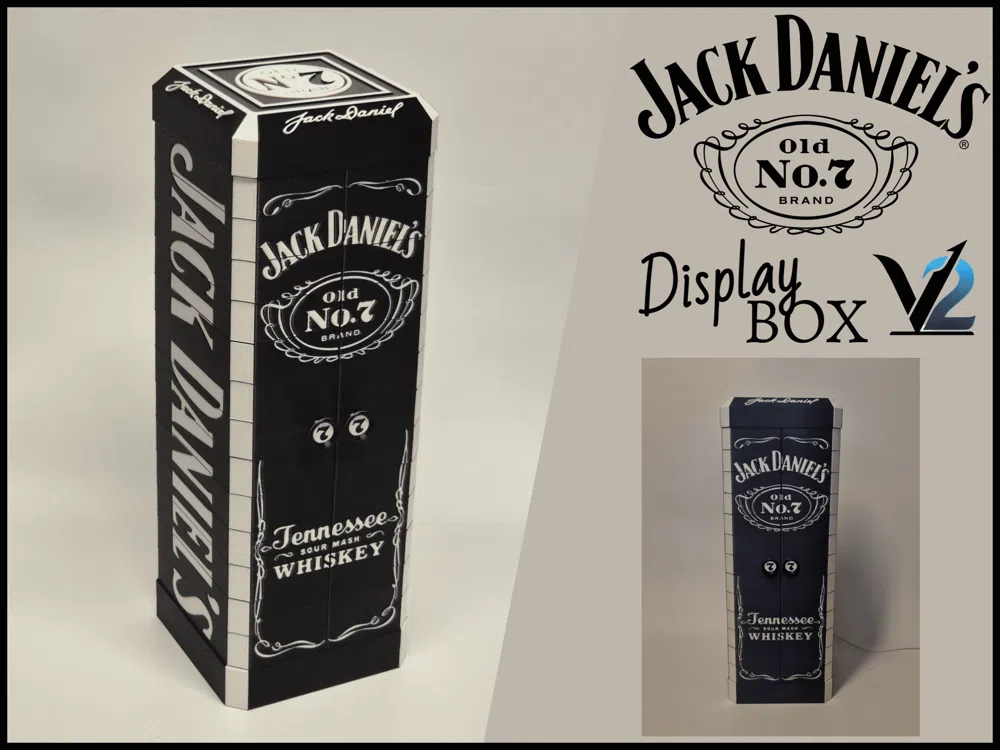

Jack Daniel’s Old no7 Display Box

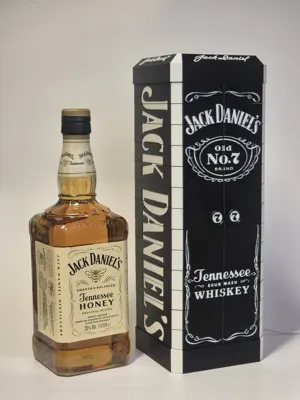

With this more robust and fully decorated box you can easily fit all variations of the 1L Jack Daniels bottle.
What's new?
- Better orientation of the part's,, less supports and less clean-up.
- Thicker, more solid pins. (Less prone to snapping of)
- Easier assembly.
- Larger internal dimensions. Now fits all 1 liter bottles.
- New clean design.
Features:
- Perfect fit – Designed specifically for Jack Daniel’s bottles.
- Display ready – Works great as a gift box, bar display, or collector’s case.
- Print friendly – Easy to print, painted and laid out for optimal print time and filament usage.

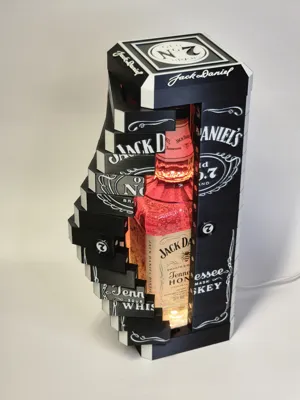

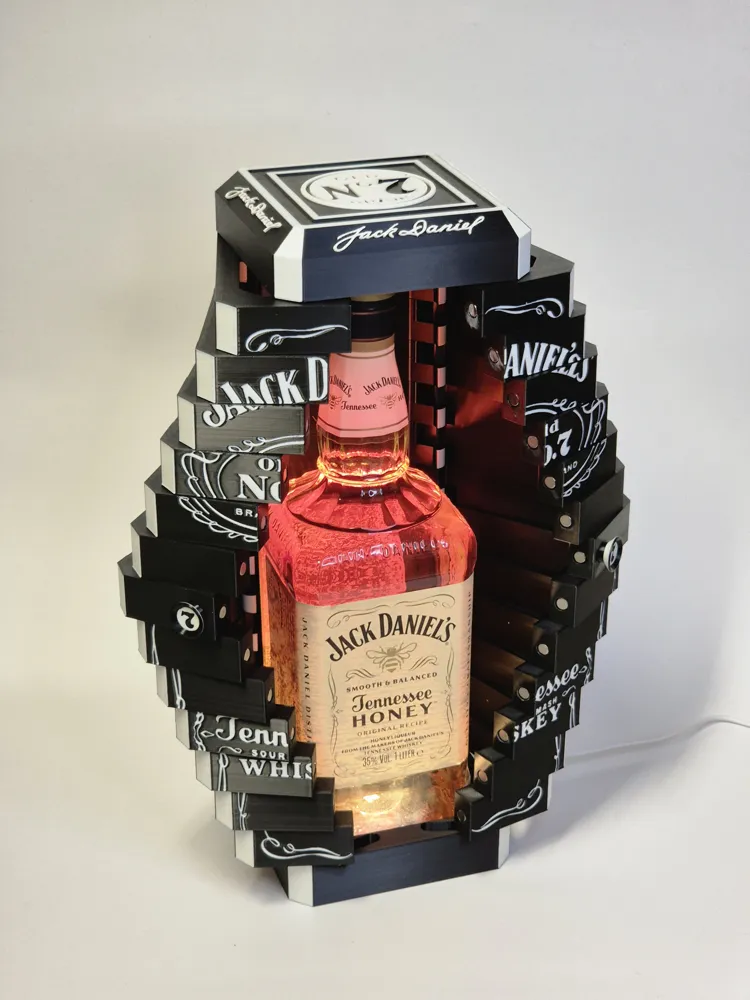

- Led Lamp kit 001 - Light up your Jack with the alternative base for the led lamp kit 001.
- Assembly - Detailed instructions for assembly.
Whether you want a premium way to store your whiskey or a standout piece for your collection, this box makes your Jack Daniel’s even more eye-catching.
3D printed parts :

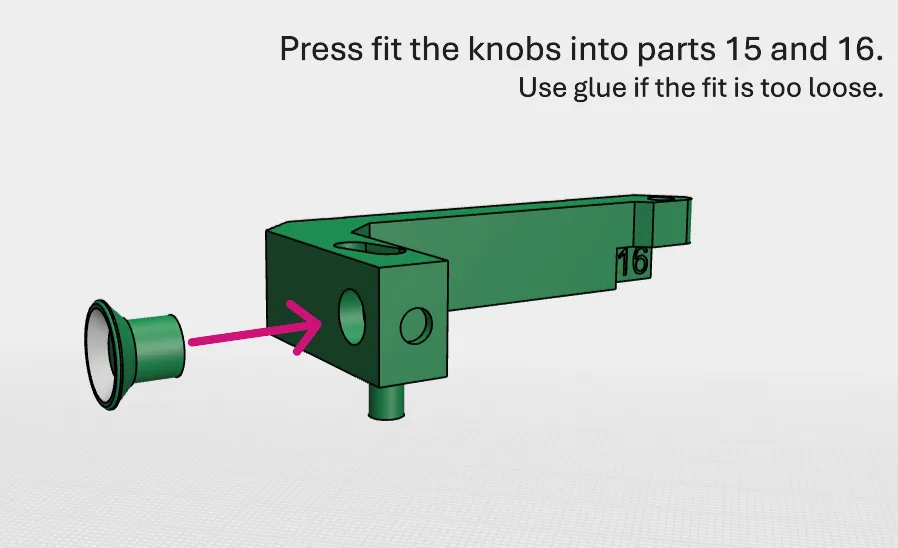

- knobs x 2 (And 2 alternative knobs)
- Pins for top door parts x 2
- Bottom x 1
- Top x 1
- Back pcs x 13
- Door parts x 26
Other parts required :
- 2 pcs Steel rods ø6mm x 30cm / 11.8" long. !!!!LINK!!!!!
- 26 pcs Round Magnets 6x2mm
- Ca glue.
- Optional : Led Lamp Kit 001.
Filament used in photos : Link in bio
- Polymaker Panchroma Silk pla Black
- Polymaker Panchroma Matte pla White
You can find the steel rods you need here → (affiliate link)
If Bambu i out of stock, buy LED here → (affiliate link)

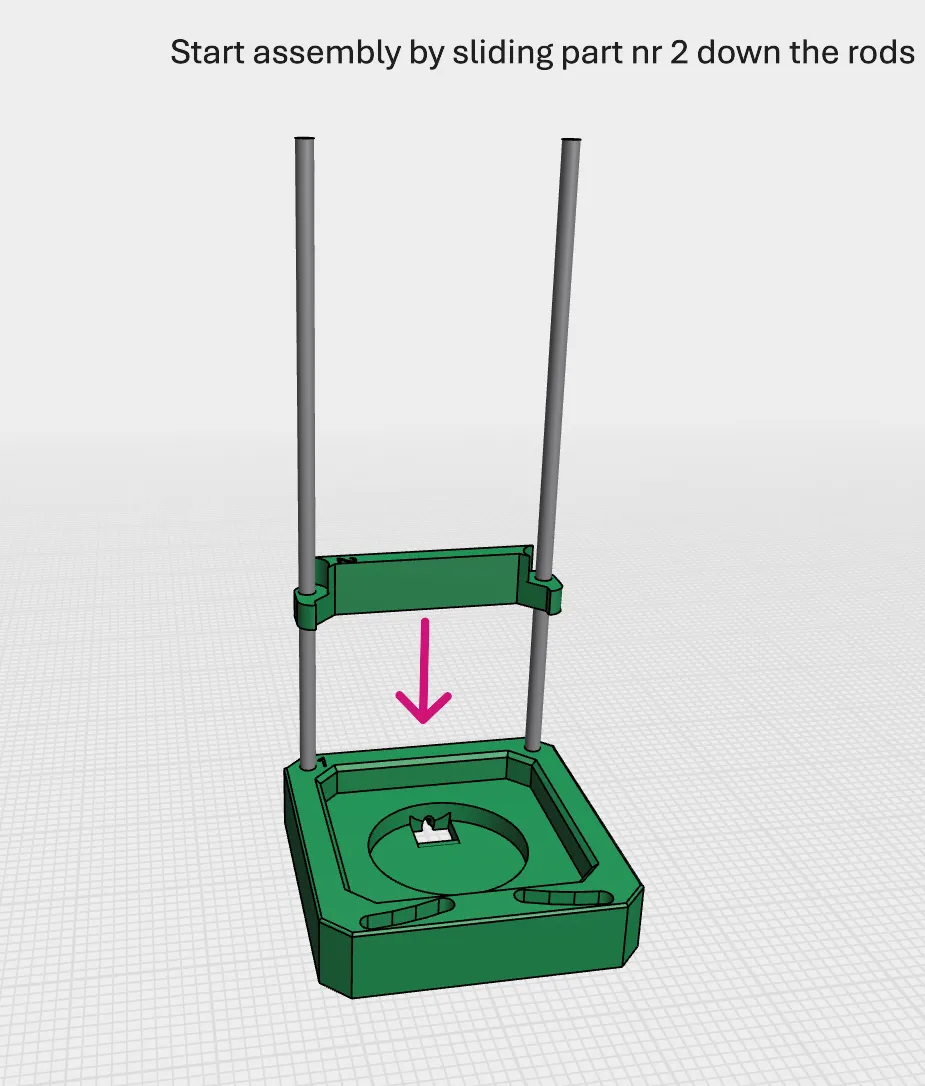

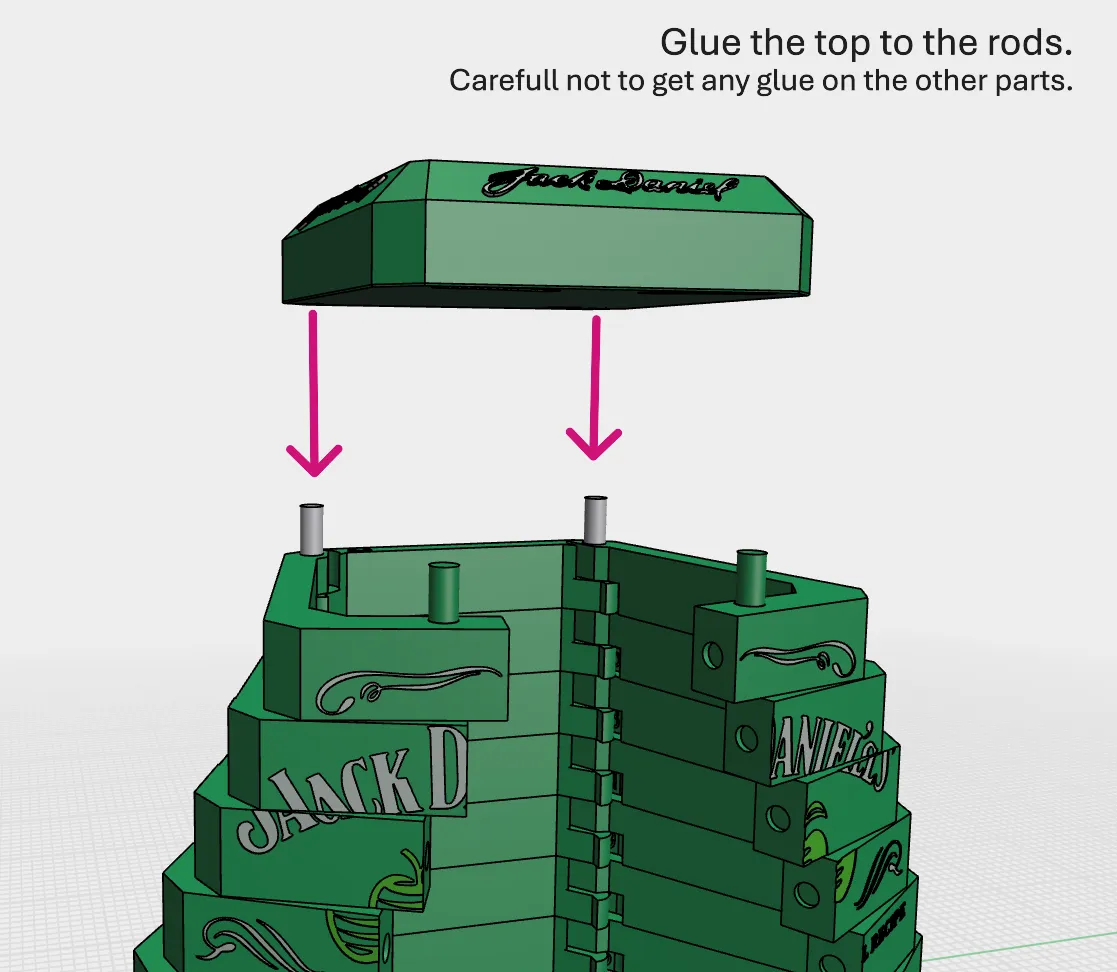

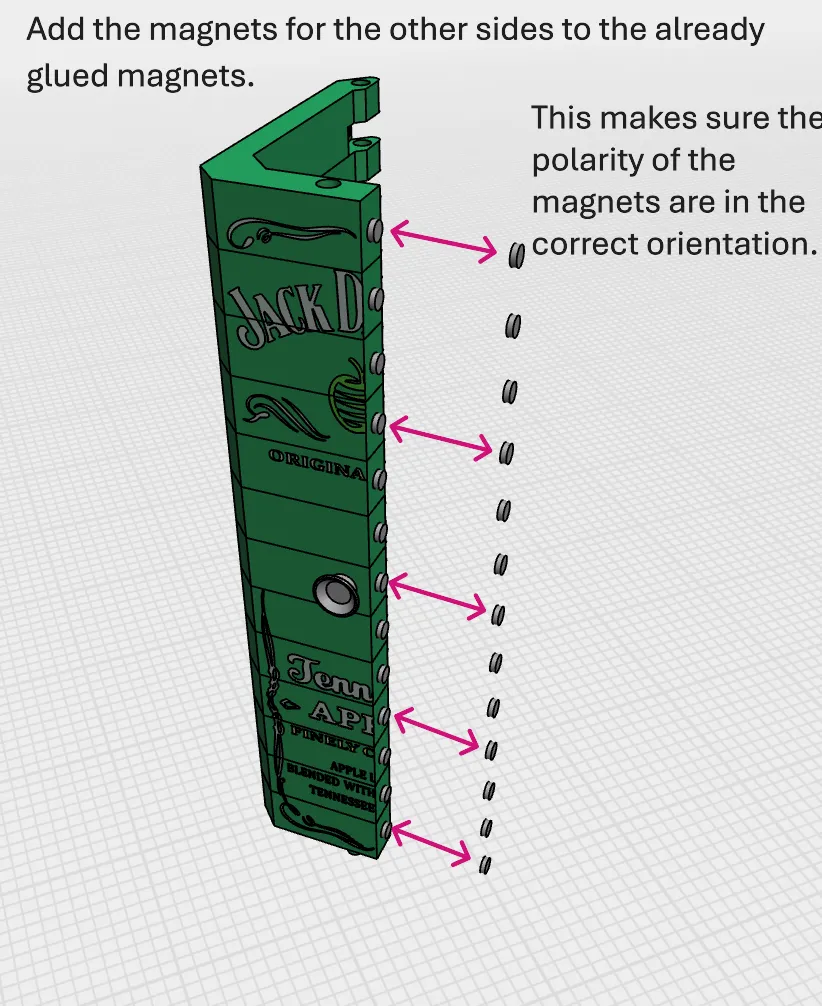

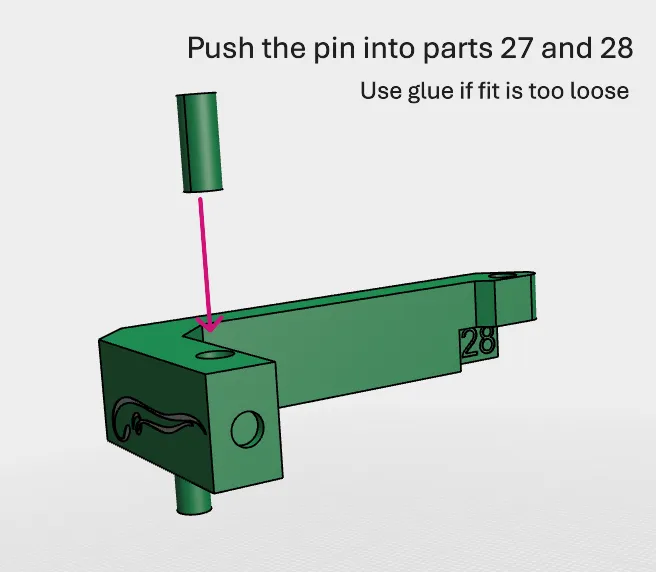

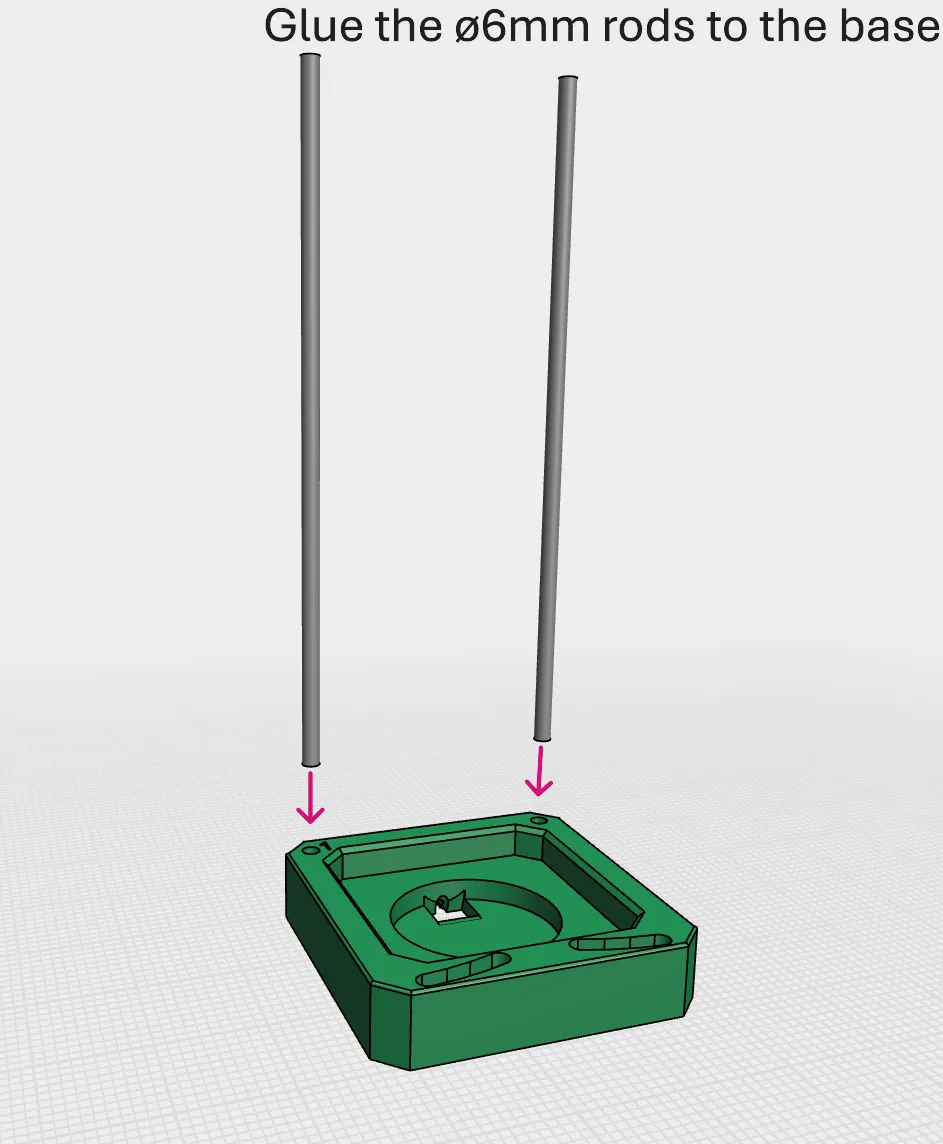

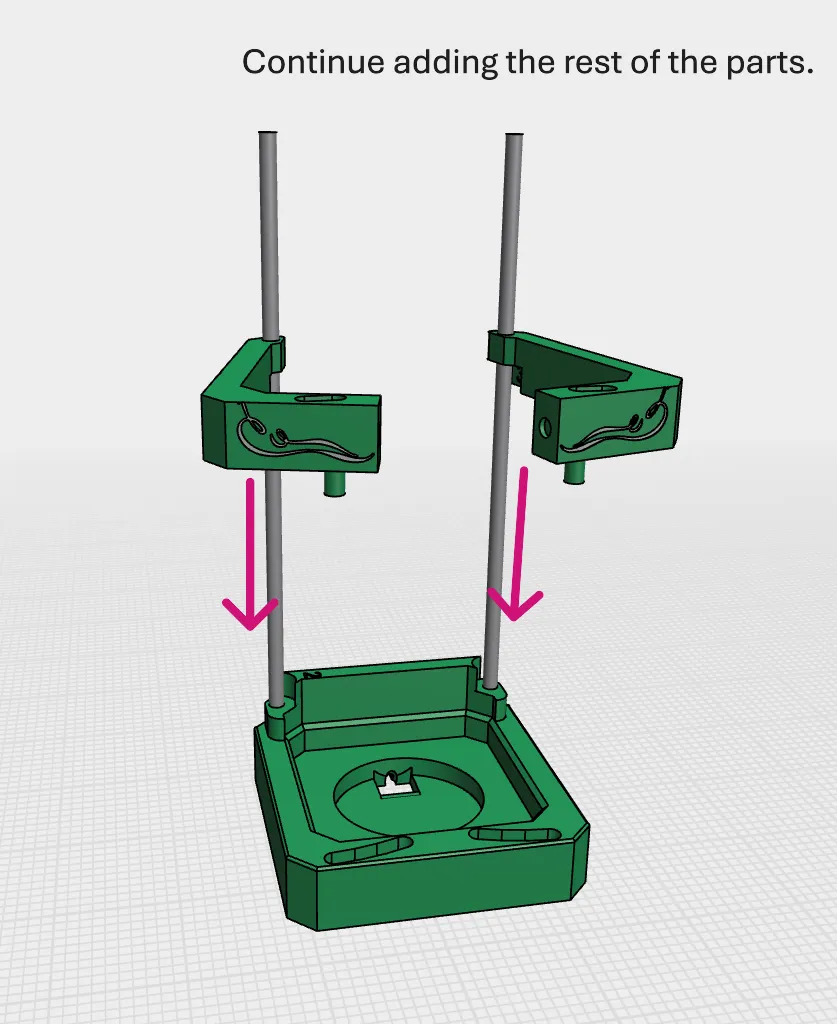

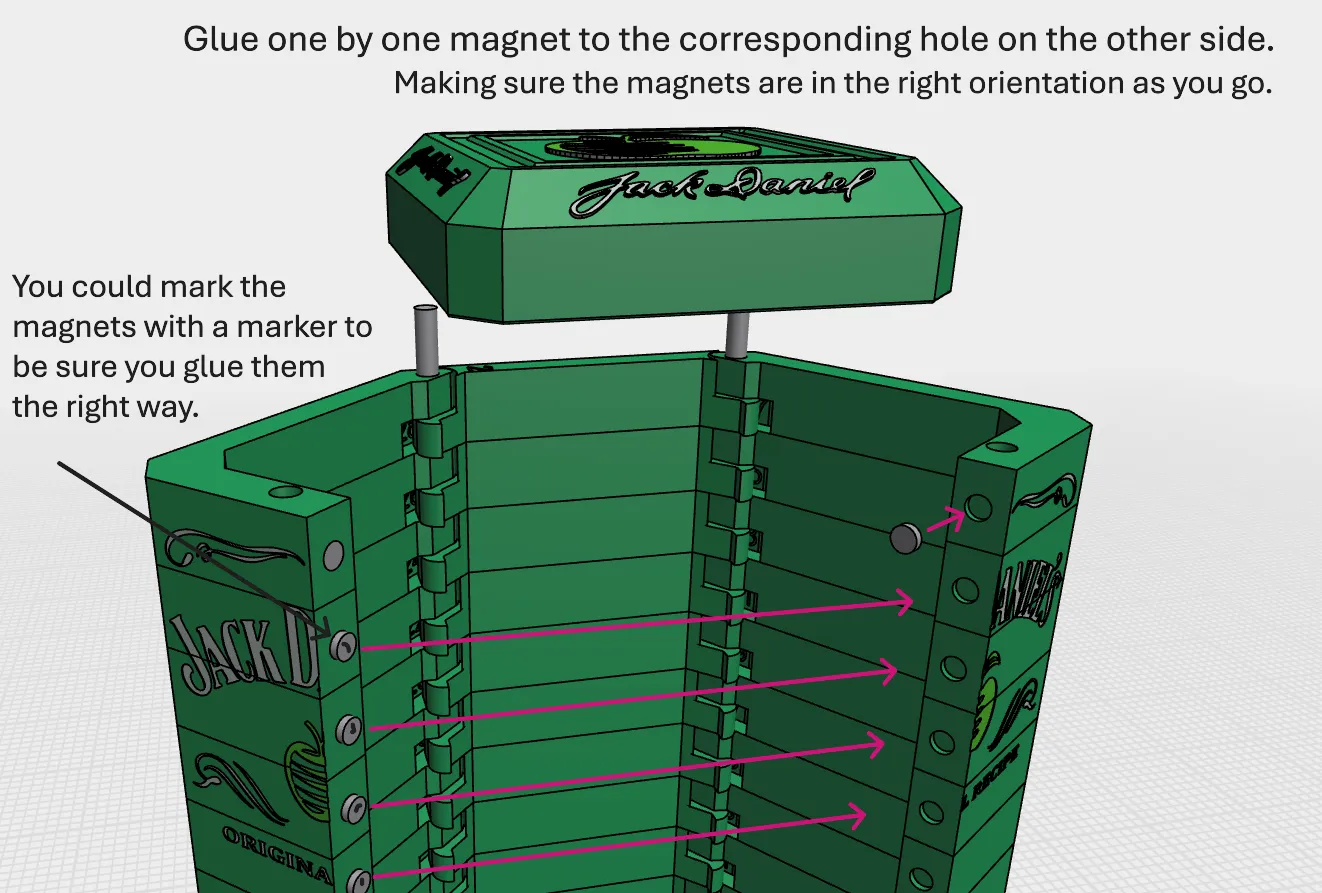

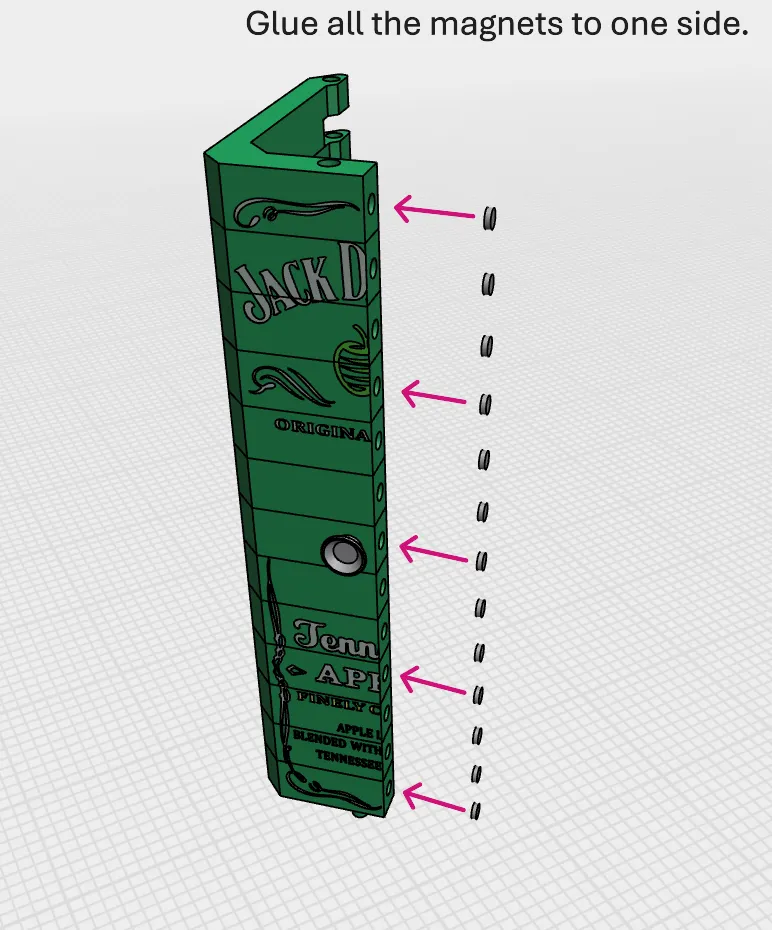

One's you have printed all the parts and acquired the accessories you need, just follow the assembly guide down below.

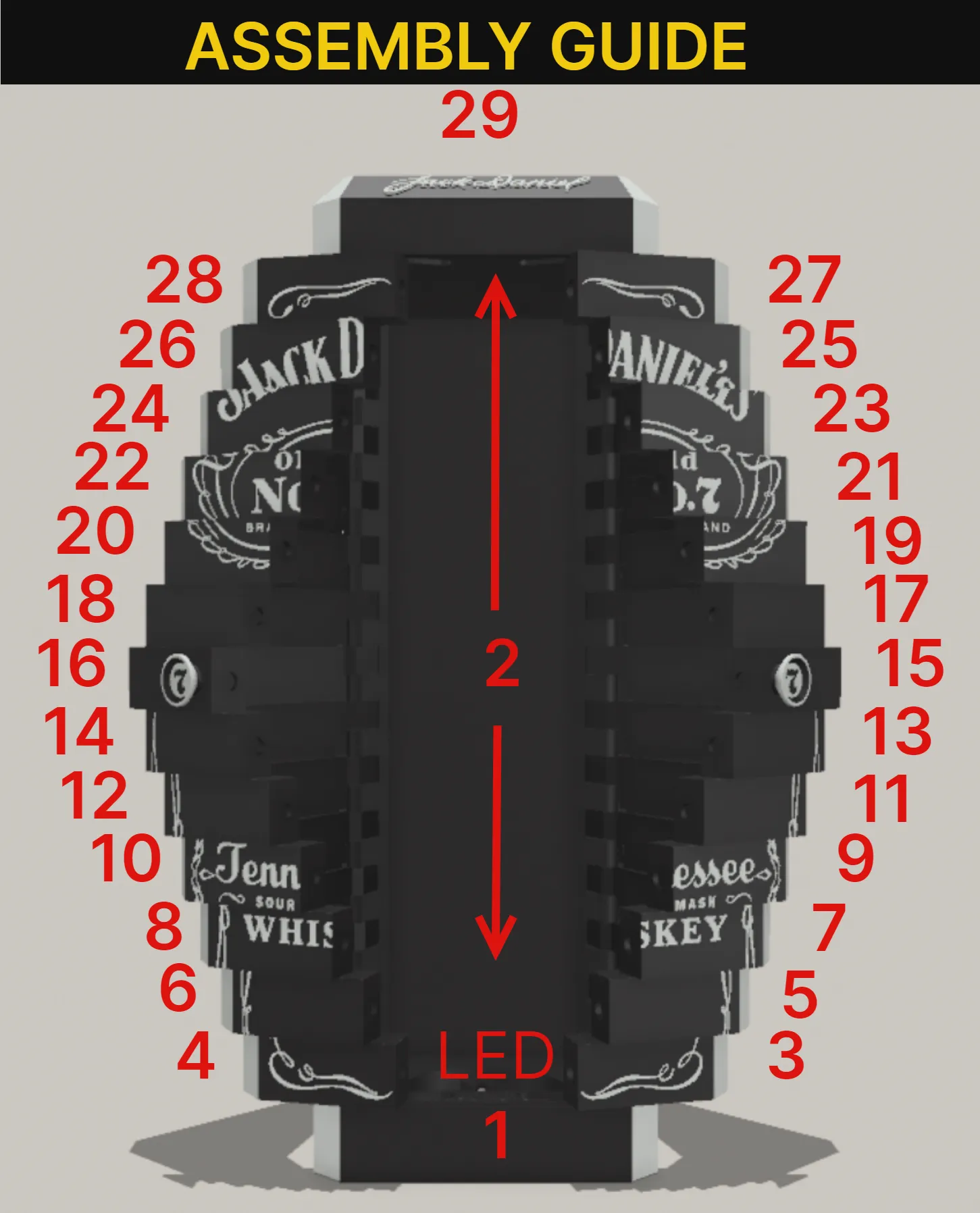

Each individual part is marked with a number, making it super easy to assemble.
(Instruction images are of the apple version, but all the parts are identical except for the graphics)

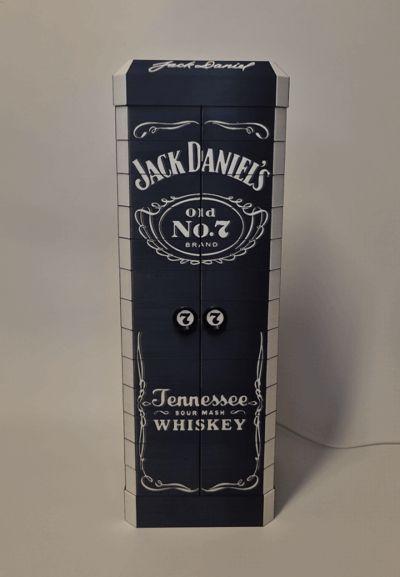

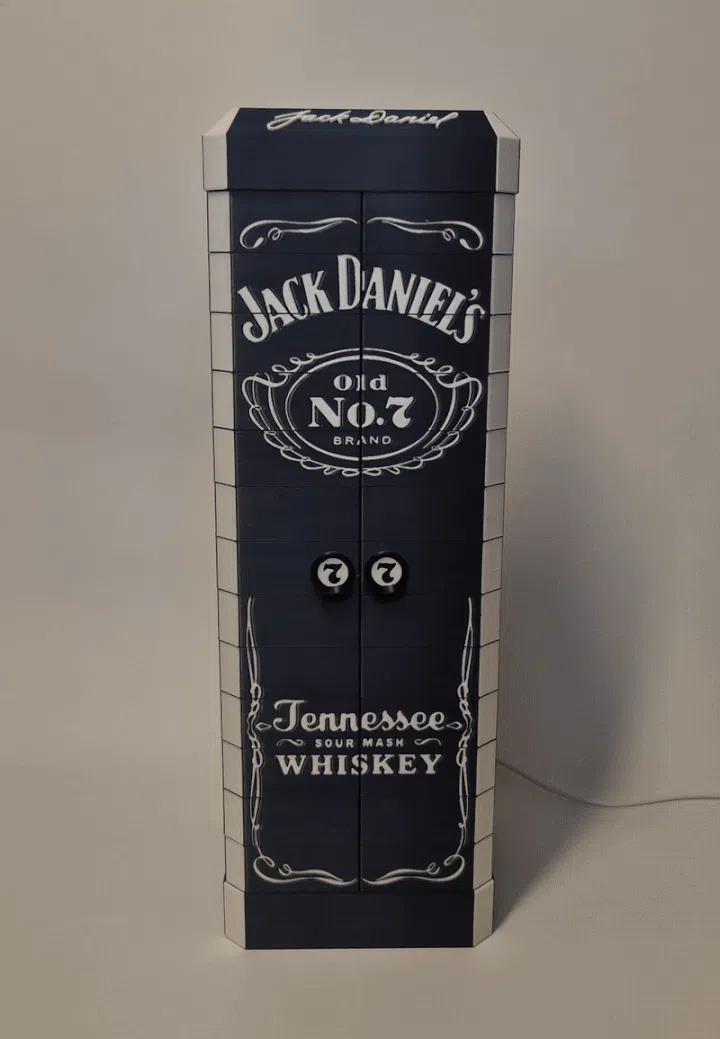

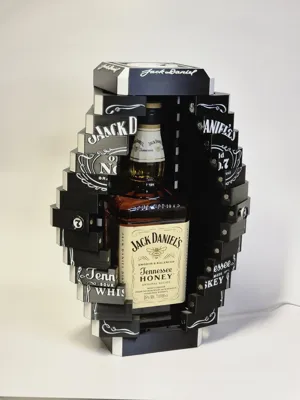

When your done it should look like this.
Follow me if you want to see more of my designs in the future!
