Lampshade - Soft Twist - Smooth or Diamond Texture

Lamp Shade - Soft Twist

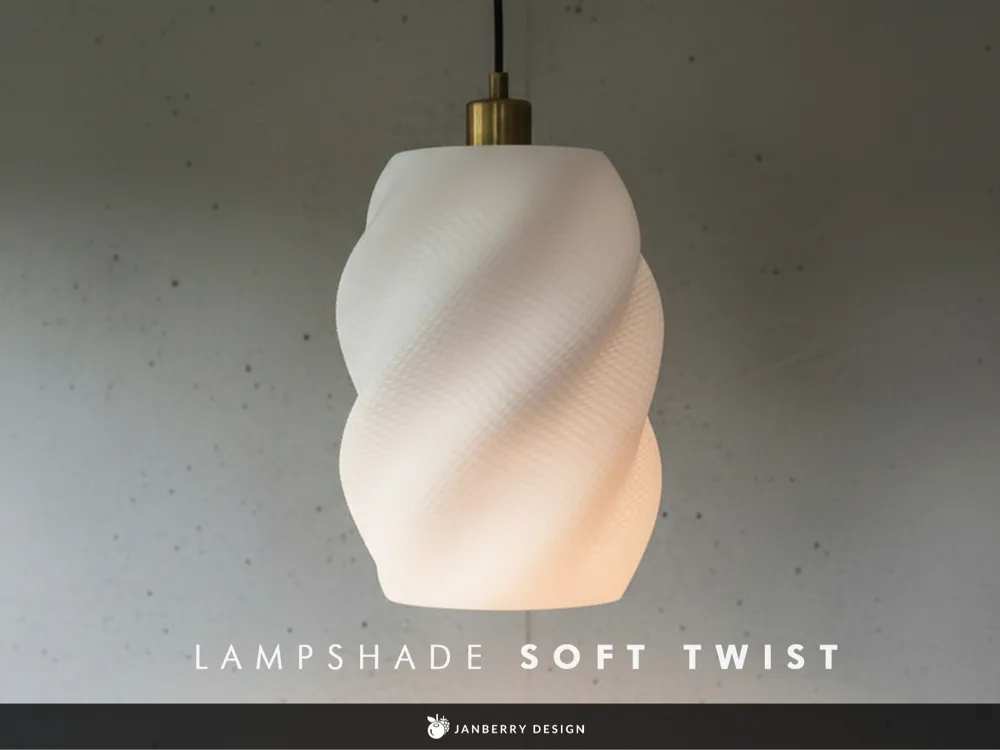

Lamp shade with soft, twisted lines.

2 Options

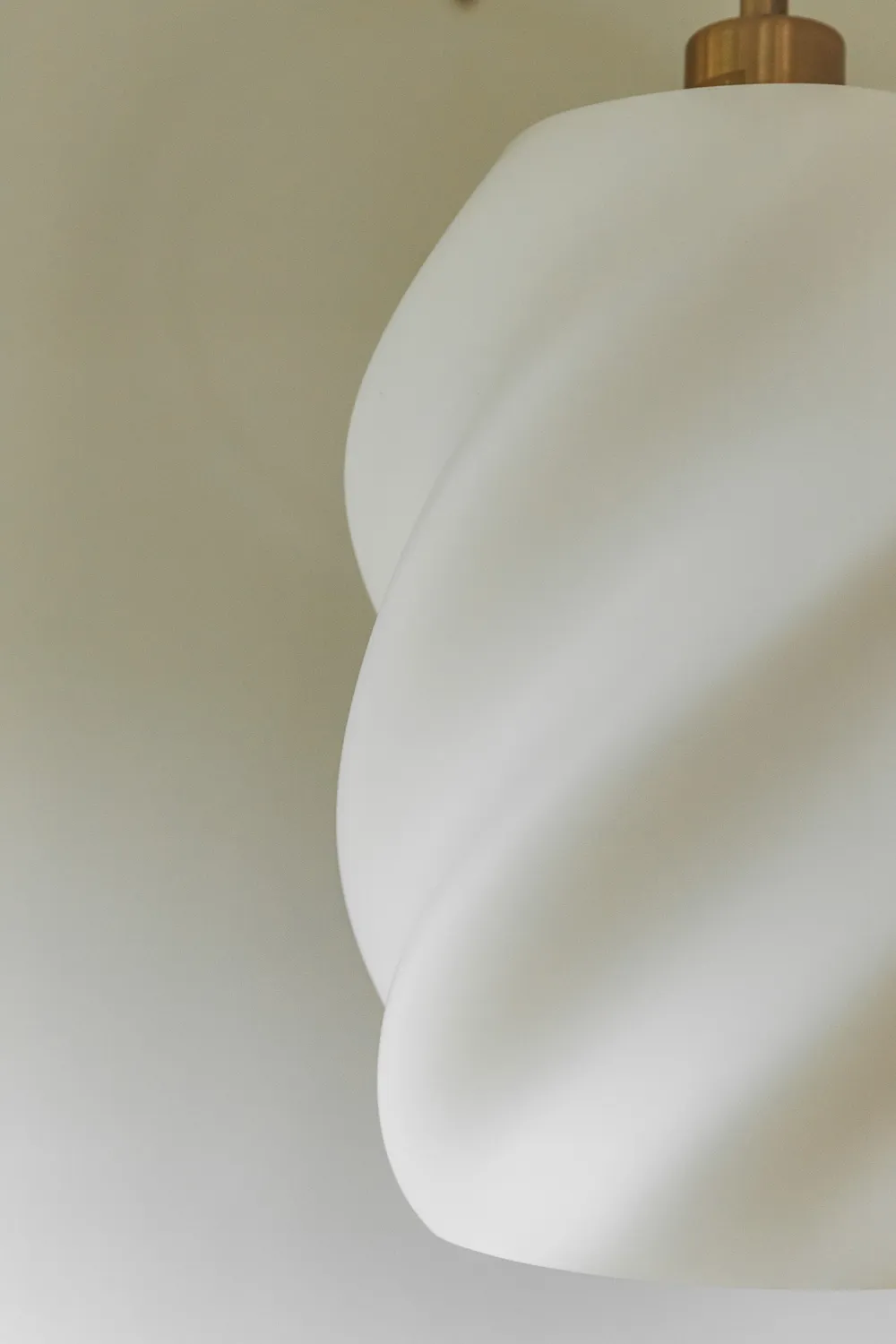

Plain Surface - Smooth finish

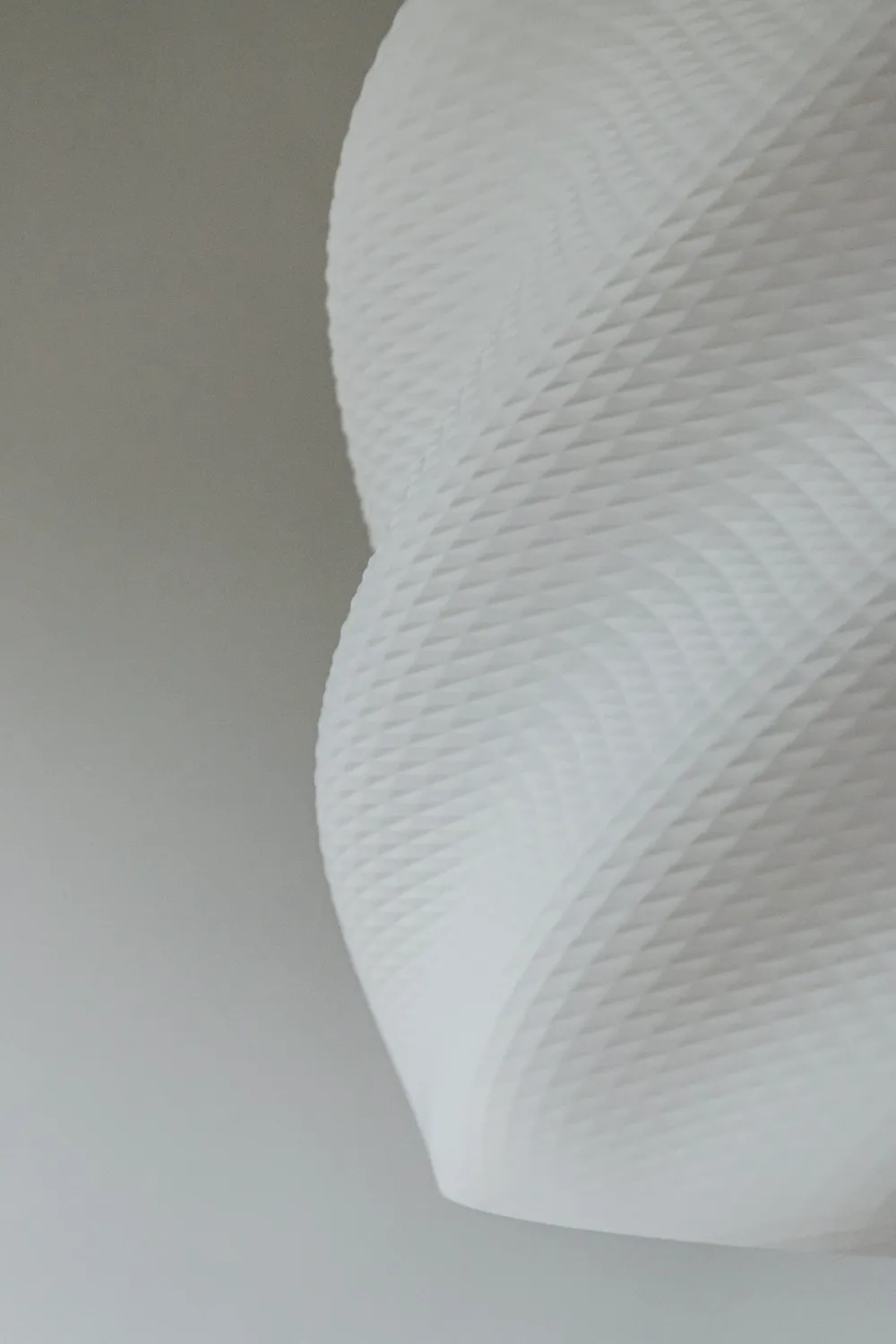

Fading Diamond Texture - give the nice overall shape some extra depth and details

Print in Spiral Vase Mode

0.2 Layer height

0.6 Layer thickness

Time ~ 1.5 hours

The hole in the file is for a typical 40 mm threat (E27 light bulb). You can adjust the whole size to whatever size you need. Go under objects and scale the generic cylinder to whatever size you need. The lamp shade itself can be scaled aswell.

If you have an H2 Series printer i would highly recommed to scale it, you will get a stunning result.

Please be careful when removing it from the print bed. The shade only has a whallthickness of 0,6 mm. Especially the first layer after the 7 bottom layers is fragile. I would recommend to go with a scraper under the bottom layer.

Tripod Stand

If you prefer not to hang the lamp as a pendant, you can use the tripod stand instead. It features a 41 mm hole compatible with standard E27 fittings. The tripod is also compatible with my other lampshades.

Approximate print time: 6 hours
