Removable GLS10 Sonar Mount for Boats / Kayaks
Print Profile(1)
Description

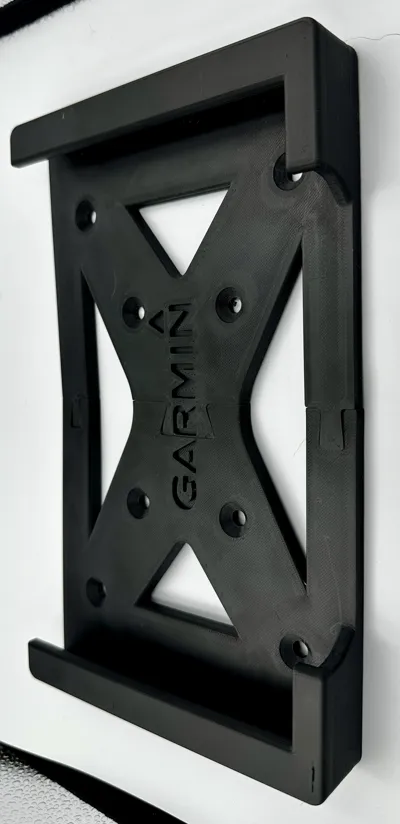

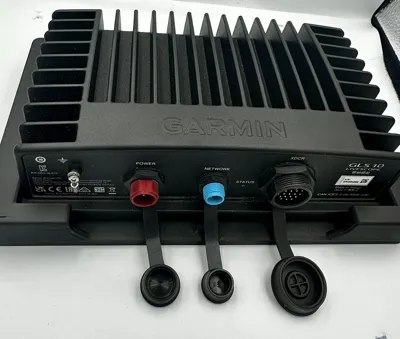

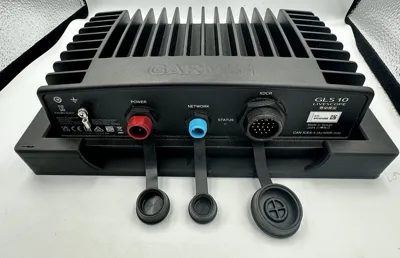

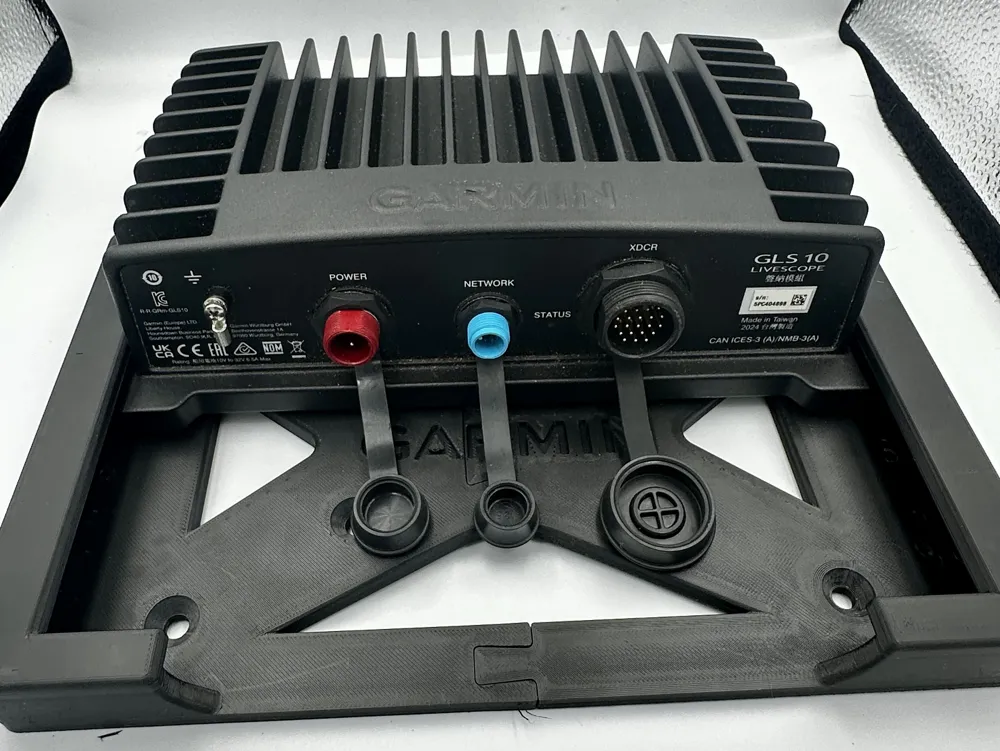

Removable GLS10 Sonar Mount for Boats
This is a strong, easy-to-install/remove mount designed specifically for the Garmin Livescope GLS10 black box, allowing you to quickly take the unit off your boat when not in use (perfect for security or trailering).
Features:
Fully removable design – no tools needed to detach the GLS10 once installed
- Printed in two pieces with an integrated dovetail joint to fit on Bambu Lab A1 / A1 Mini build plates (217 × 217 mm)
- Dovetail slides together smoothly – glue is optional but recommended for permanent strength (CA glue or epoxy works great)
- Extremely durable: designed for 100% PETG, 60% infill, and 6 walls/perimeters
- M6 countersunk screw holes (perfect for stainless M6 flat-head bolts)
- Clean look and excellent vibration resistance on the water
Print Settings (recommended):
- Material: PETG (tested with Bambu PETG Basic)
- Infill: 60% (Gyro or Cubic works well)
- Walls: 6
Tree supports needed
Perfect for anglers who want to protect their expensive GLS10 unit or remove it quickly between trips!
