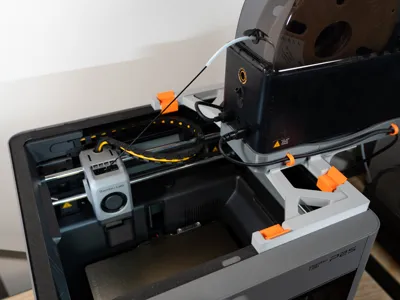

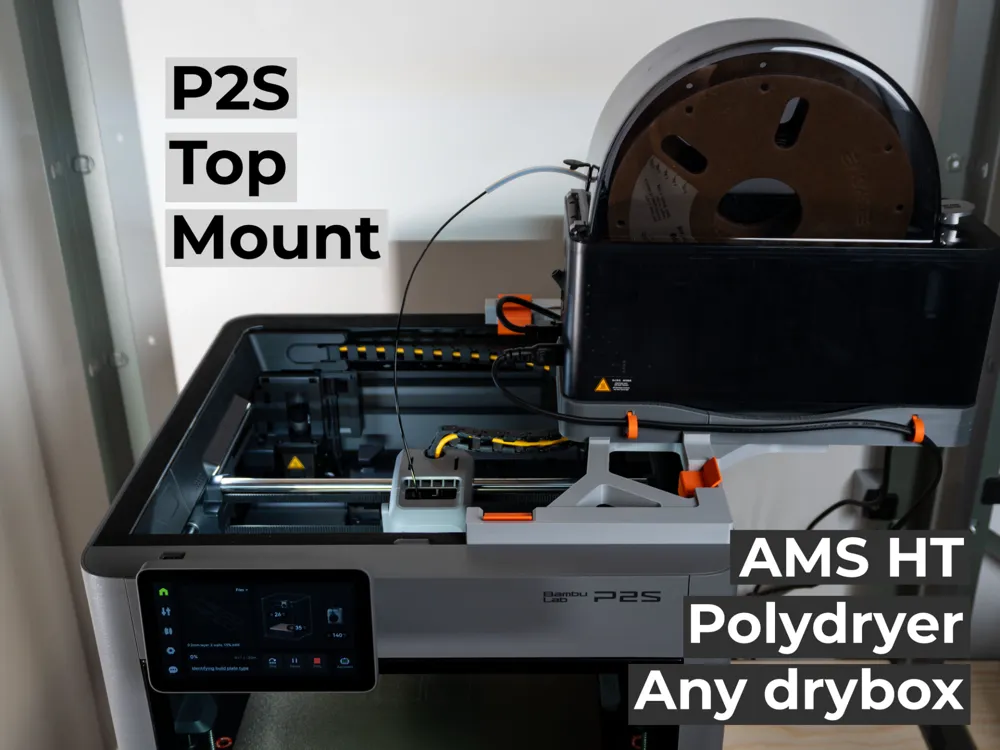

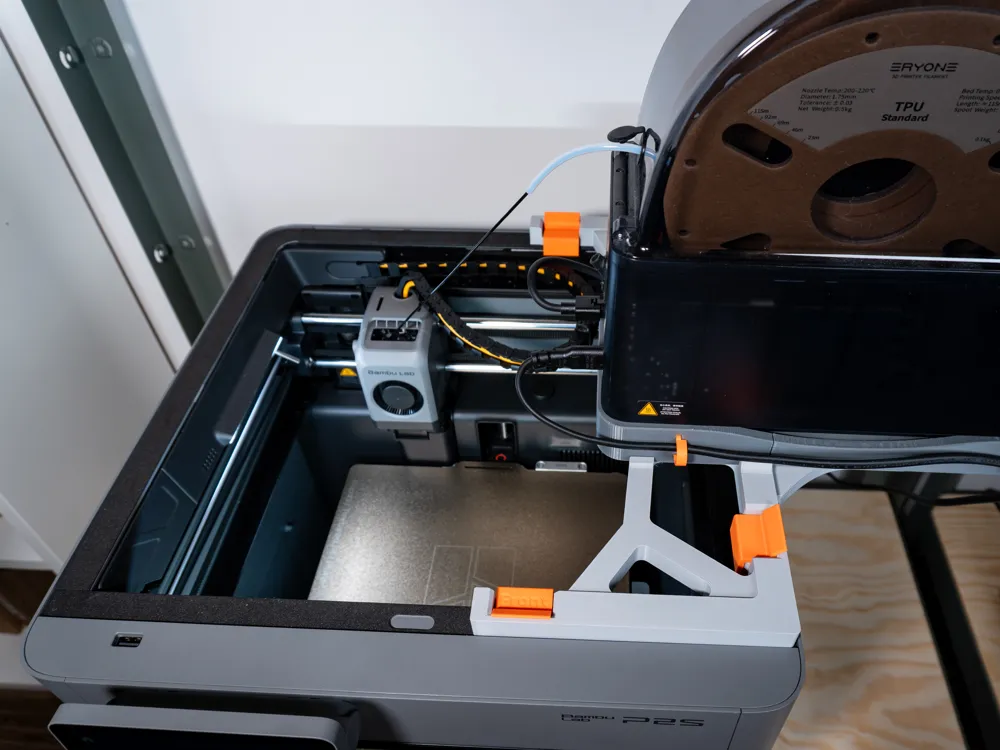

This mount allows you to direct-feed soft TPU from an AMS HT, Polymaker PolyDryer or any drybox straight into the P2S extruder.
By minimizing filament path friction, it significantly improves print quality when working with TPU or brittle materials such as PPA-CF.

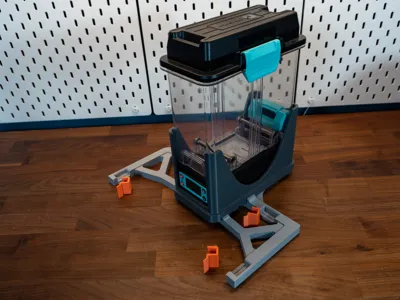

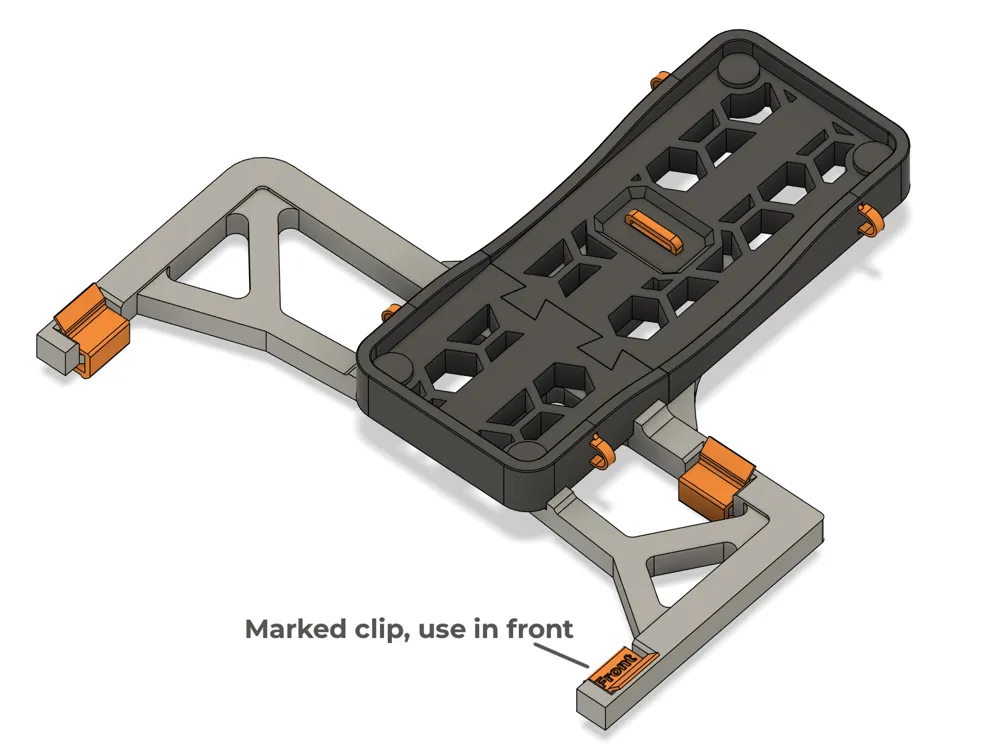

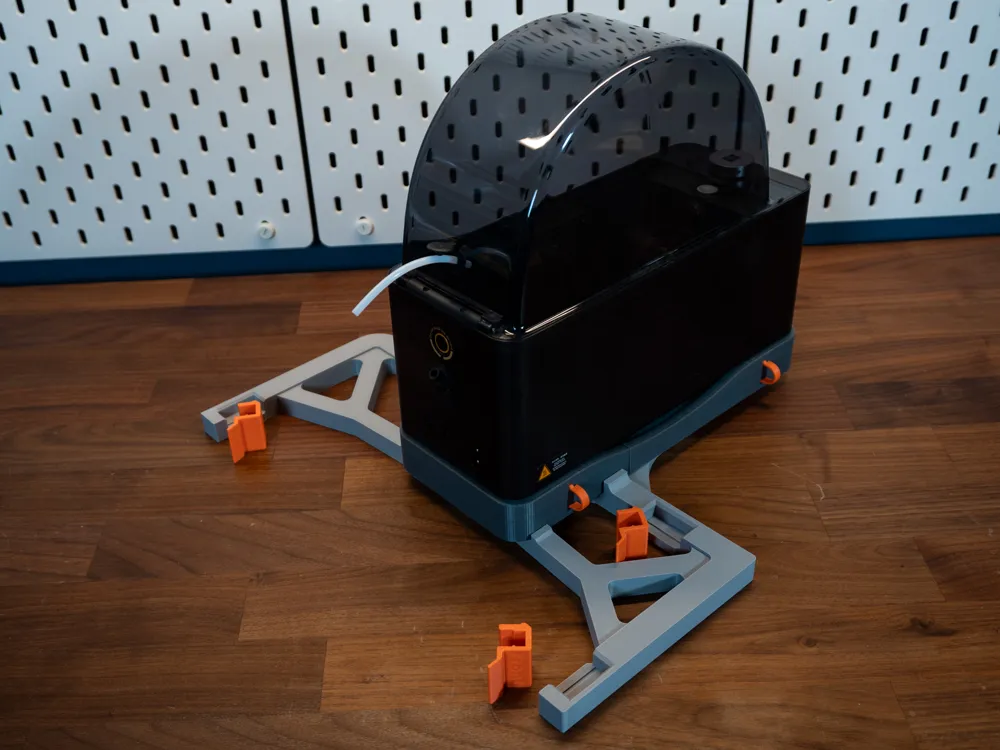

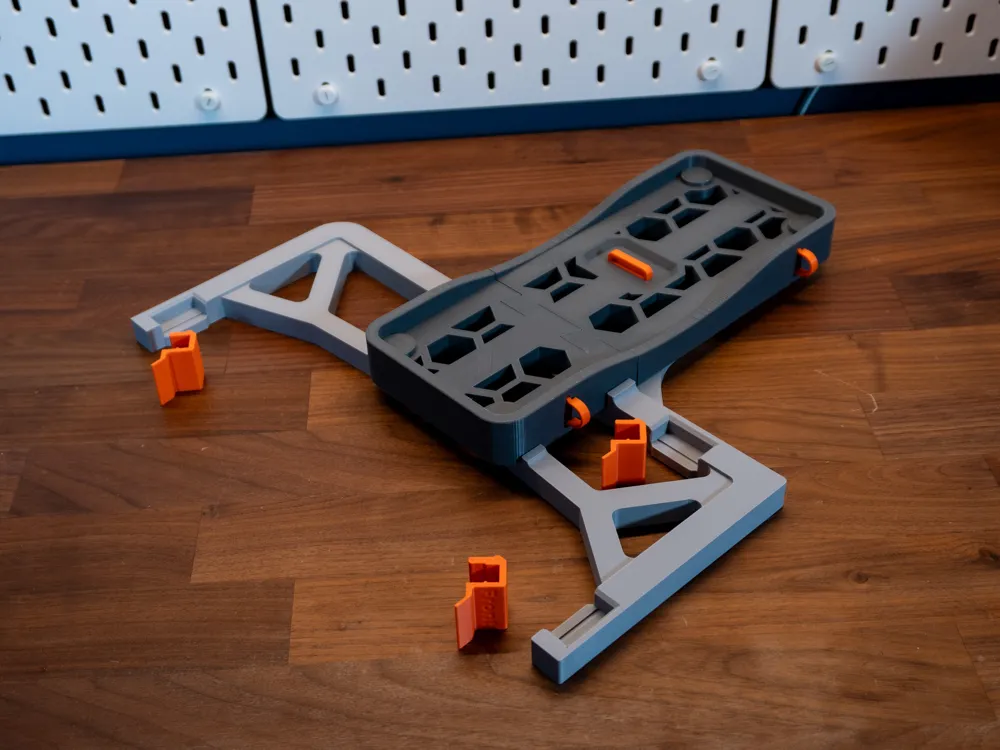

The base bracket oand clips only need to be printed once. Any of the mounts (AMS HT, PolyDryer, or generic drybox) will fit the same bracket.

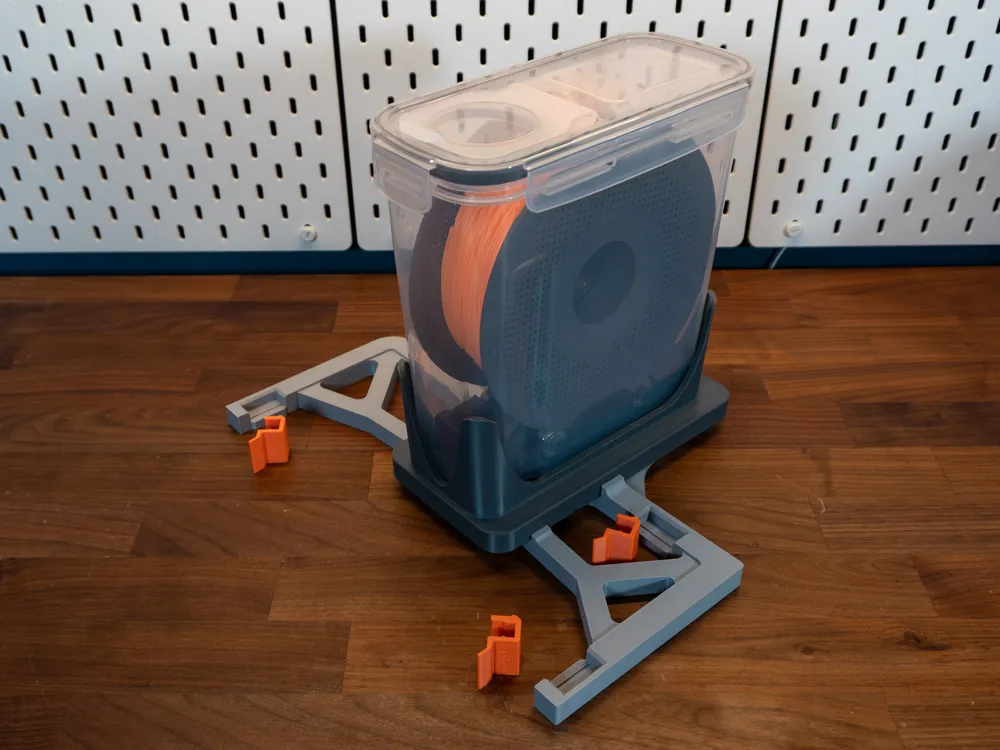

For drybox setups, you can customize the mount using parametric model maker to match your specific container.
All parts shown were printed in Bambu Lab PETG-HF.
Direct-Feed TPU
To direct-feed TPU, remove the PTFE tube and manually load the filament. Performing a cold pull befoehand can help reduce the chance of clogs when switching to soft TPU.
A guide on how to remove the PTFE tube can be found on the wiki: https://wiki.bambulab.com/en/p2s/maintenance/replace-ptfe-tube-bracket

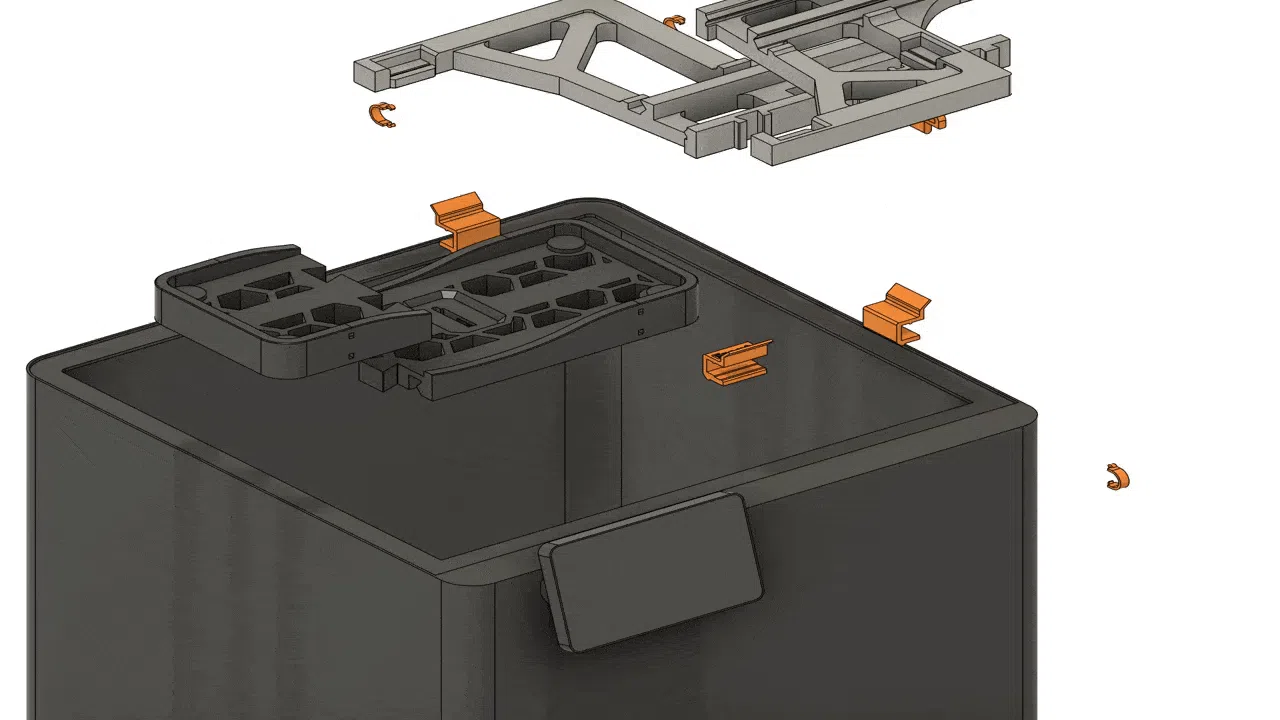

Assembly guide

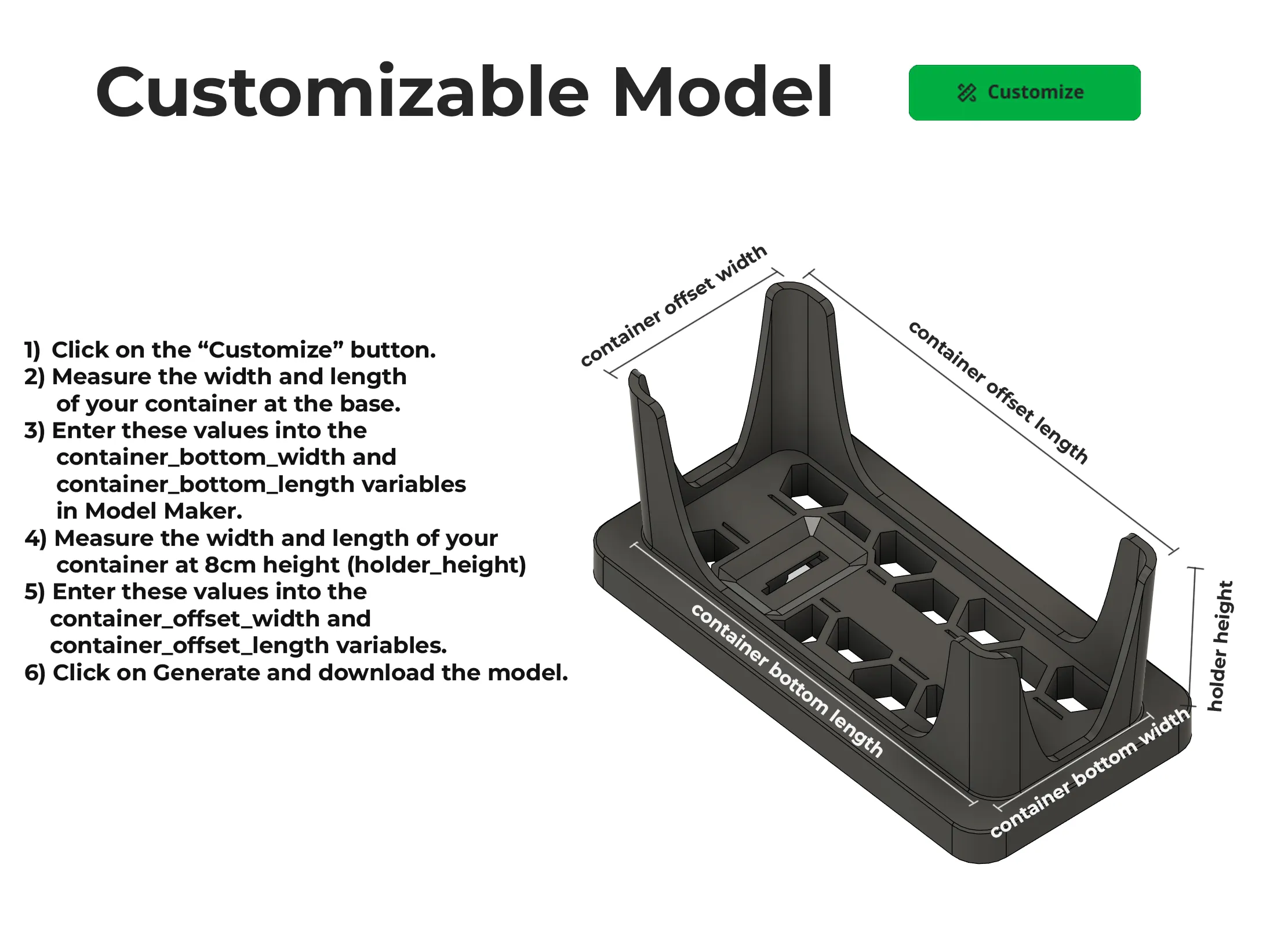

How to customize the drybox mount
