Description
Content has been automatically translated.

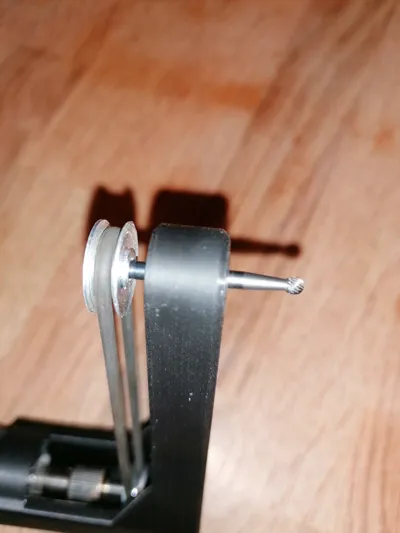

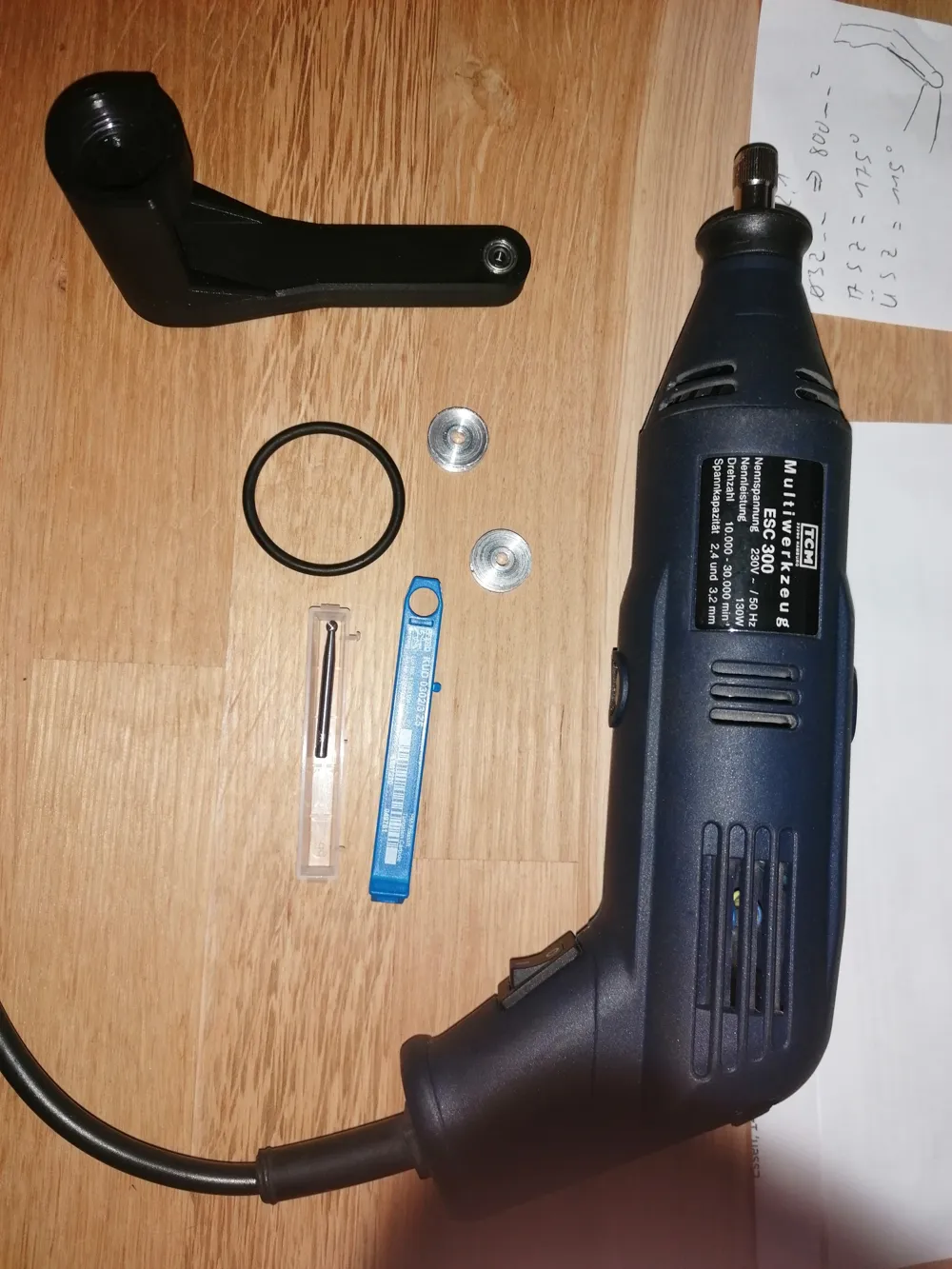

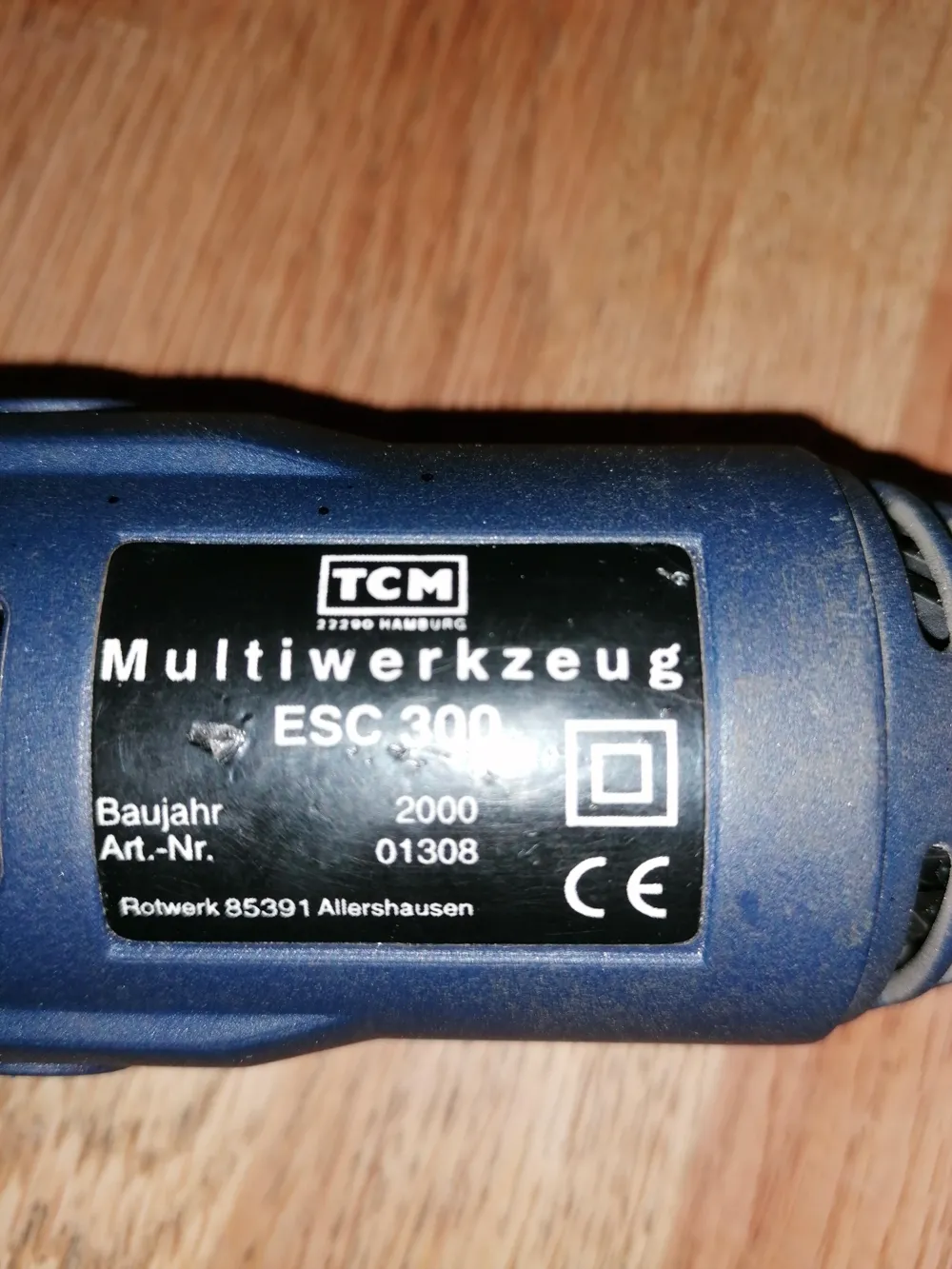

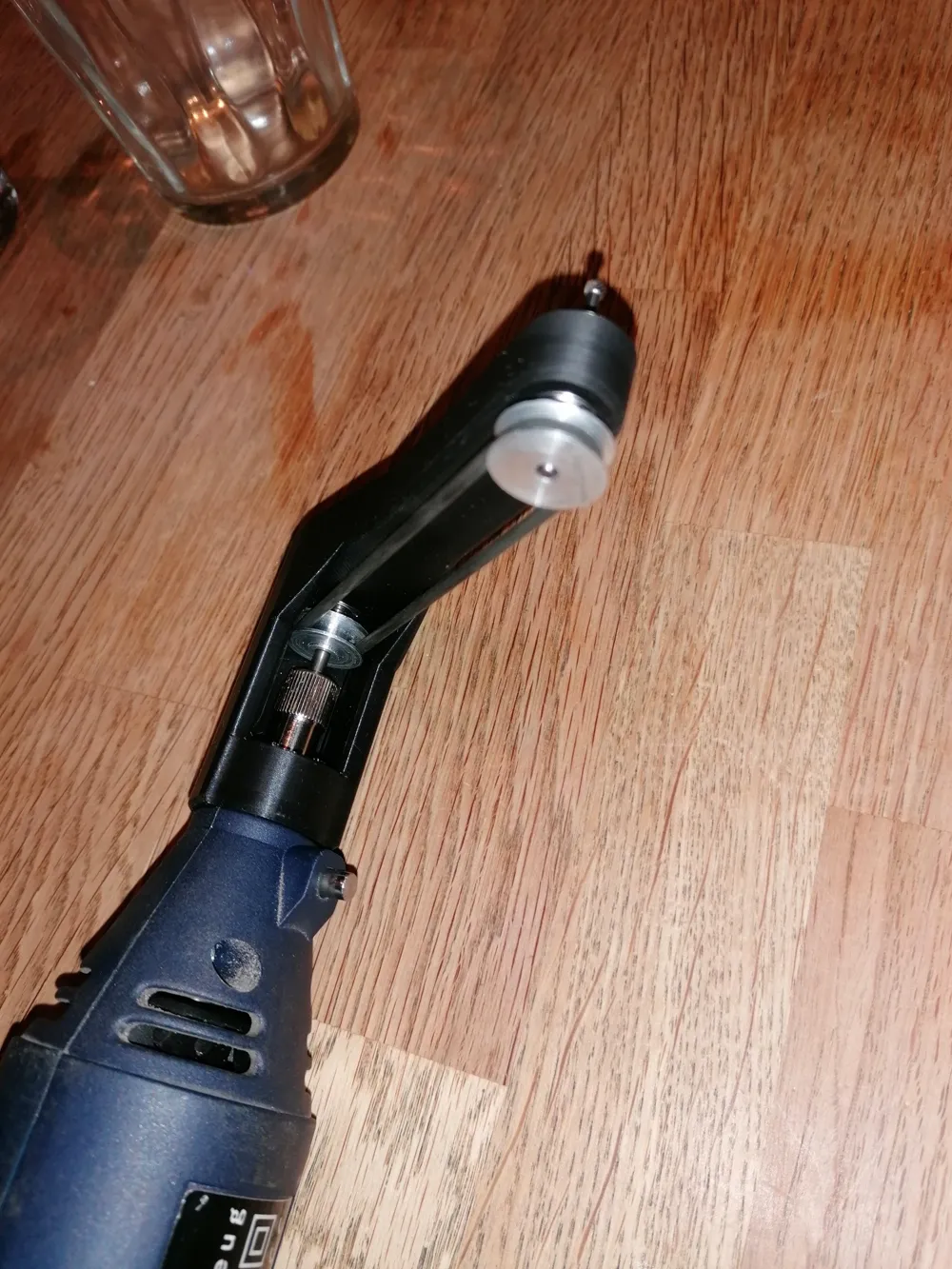

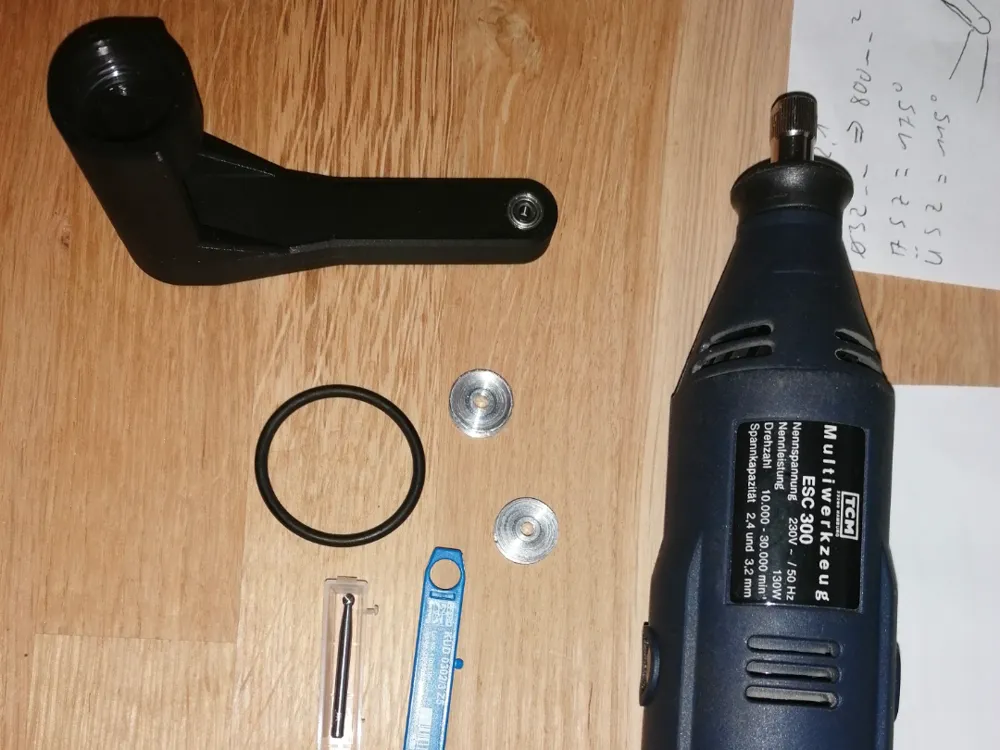

Here is an angle attachment for a 3mm rotary tool bit. I use this on a multi-tool from TCM. It certainly also fits other tools that have the same thread. The following parts were used:
- 3mm rotary burr from Pferd
- 4 ball bearings 3x9x5mm
- O-ring 3x35mm
- 2 grub screws M3x3
- Dowel pin 3x50mm
- I turned the pulleys myself. Diameter 15mm, thickness 5-6mm, and inner diameter 3mm
Have fun with it
