5/8 to 3/8 microphone stand/arm adapter
IP Report
Print Profile(1)
0.12mm layer, 2 walls, 15% infill
Designer
33 min
1 plate
Open in Bambu Studio
Boost
27
81
16
1
225
158
Released
Description
Hey!

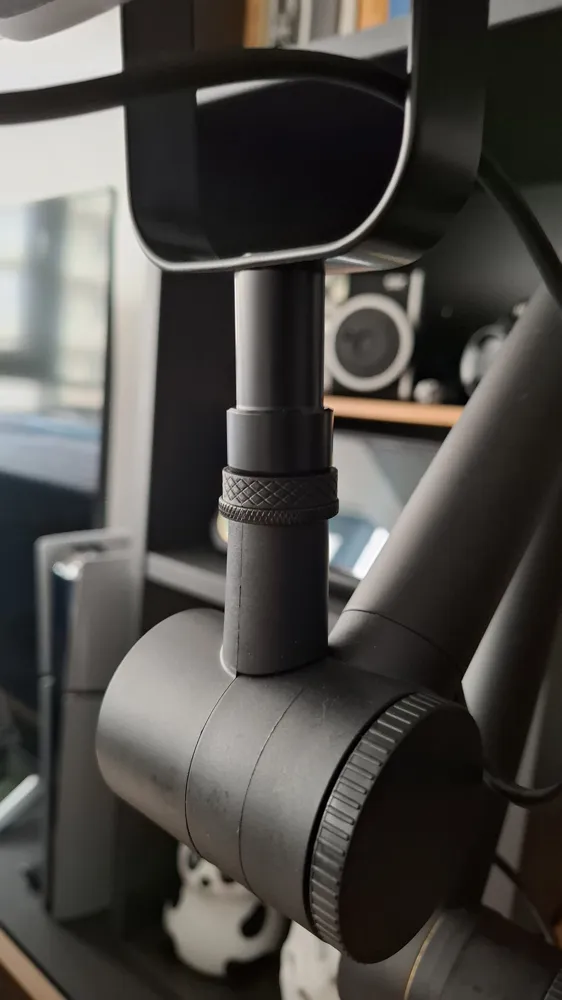

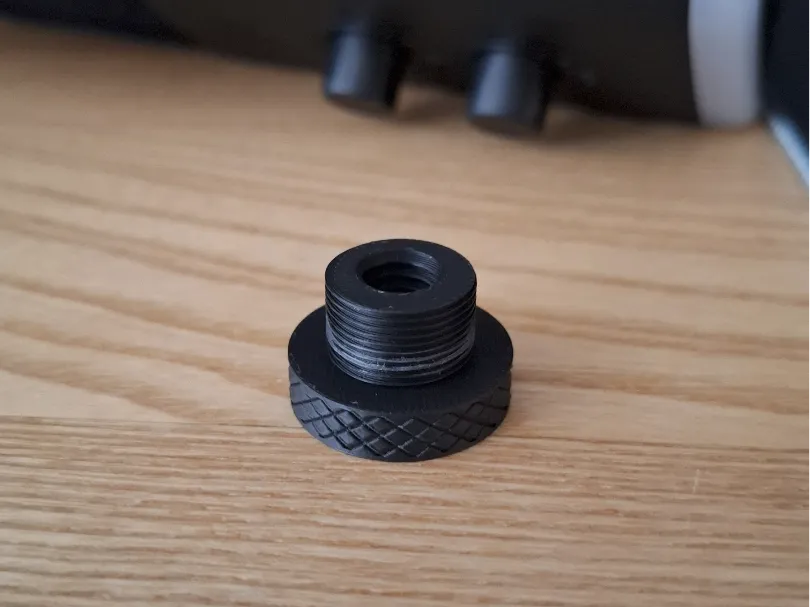

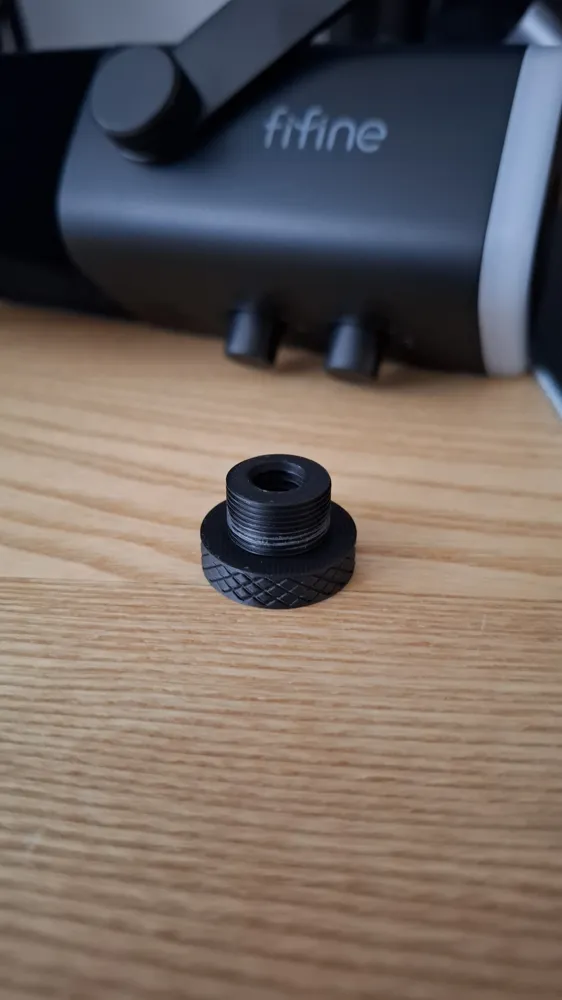

I designed a solution for an issue I had with my Fifine AM8. The mic has both 5/8" and 3/8" threads, but the 3/8" screw on my boom arm was too short to secure it properly. I created a simple adapter that screws into the mic and ensures a solid, sturdy connection - no matter how short the 3/8" screw on your boom arm or mic stand is.
Dimensions:
- inner thread: 3/8"-16
- outer thread: 5/8"-27
- 5/8 thread length: 9mm
- total length: 15mm
- bottom ring diameter: 24mm
