FPV Gimbal 3-Axis for Micro Cam and 2g Servo
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
29 min
1 plate
Open in Bambu Studio
Boost
43
86
5
2
43
16
Released
Description
Content has been automatically translated.
Hello FPV pilots,

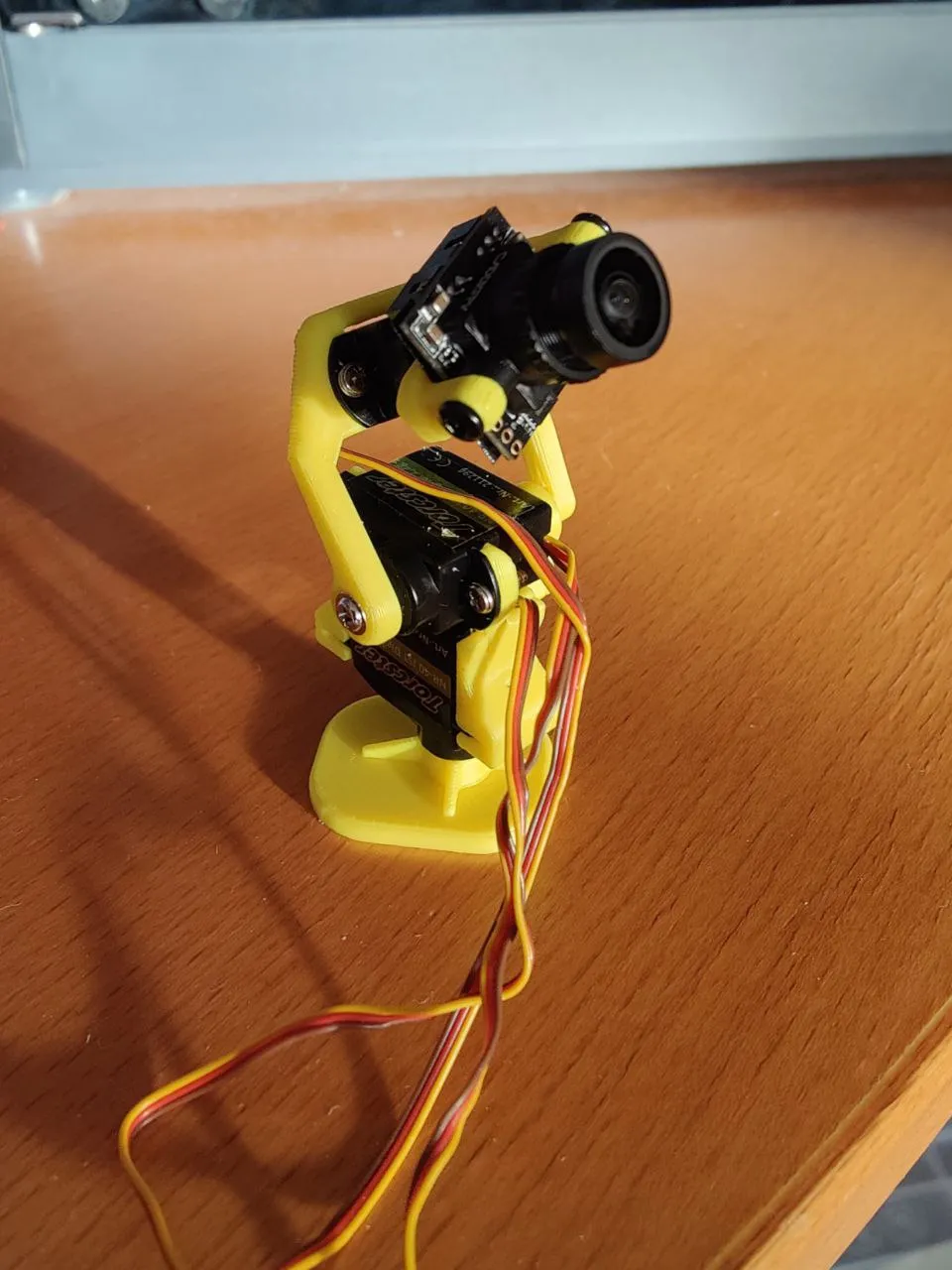

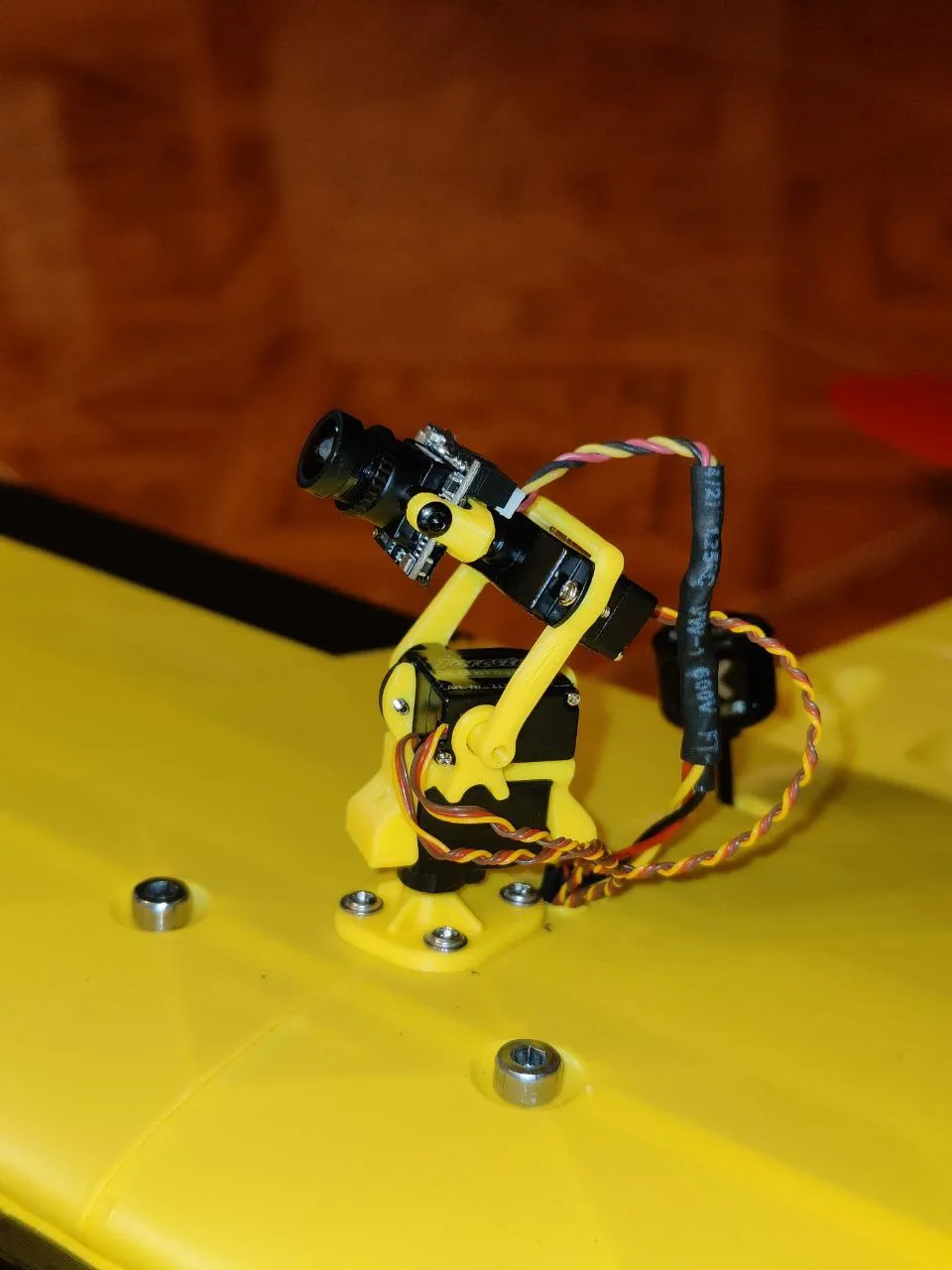

While searching for an ultra-light head-tracking setup, I couldn't find a 3-axis gimbal. That's why I designed my own, which is compatible with 2g servos from Torcster (https://torcster.de/Torcster-Nano-Servo-NR-40-Digital-22g). A CADDXFPV Ant camera is used. I think other micro cameras with a width of 14mm should also fit.
Carefully remove the supports to prevent damage to the components.
