Case for Electric Motor

GIF

Print Profile(0)


Add the first print profile to earn points

Boost
1
5
2
0
2
1
Released

Description

Content has been automatically translated.
Show original

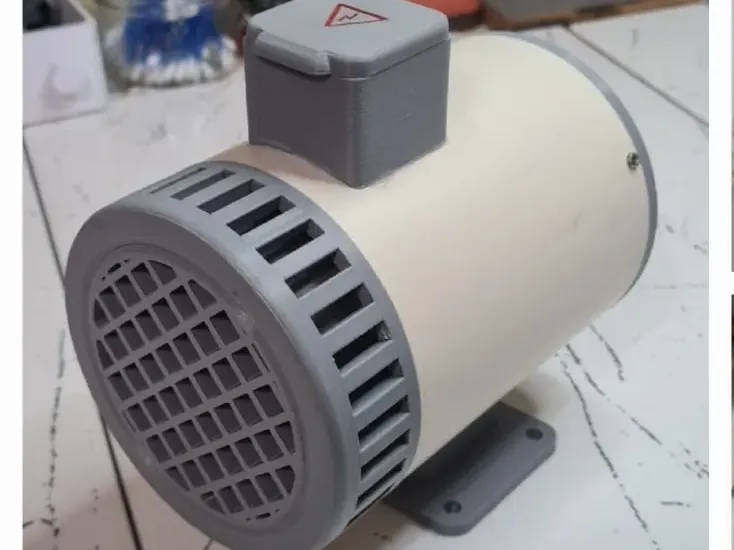

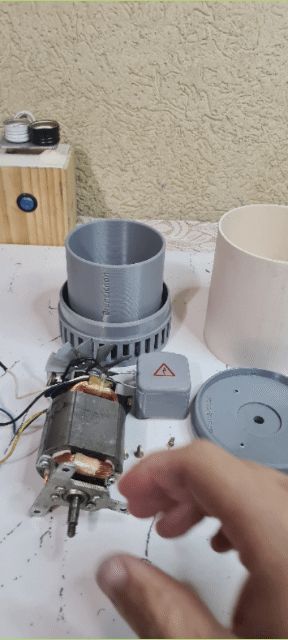

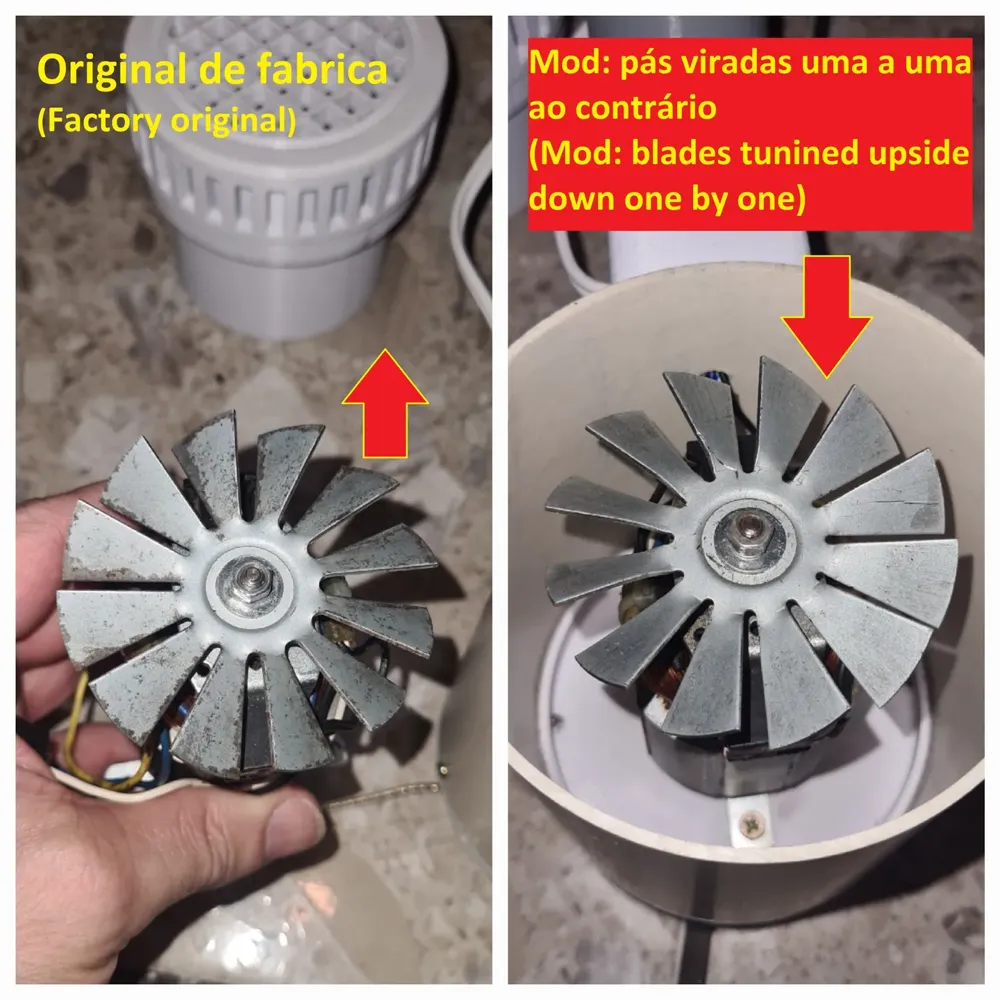

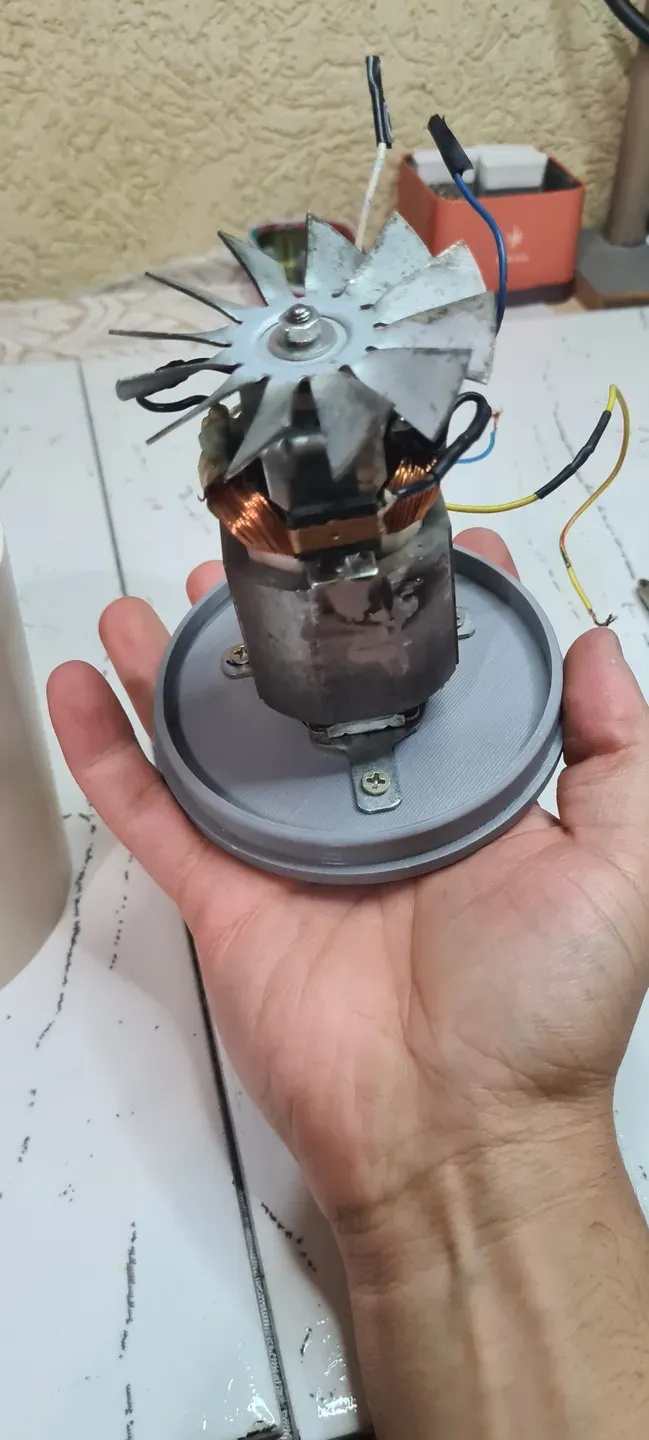

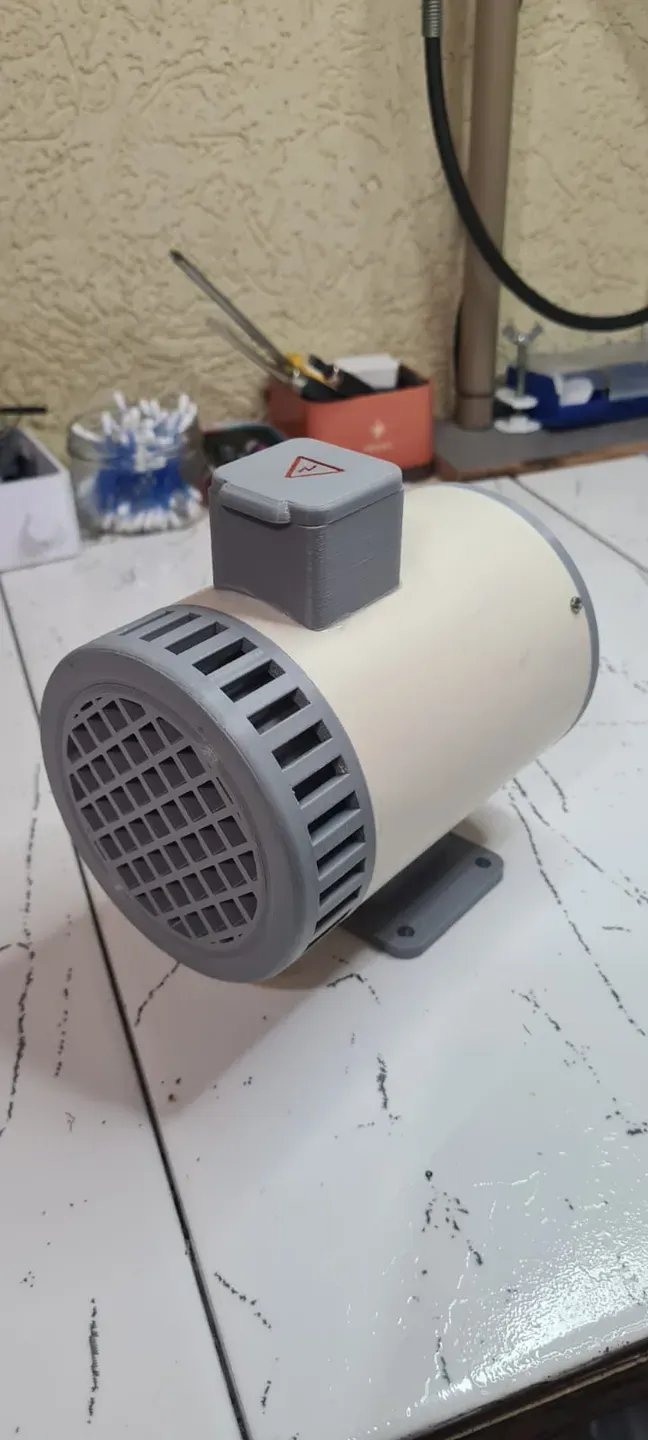

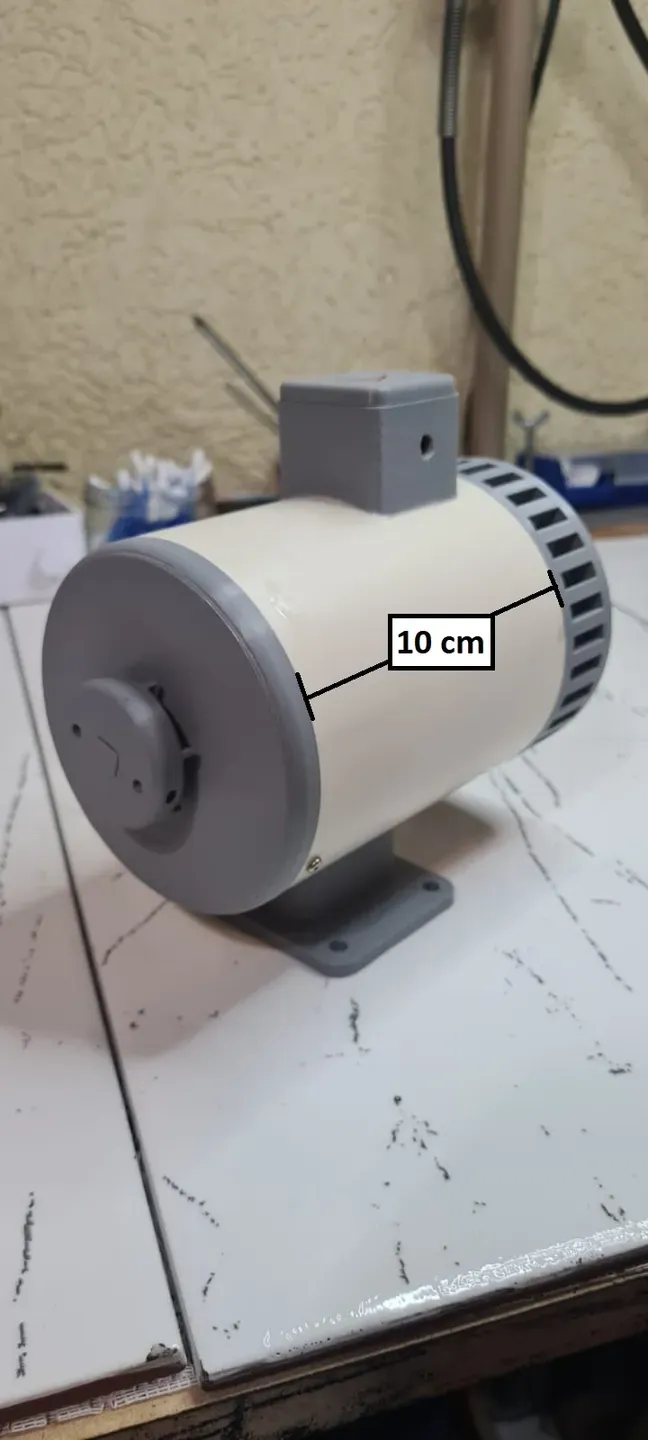

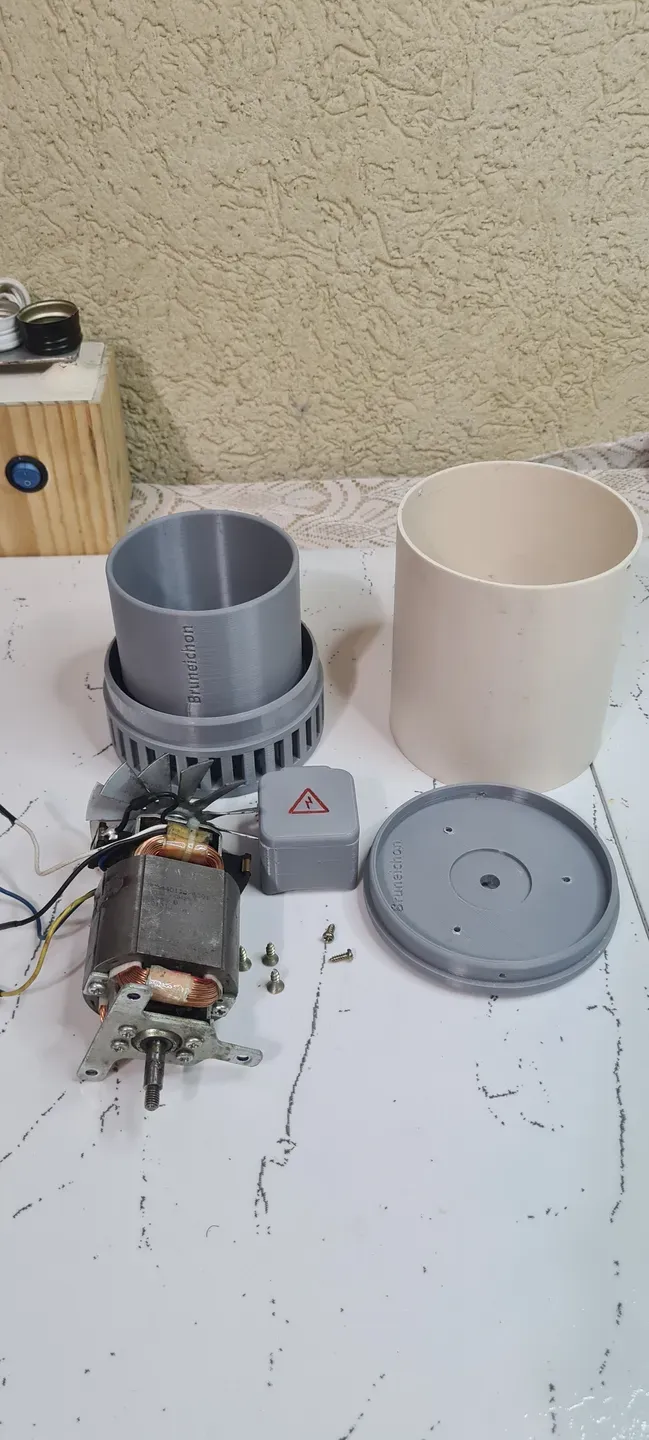

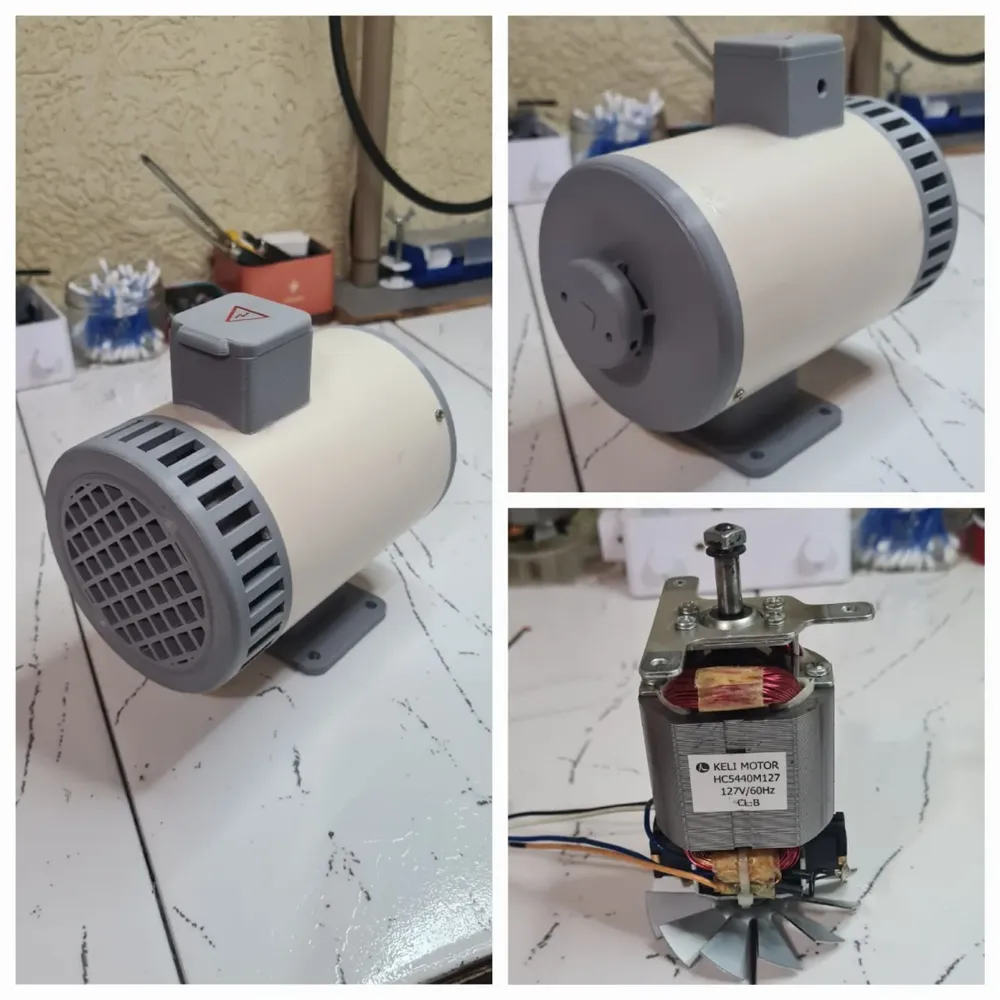

This Electric Motor Case is for those who have a blender motor and are hesitant to use it because it's a high-speed motor and could cause injury due to lack of protection. With this case, you can enclose the motor, providing a more aesthetically pleasing and safer finish for your inventions. INSTRUCTIONS: 1. The fan blades must be turned one by one in the opposite direction so that they can blow air directly onto the motor. 2. You will need a 100mm pipe section to form the motor body. 3. Simply glue and screw the parts together as shown in the gifs above. I RECOMMEND printing in ABS or PETG as the motor can get a bit warm. TIP: If you add a dimmer, you can also control the motor's speed. Thank you and I hope you like it ;D



EN (google translate): This Electric Motor Box is for those who have a blender motor and are afraid to use it because it is a high speed motor and could get hurt due to no protection. With it you can place this engine inside, leaving a more beautiful and safer finish for your inventions, INSTRUCTIONS: 1. The propeller blades must be turned one by one in the other direction so that the air can blow directly on the engine. 2. You will need a 100mm piece of pipe to make the motor body. 3. Just glue and screw the pieces together as in the gifs above. I RECOMMEND that you print in ABS or PETG because it can heat up a little. TIP: If you add a Dimmer you can also control the speed of this motor. Thank you and I hope you like it ;D
