🎮 RASPBERRY PI CYBERPUNK 2077 - OPEN FRAME CASE 🎮

Description:

An open frame case inspired by the futuristic aesthetic of Cyberpunk 2077, specifically designed for Raspberry Pi. This design allows for a complete view of your SBC while maintaining optimal ventilation and an aggressive gaming style that will make your setup stand out

**✨ Main Features:**

- **Modular design** with interchangeable side panels
- **Superior ventilation** with support for multiple fans (40mm)
- **Transparent acrylic panels** for maximum board visibility
- **Robust structure** with secure mounting for Raspberry Pi
- **Cyberpunk 2077 aesthetic** with official game logos and typography
- **Full access** to all GPIO, USB, HDMI, and power ports
- **Integrated cable management** in the design

**🎨 Customization Options:**

- Panels available in multiple colors (iconic yellow, gray, black, red-orange)
- Compatible with RGB LED strips for ambient lighting
- Design prepared for finishes with paint, vinyl, or gradients

**📐 Print Specifications:**

- Recommended material: PLA (easy), PETG (resistant), ABS (professional)
- Layer height: 0.2mm (0.15mm for fine details)
- Infill: 20-25% (sufficient for the structure)
- Supports: Necessary on side panels and fan mounts
- Adhesion: brim recommended for large parts
- Total print time: 12-18 hours (all parts)

**🔧 Compatible Hardware:**

- Raspberry Pi 4 Model B
- Raspberry Pi 3 B/B+
- Other SBCs with similar form factor
- 40mm x 10mm fans (x2 recommended)
- HATs and expansions (with sufficient space)

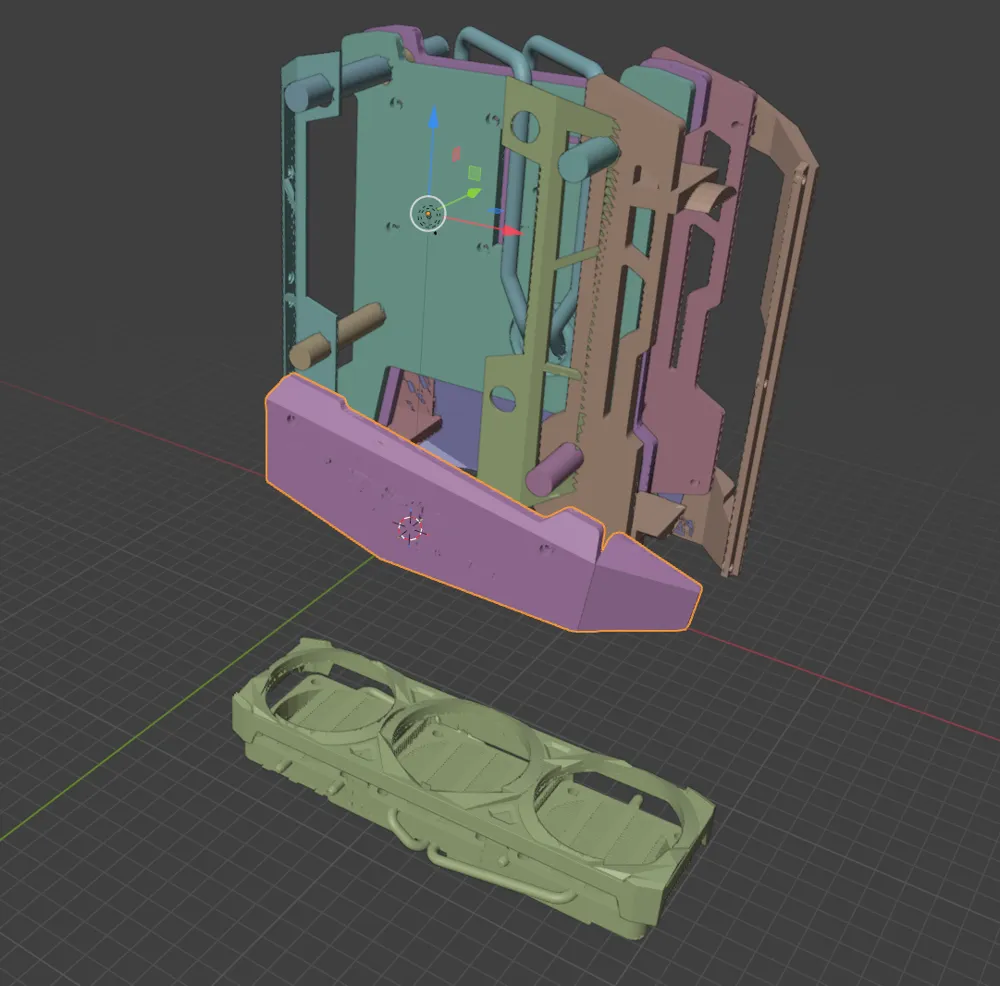

**📦 Project Content:**

- Main top frame with fan mounts
- Bottom frame with board mounts
- 2x Transparent side panels (acrylic recommended)
- Front panel with Cyberpunk 2077 logo

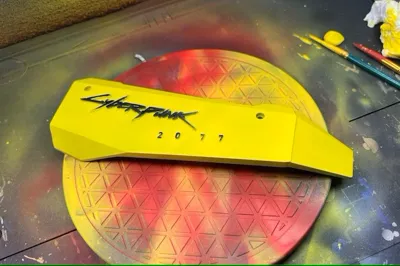

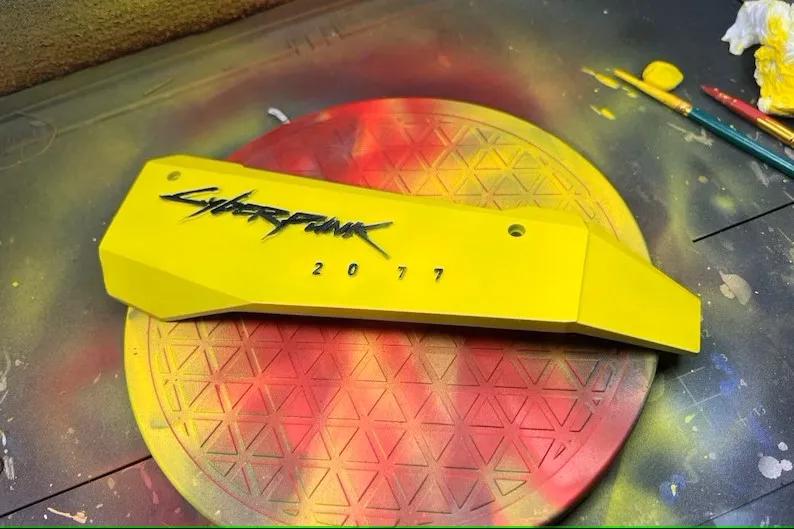

- Rear panel with logo and year “2077”
- Base with non-slip feet
- Color variants: yellow, gray, black, red-orange

**🔩 Additional materials needed (not included):**

- 4x M2.5 x 6mm screws (Raspberry Pi mounting)
- 4-8x M3 x 8mm screws (general assembly)
- 4x M3 x 20mm screws (fans, optional)
- 2x 3mm transparent acrylic panels cut to size
- 2x 40mm fans (optional but recommended)
- M2.5 x 10mm standoffs (optional, to elevate the Pi)

**⚙️ Assembly:**

**Difficulty:** Medium
**Estimated time:** 1-2 hours
**Tools:** Small screwdriver, glue (optional for acrylics)

1. Mount the Raspberry Pi on the bottom frame
1. Install the fans on the top frame (optional)
1. Assemble the side panels
1. Connect the cables and organize the wiring
1. Close the structure and secure with screws

**🌟 Professional Finishing Tips:**

- **Sanding:** Sand with 220-400 grit before painting for a smooth finish
- **Painting:** Use spray paint in thin layers (2-3 coats with drying time in between)
- **Cyberpunk Yellow:** Pantone 109 C or similar for authentic color
- **Lighting:** Add yellow/cyan LED strip underneath for Night City effect
- **Acrylic:** Cut with laser or fine saw, protect with film until the end
- **Vinyls:** Logos look amazing with matte black cut vinyl

**💡 Suggested projects for your Cyberpunk Raspberry Pi:**

- RetroPie retro emulation station
- Pi-hole ad blocking server
- Media center with Kodi/Plex
- Home Assistant home automation server
- Cybersecurity/pentesting project with Kali Linux
- Custom streaming device

**🎯 Advantages of this design:**

- ✅ Excellent passive cooling + optional active cooling
- ✅ Tool-free access to the board
- ✅ Unique design that stands out in any setup
- ✅ Dust protection (with closed panels)
- ✅ Scalable: easy to modify and customize
- ✅ Professional gaming aesthetic

**📸 Gallery:**

The images show:

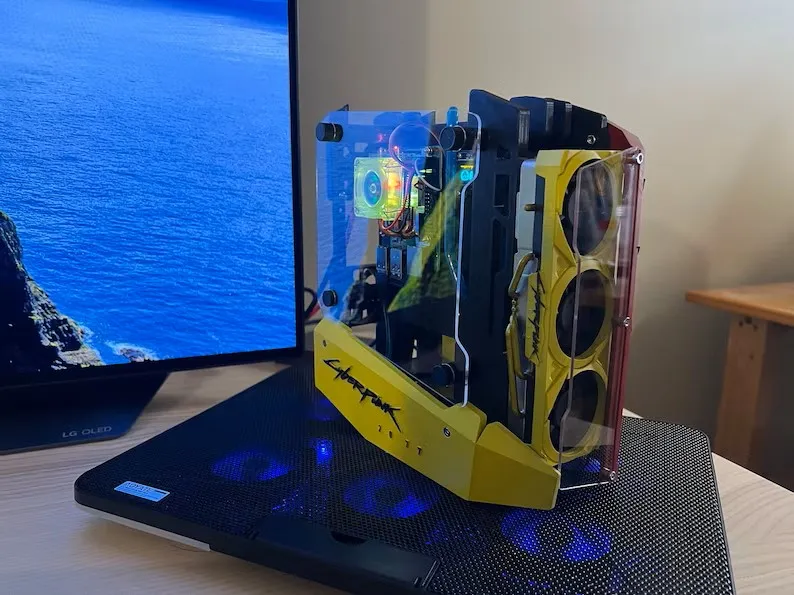

- Front view with iconic yellow panel

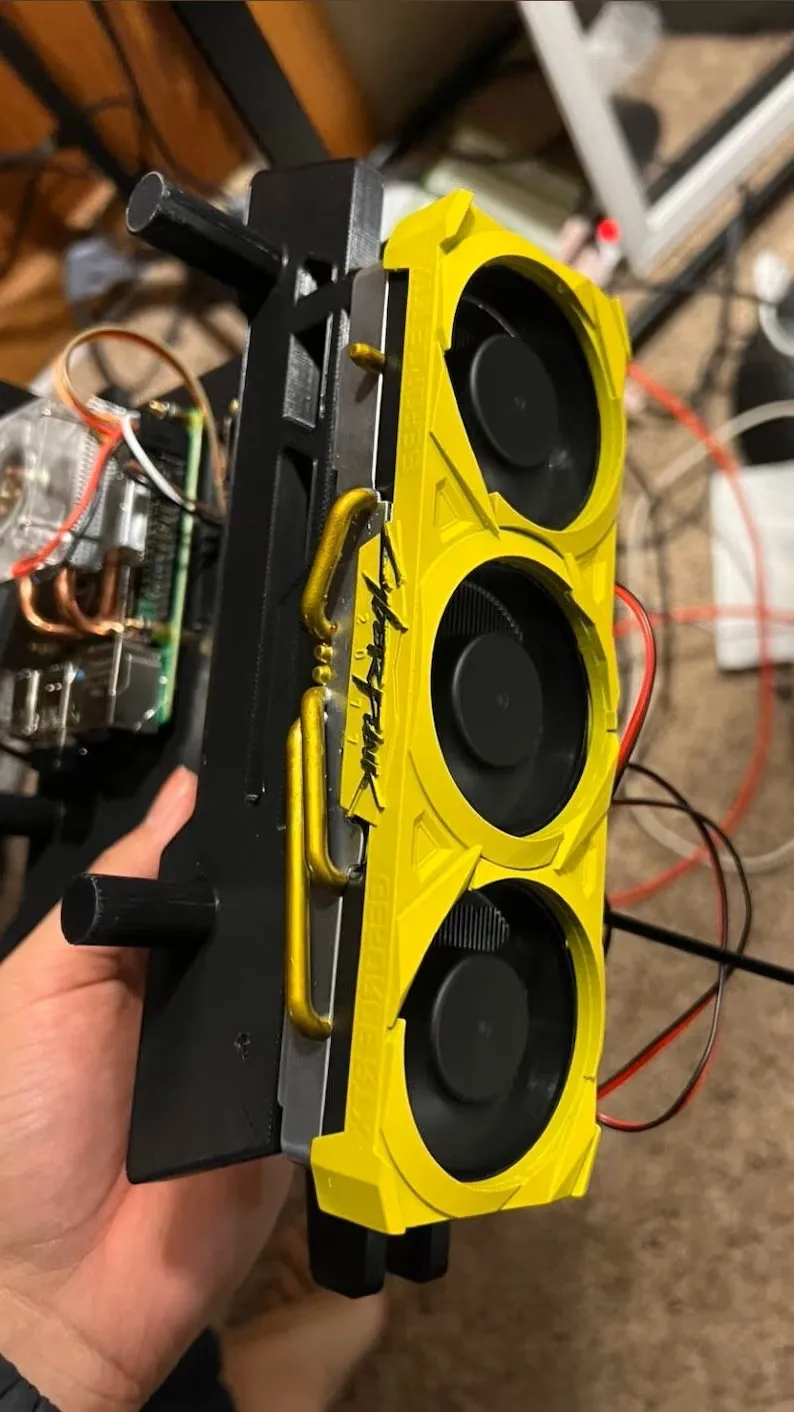

- Dual fan configuration

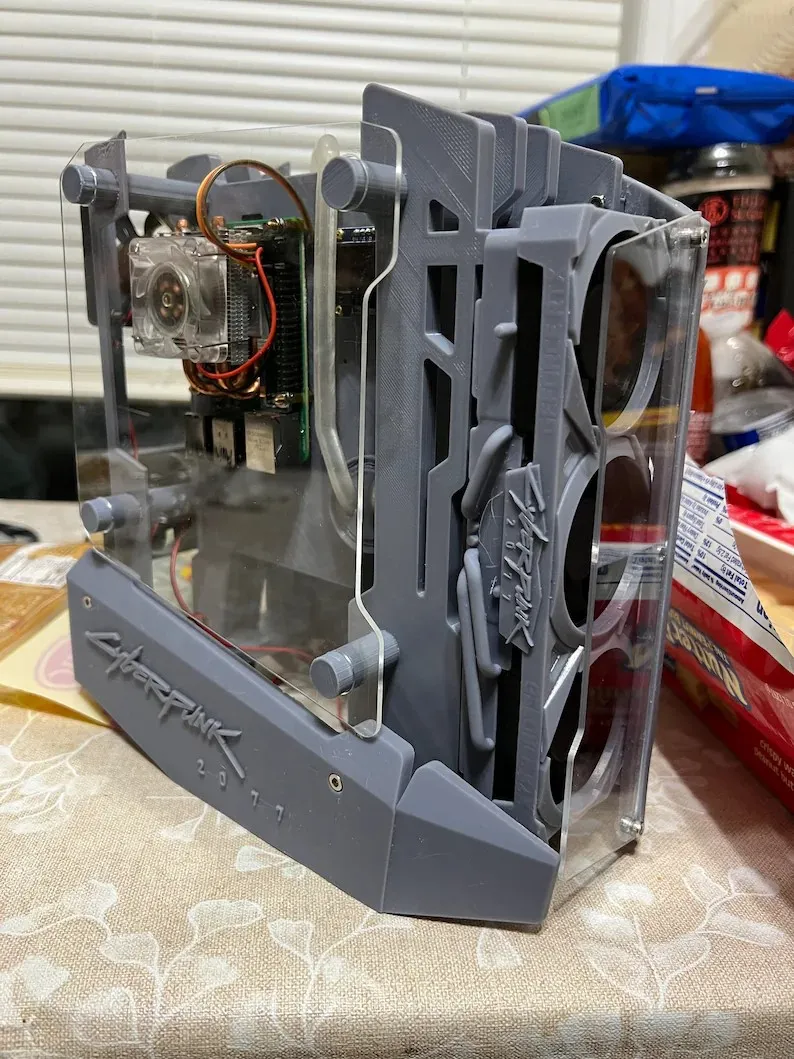

- Gray Cyberpunk variant

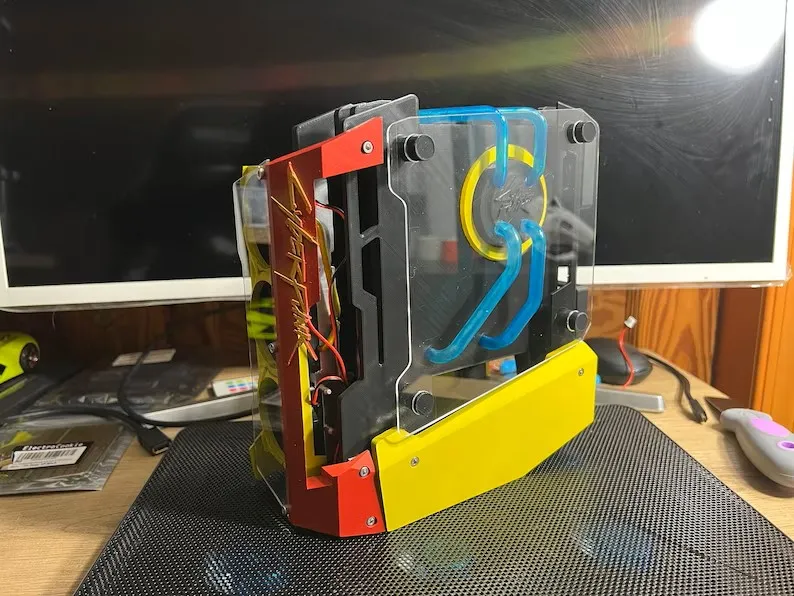

- Custom multicolor finish
- Integrated RGB lighting
- Different angles and configurations

**🔄 Planned future updates:**

- Version for Raspberry Pi 5
- Support for integrated touchscreen
- Top panel with hexagonal ventilation
- Compact version for Raspberry Pi Zero

-----

**#Cyberpunk2077 #RaspberryPi #RaspberryPi4 #PiCase #OpenFrame #Gaming #RetroPie #3DPrinting #FunctionalPrint #TechMod #DIY #SmartHome #SingleBoardComputer #NightCity #CustomCase**

-----

**📝 Important notes:**

- Print a test piece first to check tolerances
- The files include versions with and without logos (due to copyright)
- If you sell prints, verify the usage licenses of the Cyberpunk 2077 brand
- PETG is recommended for greater thermal resistance near the Pi
