QAV-S 2 JohnnyFPV SE – GoPro Mount (15°–40°)

A high-performance GoPro mount designed specifically for the Lumenier QAV-S 2 JohnnyFPV SE frame. Built for durability, protection, and easy camera access during freestyle or cinematic flying.

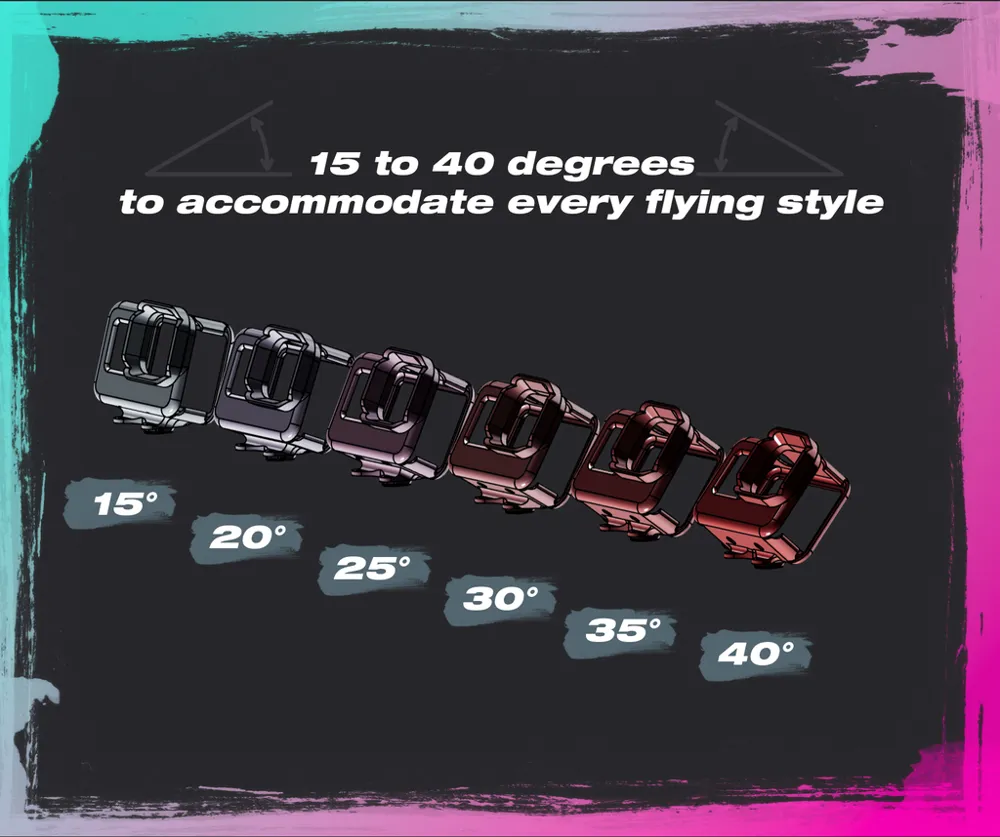

🎯 Available Angles

15° • 20° • 25° • 30° • 35° • 40°
Choose the angle that matches your flying style.

✨ Main Features

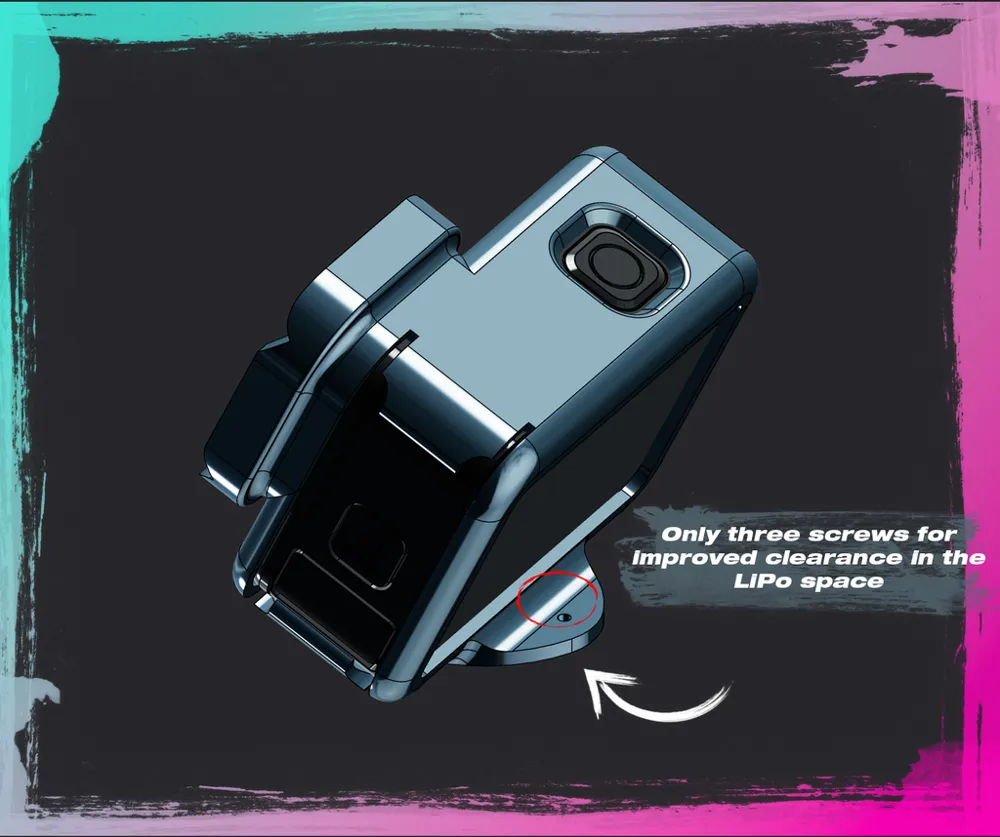

🔧 Three-screw base
Improves LiPo clearance and prevents strap interference.

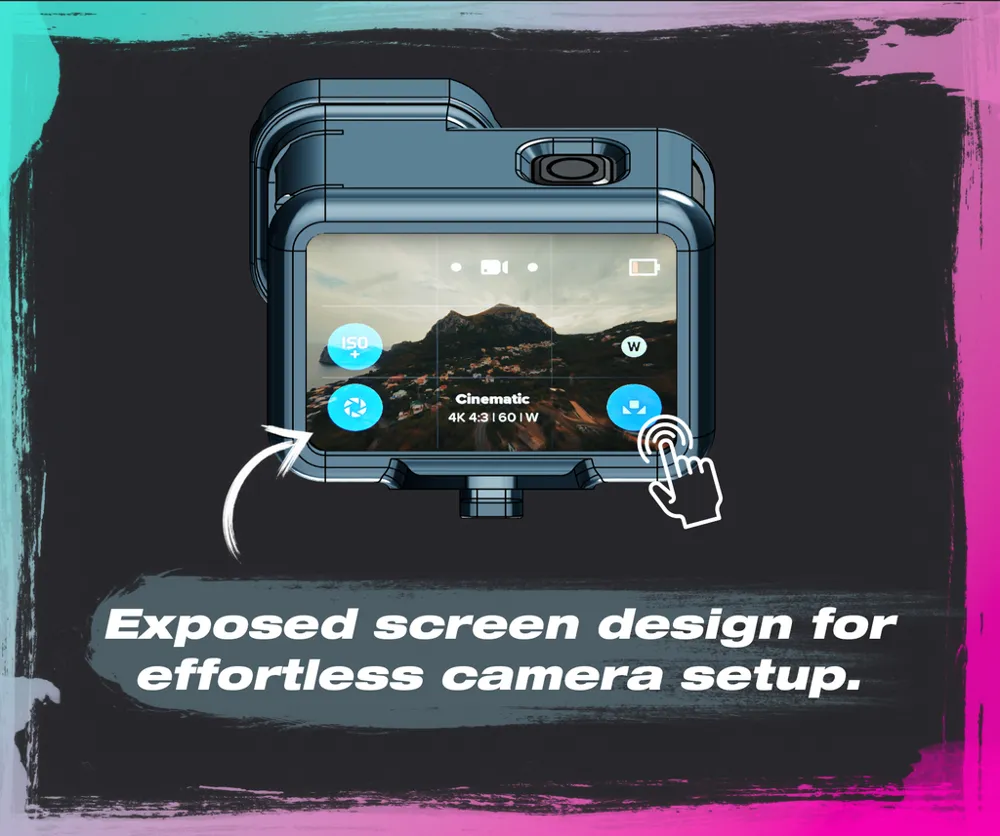

📱 Exposed rear screen
Change modes and camera settings without removing the GoPro.

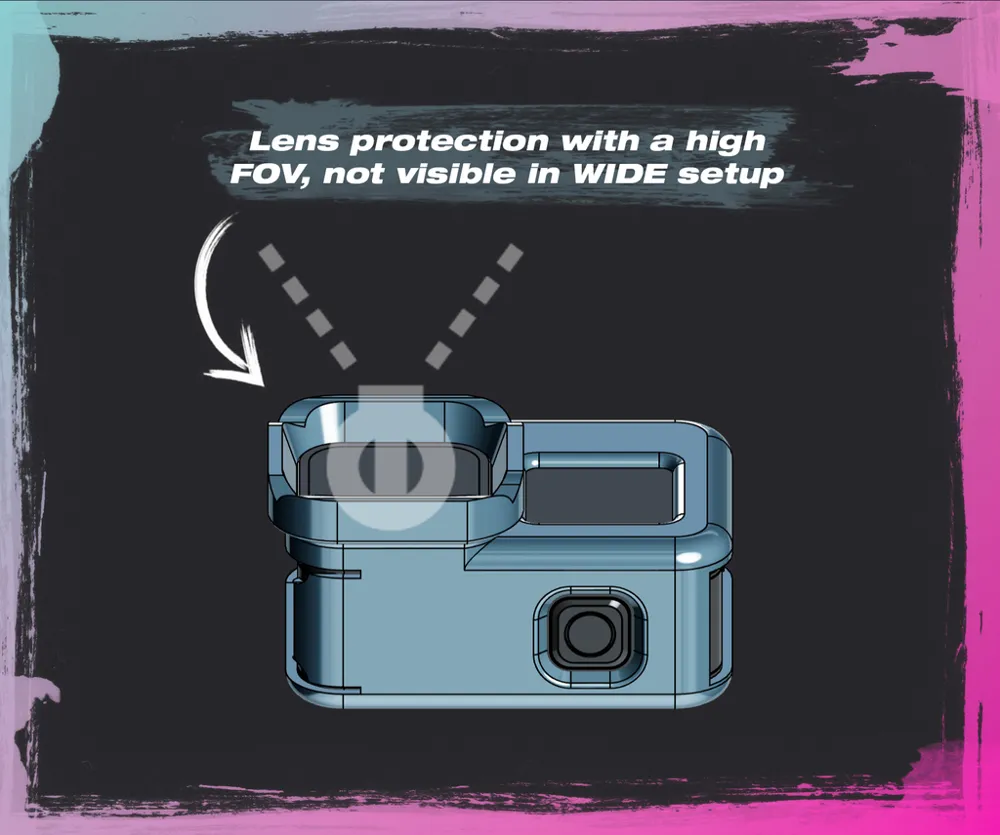

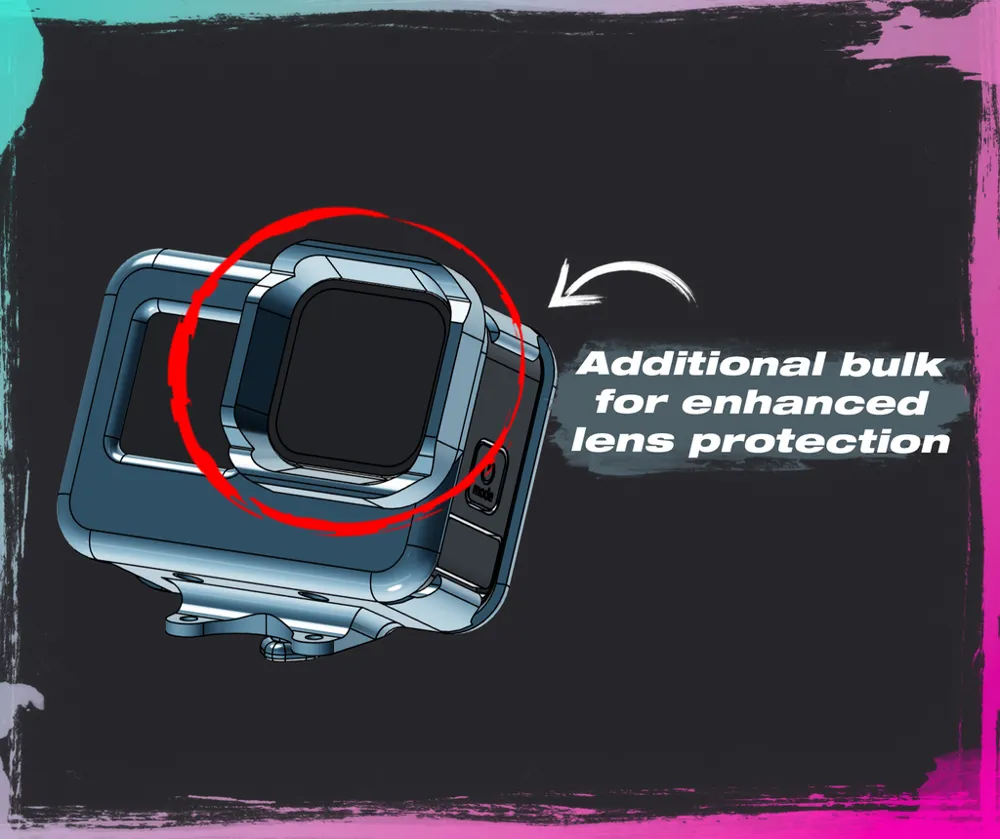

🛡️ Reinforced lens guard
Extra material around the lens improves impact resistance while staying outside the FOV, even in WIDE modes.

👁️ High-FOV safe geometry
No frame intrusion in WIDE or SuperView.

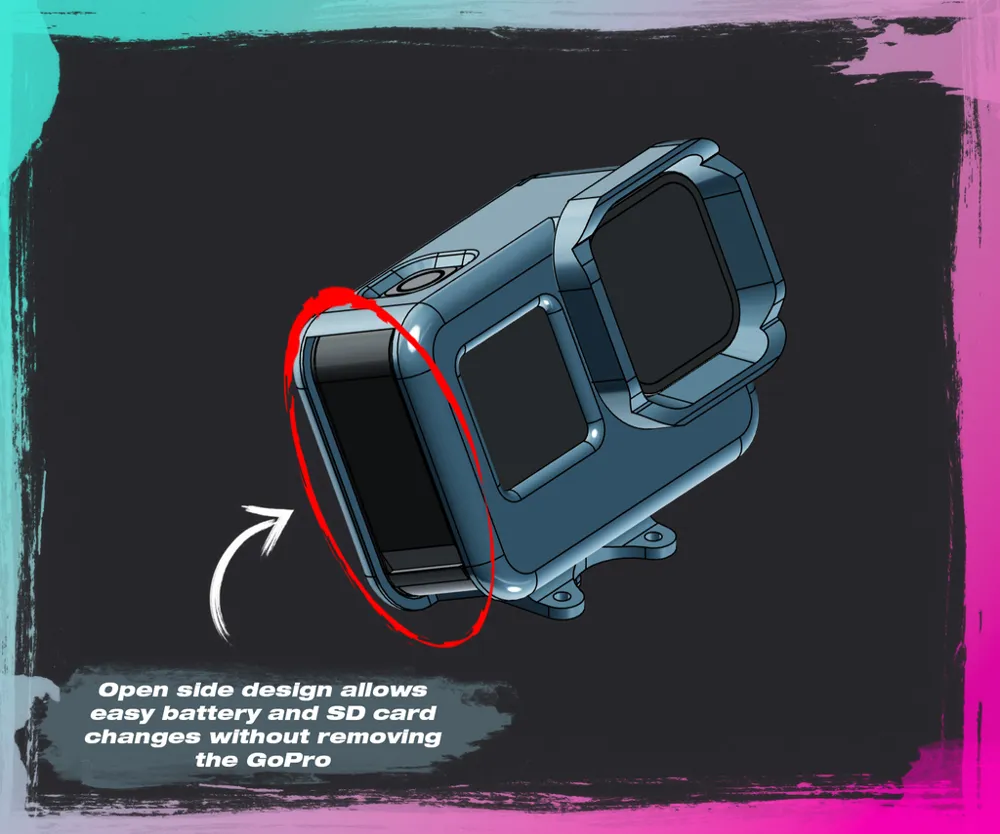

🔄 Open-side access
Swap batteries and SD cards quickly between flights.

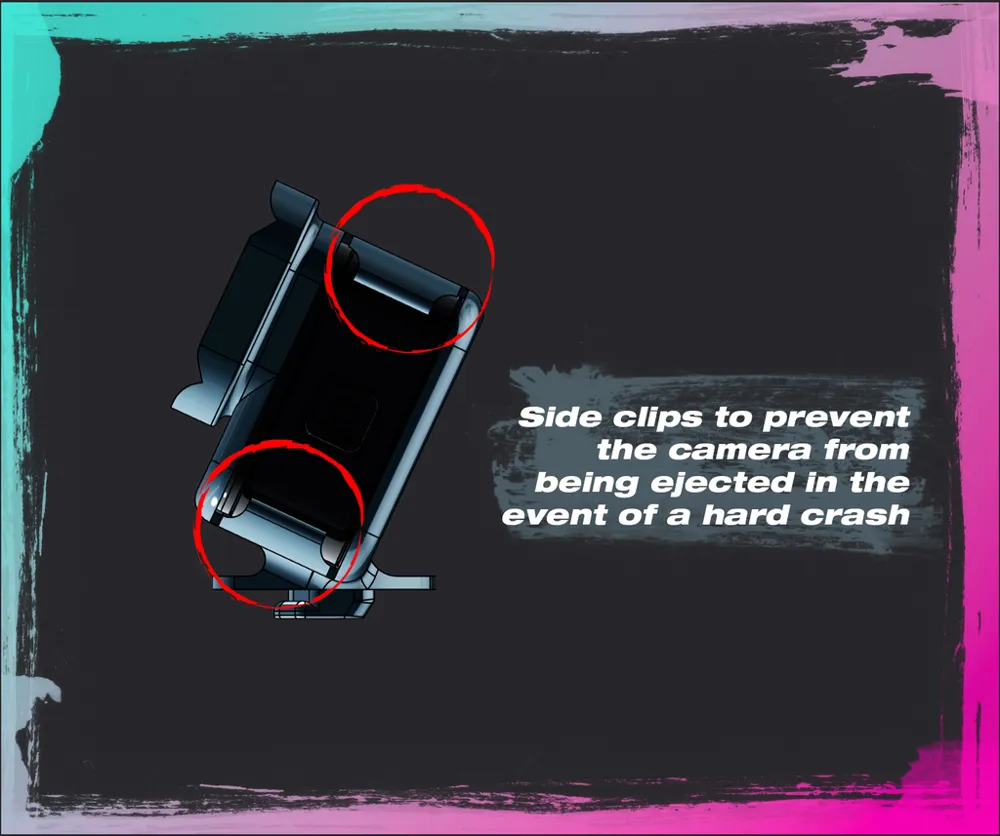

🧲 Side-locking clips
Hold the GoPro firmly and prevent ejection in hard crashes.

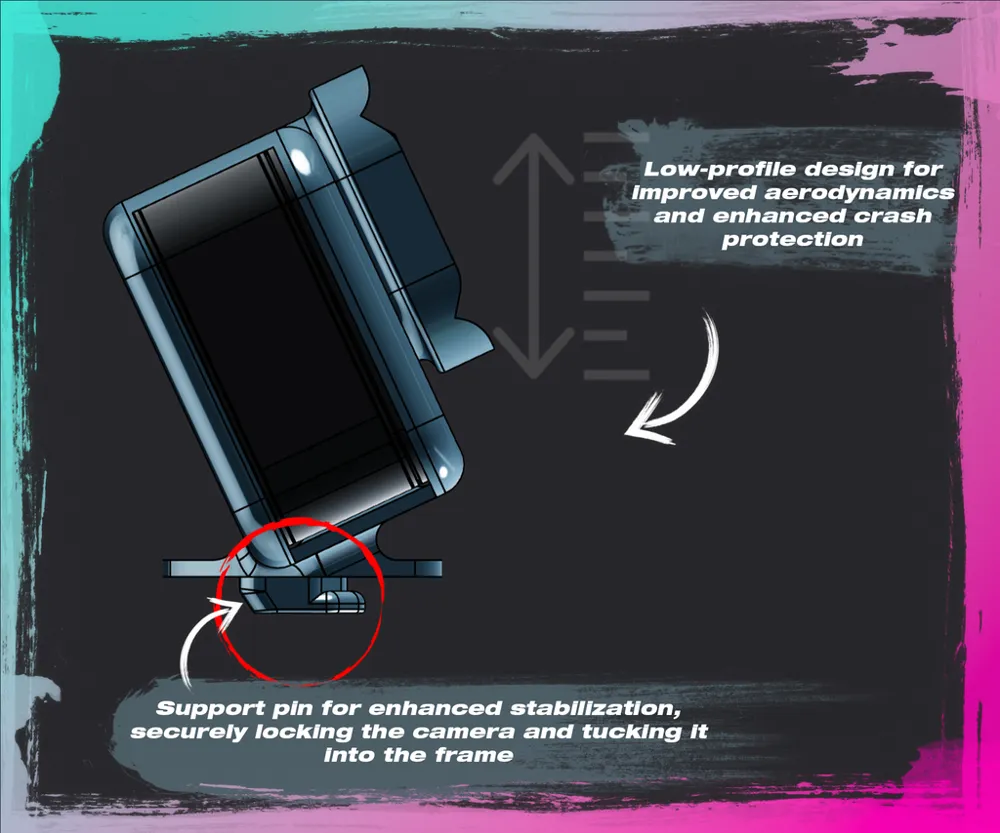

📌 Support pin
Locks the GoPro against the frame, reducing wobble and improving stabilization.

💨 Low-profile aerodynamic shape
Less drag, more stability at high speed.

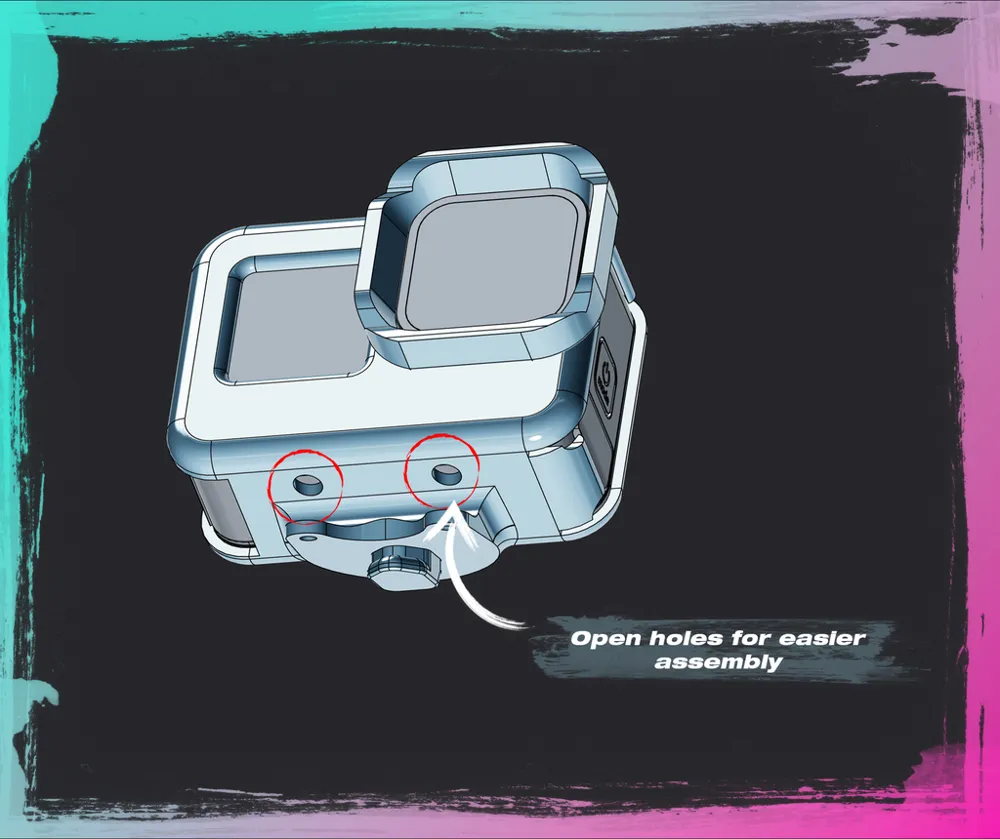

🪛 Easy-assembly holes
Open holes make installation effortless.

🧵 Recommended Material

TPU 95A for the best balance of flexibility, grip, durability, and crash absorption.

🖨️ Print Settings (Bambu P2S)

🟦 Filament Profile: TPU 95A

• Nozzle: 225 °C
• Bed: 40 °C
• Max volumetric speed: 1.8 mm³/s
• Fan: 25–50 percent (40 percent for overhangs)
• Flow ratio: 0.99
• Retraction: 15 mm/s
• Extruder: Direct Drive Standard/HF

🟧 Print Profile: 0.2 Layer + Supports P2S – FPV

• Layer height: 0.20 mm
• Walls: 4 perimeters
• Infill: 45 percent
• Supports: Enabled (0.2 Z gap, 0.45 XY distance)
• Travel speed: 180 mm/s
• Outer/Inner wall acceleration: 500 / 1000
• Extruder: Direct Drive (Standard or HF)

🧩 Compatibility

• GoPro Hero 9/10/11/12
• Fits only the QAV-S 2 JohnnyFPV SE top plate
