An original design in Fusion.

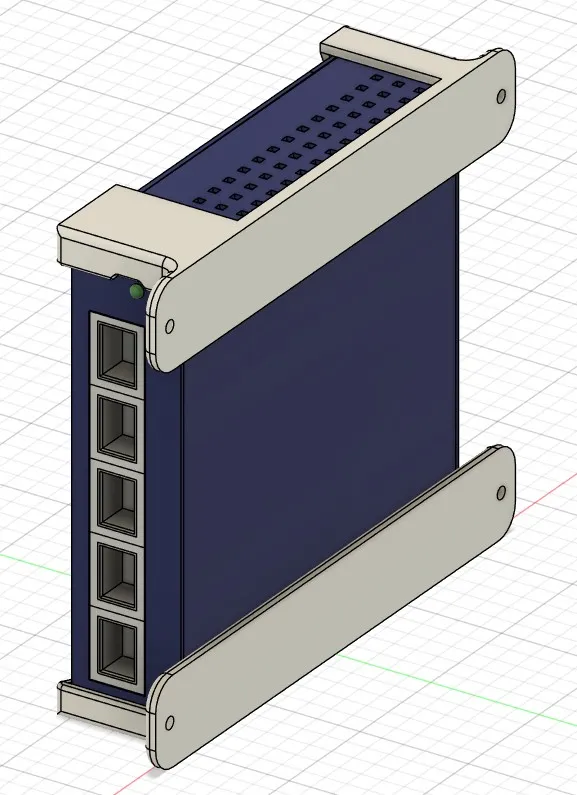

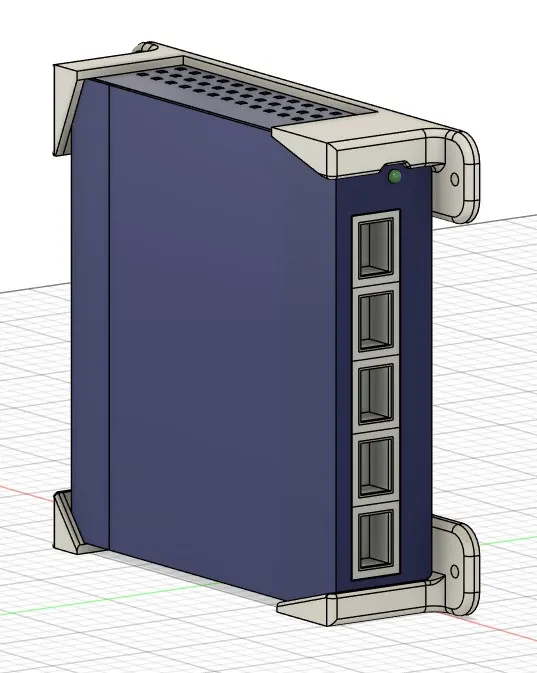

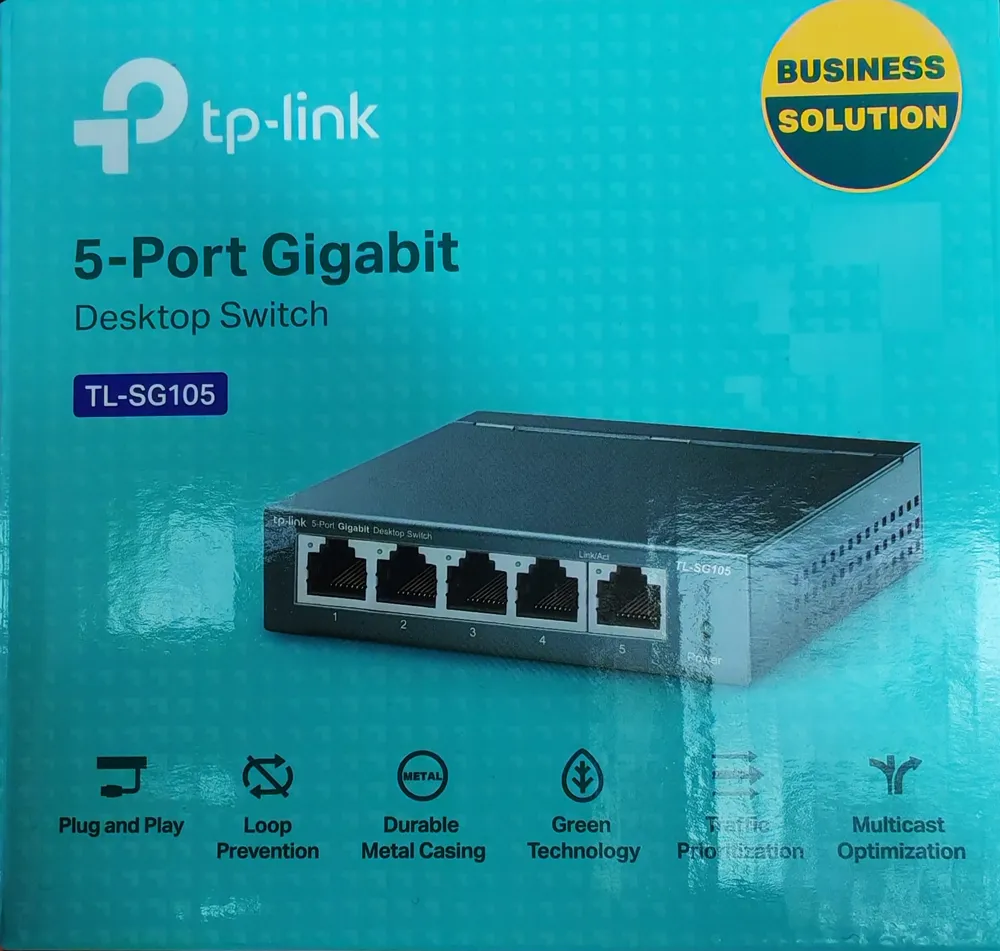

A lightweight bracket designed to hold the TL-SG105 TP-Link Desktop switch. Can be mounted to any flat surface, wall, cupboard etc.

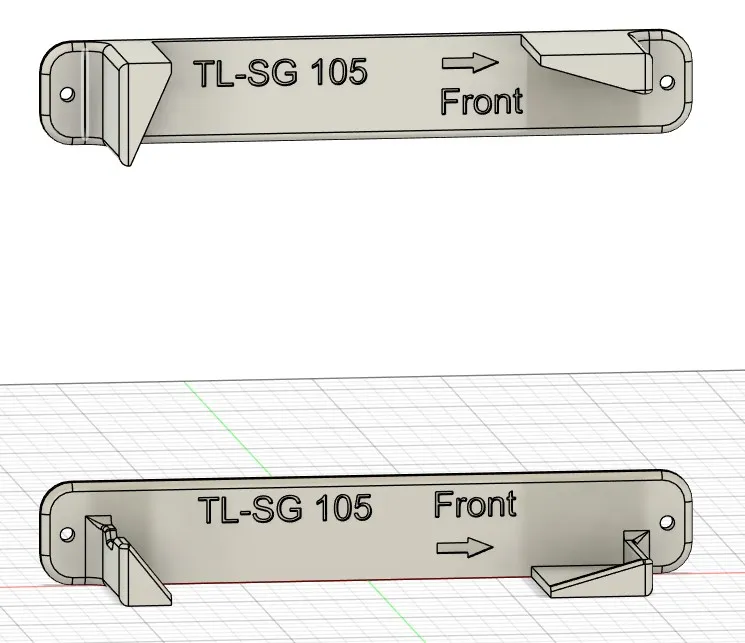

The mount is customised to suit the ports and requisite access points of the switch box. the mount is marked to indicate where the front face (ports) should be directed for optimum mounting.

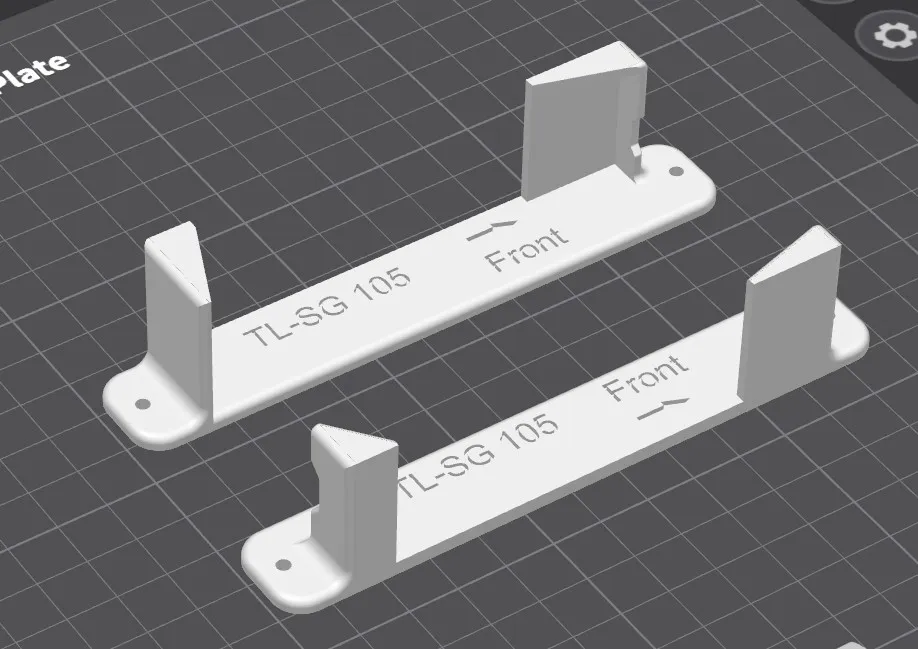

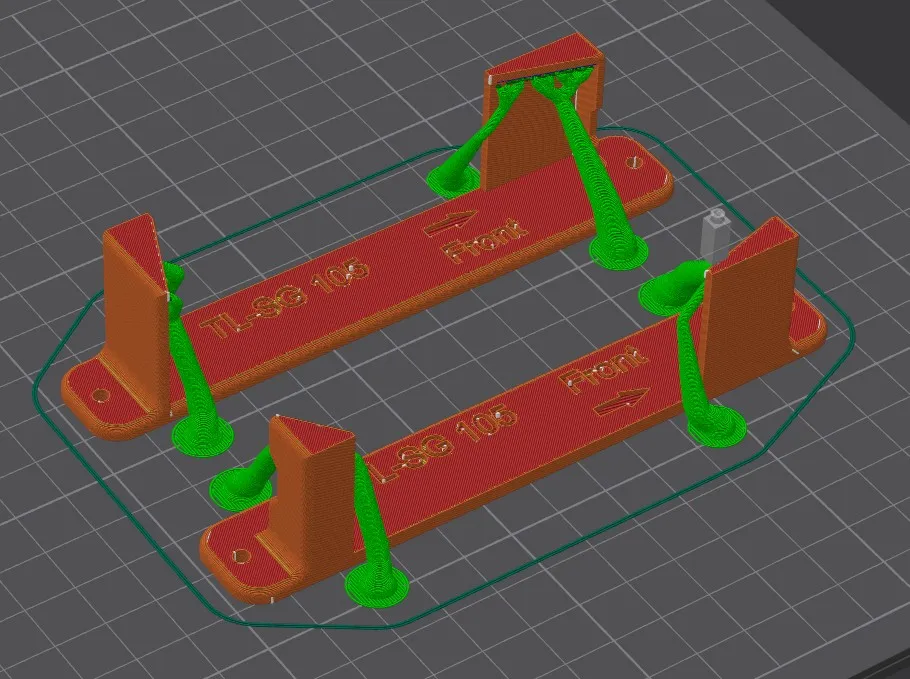

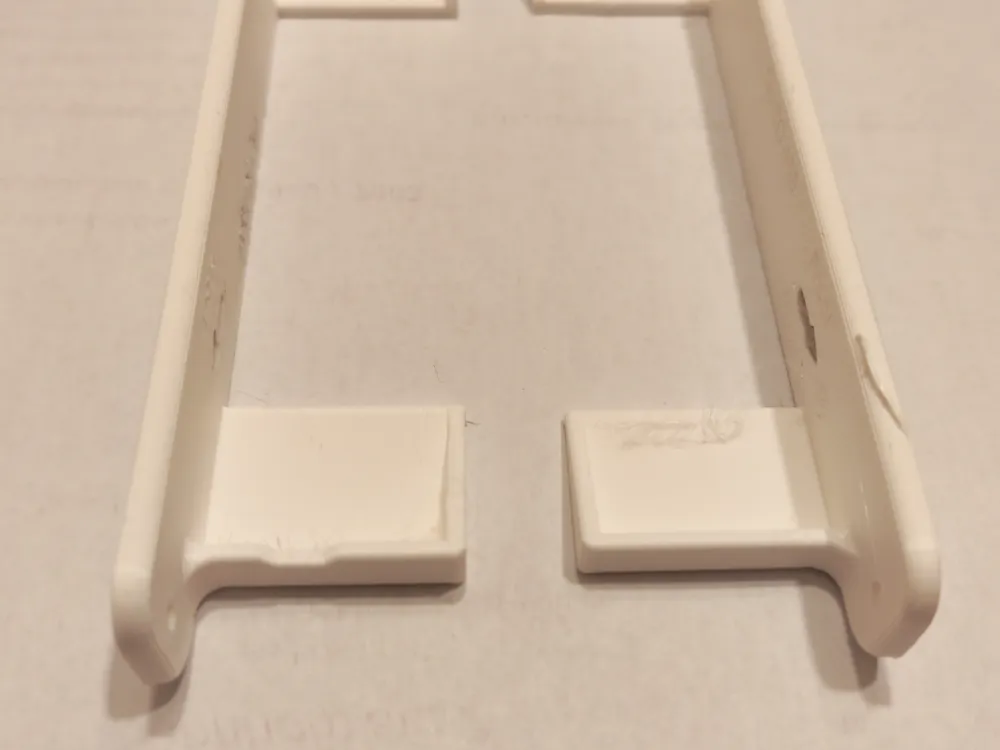

Printed with PLA or whatever is considered suitable. Dependent on your printer supports will probably be required for the outer wings, I used auto tree supports, worked fine. otherwise normal printing for your selected filament.
