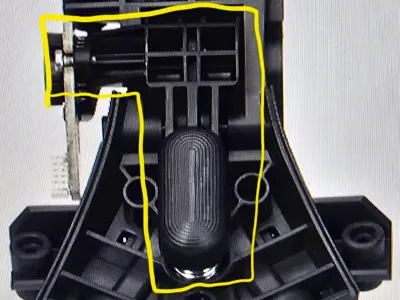

AMS 2 Pro Internal Hub Assist Tension

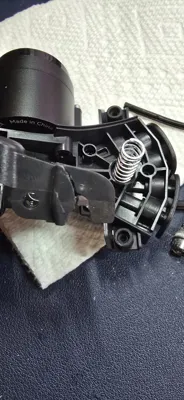

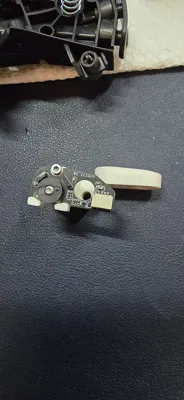

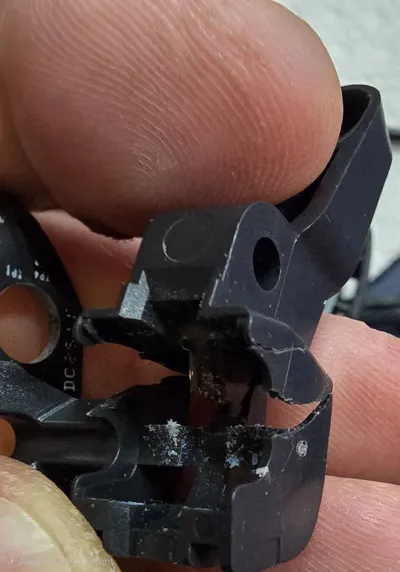

We’ve all been there: You’re in the middle of a project when your AMS 2 Pro stops feeding, and you open it up, only to find a snapped tension arm. It’s incredibly frustrating when a single small part sidelines your entire unit—especially when you realize you can't just buy the arm. Currently, the only "official" solution is to buy the entire internal hub assembly.

I designed this because I didn't want to wait. My own unit is under warranty, but I wasn’t willing to let my printer sit idle for weeks while waiting for a replacement hub to ship.

Why This Part is a Lifesaver:

• Beat the "Hub Tax": Avoid spending $70+ on a full hub replacement just to fix one broken lever.

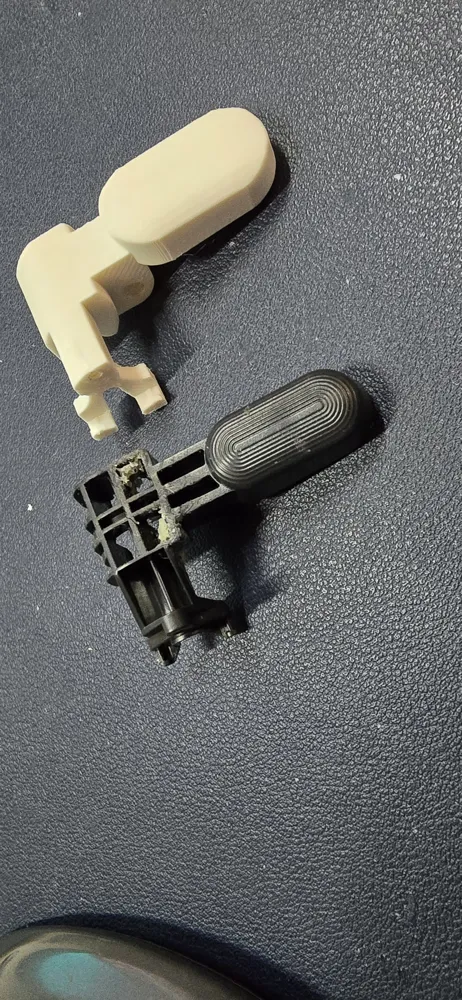

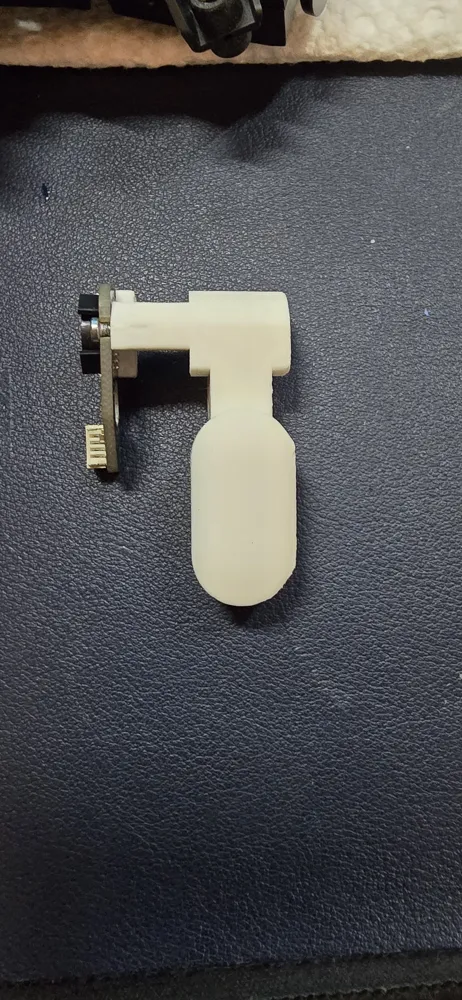

• Stay Printing: This is a drop-in replacement/assist lever that restores the tension needed for smooth, reliable filament feeding.
• Better Alignment: Ensures the filament remains securely positioned, preventing those annoying "failed to pull back" or "odometer" errors.
• Long-Term Security: Even if your unit is under warranty now, having this printed and ready saves you money and downtime once that warranty expires.

Whether you're waiting on a support ticket or just want a more robust setup, this part gets your AMS 2 Pro back in the game immediately.

Recommended Print Settings

• Material: PETG, ASA, or ABS (Highly recommended. PLA will "creep" or deform under the constant spring tension over time).
• Walls: 4-6 for maximum structural integrity.
• Infill: 40% - 100%.

To avoid downtime and continue printing, I created an updated version of the lever, available here:
AMS Internal Hub Unit – Tension Lever (AMS 2 Pro)

https://makerworld.com/en/models/2178778-ams-2-pro-internal-hub-lever-v2#profileId-2364393
