P-51 Mustang Compass (HSI)

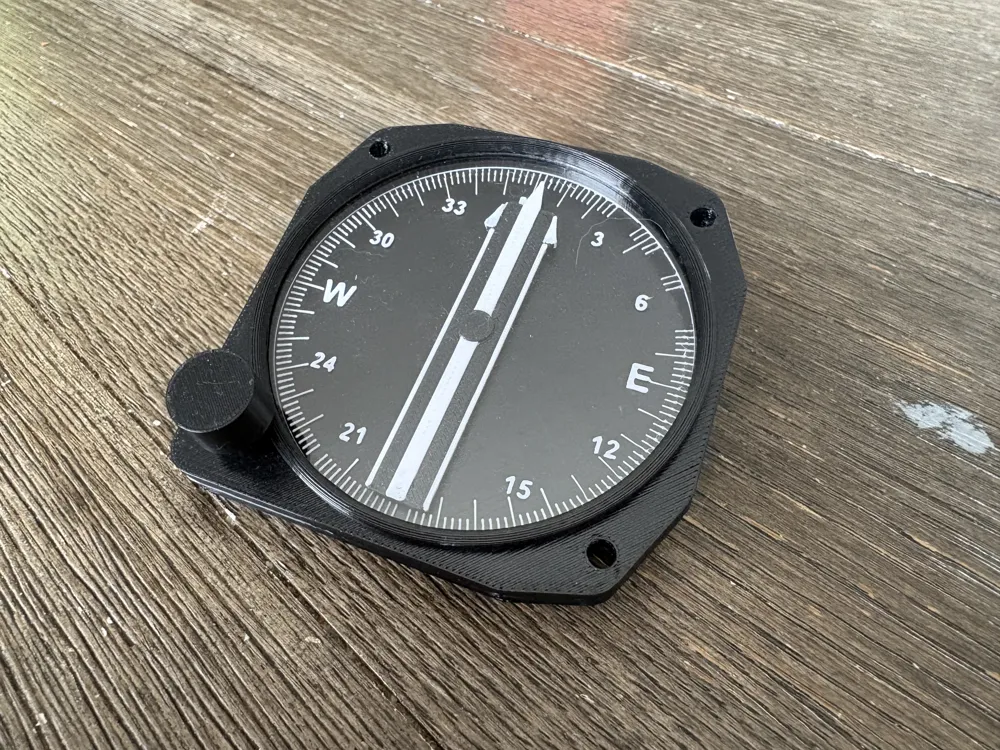

A detailed, full-scale mock of the P-51 magnetic compass, complete with accurate cylindrical housing and cardinal point markings.


Sized to match the real instrument and optimized for multi-color AMS printing.

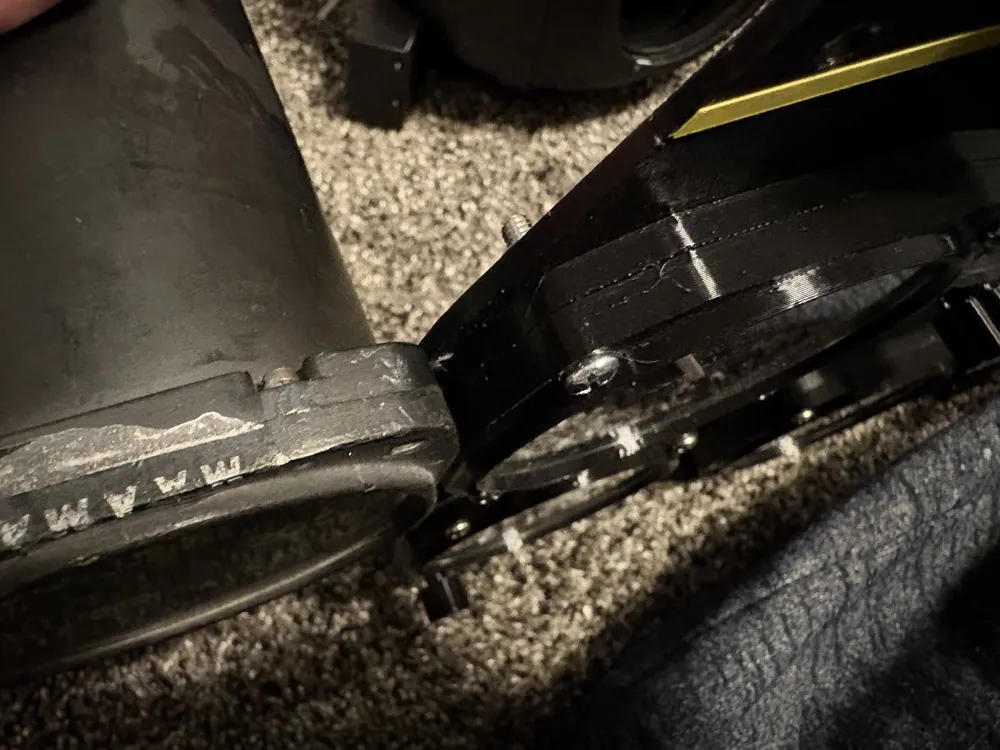

I used 4x M4x20mm screws with nuts to secure this to the instrument panel.

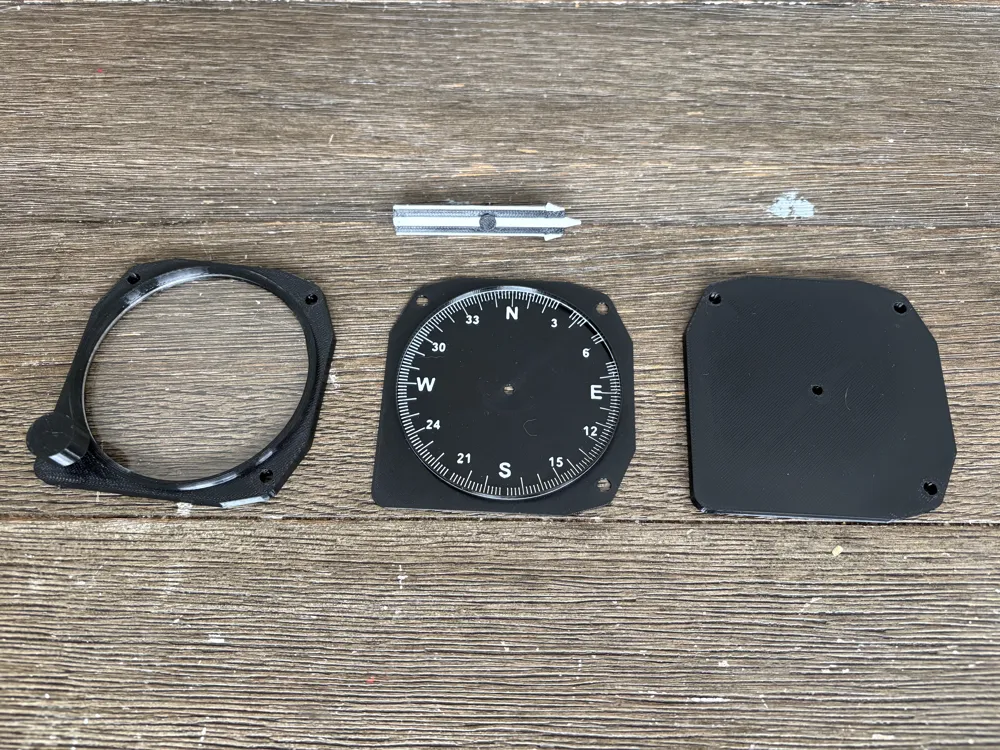

For acrylic discs for the glass, I used the following:

Large dials: 3in acrylic disks from amazon

Small dials: 2in acrylic disks from amazon
