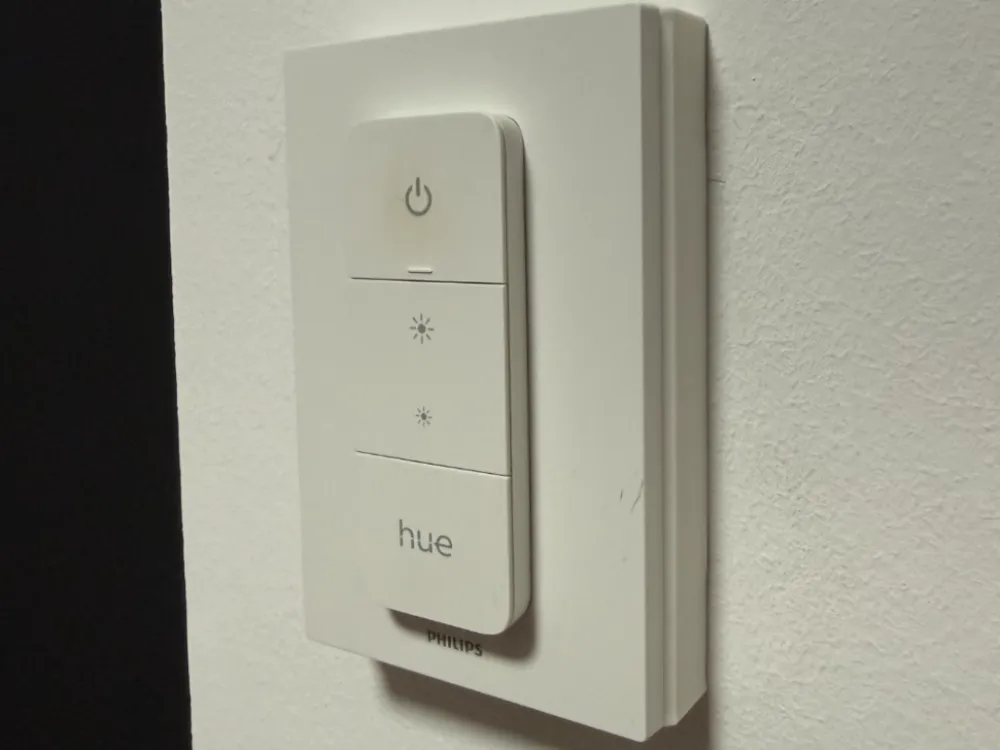

Philips Hue Dimmer V2 Light Switch Adapter

📐 Design & Fit
This custom-designed mount is precisely tailored for the Philips Hue Dimmer V2, ensuring a secure, gap-free fit.
It is compatible exclusively with 80 × 80 mm wall switches up to 18 mm in depth.

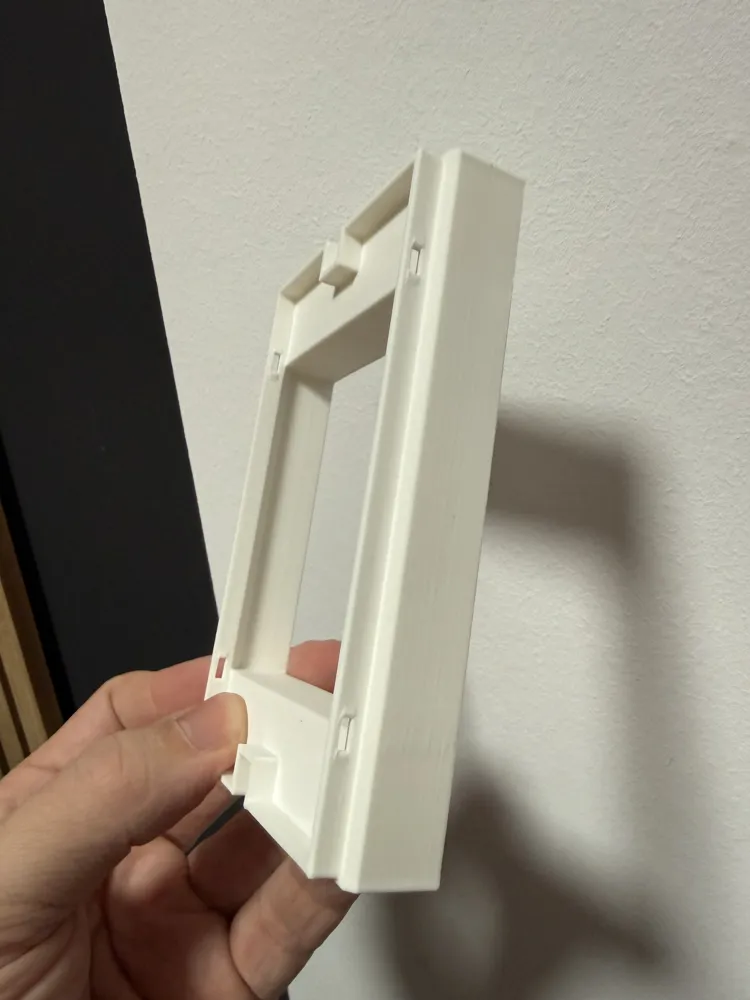

The model is engineered to be printed flat, with the dimmer cutout facing upward, guaranteeing an optimal fit.
No mechanical parts are required — just a clean, reliable clip-on mount.

🖨️ 3D Printing Settings

• Orientation: flat, with the dimmer cutout facing upward
• Material: PLA recommended
• Nozzle: 0.4 mm
• Layer Height: 0.2 mm
• Infill: 15%
• Supports: not required

🧩 Assembly Instructions

• Remove the original magnetic backplate from your Philips Hue Dimmer V2.

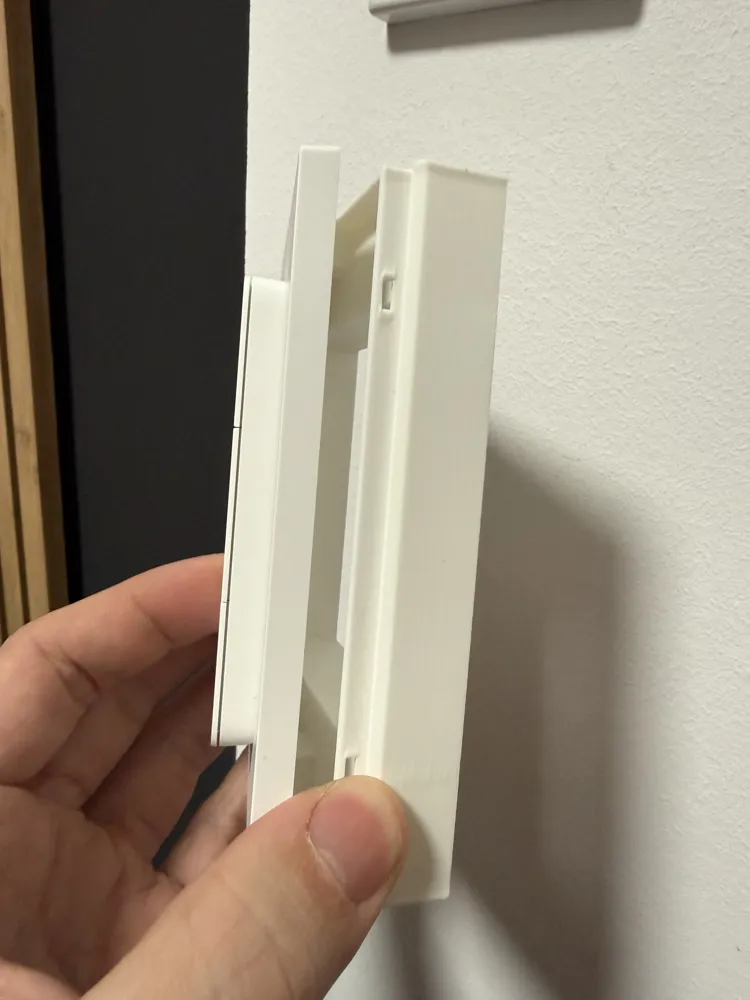

• Clip this backplate directly onto the 3D-printed mount

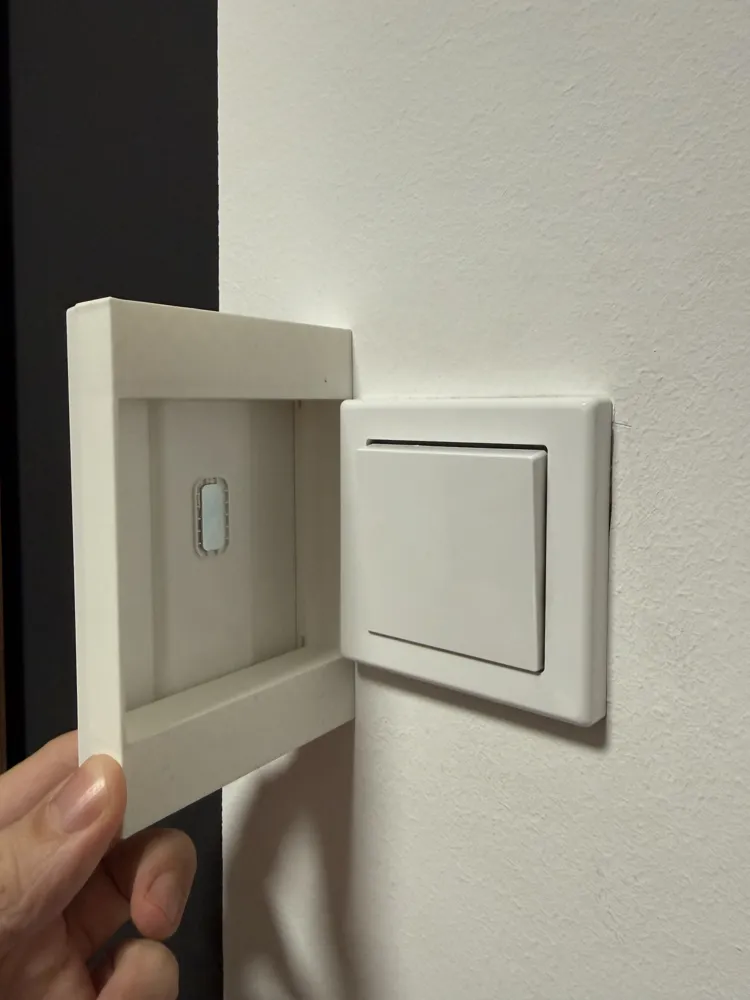

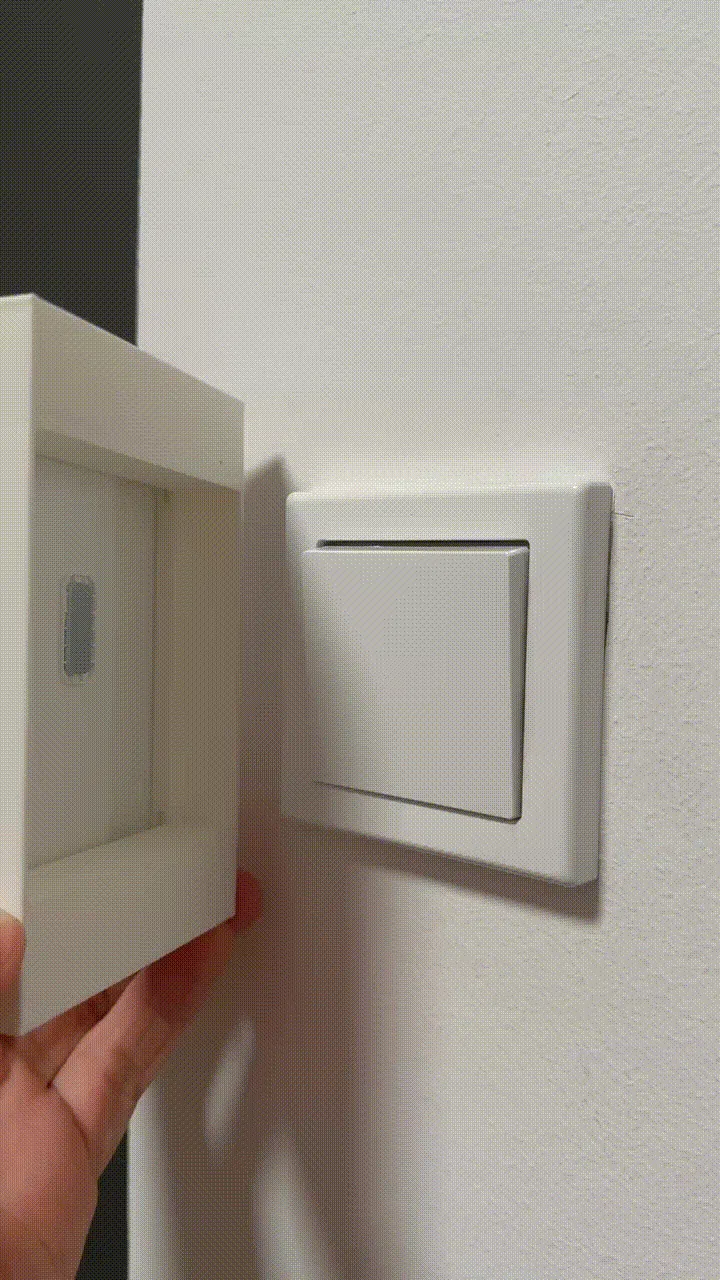

• Then simply press the holder over your existing wall switch. Installation takes only seconds.

ℹ️ Purpose & Benefits
This mount ensures that the power to your Hue lighting system remains uninterrupted by preventing accidental use of the standard wall switch. Your Philips Hue Dimmer V2 stays securely positioned, fully functional, and always ready to use 💡
