Ubiquiti Unifi AP Mount Bracket (Lite, LR, U6 ++)

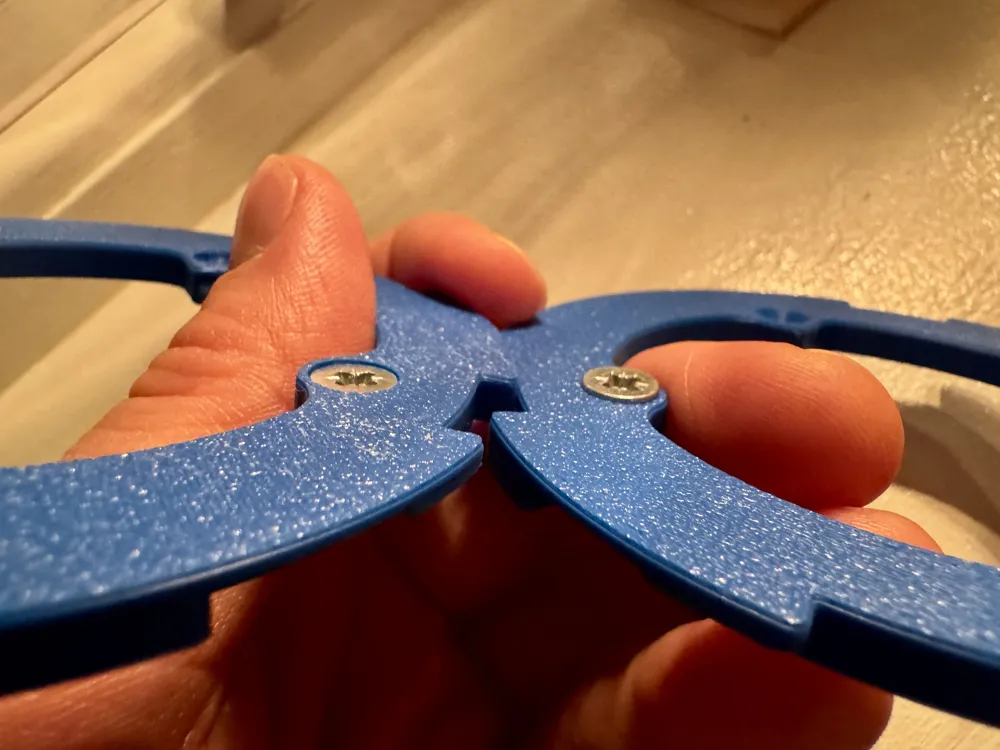

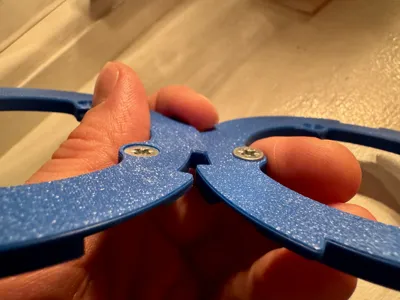

The original model by @magu was great, but none of the screws I had laying around, mostly from IKEA, fit the holes, and was too large, so I made a remix. See the comparison between the old one and the remix in the image section. Problem was that the head of the screw wouldn't go all the way down, making it not possible to attach the AP.

I scaled up the countersink by 142.857% so that the diameter became 8mm (my screws was around 7.8mm wide), keeping the 45 degrees slope, as well as insetting the countersink by 1mm, so that the head of the screw won't hit the AP.

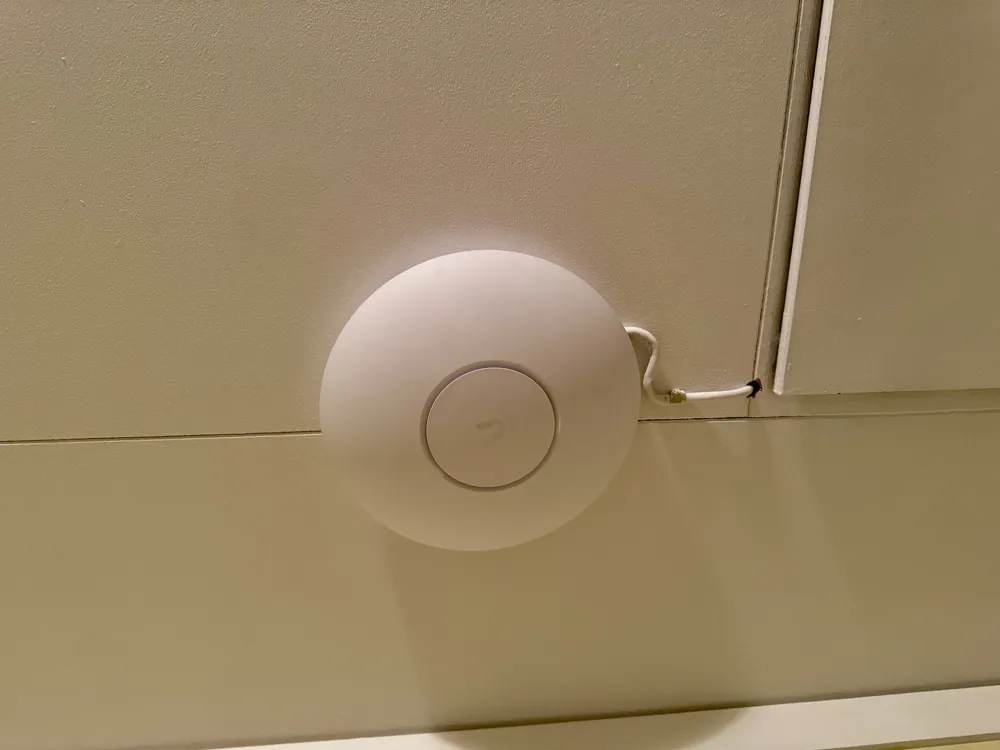

Should work with most Unifi APs, have tested with AC Lite and U6 LR

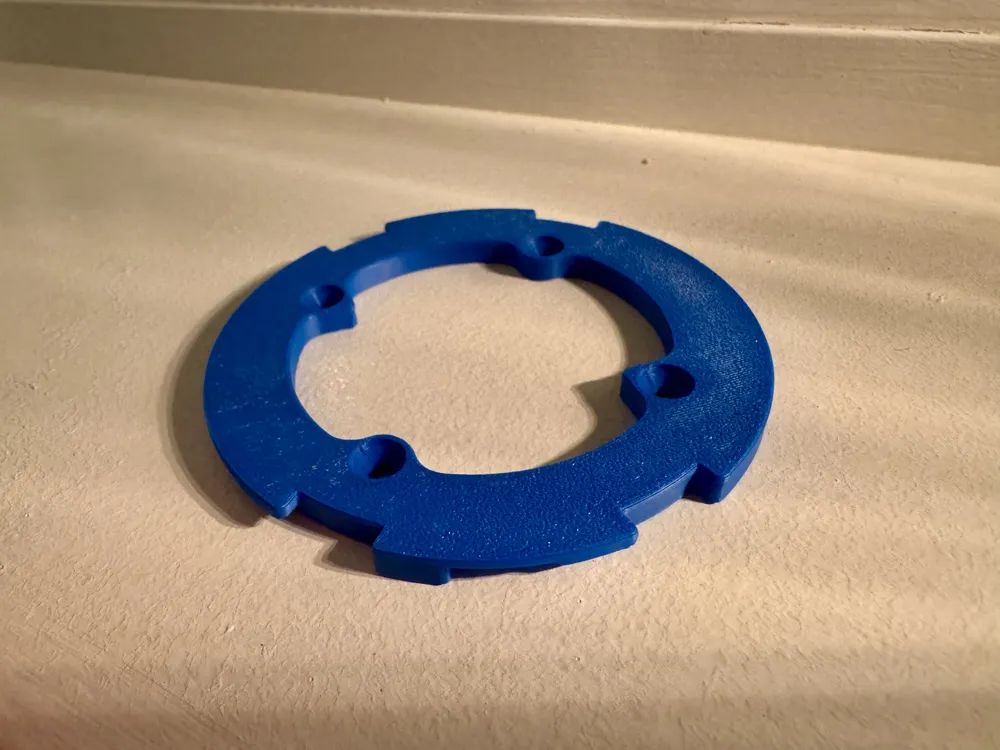

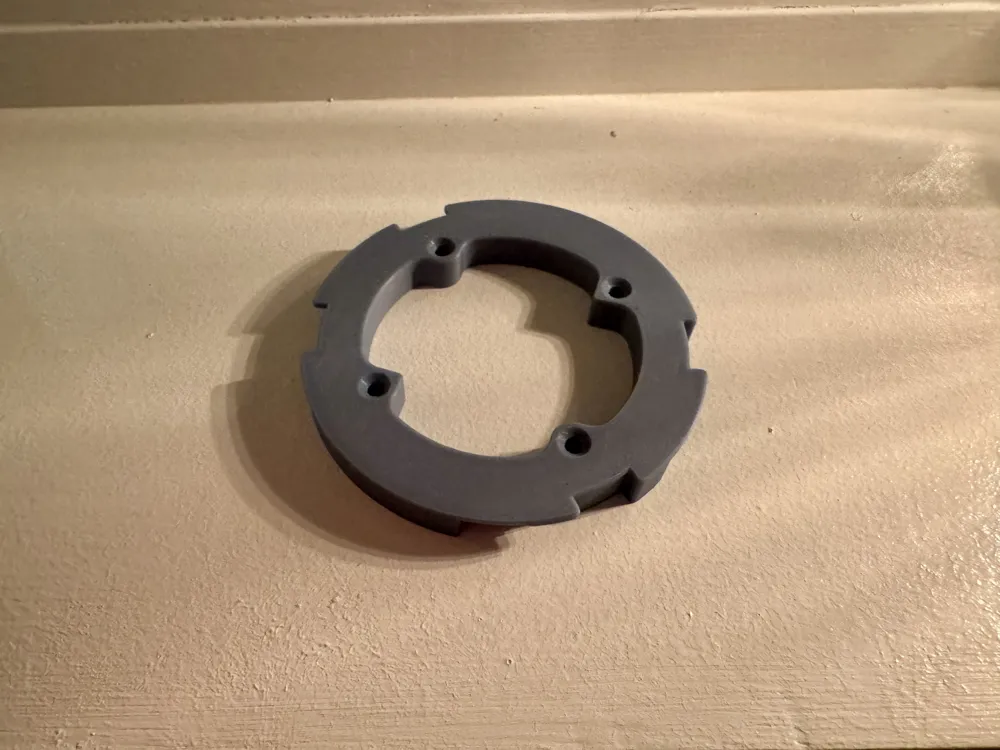

Inspired by the “extra wall clearance” remix by Peter H, I also added a taller version here. The standard version is 5mm, and the tall version is 9mm.
