Cleaning attachment for Z-axis spindle cleaning
Print Profile(2)
Description

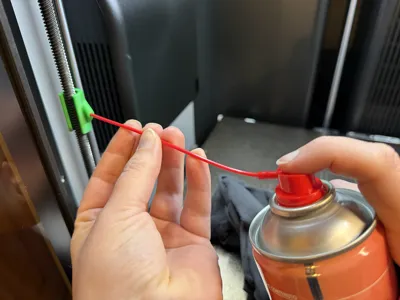

Spray can - cleaning attachment for 3D printer maintenance
For all who want to properly clean their threaded spindles of old grease and abrasion before re-lubrication, I have an attachment here for standard spray can hoses with a 2.2mm diameter
For cleaning, a degreasing cleaner is suitable for example. Make sure to seal underneath with a cloth so that nothing runs into the ball bearings, and also prevent the linear guides and the print bed from getting anything
IMPORTANT! Afterwards, re-grease everything and oil the linear guides to protect not only against wear but also against corrosion

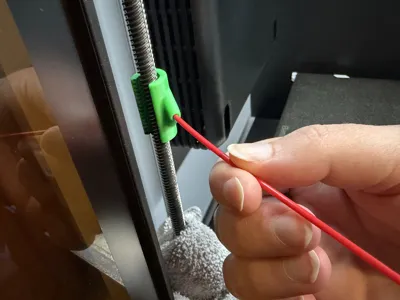

With this attachment, you can reach places that are otherwise difficult to access without flooding the entire printer
The adapter clamps well to the 2.2mm standard hoses
If you have thinner hoses, there is a hole on the side where you can clamp the hose with a Bambu Lab Standard BT2 screw
Only 2.5g of filament is needed
Boost Me (for free)
Enjoy it? Then I would be happy about a boost
To print WITHOUT support material!
Important!
After cleaning, be sure to grease the threaded spindles again before you start the next print

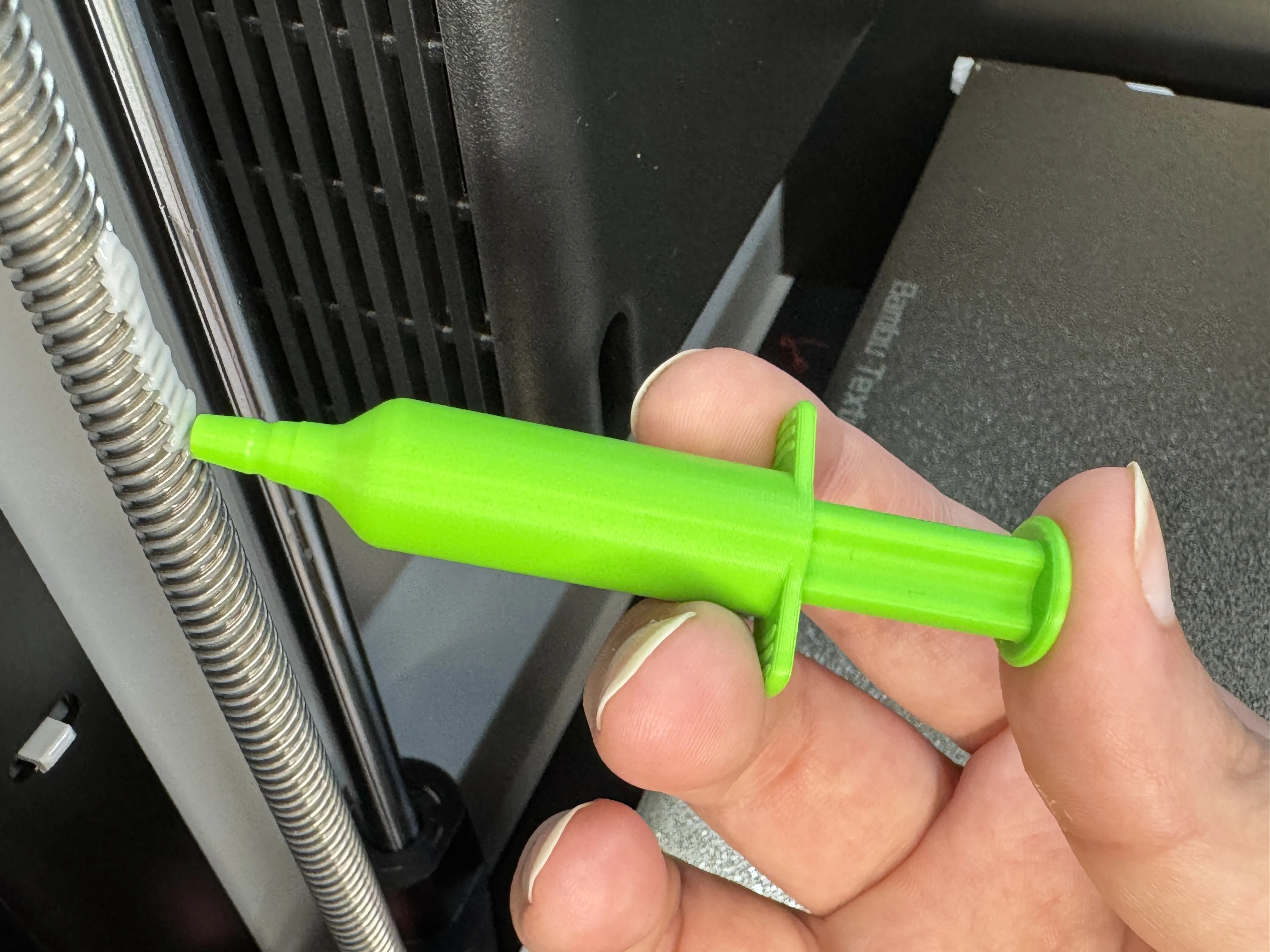

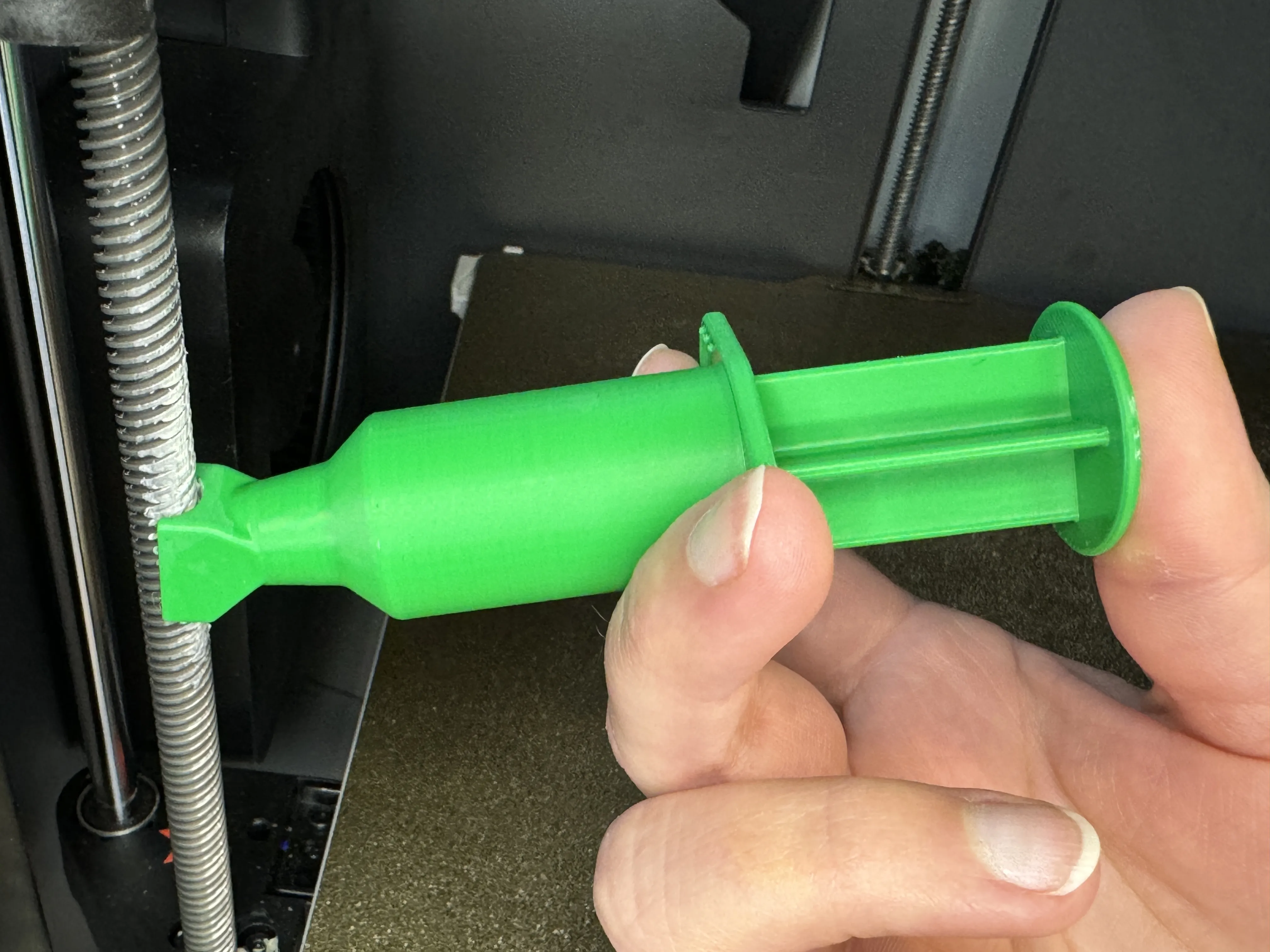

Matching grease guns can be found here (Click on the photo):
Don't forget to like, rate, and follow so you don't miss any new projects
Also check out my other useful and practical everyday helpers!
Feel free to post your pictures of your prints in the comments
Boost Me (for free)
Enjoy it? Then I would be happy about a boost
