1º Top Opt Avionics Structure Project INVICTUS II
Print Profile(1)
Description

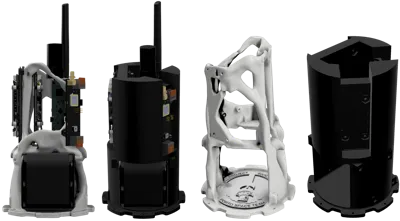

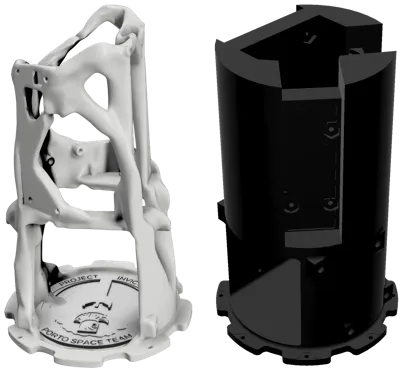

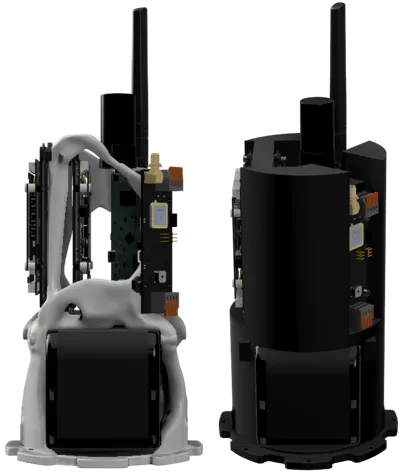

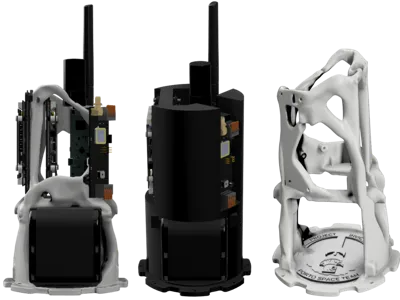

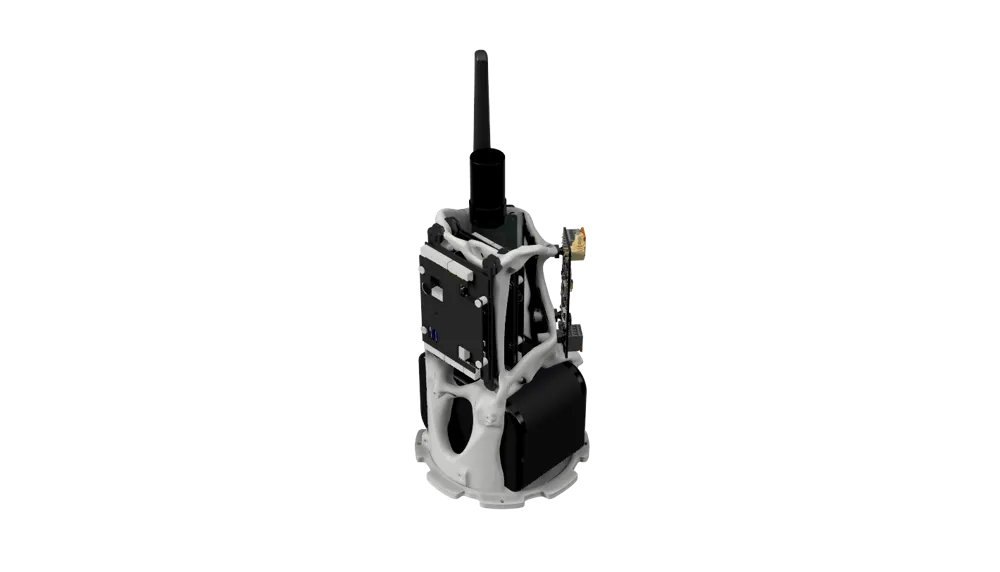

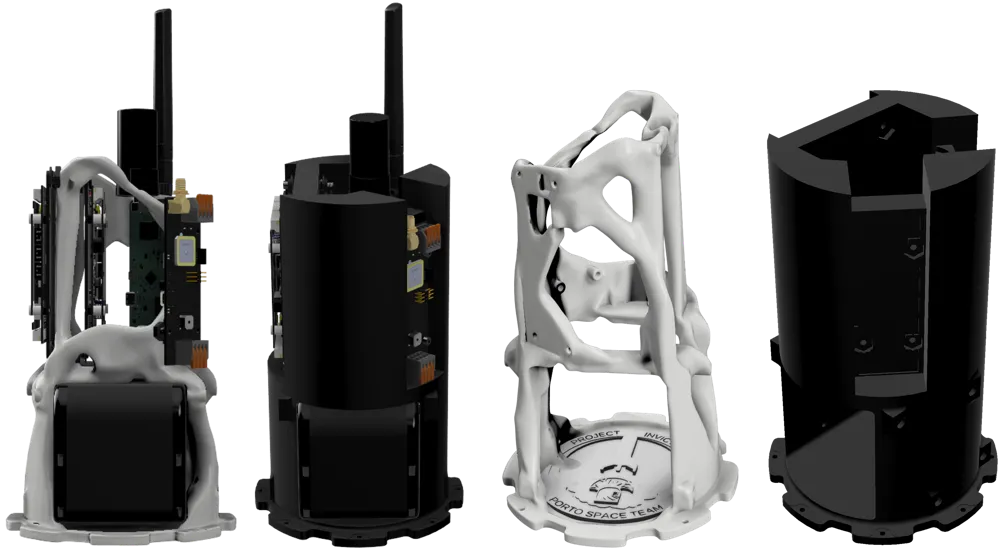

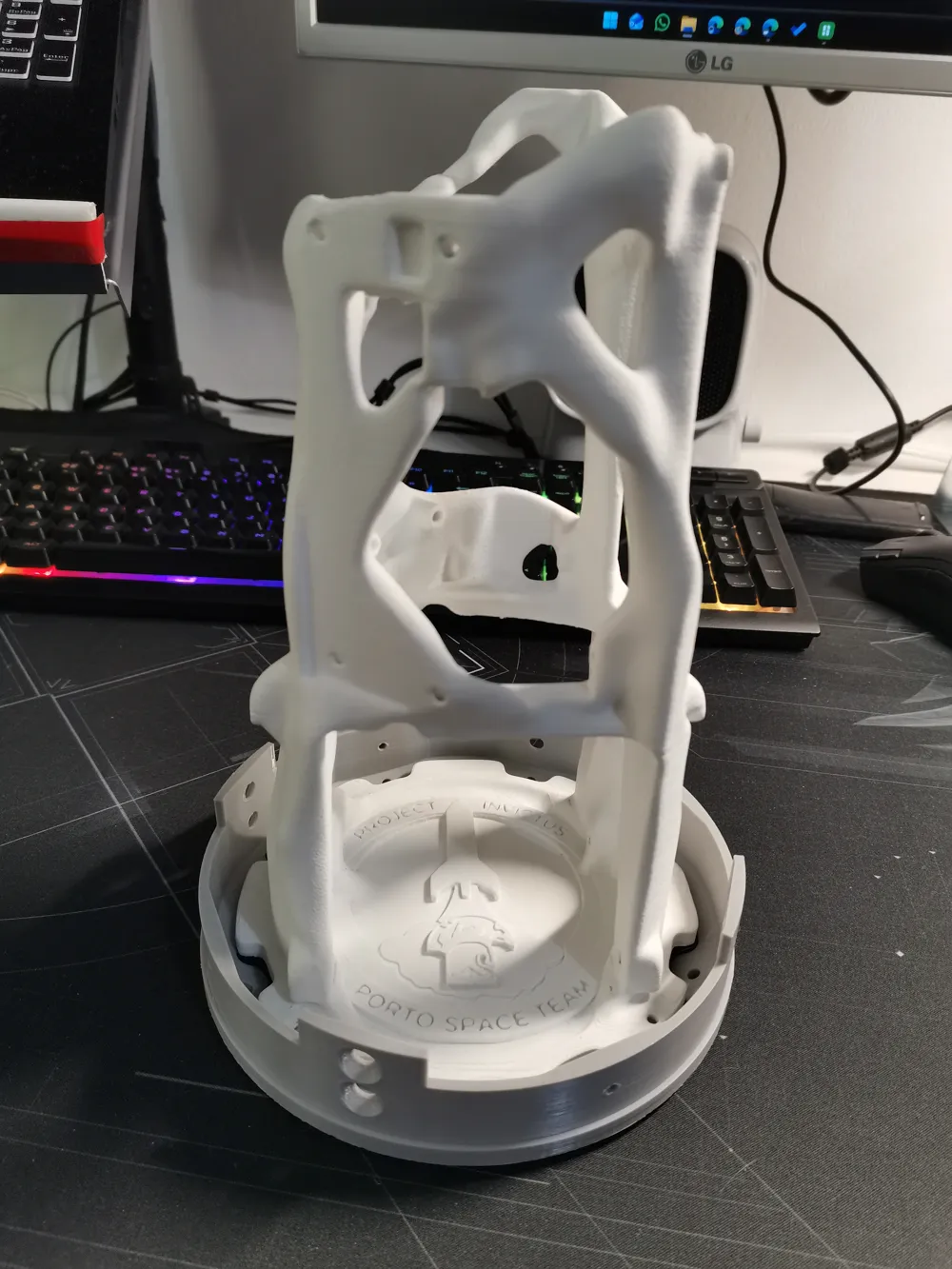

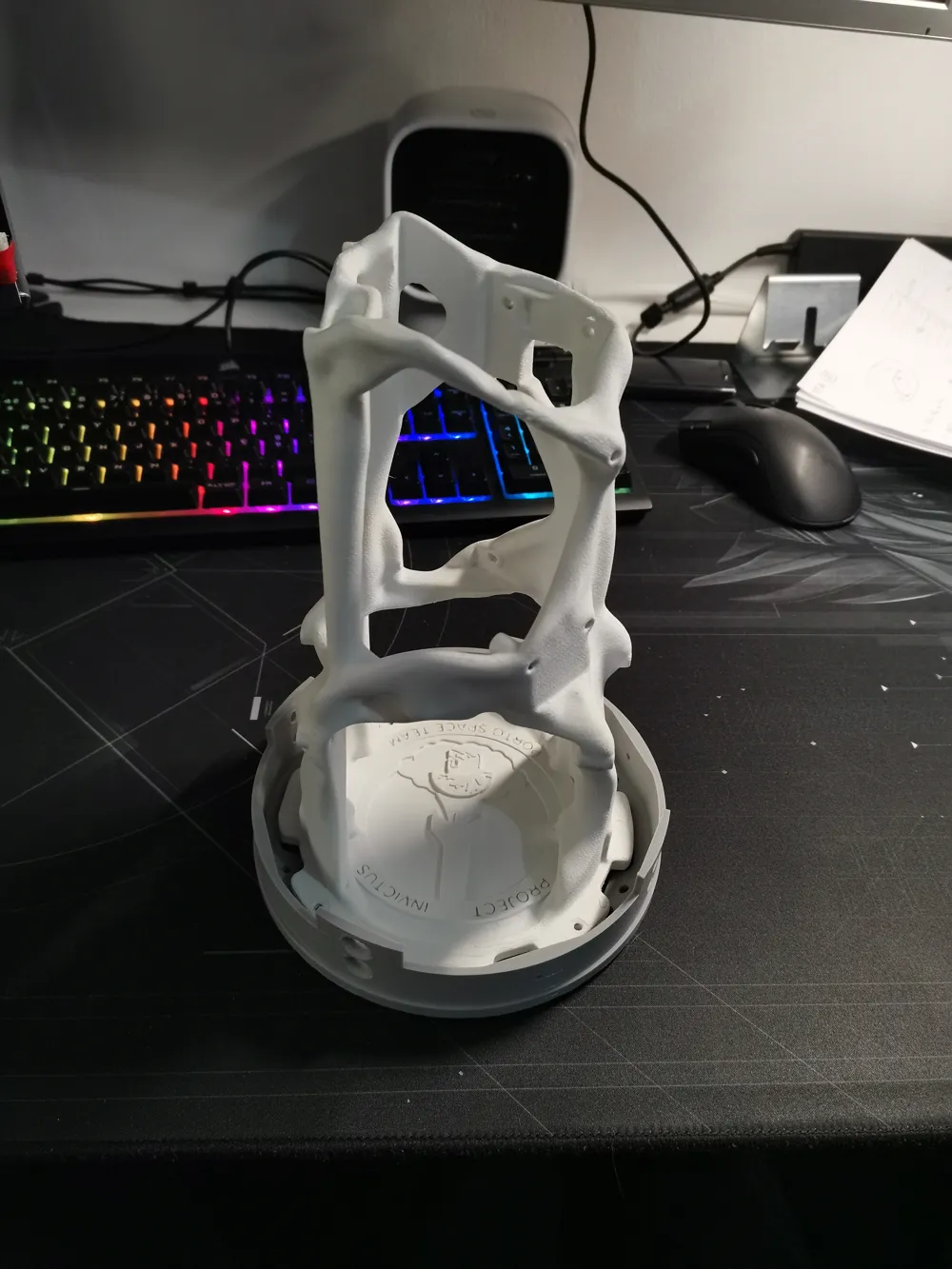

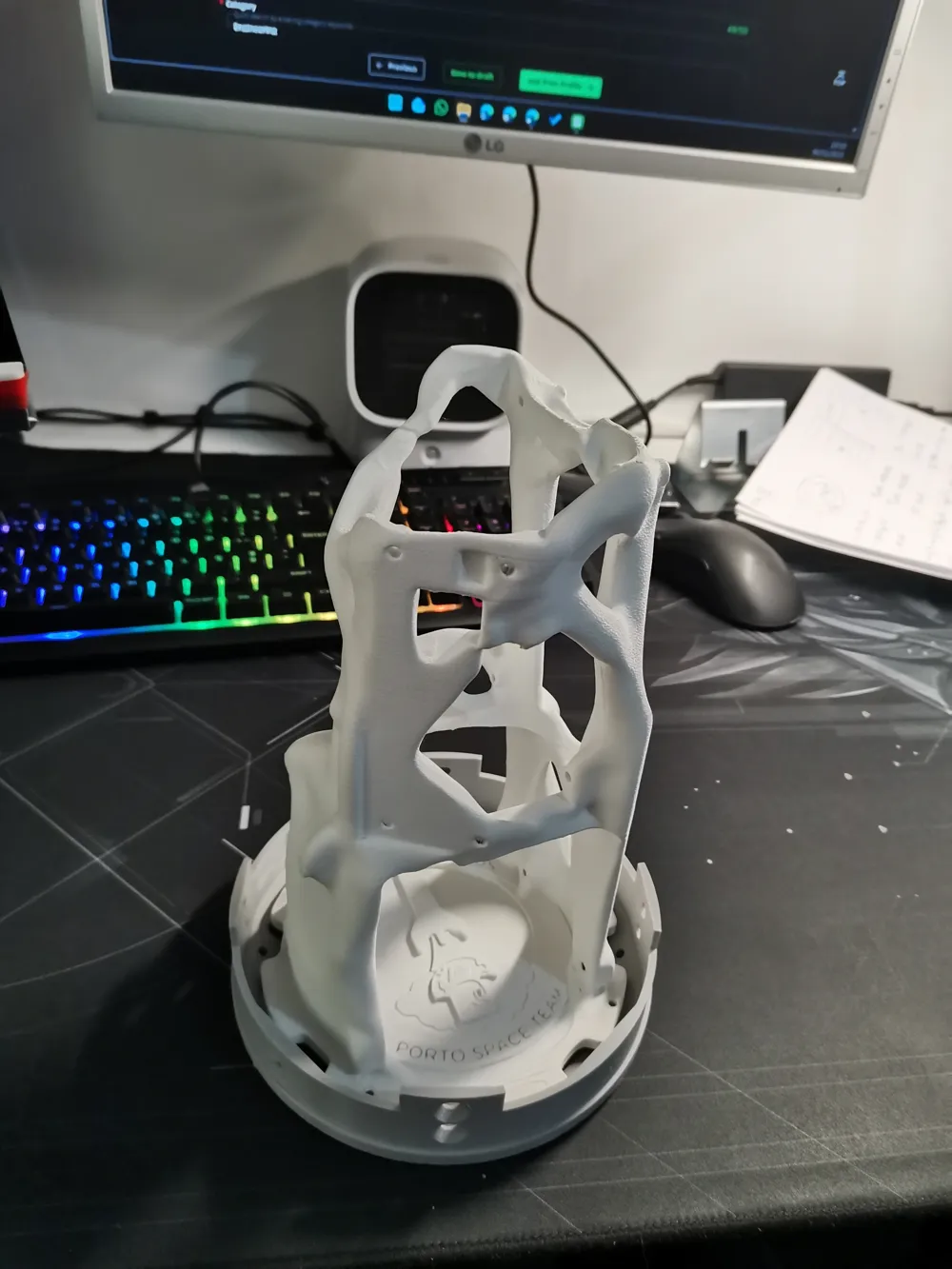

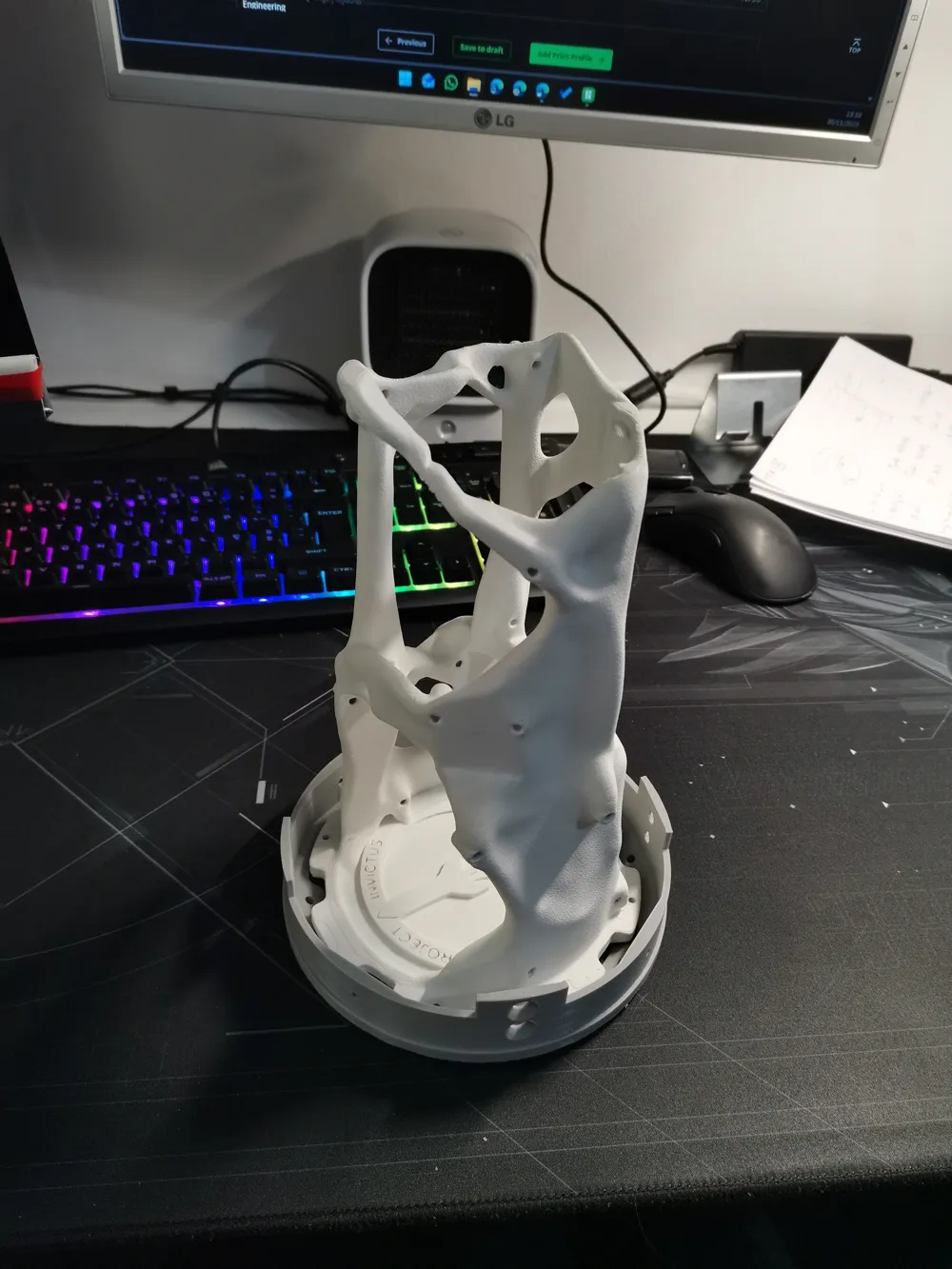

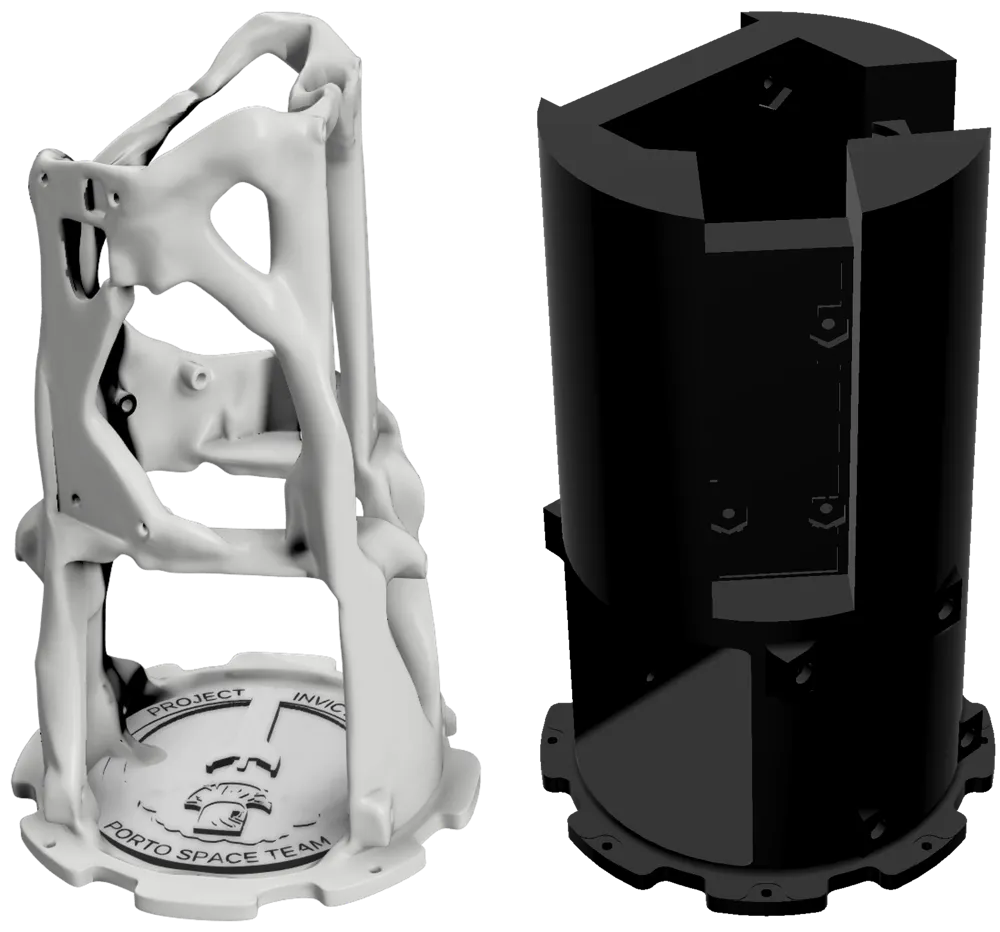

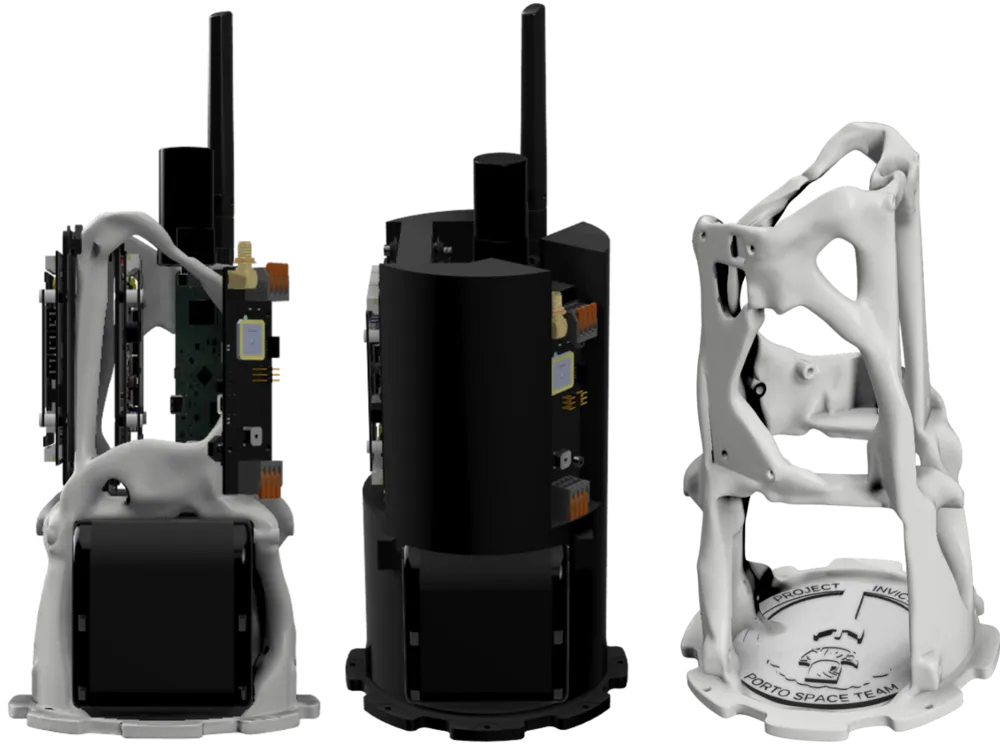

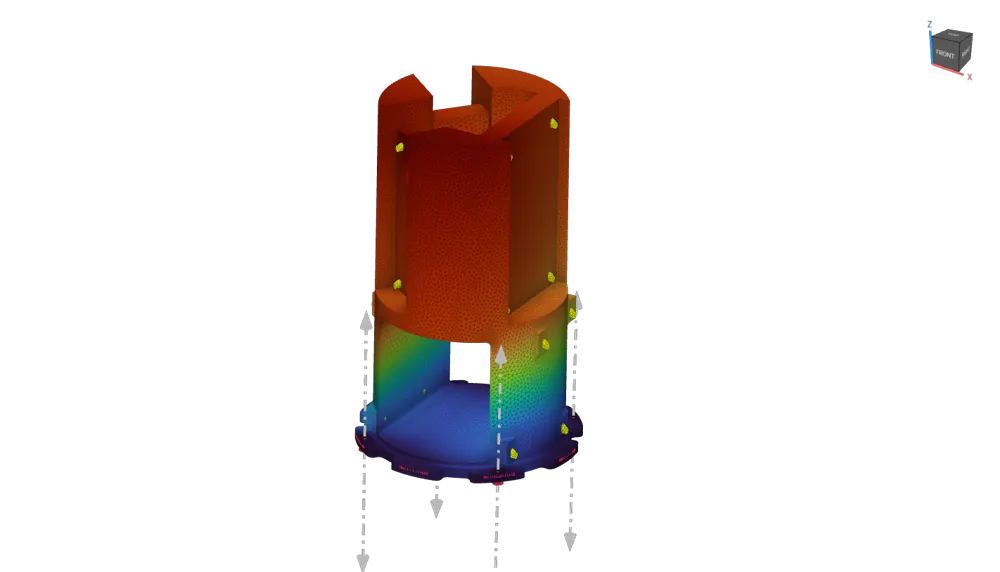

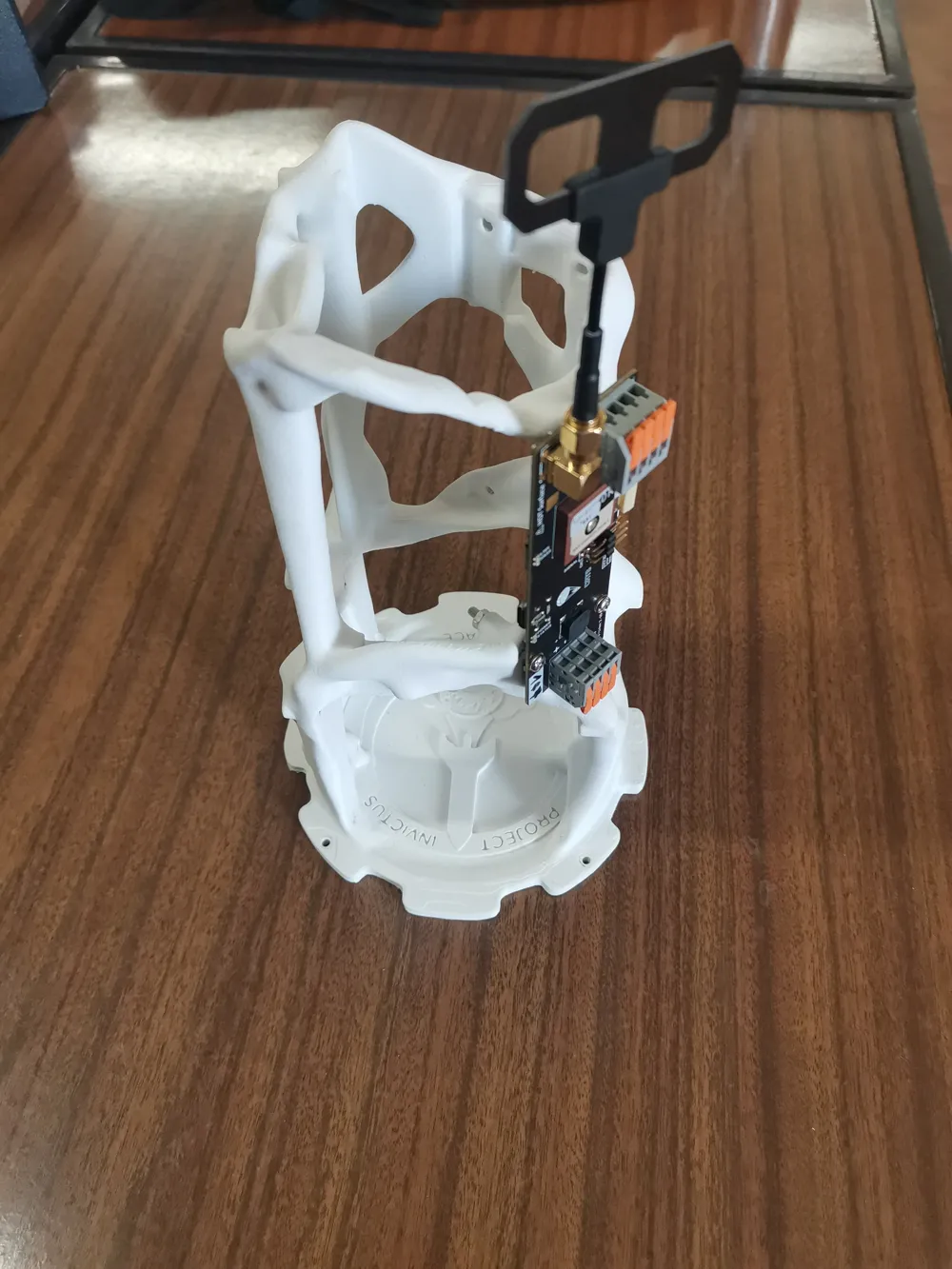

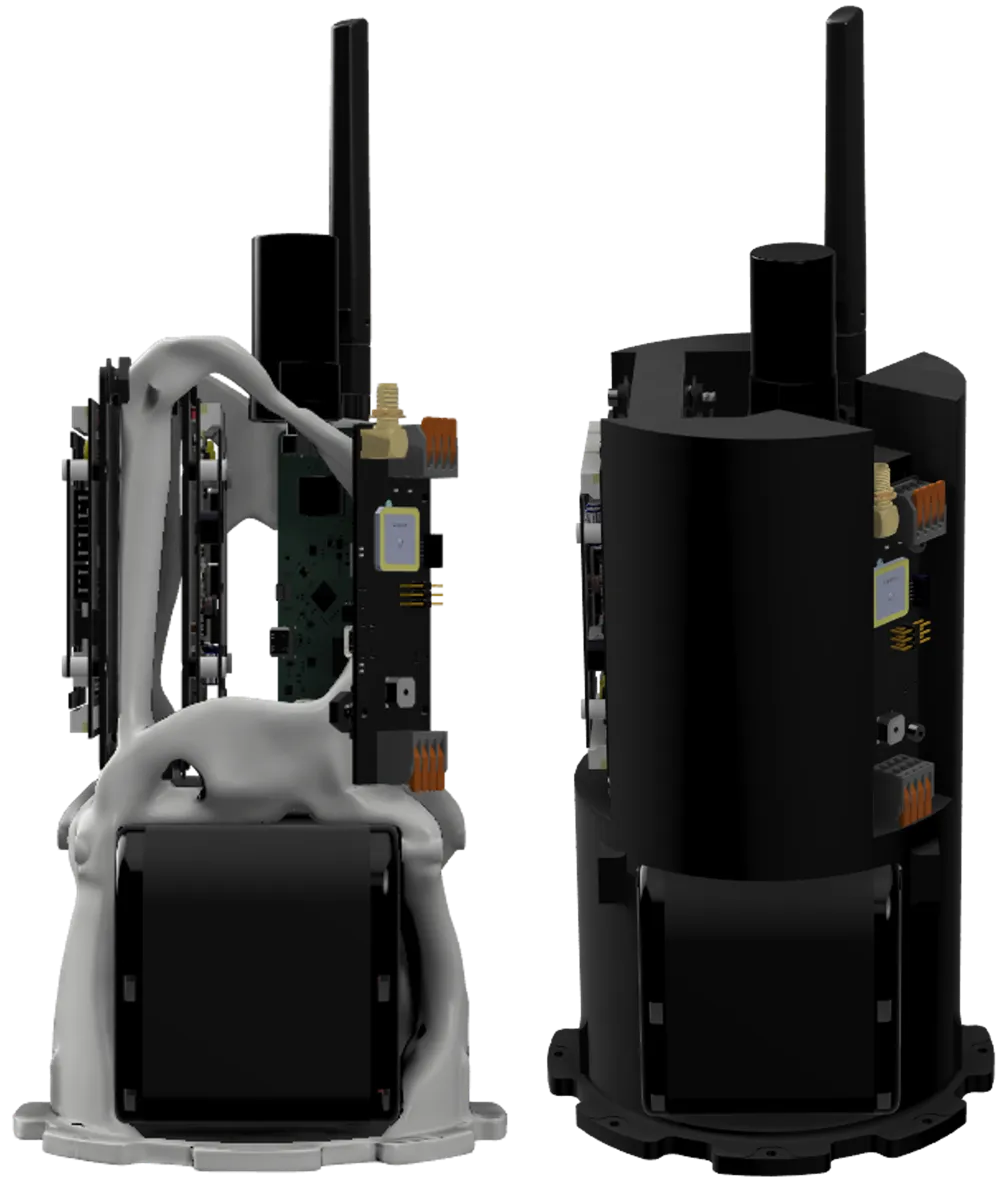

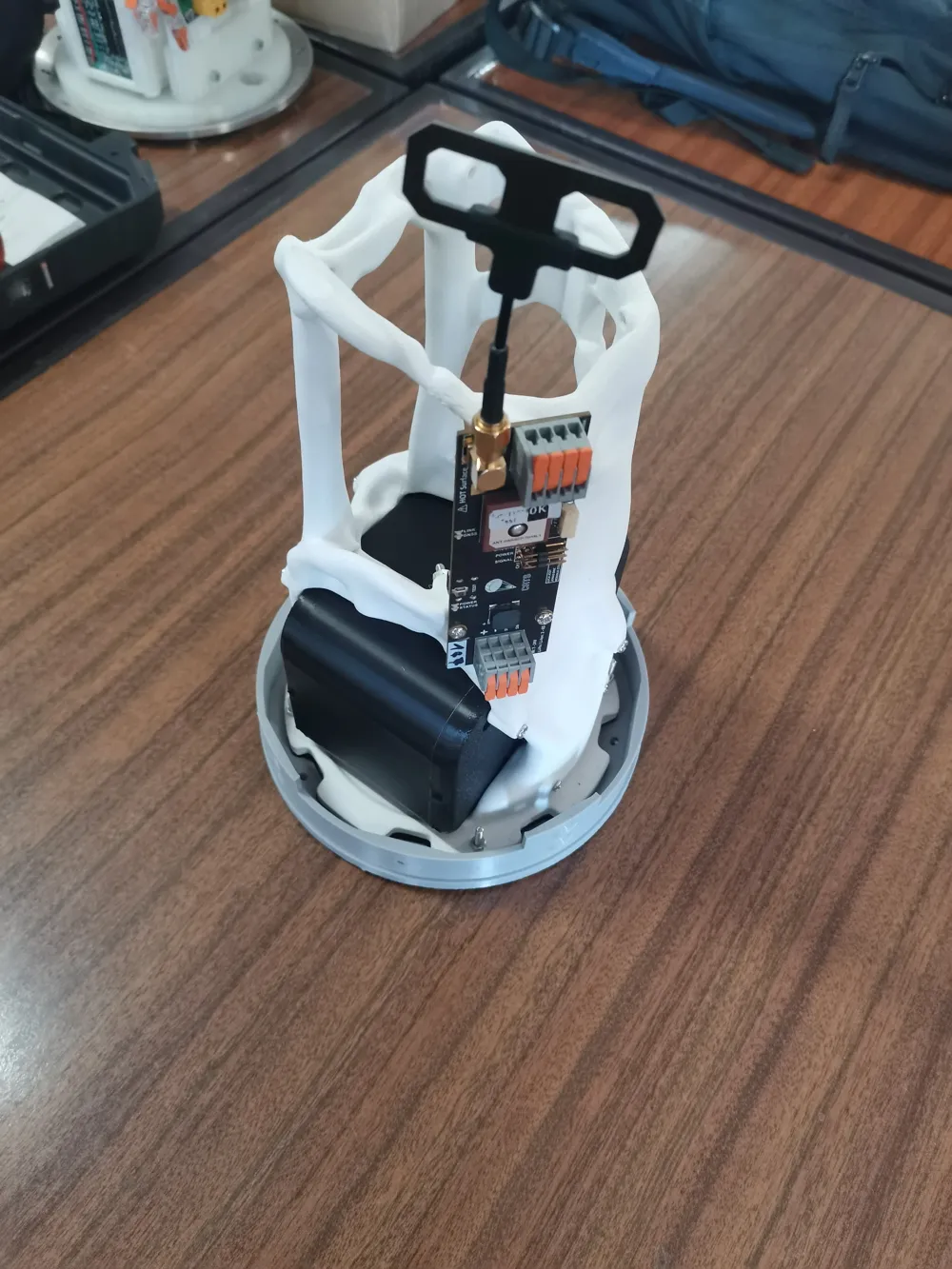

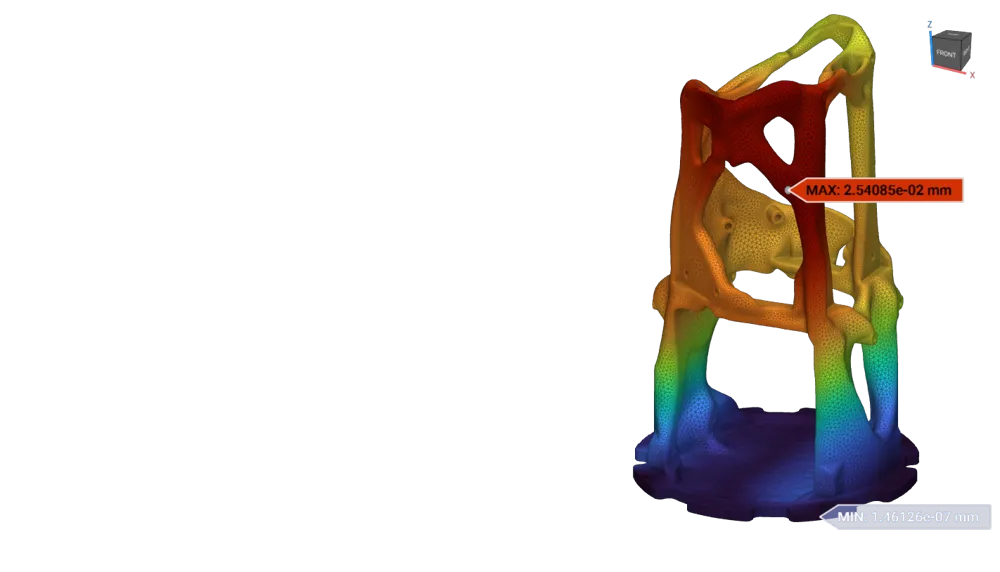

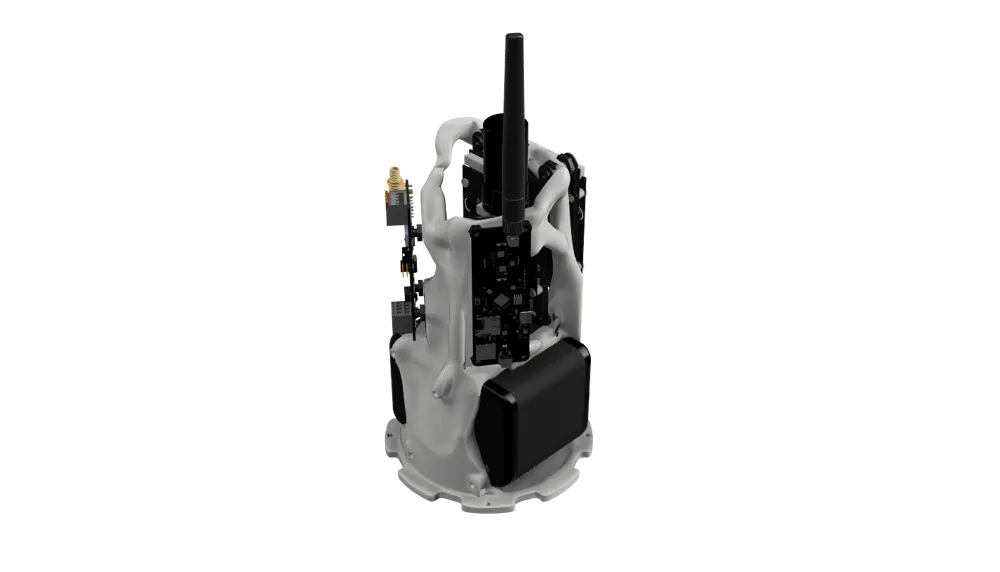

This model was my last project work for my 3rd year os mechanical engeniring, and it was a sucess, it involved modeling the whole structure using CAD, making everything fit in its place and tigth, make it possible to be assembled, i wanted it to be whole piece so it would be printed as one. I designed with the principle of making it easier to print, of course some overhangs i couldnt make it other way because of space inside the rocket. I didnt have much material to spend so i planned everything the besta way that i could so it would be printed just once, and it came out very well, everything mounted in its place all perfect first try (a little bit of luck, but i really spent a lot of hours on this project). The topology Optimization was done on Ntopology Software, as well as the static analysis.
