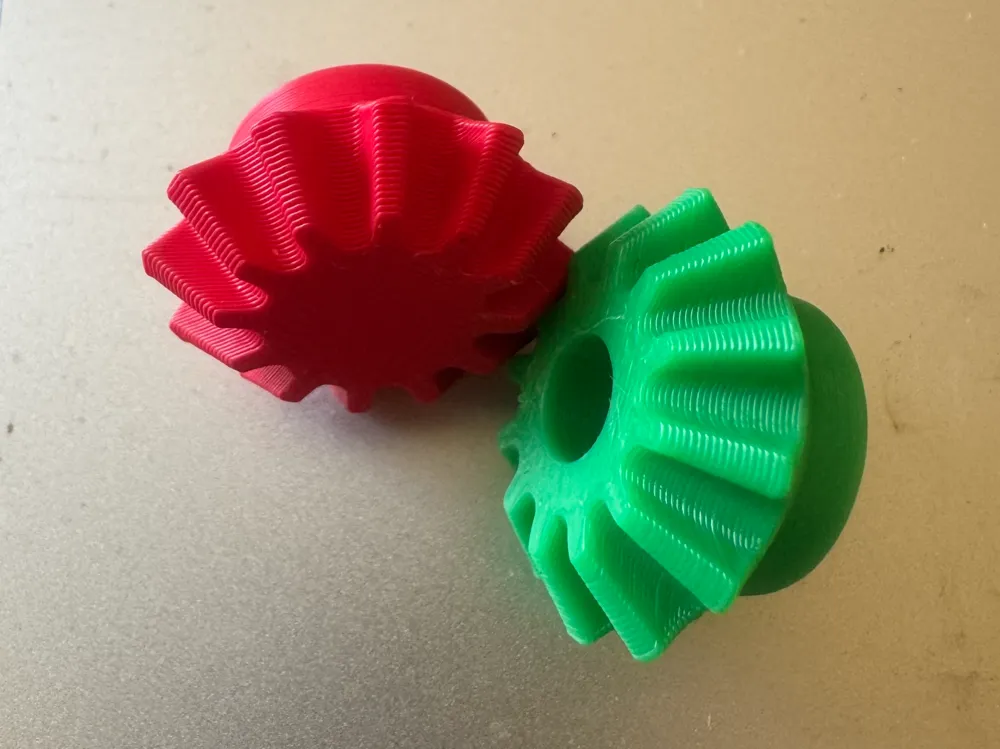

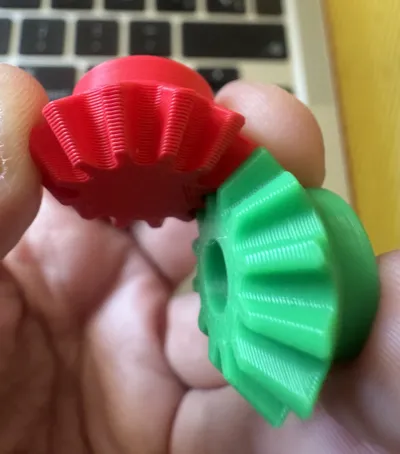

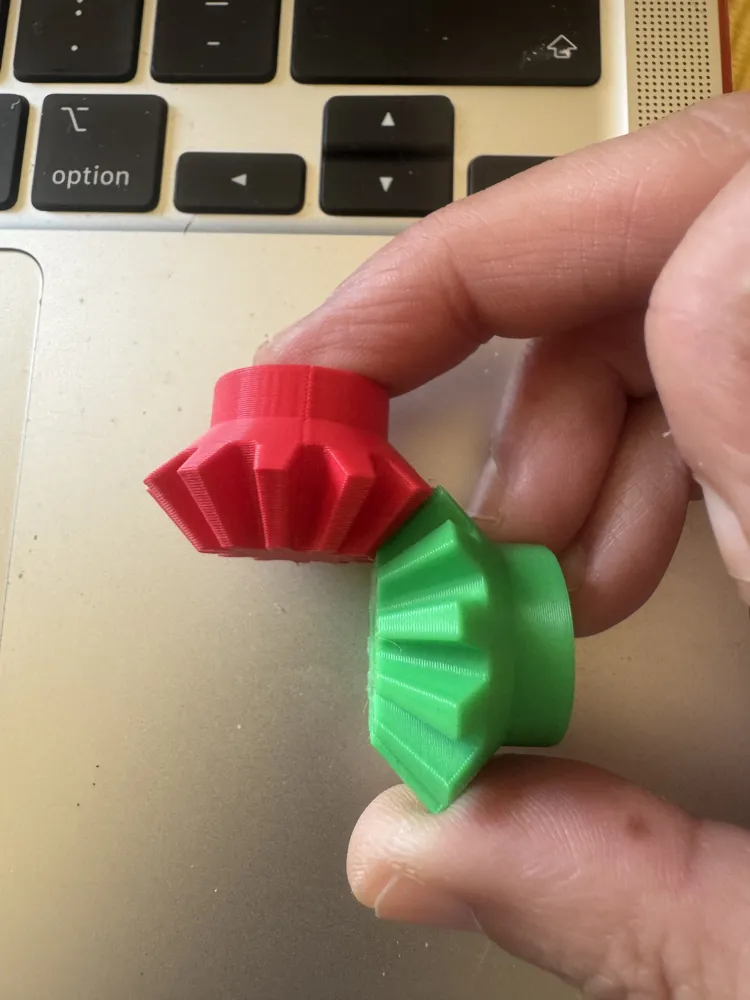

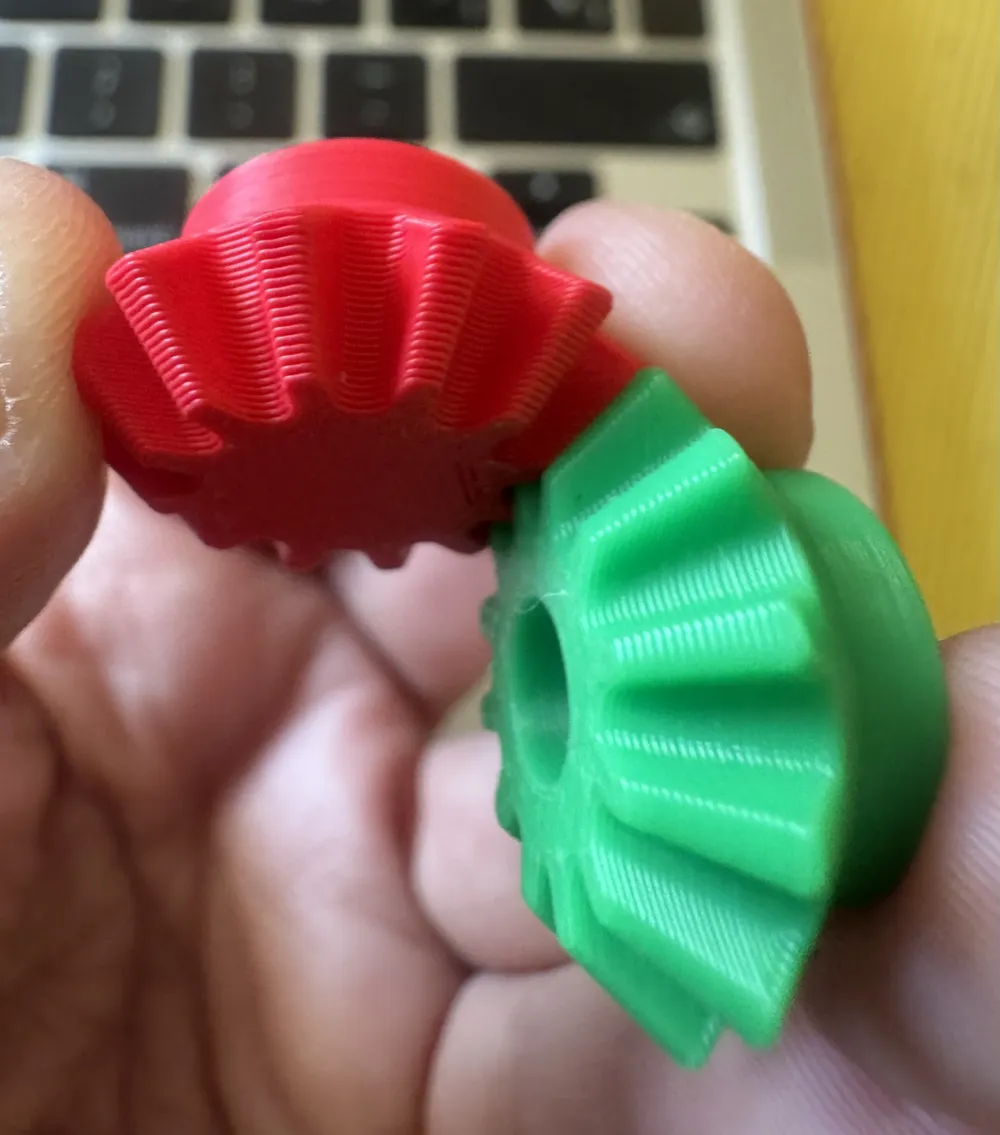

Right Angle Bevel Gear Set

This set of bevel gears is intended for use in a specific classroom project.

The gears have 12 teeth and were created using Onshape software.

For classroom projects, printing them in PLA is sufficient, and that's how I printed them.

For assembly, two shafts are needed: the vertical (Red) is 9.5 mm (or 9.6) and the horizontal (Green) is 5.8 mm (or 5.9) and passes completely through the gear. I haven't created these shafts because we already have them in the classroom, and it's also very simple to create them with any 3D printing software.
