Description

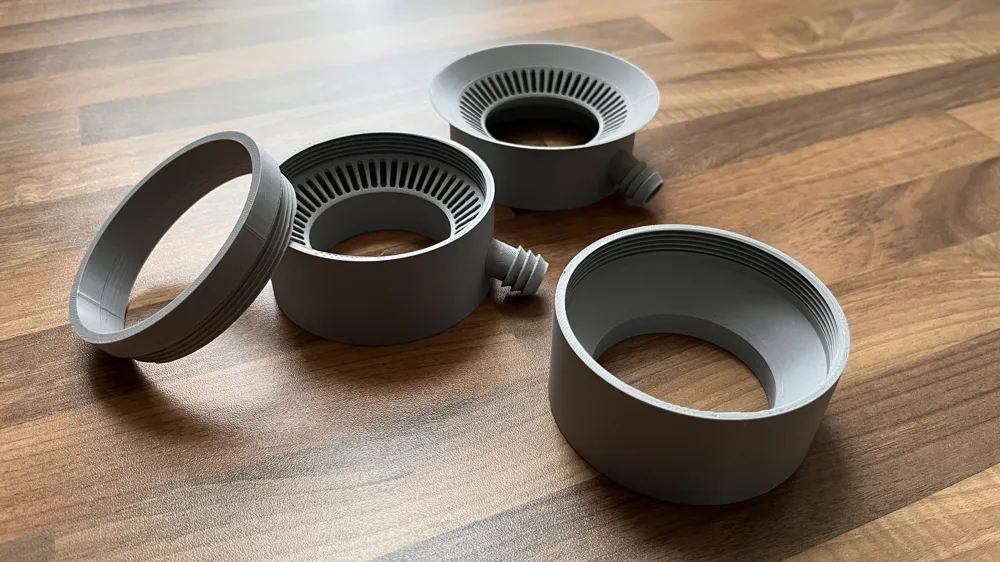

This is a full set of accessories that allow you to connect a rain barrel to a 80mm rain pipe.

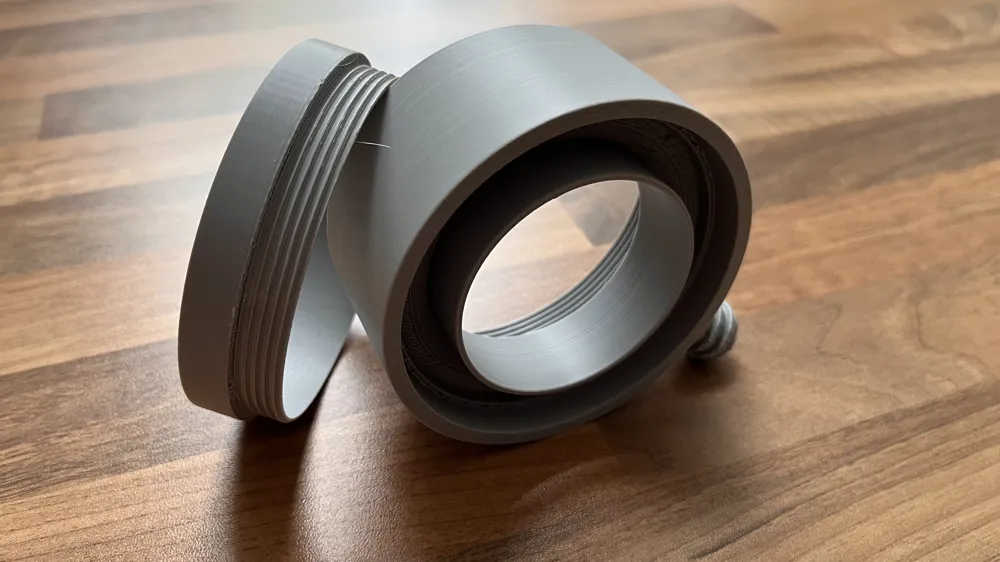

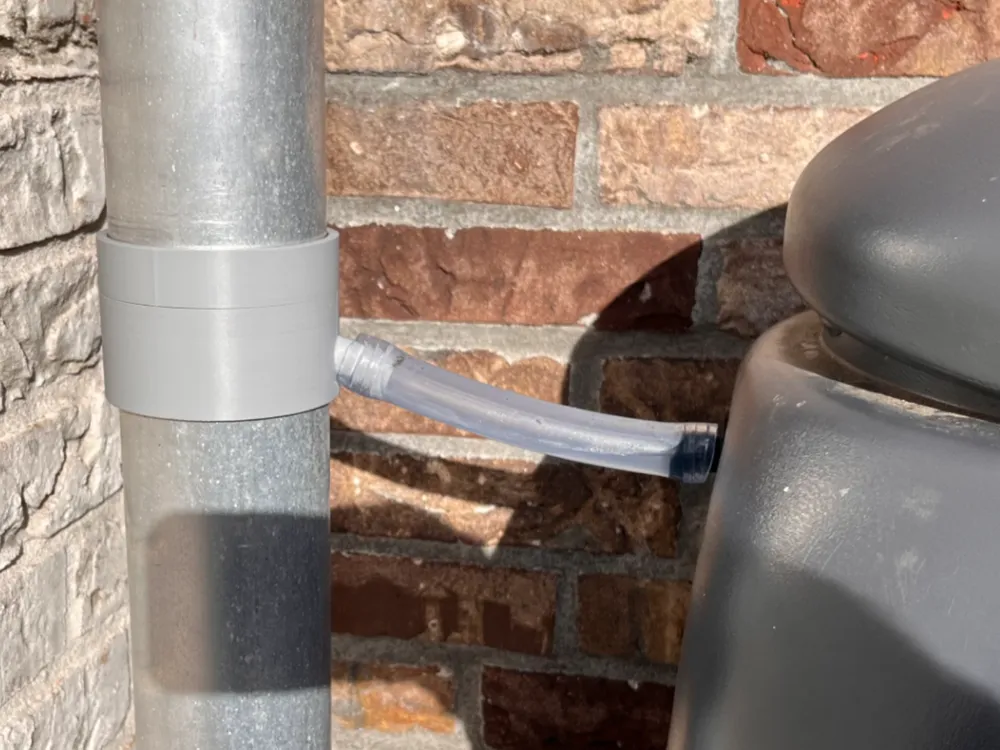

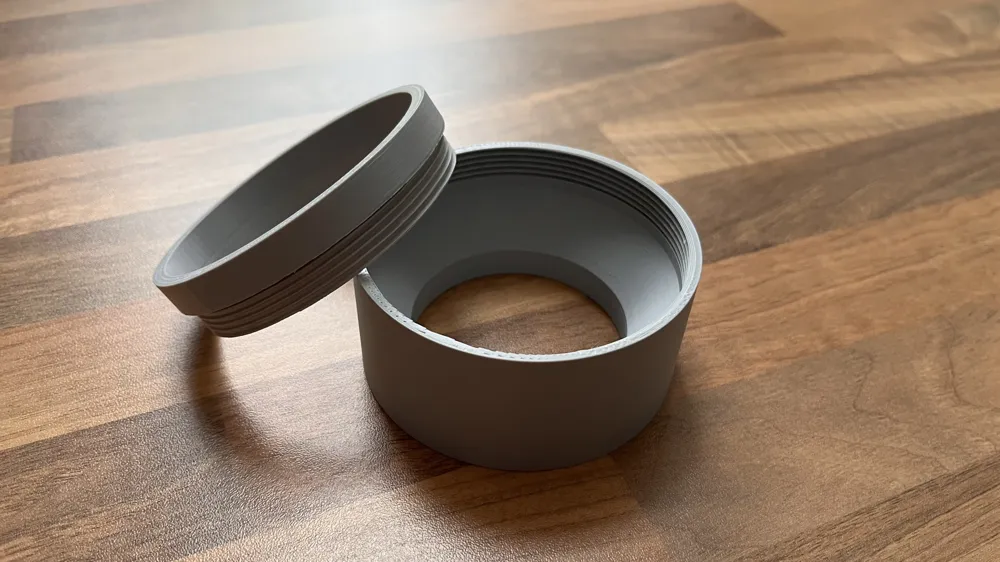

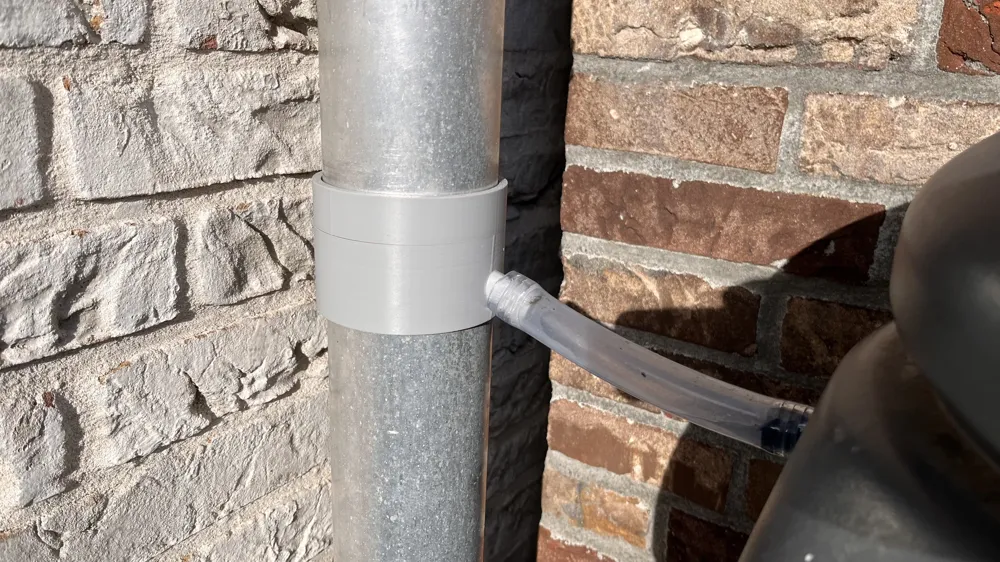

You have a cut out a 4cm part from the rain pipe and slide on the top part. Then slide on the bottom part and screw the top part on the bottom part so that the entire 4cm of pipe is coverend. After this you can connect a standard hose to your rail barrel.
If you cut the rainpipe slightly higher then the inlet of your rain barrel, the water will stop flowing when the barrel is full.
A ‘pass-through’ is included for the winter days when you don't need water in your rain barrel. You can disconnect the barrel and insert this part to the rain pipe.

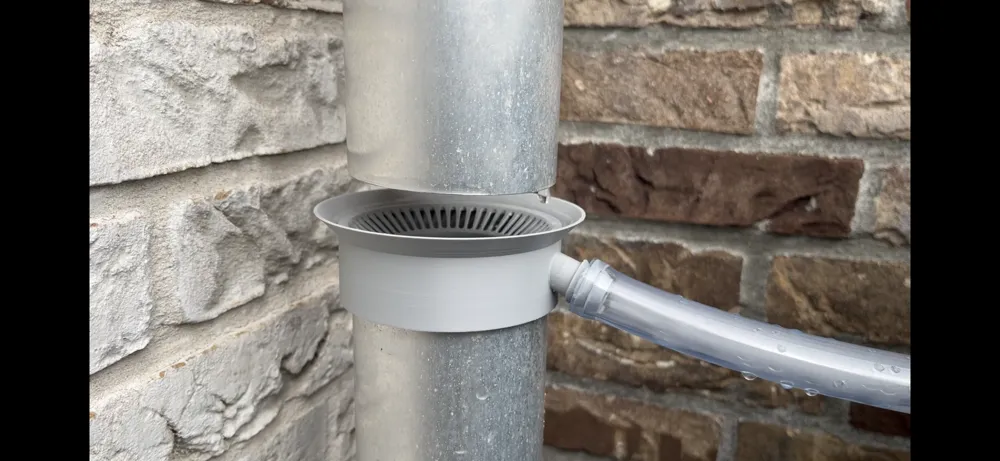

A ‘monitor’ part is also included that does not full cover the 4cm that you need ot cut out so that you can still see the water falling out of the pipe into the funnel. This is just for checking the leaf separation function.
Last but not least some hose adapters and plugs are added to the building plate if you happen to need them.
