5 inch hdmi display frame
Print Profile(1)
Description
This is a frame for a 5 inch screen.
I used this specific model by HZWDONE (touch version): Bundle Deals 2.0
In case the link doesn't work: It's named “5 Inch LCD HDMI Monitor Ultra HD 800*480 Resolution IPS Display Capacitive Touchscreen No-driver For Raspberry Pi 2B/3B/3B+/4B” on AliExpress.
I had the issue that my pc wouldn't start when the display was connected to my main gpu but when connected to my igpu it works just fine.
It also might be necessary to replace the original hdmi cable since it's pretty short.

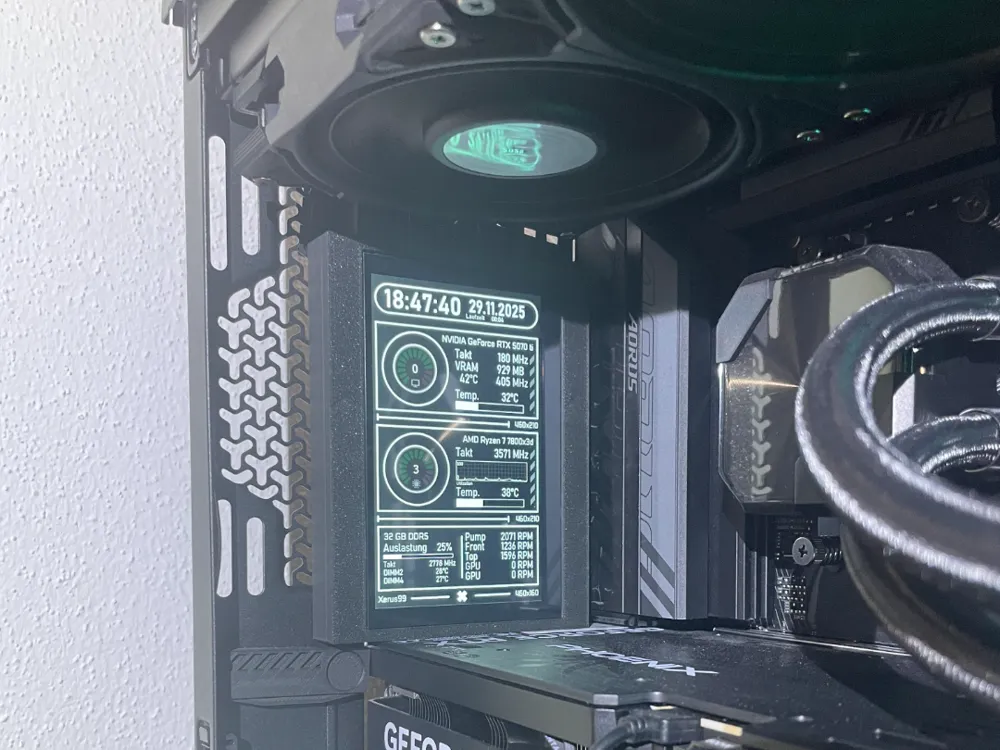

The main use for the display is showing system information using AIDA64 Extreme.
Also when using aida64 extreme to show a sensor panel, the lock to screen funktion didn't work for me. You have to disable it and lock it to the position you want it in instead. The lock to screen feature can still be used to position it but should then be deactivated.

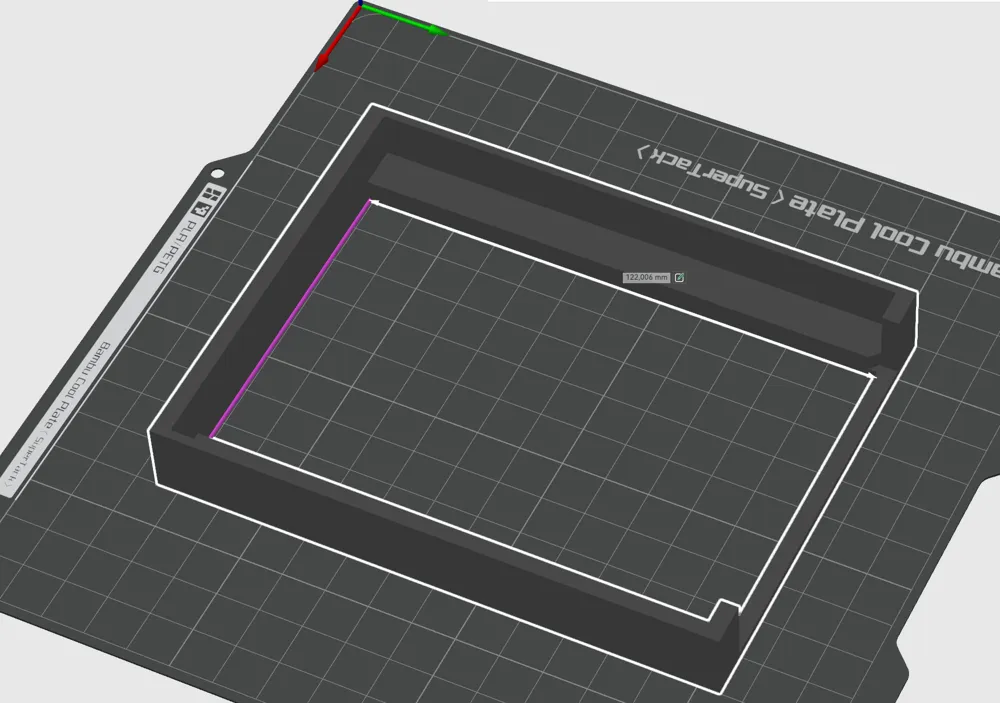

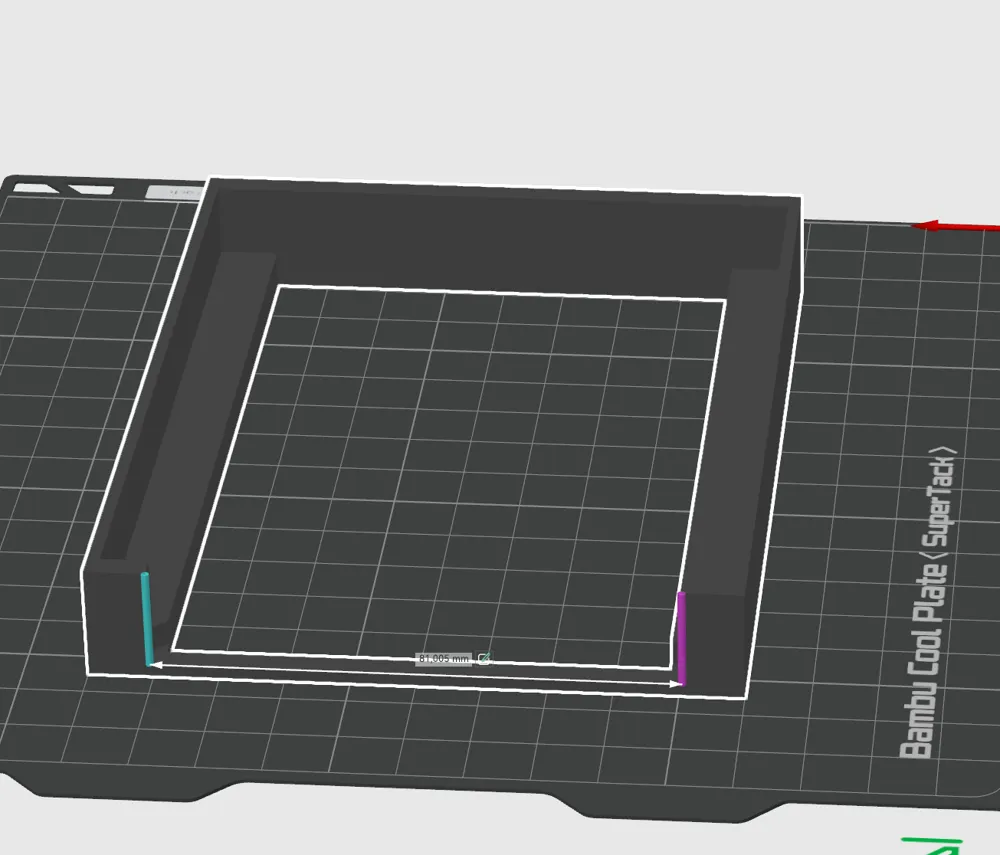

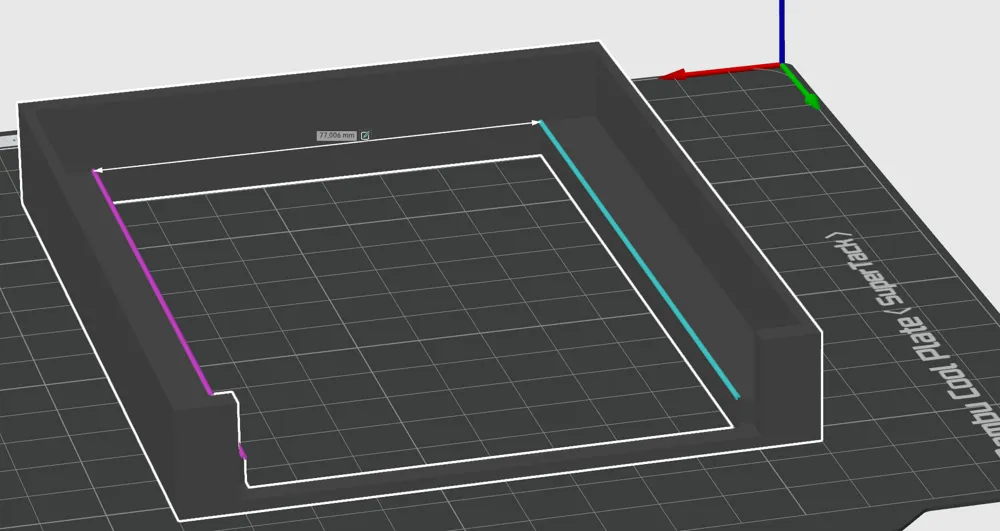

The size of the frame is 100 × 130 × 18 mm.
It fits perfectly in the Corsair frame 4000D rear fan slot.

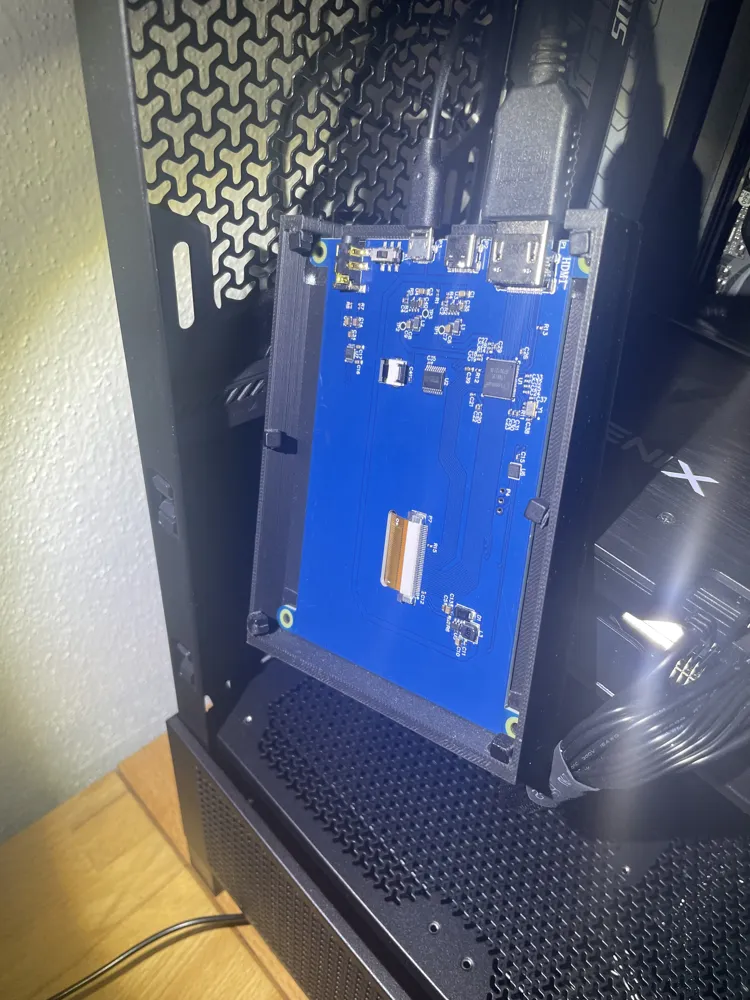

You can mount it to your pc using magnets and glue/double sided tape. You could also just have your GPU support it. The display itself is mounted to the frame using double sided tape and doesn't have to be damaged in order to fit.
