Bambu A1, H2, H2C, P2S, X2D Nozzle - Stackable Gridfinity

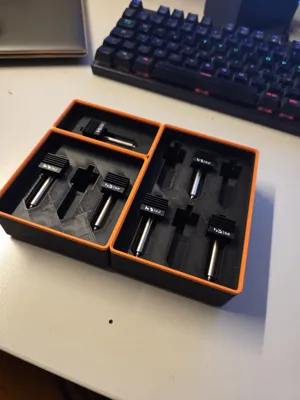

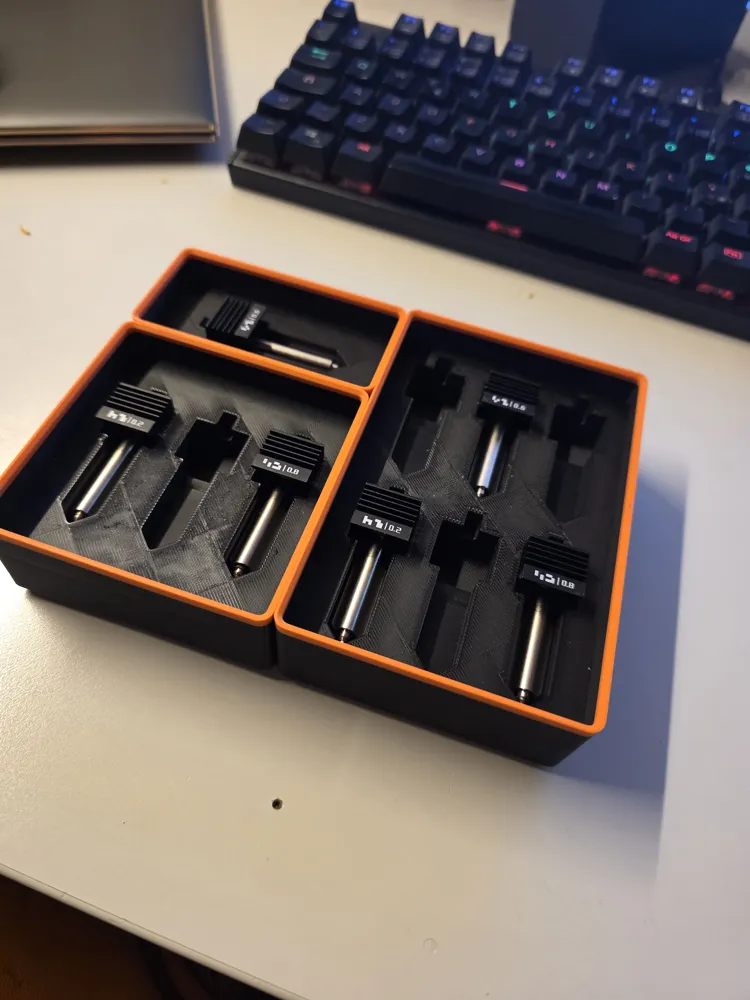

Finally, a truly stackable Gridfinity storage solution designed specifically for Bambu Lab hotends and nozzles.

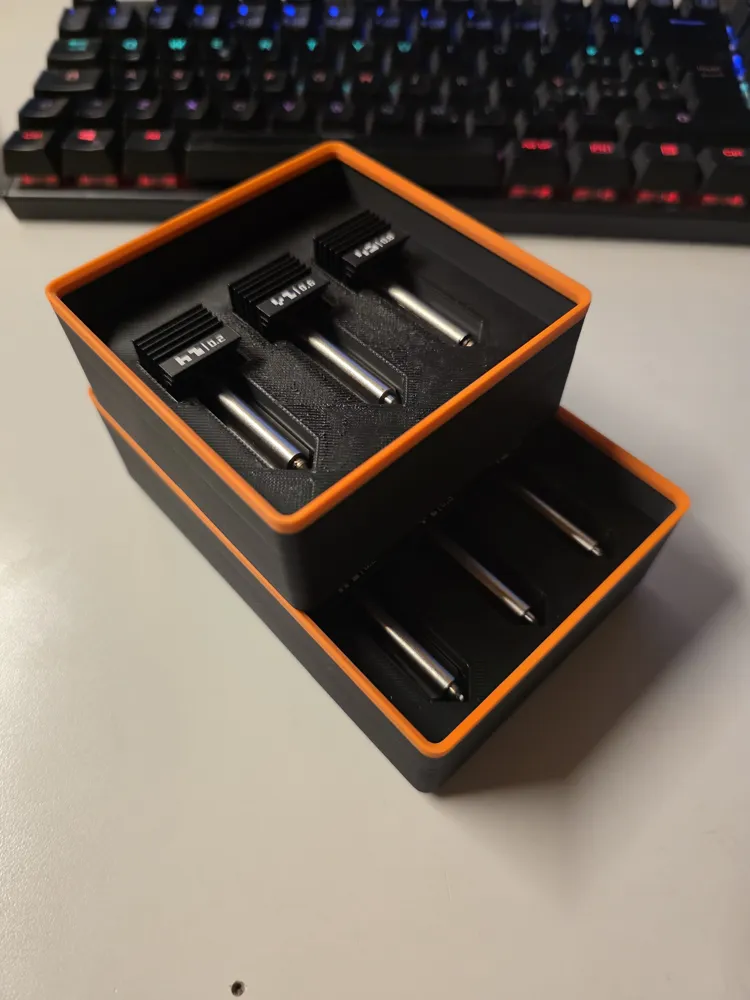

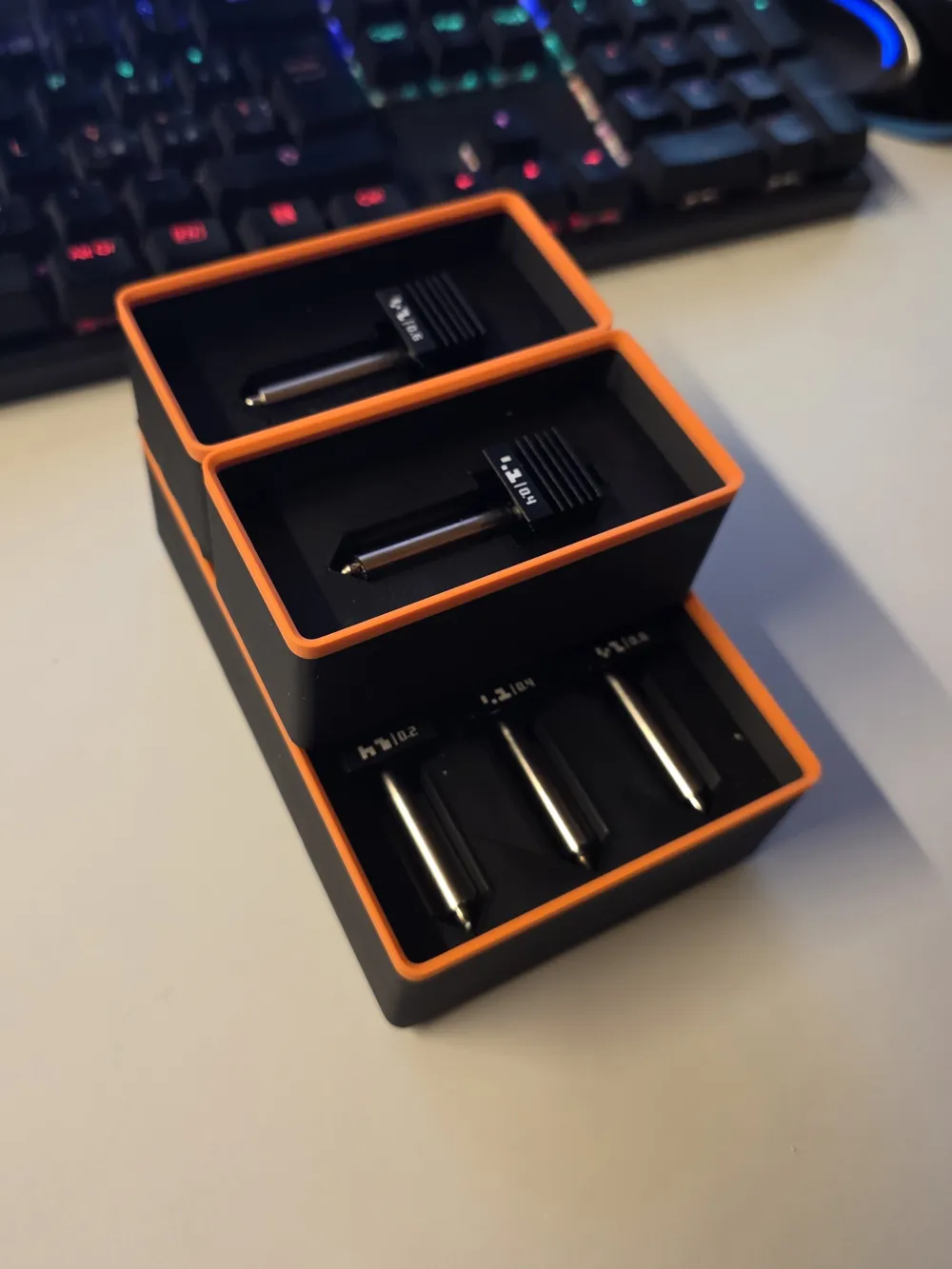

Most existing Gridfinity bins for these nozzles leave the top part exposed or are too shallow, making it impossible to stack other bins on top of them. I designed these custom inserts to protect the nozzles and ensure they sit perfectly flush, allowing you to fully utilize your drawer or box height.

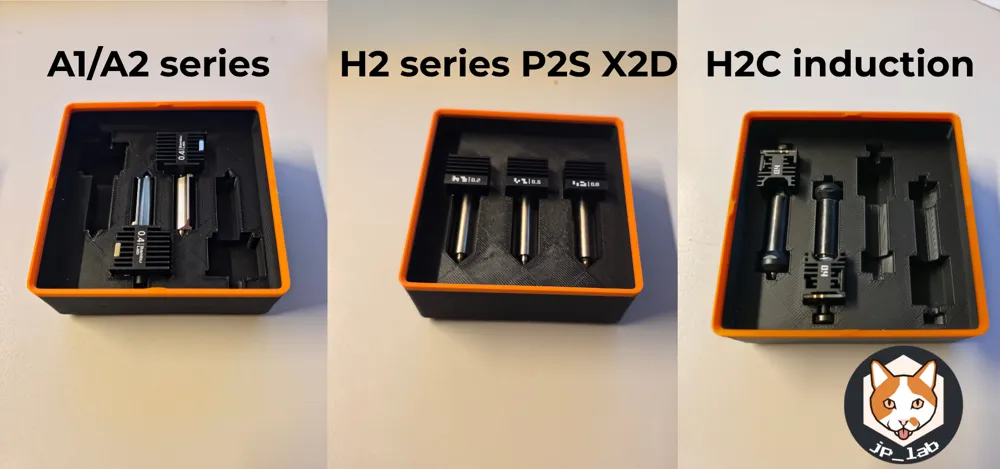

Versions & Heights:

   A1 Series: Designed with a 4u standard height (optimized for A1/A1 mini hotends).

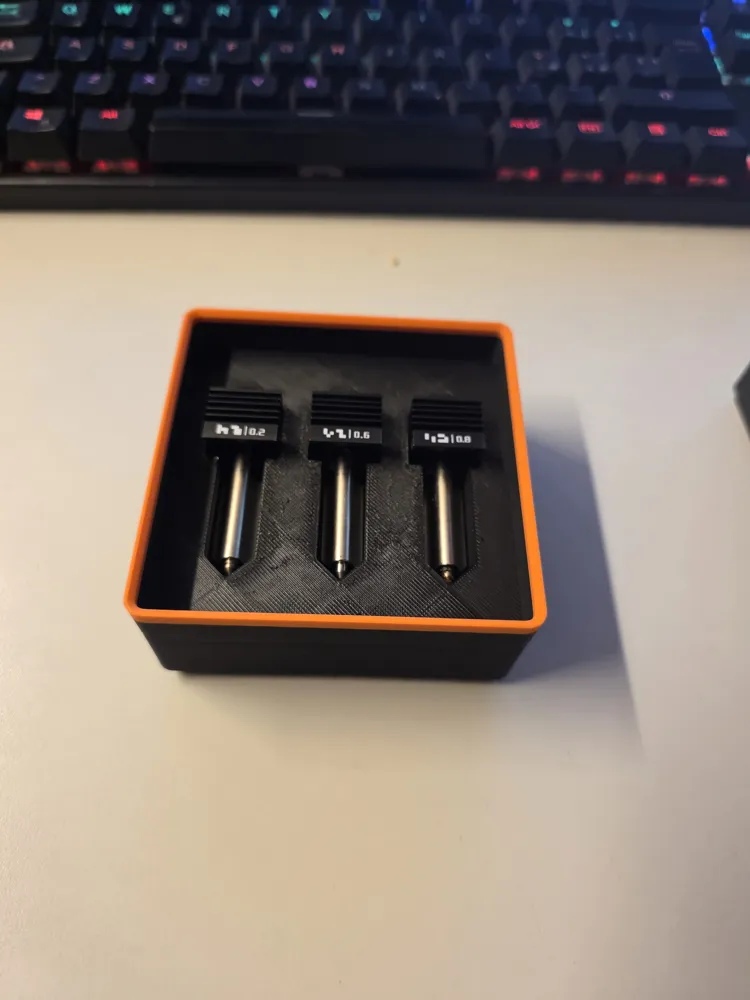

   H2, P2S, X2D Series: Designed with a 5u standard height (optimized for H2D, H2S, P2S hotends).

   H2C induction hotend: Designed with a 4u standard height (optimized for H2C induction hotends

Available Layouts (for both series):

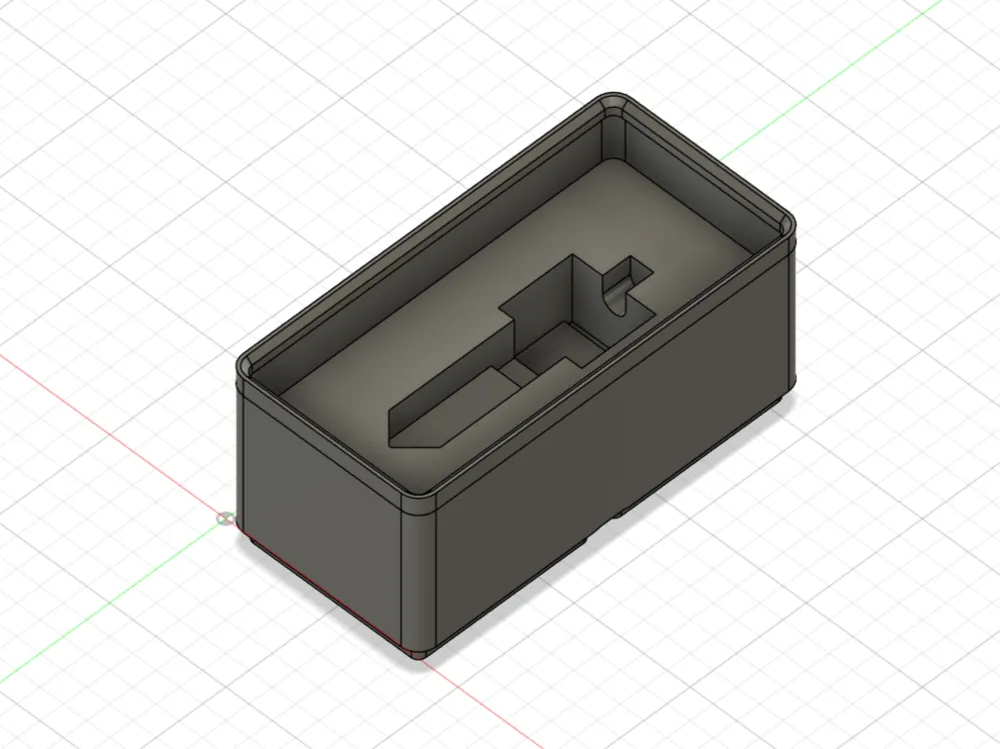

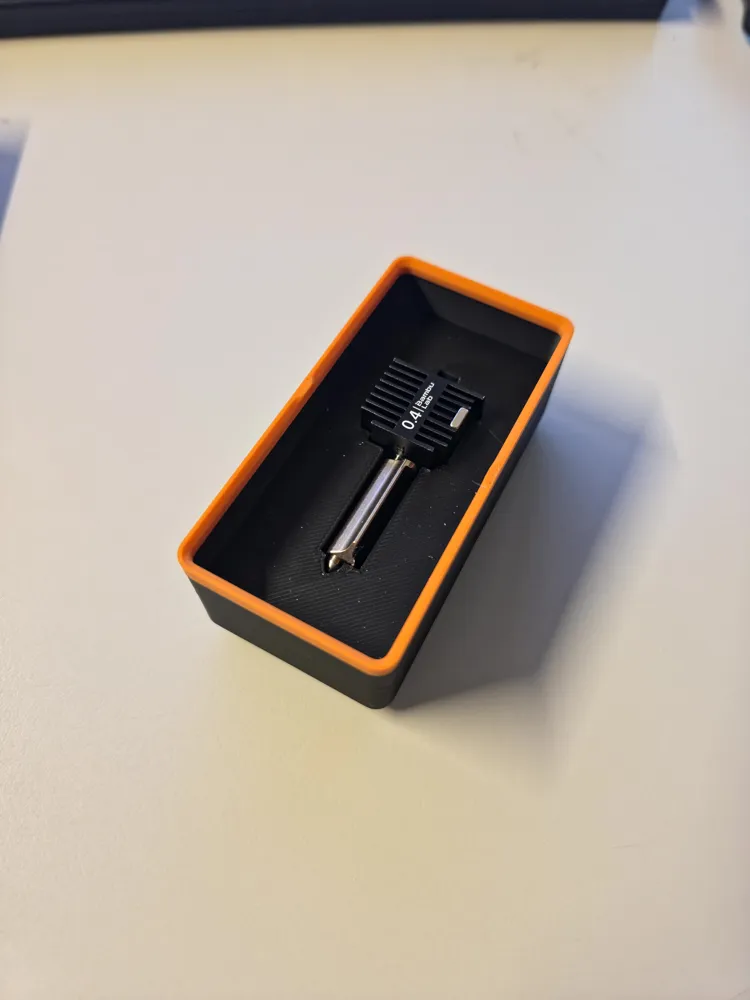

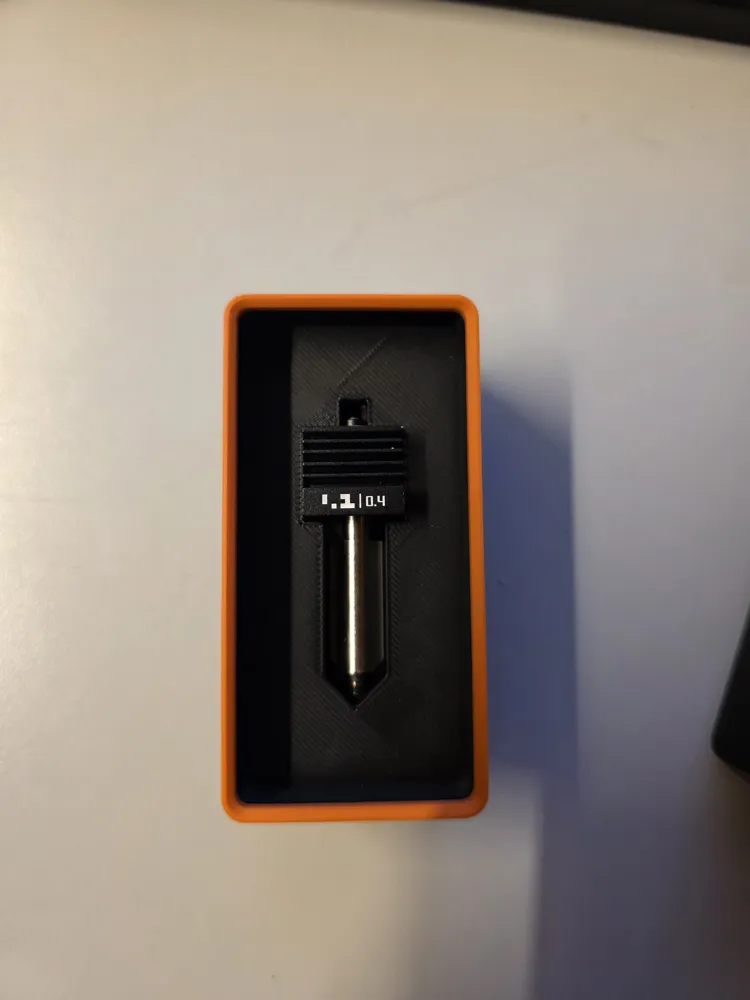

• Single Slot (1x2 Grid)

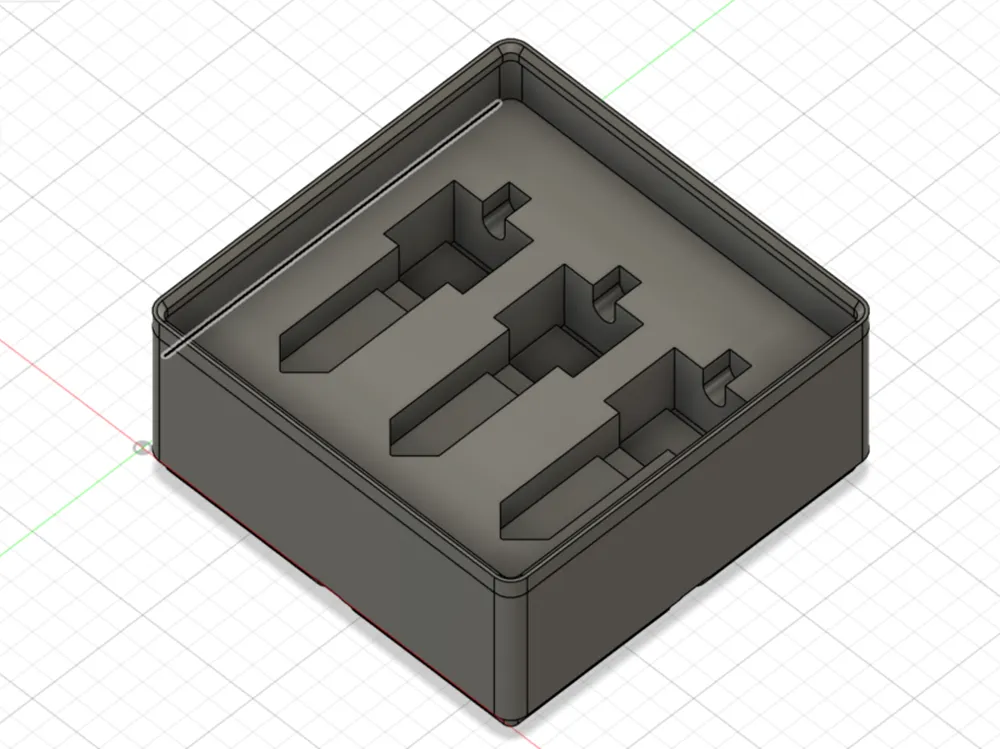

• 3-slot (2x2 Grid)

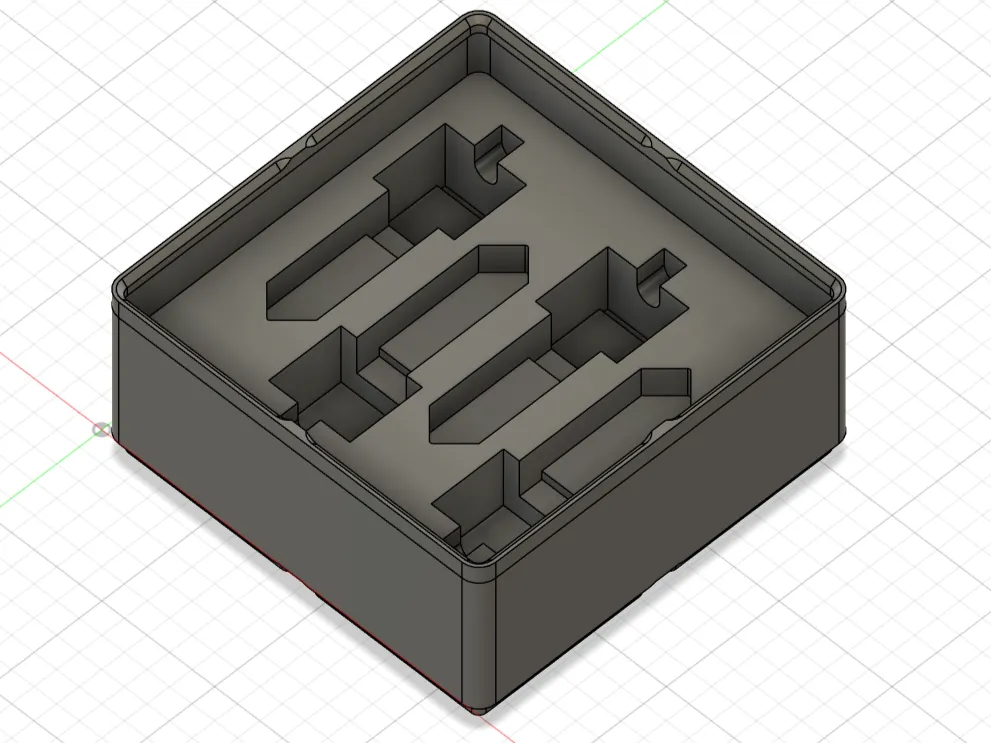

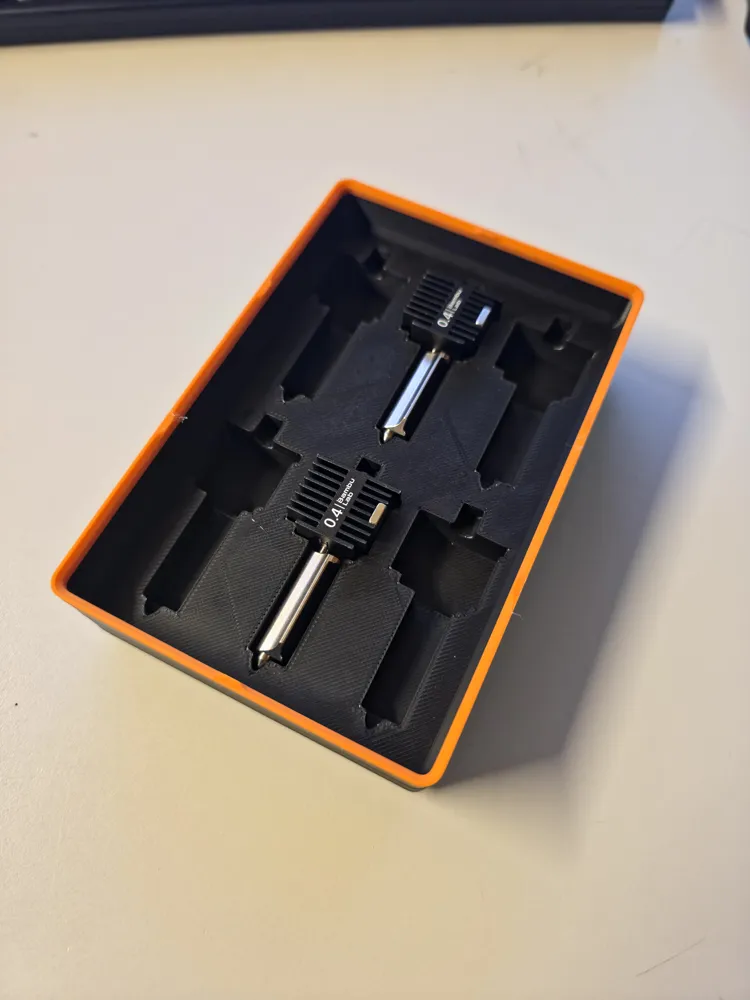

• 4-slot (2x2 Grid)

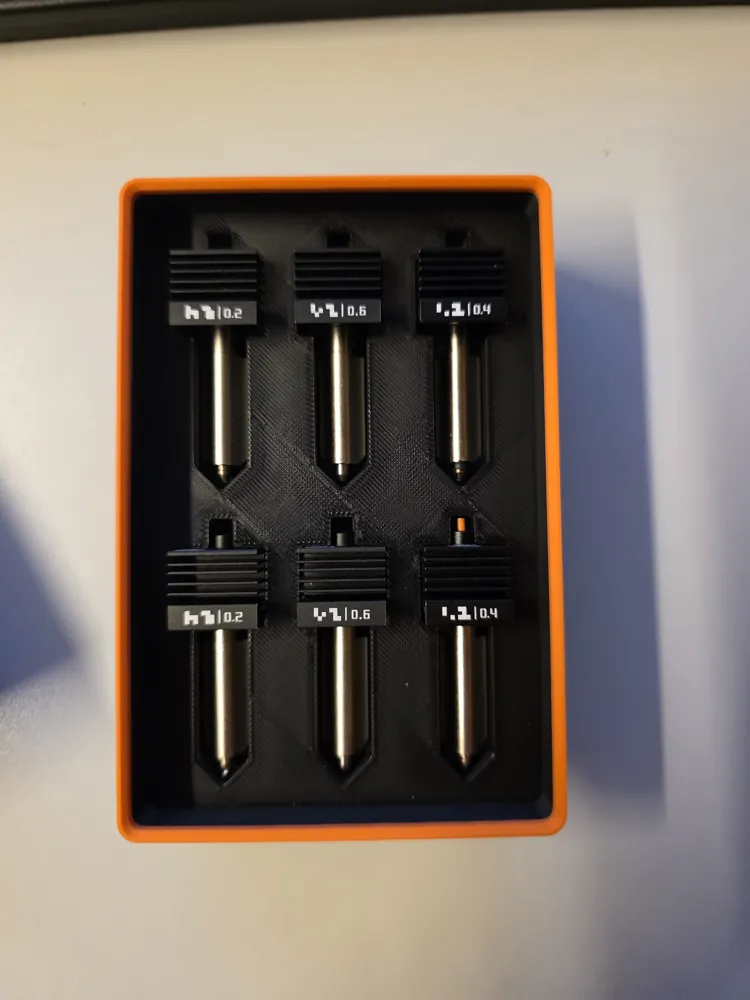

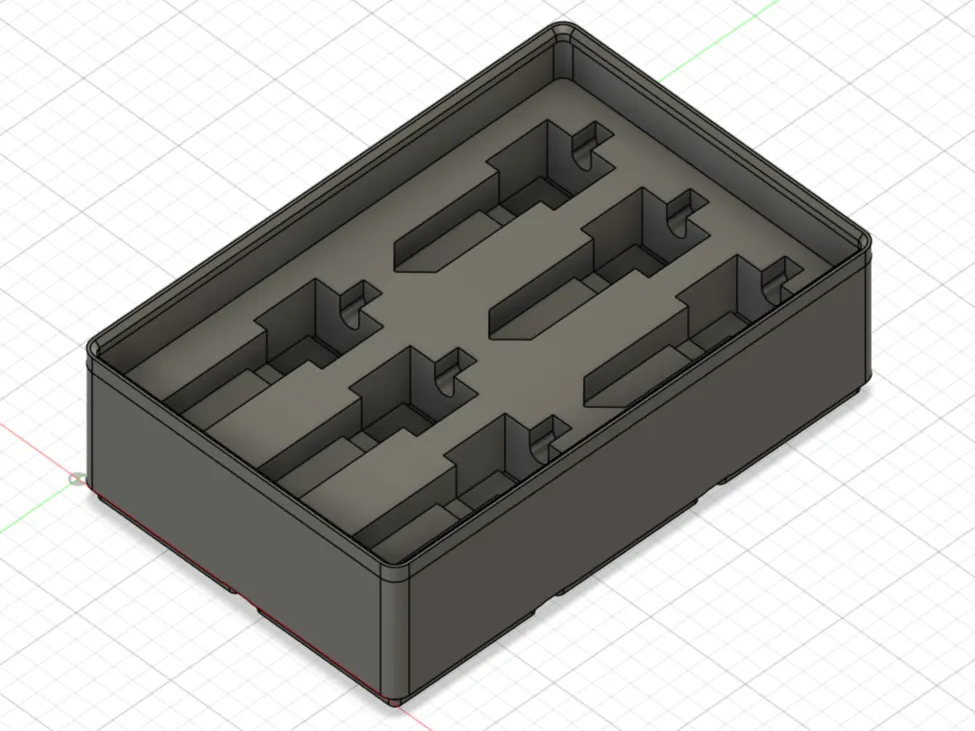

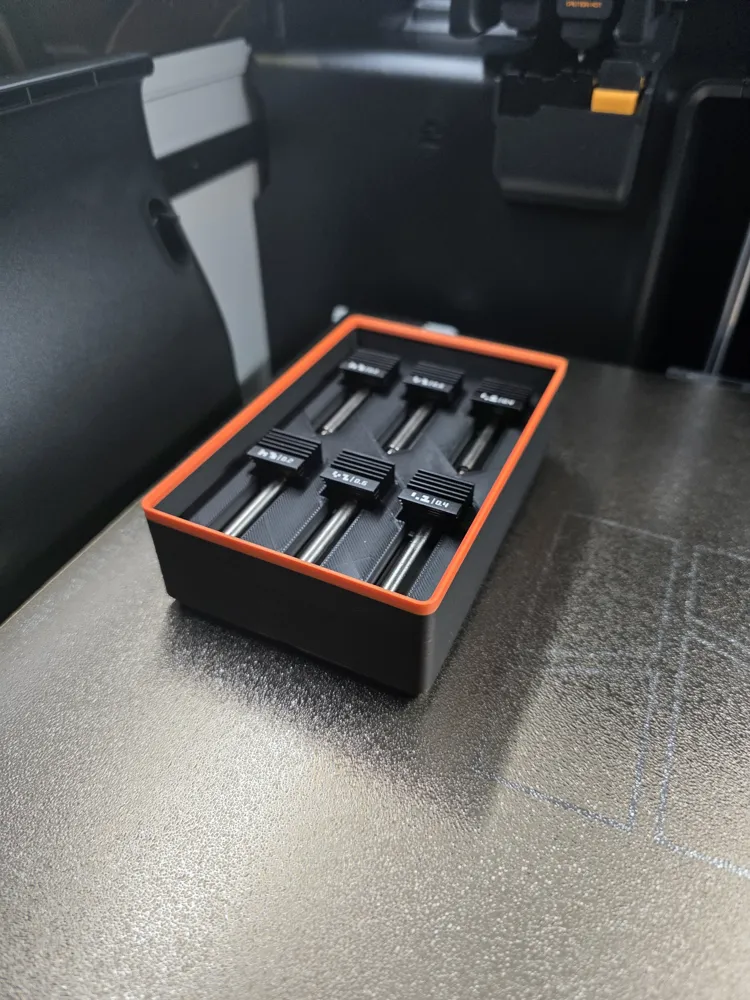

• 6-Slot (3x2 Grid)
• Coming Soon: More layouts are on the way! (Let me know in the comments if you need a specific size).

Material Recommendations: PLA and PETG are the recommended materials for a perfect fit. Note on ABS/ASA: While it is possible to use ABS, please be aware that the nozzle slots are designed with tight tolerances to prevent rattling. Due to the higher shrinkage rate of ABS, you may need to slightly scale up the model to ensure the hotends slide in correctly. I haven't personally tested this model with ABS yet, so if you try it, please share your experience in the comments!

Color & Styling: The included .3mf file is pre-configured for easy multi-color printing. The model is already defined with separate parts (bin and lip) within the object list. This allows you to instantly assign a contrasting color to the top.
