Any Angle / Size Customizable Hose Adapter

💡 What’s customizable?

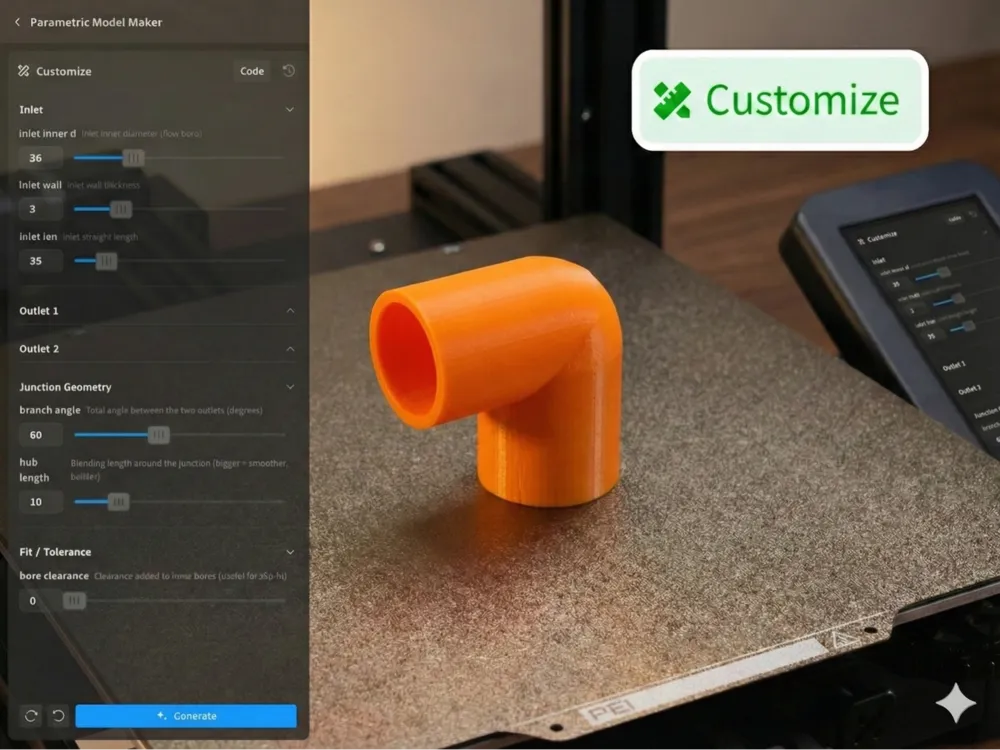

All key dimensions are exposed as parameters in the Customizer:

Big side (bottom)

• Outer diameter
• Inner diameter
• Length

Small side (top)

• Outer diameter
• Inner diameter
• Length

Transition section

• Tapered transition length between the two diameters

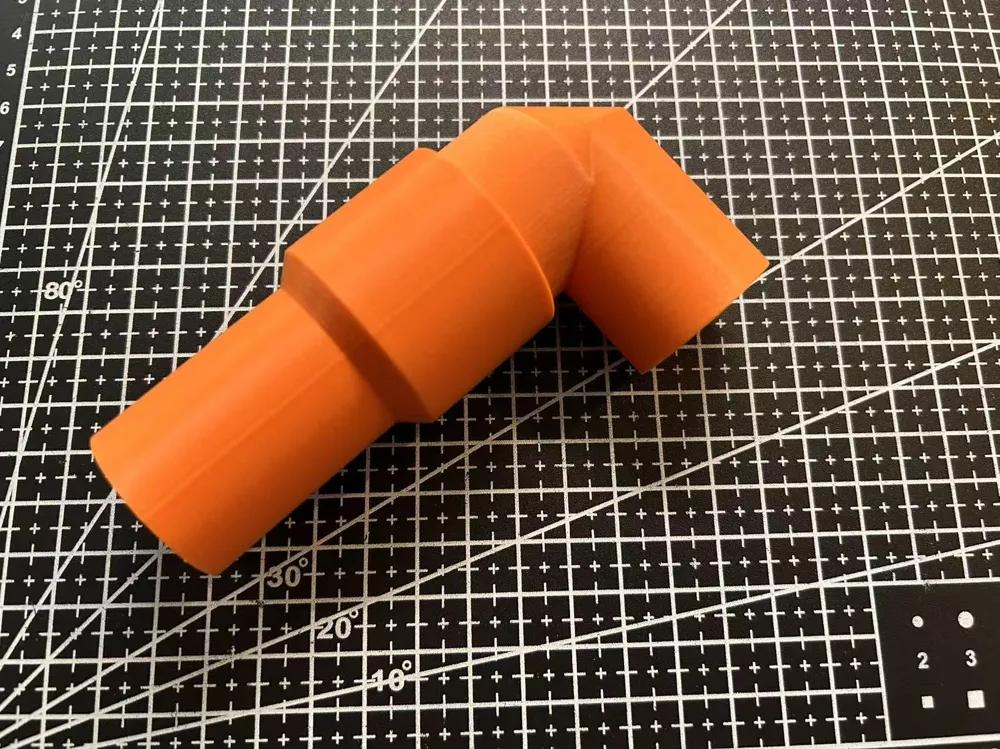

• Bend angle between big and small sides (0° = straight, positive/negative for tilt)

📦 Premade profiles

Don’t feel like tweaking parameters? You can comment to request for premade STL profiles such as:

• Common vacuum / dust-collection sizes (e.g. 32 ↔ 35, 32 ↔ 38, 35 ↔ 38)
• Popular bend angles (0°, 15°, 30°, 45°) for each size pair

🖨 Print recommendations

Orientation

• Print standing upright on the big side (as in the render).
• This gives best circularity and strength along the hose direction.
• For moderate angles (≤ ~45°), no supports are usually needed inside.

Settings

• Layer height: ~0.24 mm
• Walls / perimeters: 3 perimeters recommended for a strong, leak-resistant part
• Infill: 20–30% is plenty for most hose adapters

Material

• PLA for general indoor use

• PETG / ABS / ASA for tougher, warmer, or outdoor environments



✅ Notes

• Make your inner diameter slightly larger than the actual hose OD for a slip fit, or slightly smaller for a tight press fit if your material is flexible.
• The model uses a smooth angled internal taper between the two bores for better airflow and easier cleaning.
• If you want a tuned profile for a specific hose size, angle, or printer setup, you can easily generate one in the Customizer using the same parameters.
