Cable puller - thick cables and wires into conduits
Print Profile(1)
Description
This week I had to pull various cables and wires into conduits. Anyone who has done this work before knows exactly how frustrating it can be - especially when the cables get jammed in the pipe.
The conduits available were 110 mm in diameter and 75 mm in diameter, each approximately 25 m long.
The large cable puller only fits into the large conduit.

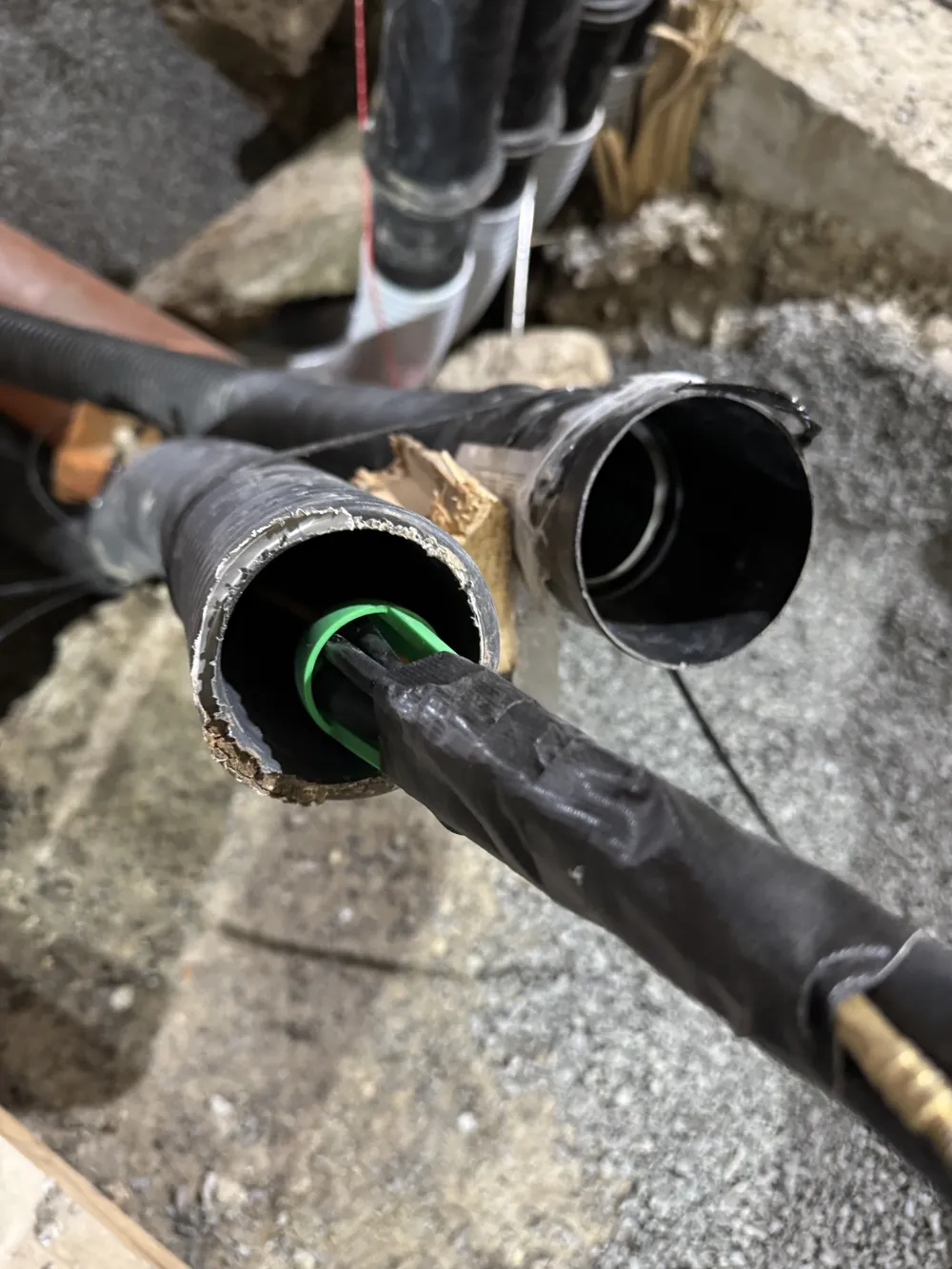

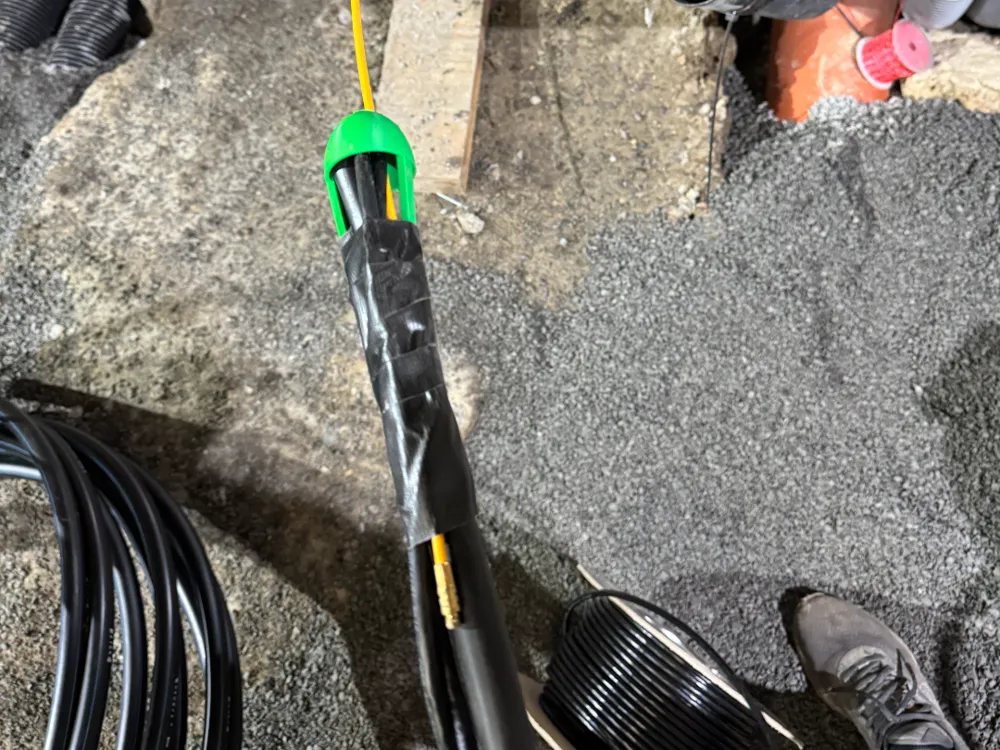

We pulled various lines into the pipes, e.g., a 25mm water pipe (black PE), power with network for a wallbox (6mm2), and refrigerant lines with 5/8", 3/8" with insulation, as well as power and control cables.

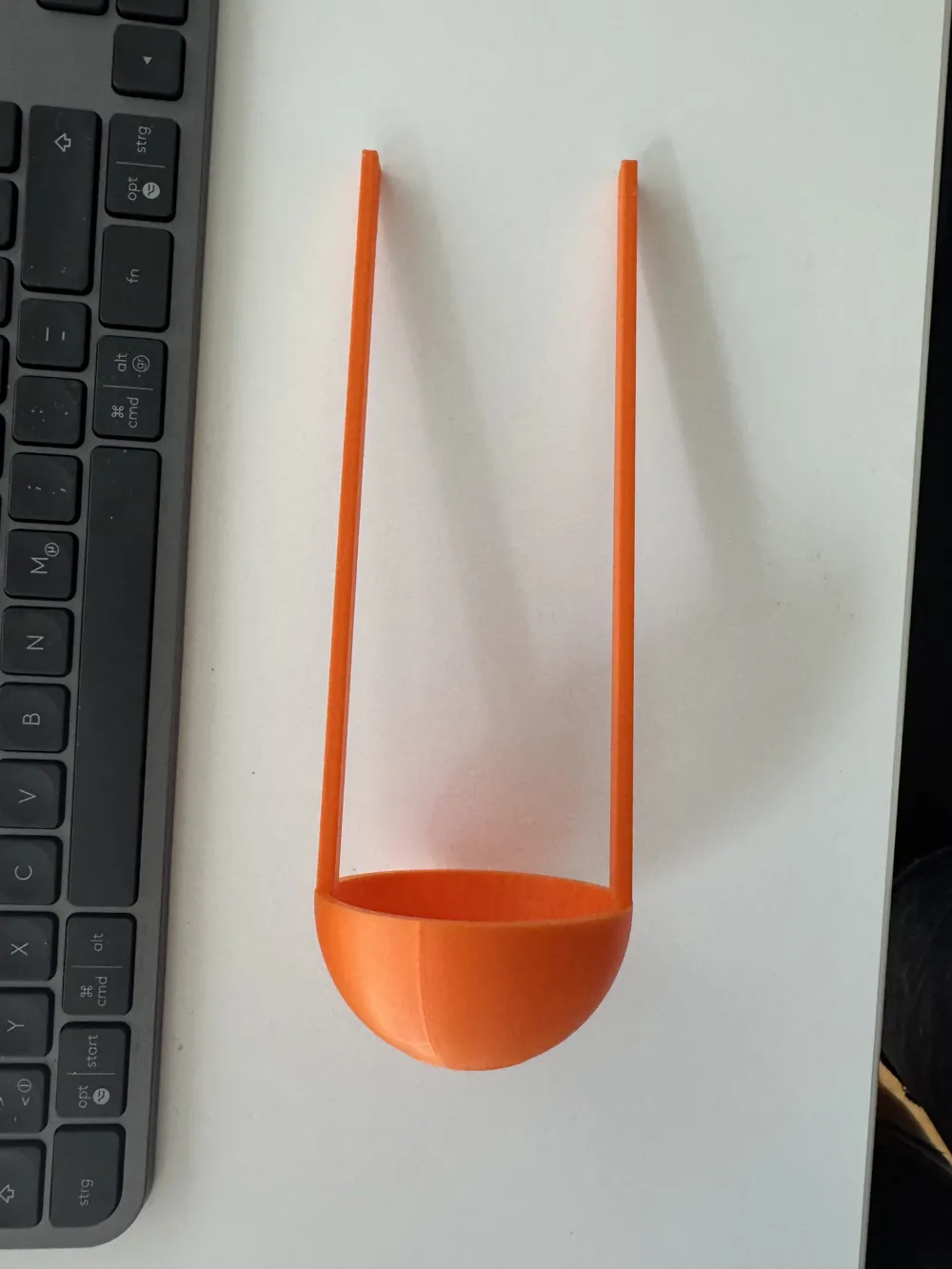

There are three adapters in the template:
Small: 40 mm
Medium: 55 mm
Large: 70 mm
In the front center, there is an 11 mm hole for a 10mm rope to pass through.
I printed parts from PLA; this was sufficient for single use.
