3 inch drone frame

original model by luisengineer_1148997

English version below.

The top part can be printed from TPU to dampen vibrations if the silicone holder is not installed

Parts List:

Essentials for the Drone:

Flight Controller: https://www.banggood.com/custlink/GmGZA3keo8

GPS (no affiliate): https://www.banggood.com/de/HGLRC-M100-MINI-GPS-Module-M10-Chip-Built-in-Ceramic-Atenna-for-2-7-Inch-Freestyle-Long-Range-FPV-Racing-RC-Drone-p-1982120.html?cur_warehouse=CZ&rmmds=search&ID=6291970

Propellers (no affiliate): https://n-factory.de/HQProp-Durable-T3X15-Propeller-Grey?srsltid=AfmBOordlUIZKRMVkA2CF8K73CbRhKRj5Lz6SBmNIeYxCaPLbe22wMNr

Silicone holder: https://www.fpv24.com/de/betafpv/betafpv-shock-absorber-stossdaempfer-dji-o4-air-unit

DJI O4 Air Unit: https://amzn.to/4jzcsT2

Motor: https://n-factory.de/BetaFPV-LAVA-1102-14000KV-Brushless-Motor

Alternative motor with longer cables: https://de.aliexpress.com/item/1005004344621352.html?src=google&pdp_npi=4%40dis!EUR!13.88!12.89!!!!!%40!12000028844354681!ppc!!!&src=google&albch=shopping&acnt=272-267-0231&isdl=y&slnk=&plac=&mtctp=&albbt=Google_7_shopping&aff_platform=google&aff_short_key=UneMJZVf&gclsrc=aw.ds&&albagn=888888&&ds_e_adid=726717691648&ds_e_matchtype=search&ds_e_device=c&ds_e_network=g&ds_e_product_group_id=297546631617&ds_e_product_id=de1005004344621352&ds_e_product_merchant_id=109139798&ds_e_product_country=DE&ds_e_product_language=de&ds_e_product_channel=online&ds_e_product_store_id=&ds_url_v=2&albcp=22054759359&albag=172828878419&isSmbAutoCall=false&needSmbHouyi=false&gad_source=1&gad_campaignid=22054759359&gbraid=0AAAAAoukdWNkV8DeGy-9JcpzMEG_2R15D&gclid=Cj0KCQjwuvrBBhDcARIsAKRrkjeTGqmigN0vv2_lsqtbu2Mc3eoWM0Q_IAQjkTHlLM__TAmIlW2qkMAaAiAdEALw_wcB

Alternative motor 2: https://n-factory.de/Flywoo-ROBO-1002-23500KV-Gold-Purple-Motor

Small Parts:

XT30 Connector: https://amzn.to/4kUqRun

Velcro straps to secure the battery: https://amzn.to/3FGASfC

Balancer connector cable: https://amzn.to/4klAJxa

6x M2 x10 Screws

4x M2 x6 Screws

Remote Control and Goggles:

DJI Remote Control: https://amzn.to/4kCkUCg

DJI Video Goggles: https://amzn.to/4mNgutY

Regular LiPo Batteries: https://amzn.to/4dK48P0

The links are partially affiliate links

Wiring Diagram

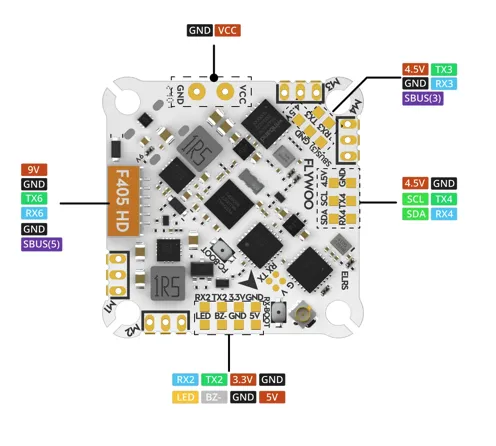

GPS is soldered to RX2 and TX2. (Don't forget RX from GPS to TX from the flight controller) Voltage is soldered to one of the 4.5V pads, otherwise the GPS will not work if the flight controller is connected via USB to Betaflight

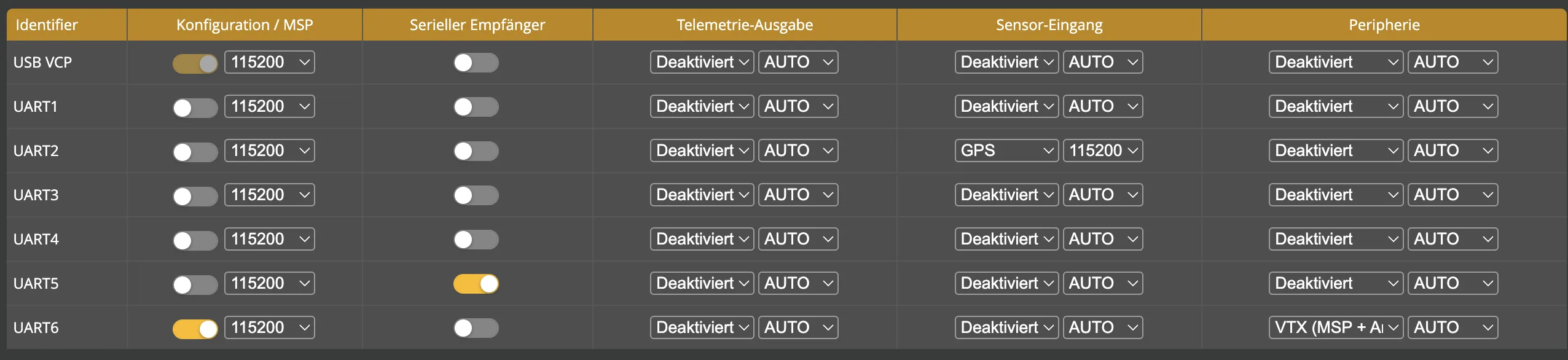

Betaflight Ports Settings:
