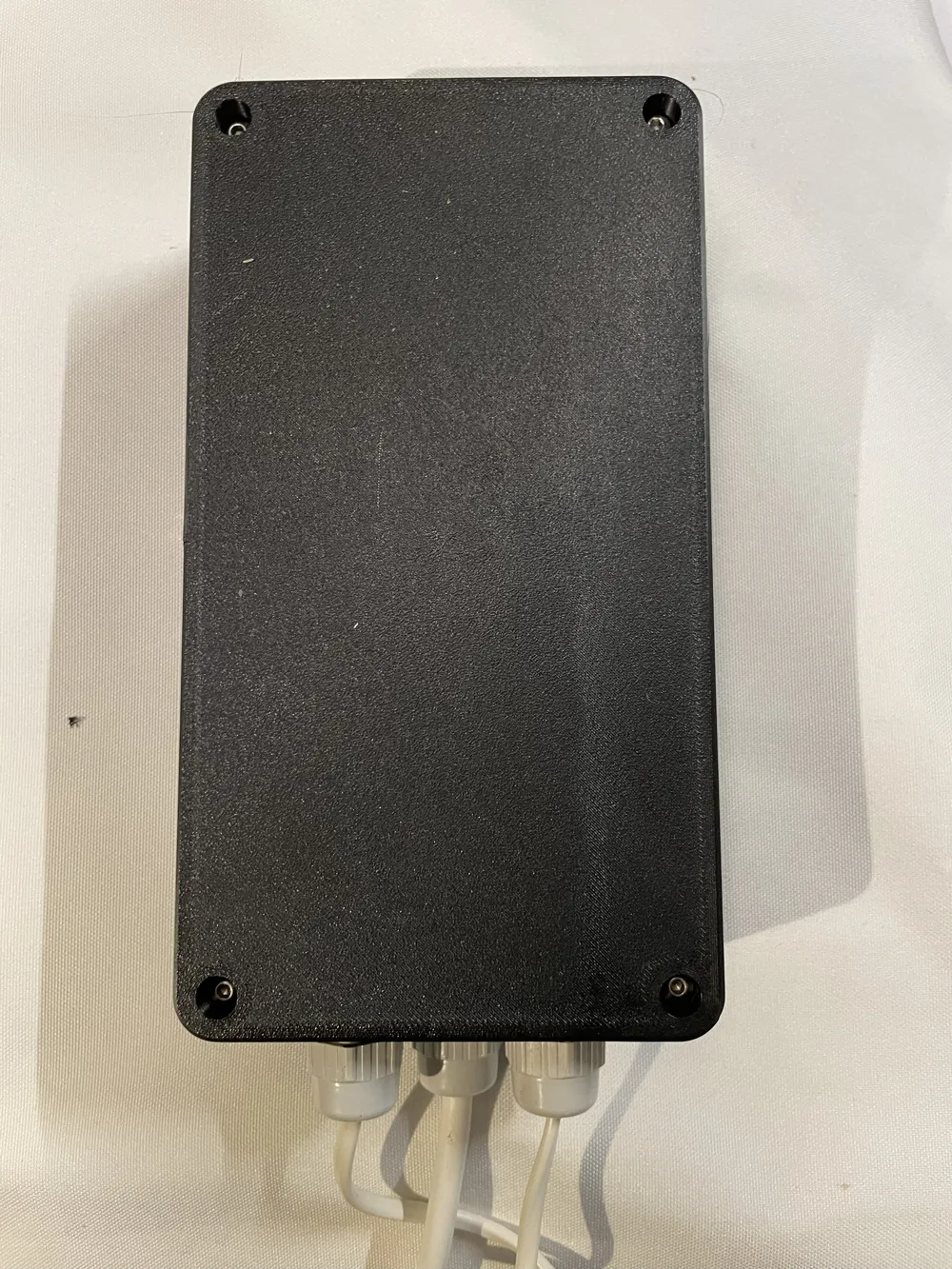

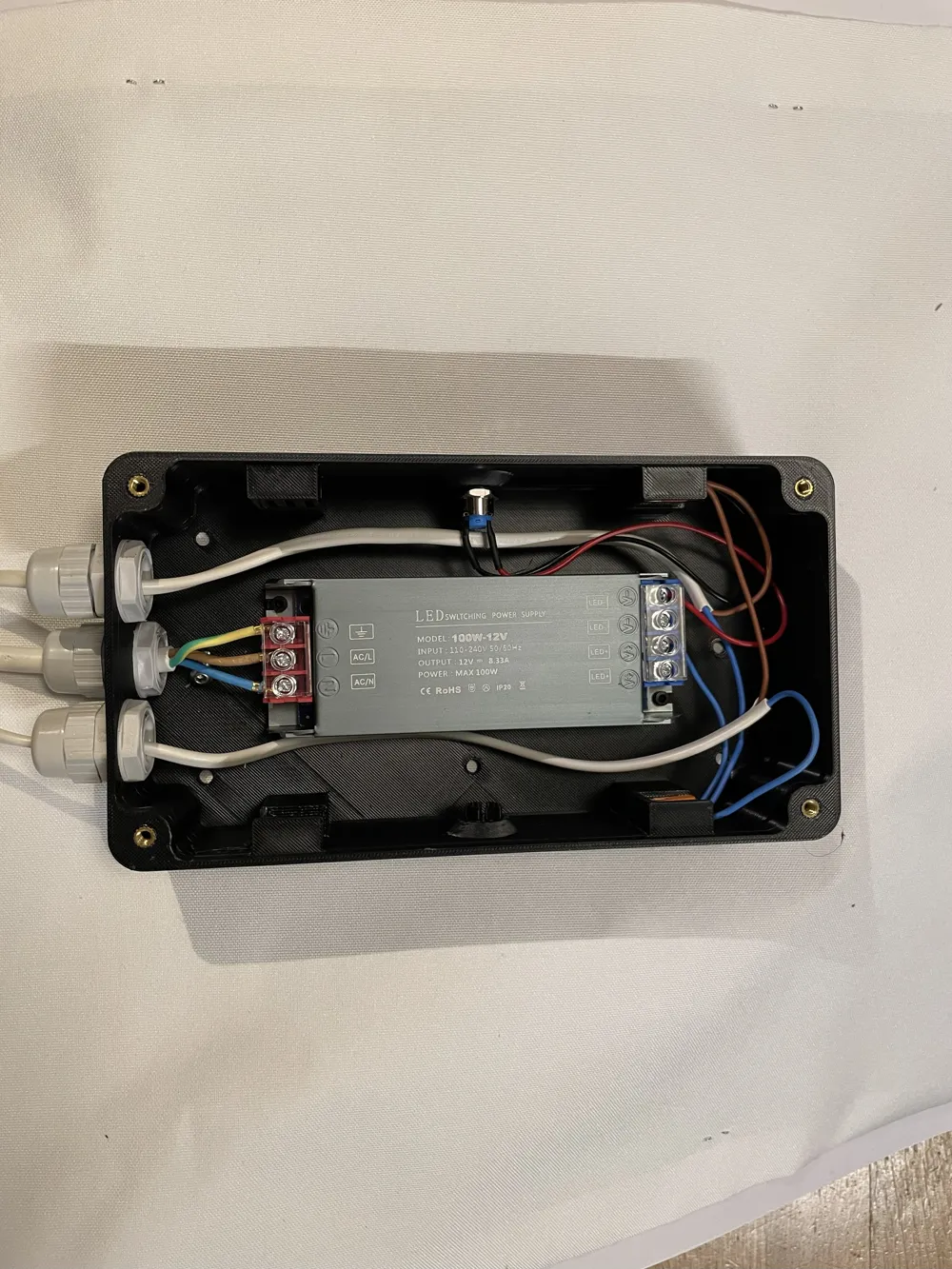

This is an electrical cabinet designed to run one or two 12V DC motors.
Input voltage 110V or 220V.
Maximum current 8.3A totally.

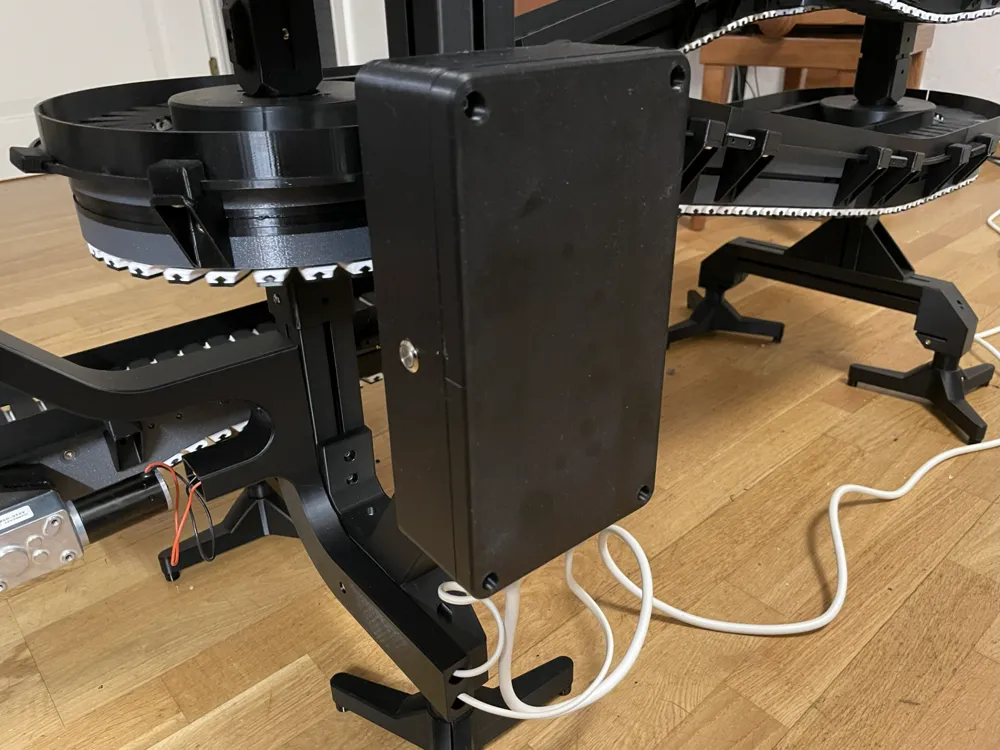

This cabinet is especially designed to work for the motors in the KE 50 conveyor system series.
Perfect for those who would like a clean wiring solution for their KE 50 conveyor system.

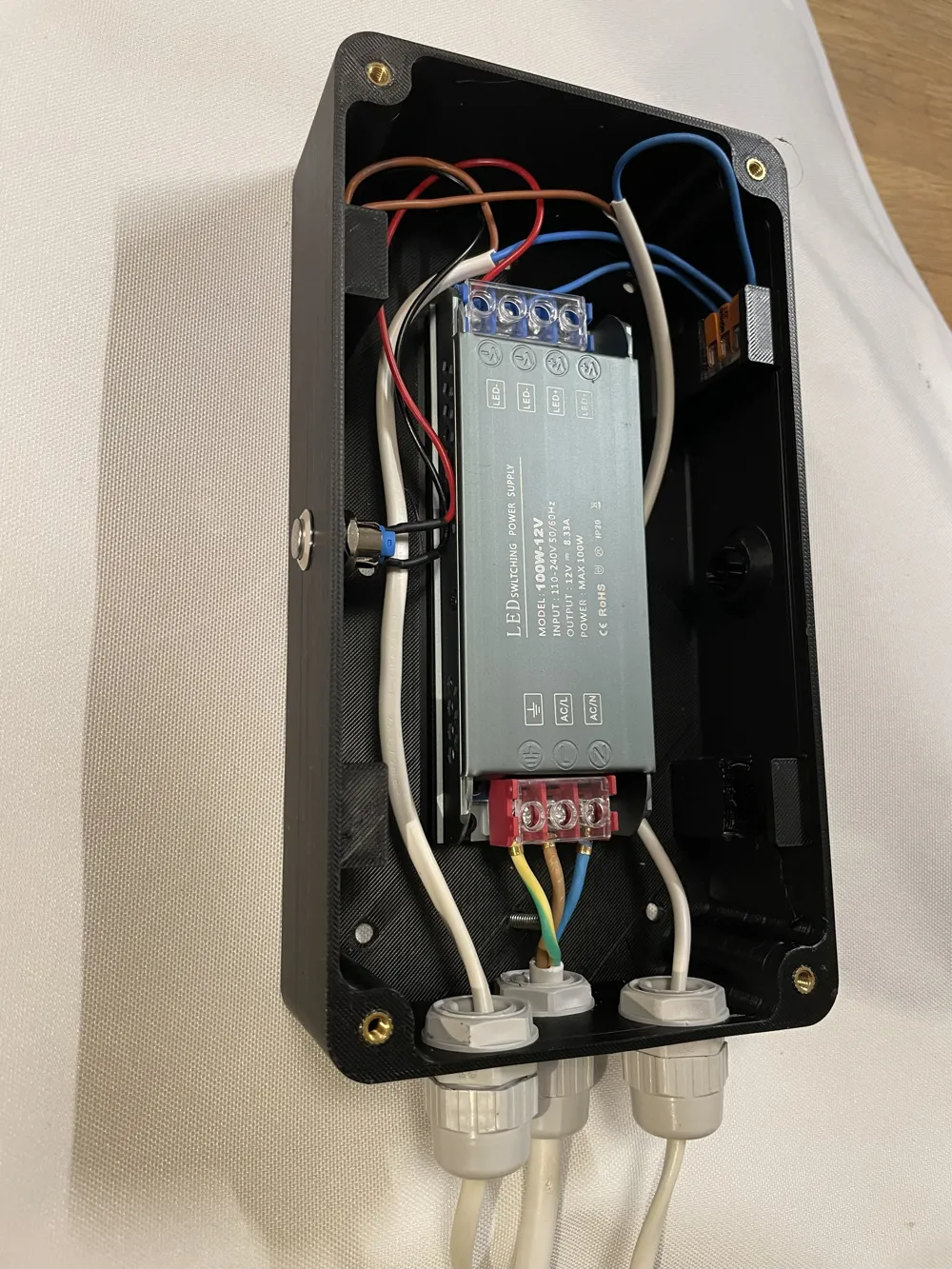

The cabinet can equipped either with one switch that will run 1 motor or 2 motors, or two switches that will allow driving 2 motors individually.

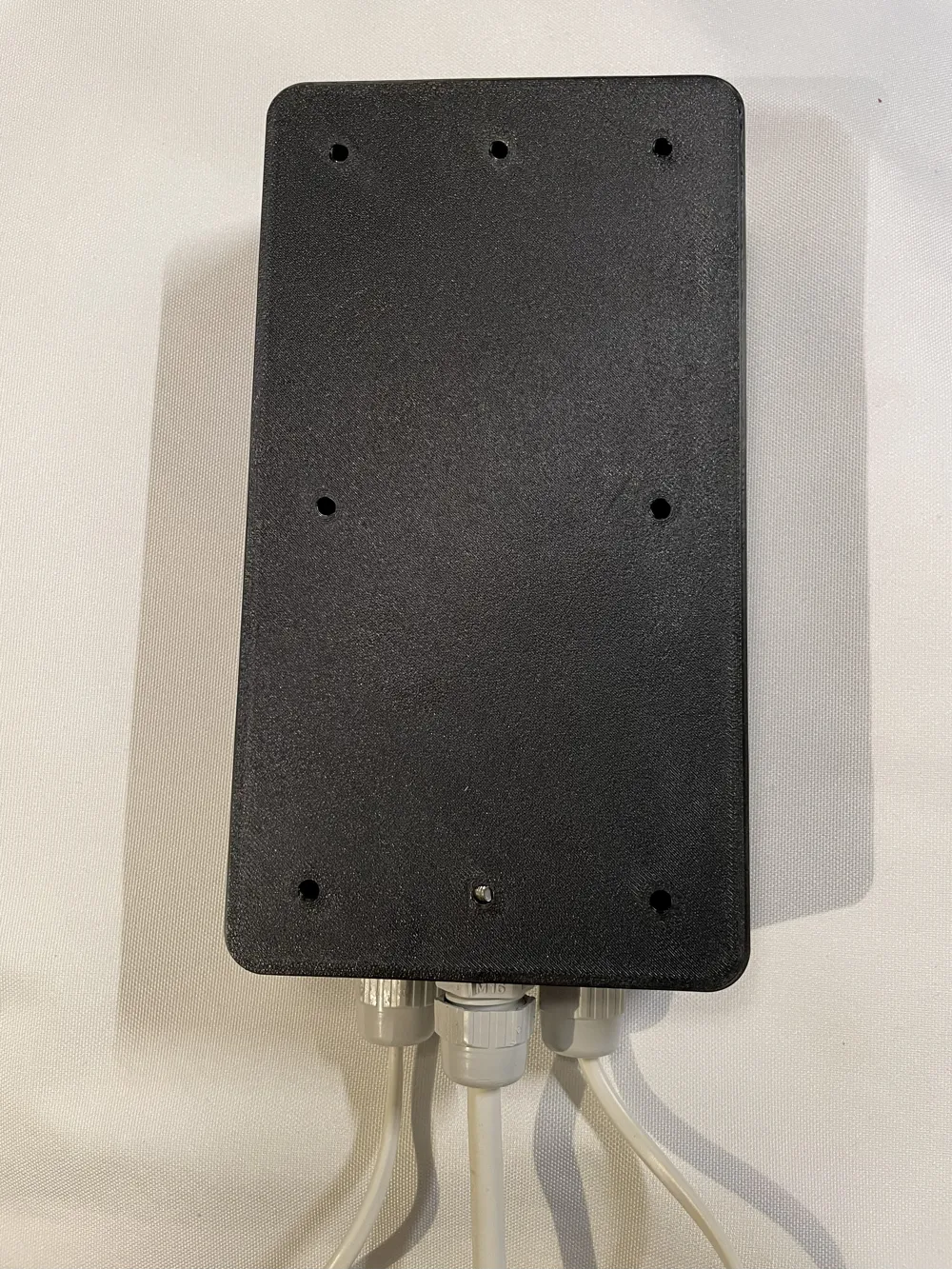

The cable glands are standard PG9 connections that can be bought everywhere, and they work for 4-8mm cables.

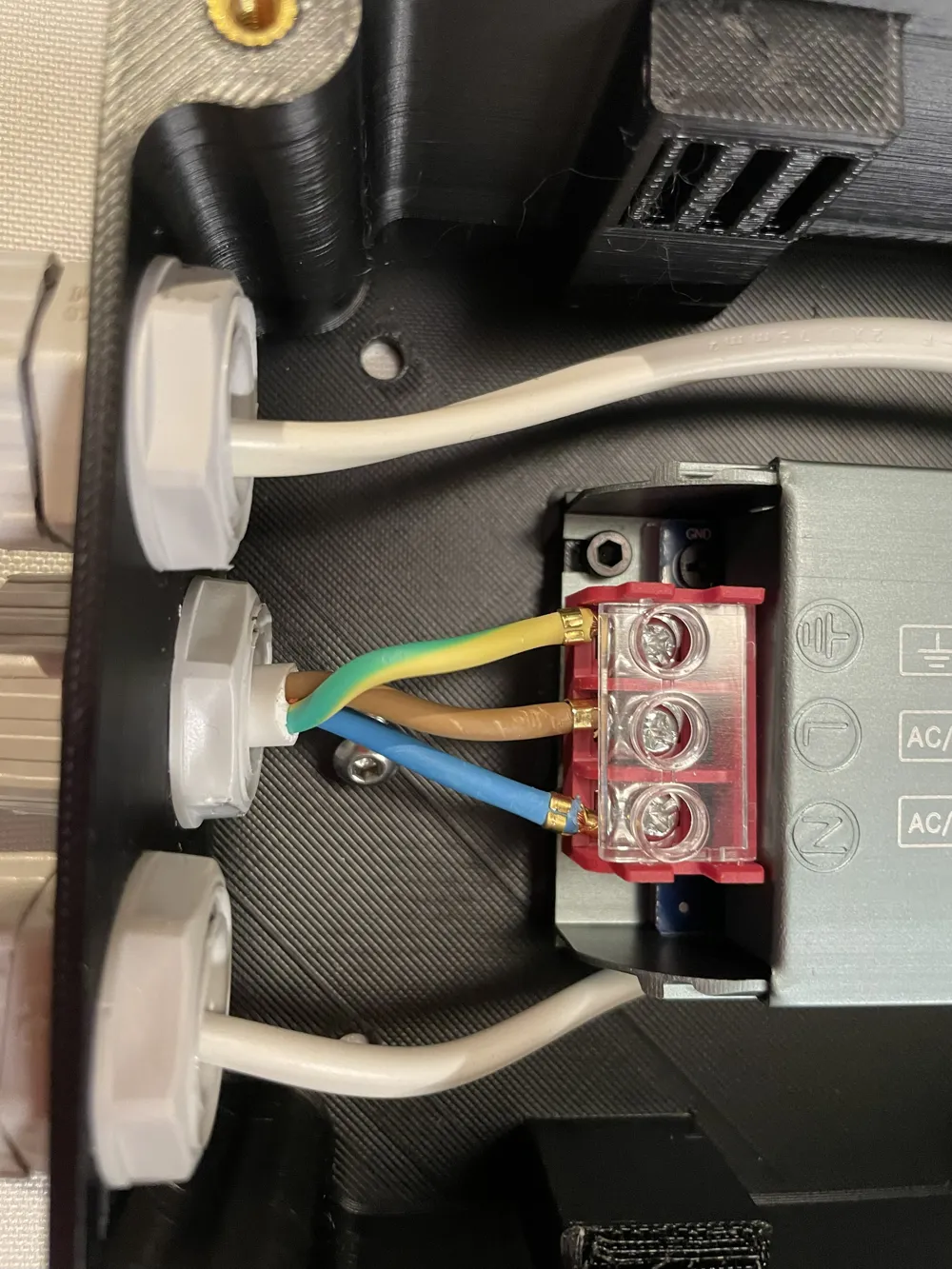

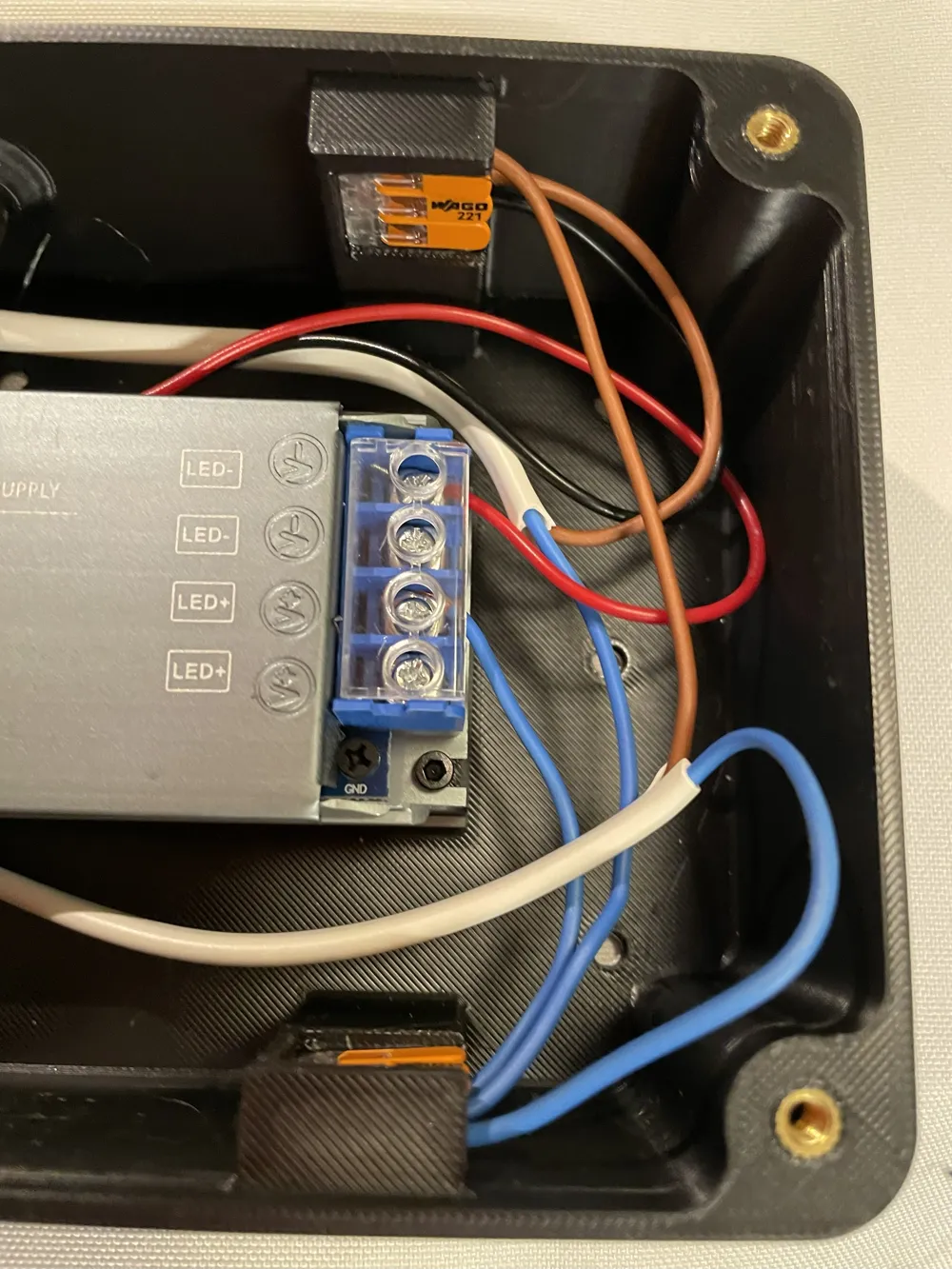

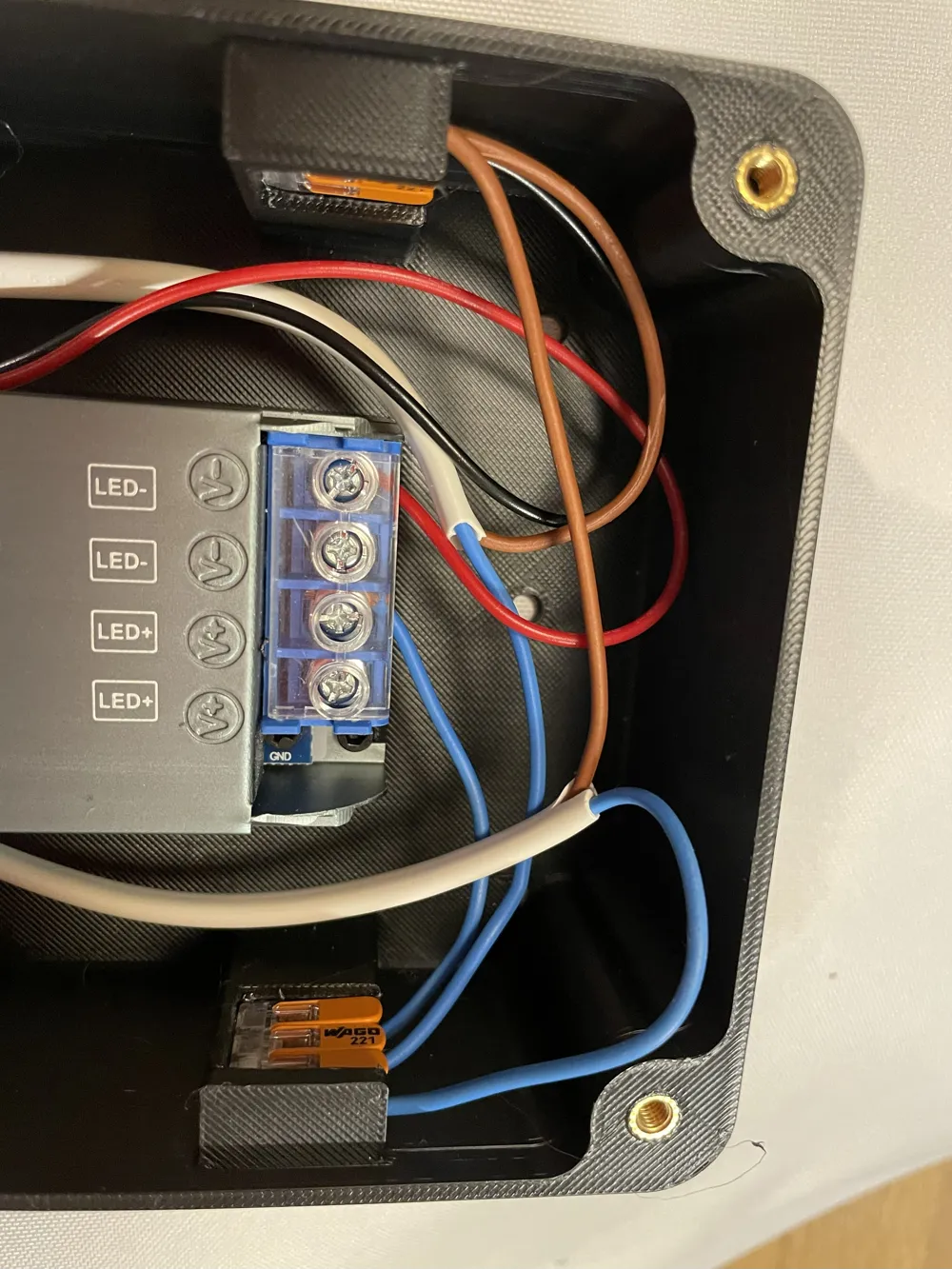

The submitted documentation shows exactly how to connect the wires in a very visible way.
