PZ2/PZ3 screw caps
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
11 min
1 plate
Open in Bambu Studio
Boost
34
116
11
0
234
151
Released
Description

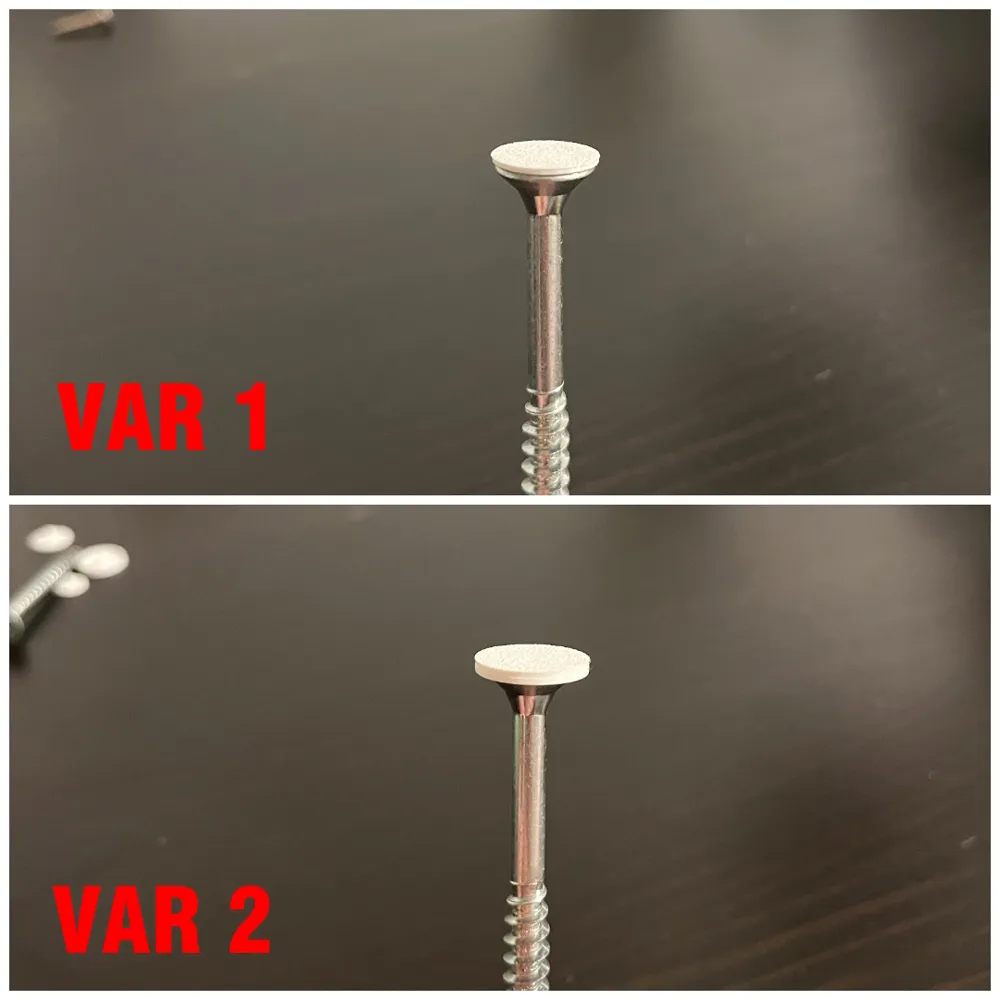

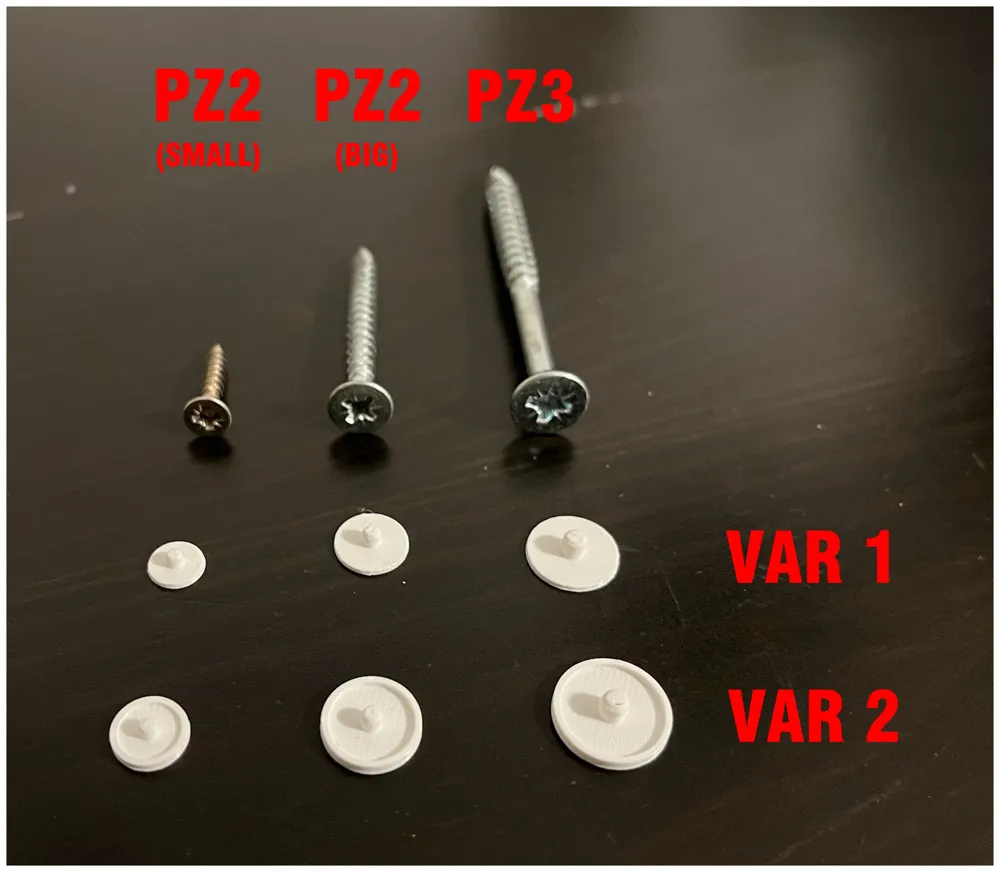

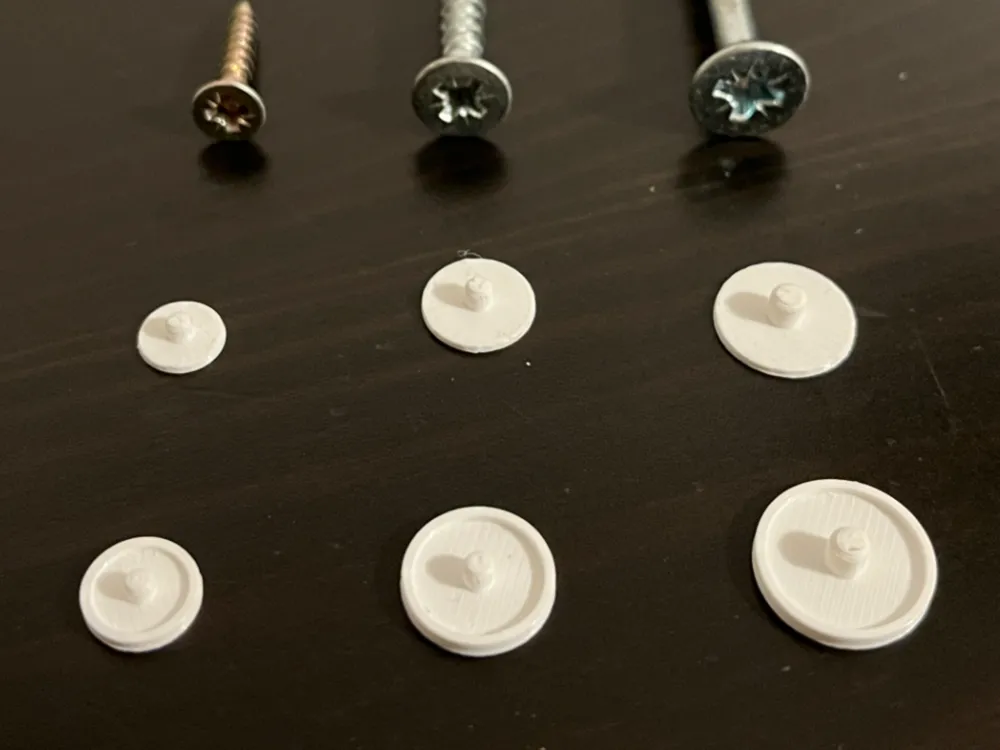

This is a set of caps for screws with PZ2 heads (small – 7 mm, large – 9.8 mm) and PZ3 heads (11.7 mm). The caps come in two variants. VAR 1 is flat and covers only the top surface of the screw head. VAR 2 includes a cavity that also hides the side of the screw head. The cavity depth is 0.6 mm for the small PZ2 head, and 0.8 mm for the large PZ2 head and for PZ3.
