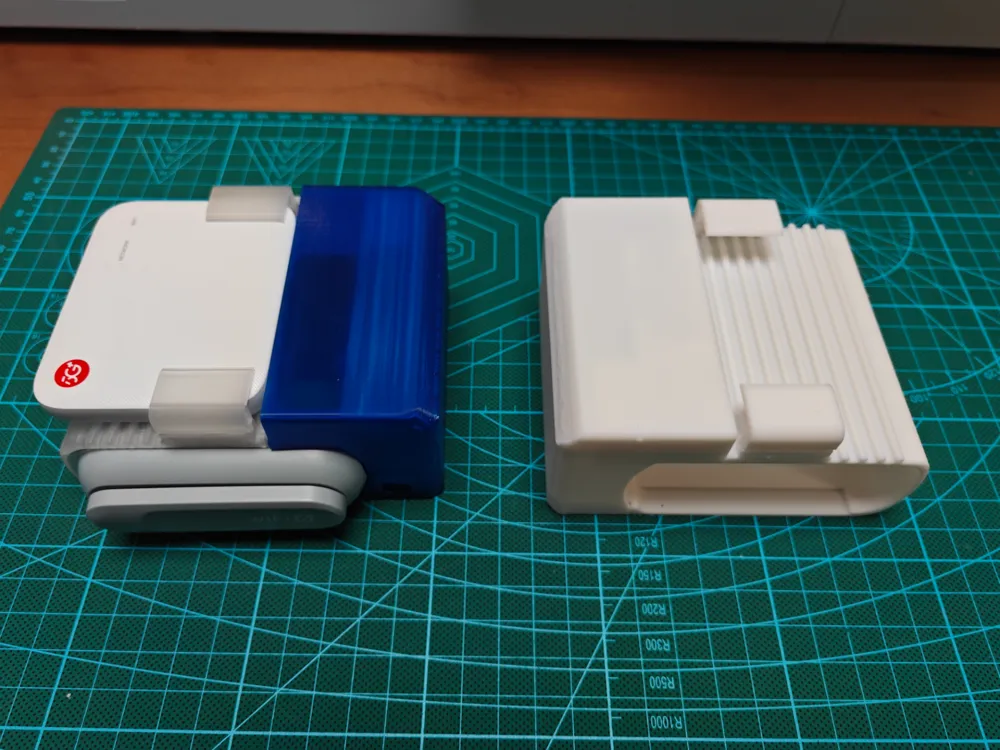

5Gcpe enclosure (mt3000+ZTE f50)
Print Profile(1)
Description
Hello everyone, I'm sharing a simple 5Gcpe solution that requires no modification or configuration, only a few accessories and a 3D printed enclosure.

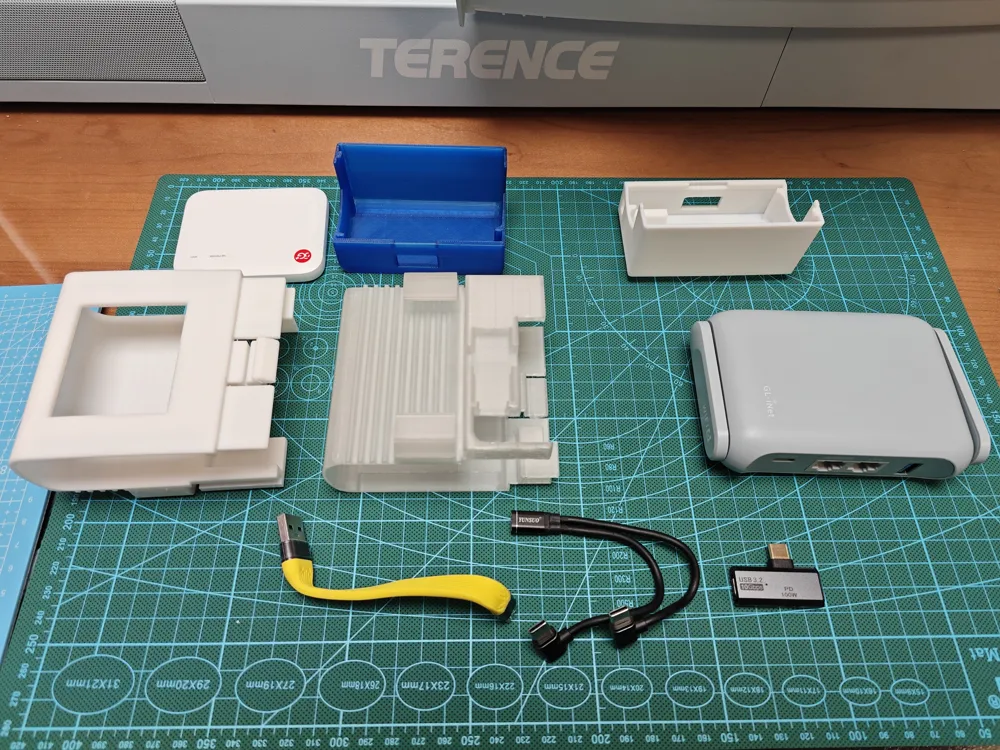

I. Main components: The router is gl-mt3000, and the portable wifi is ZTE f50.

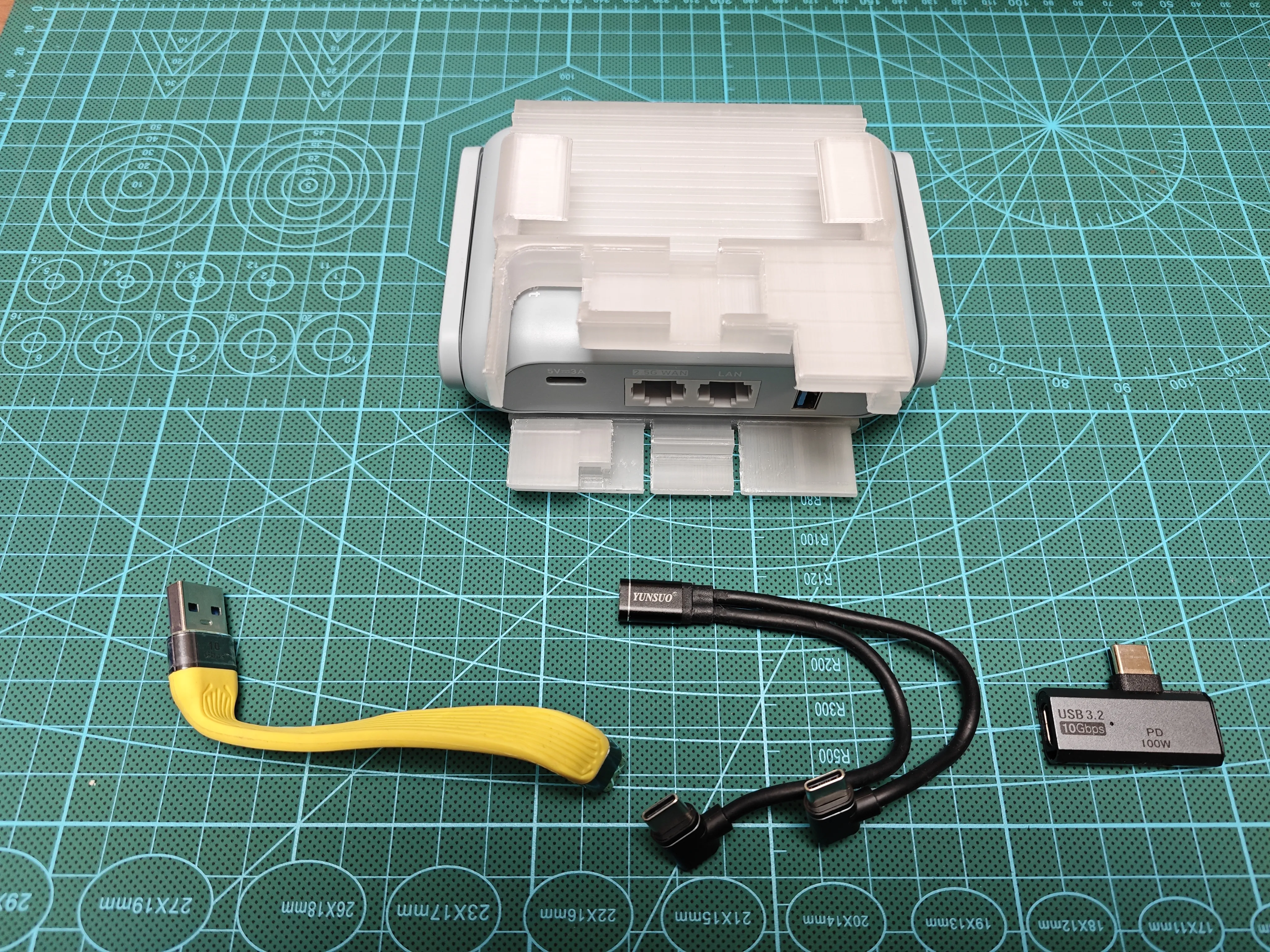

II. Accessories: 1. Tipec two-in-one multi-functional adapter. (One port for data transmission, one port for power supply)
2. Tipec Y-split charging cable (note the picture, the interface is on the side) (black)
3. Tipec to A data cable (12cm) (yellow)

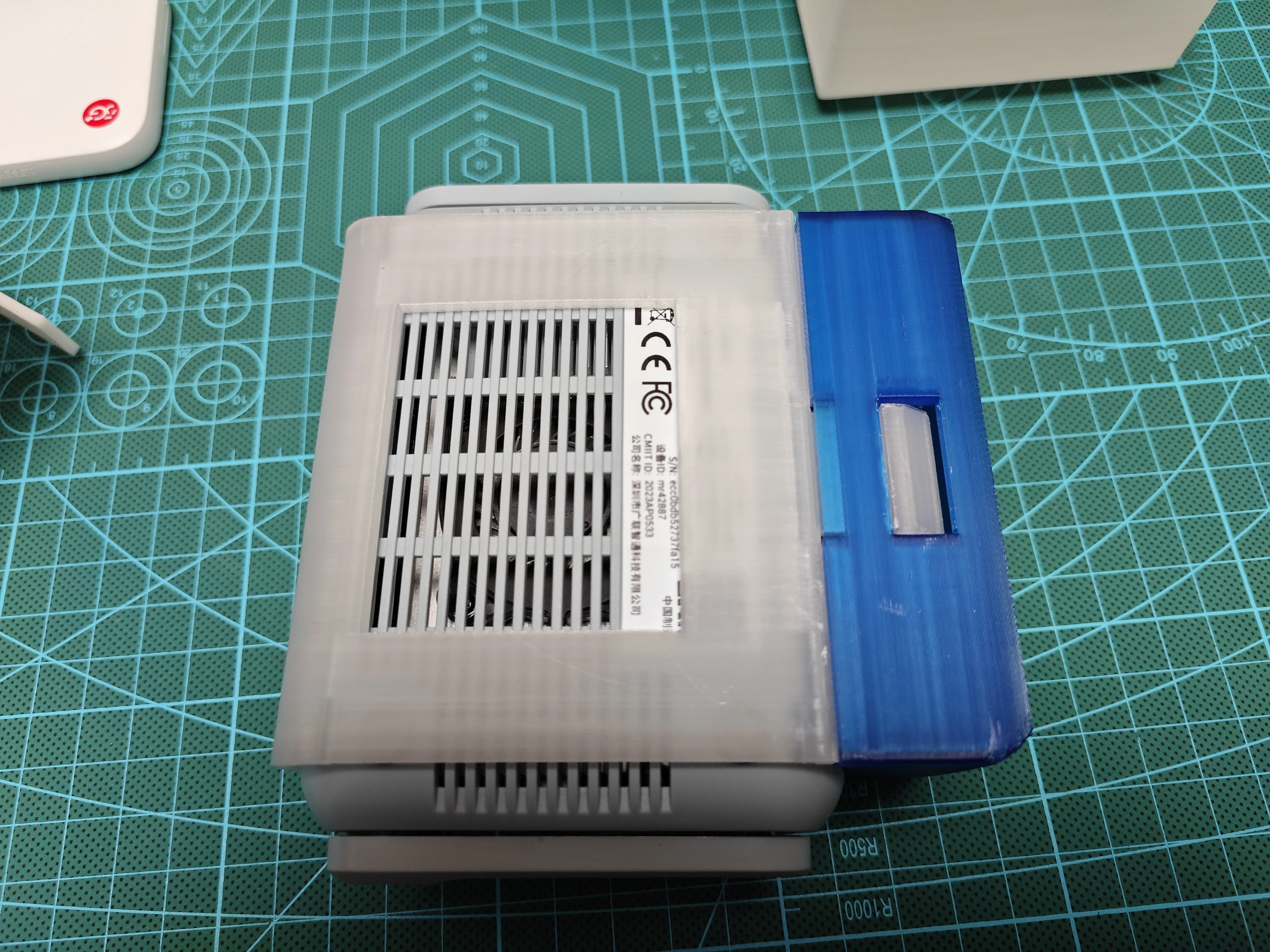

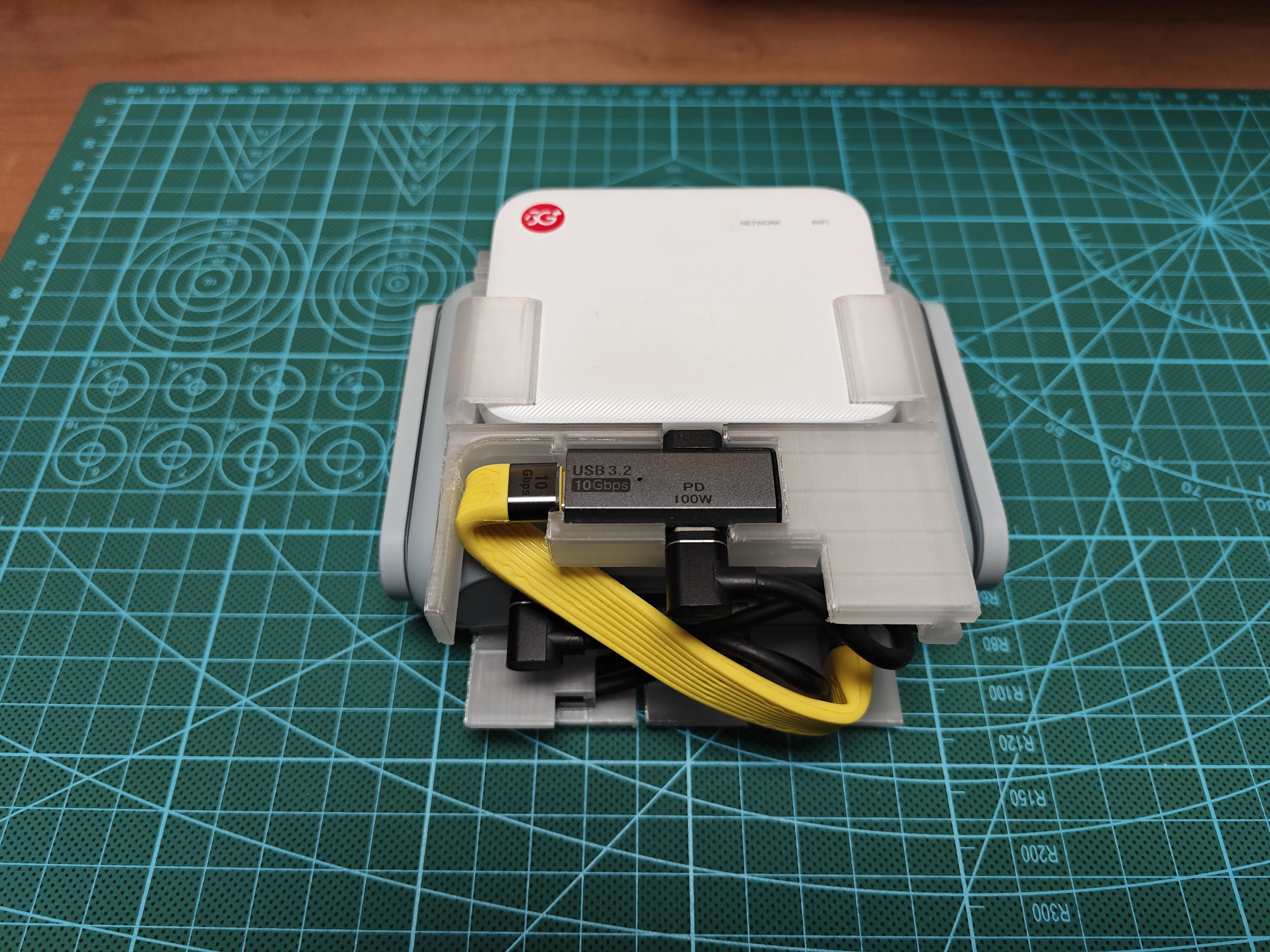

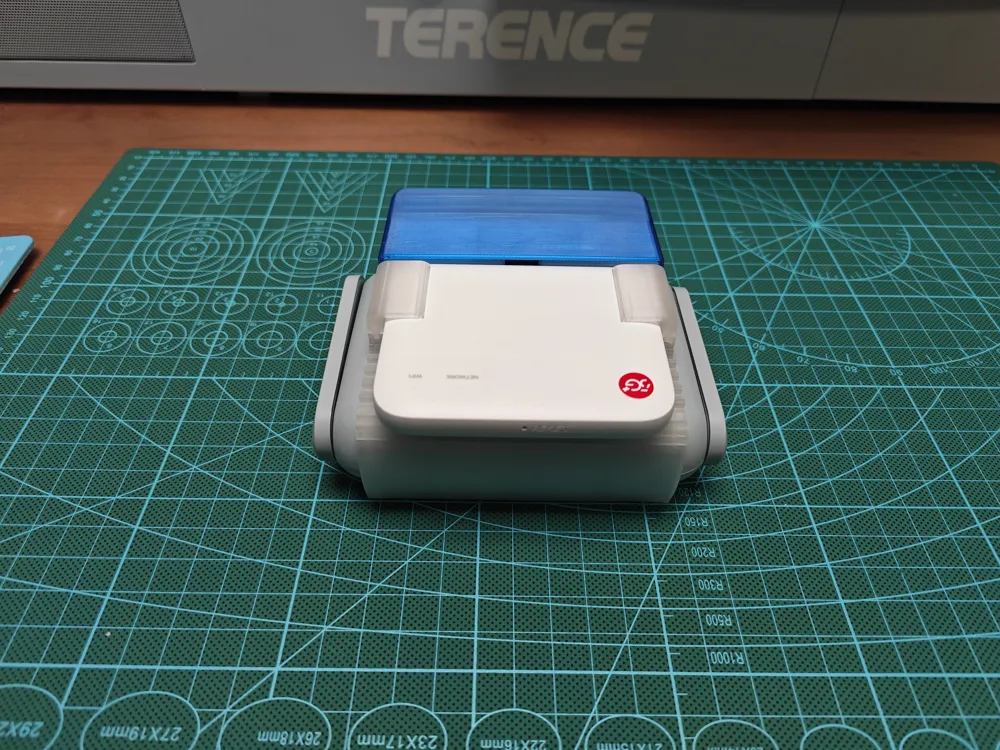

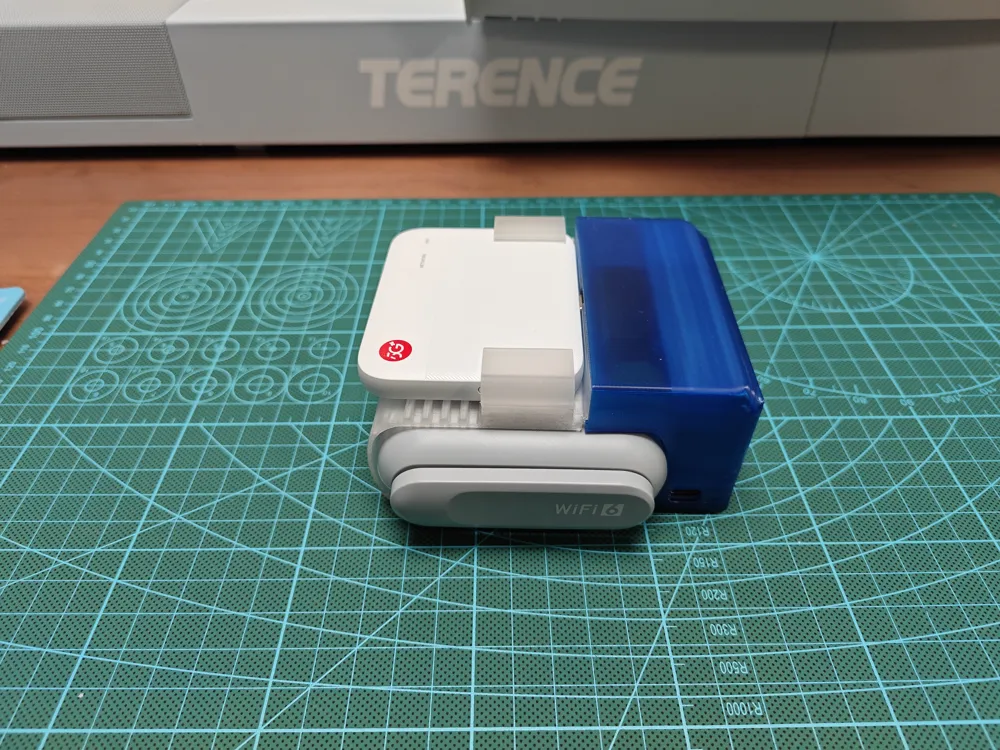

III. Connection as shown in the pictures below

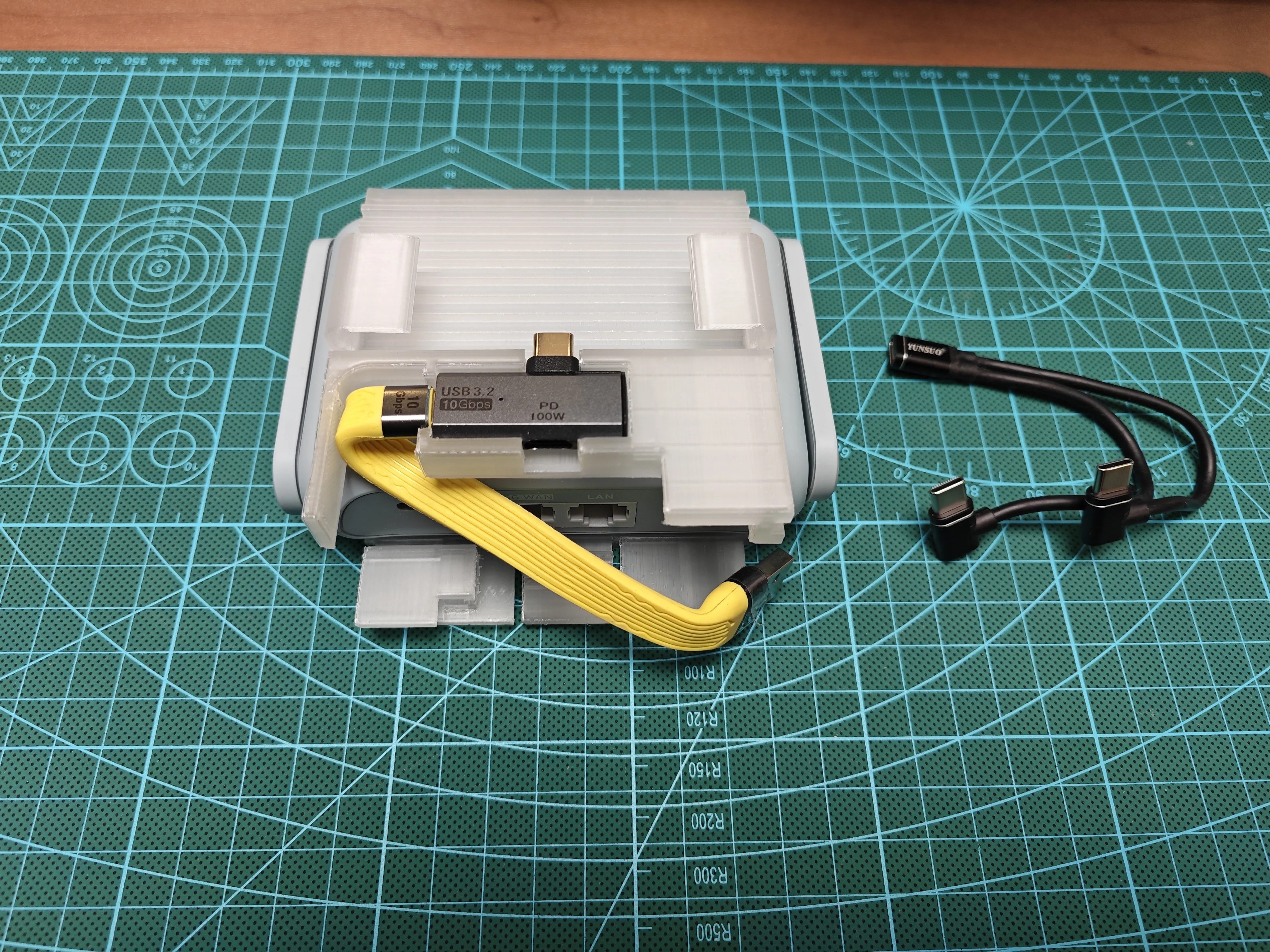

Note the opening direction of the charging cable

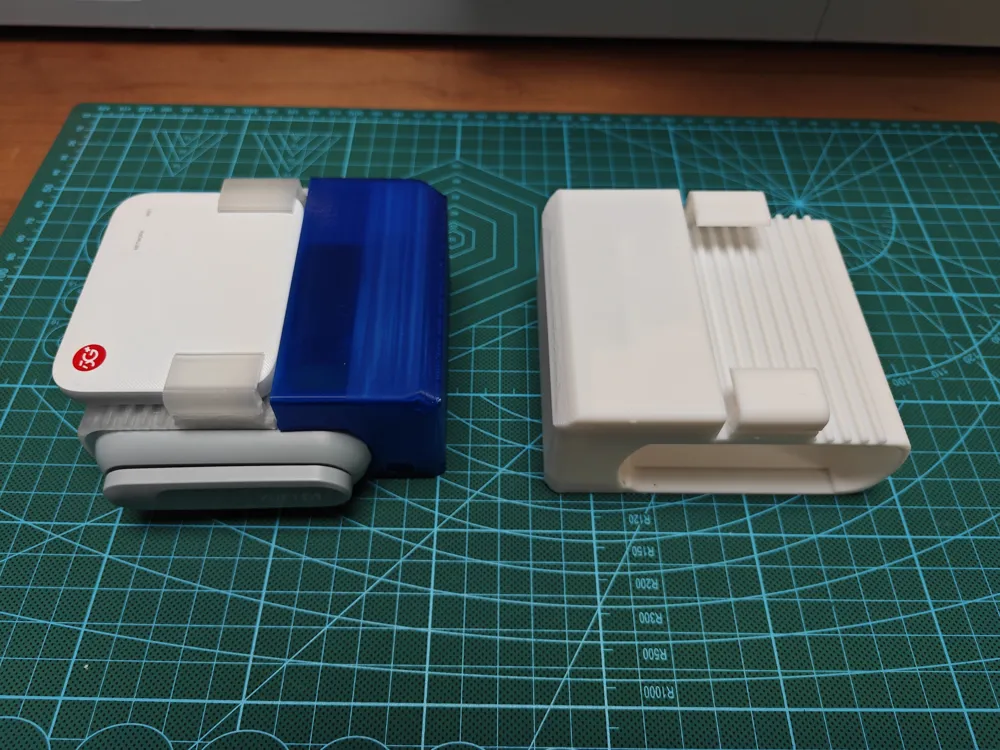

IV. Precautions: 1. It's also easy to open: press down on the buckle and pull the back cover backward
2. Turn off the f50's Wi-Fi function to reduce power consumption and heat
3. A mobile router can be used for power supply
Boost Me (for free)
If you like it, please support me, thank you!
