XA1E-BV Emergency Stop Latch

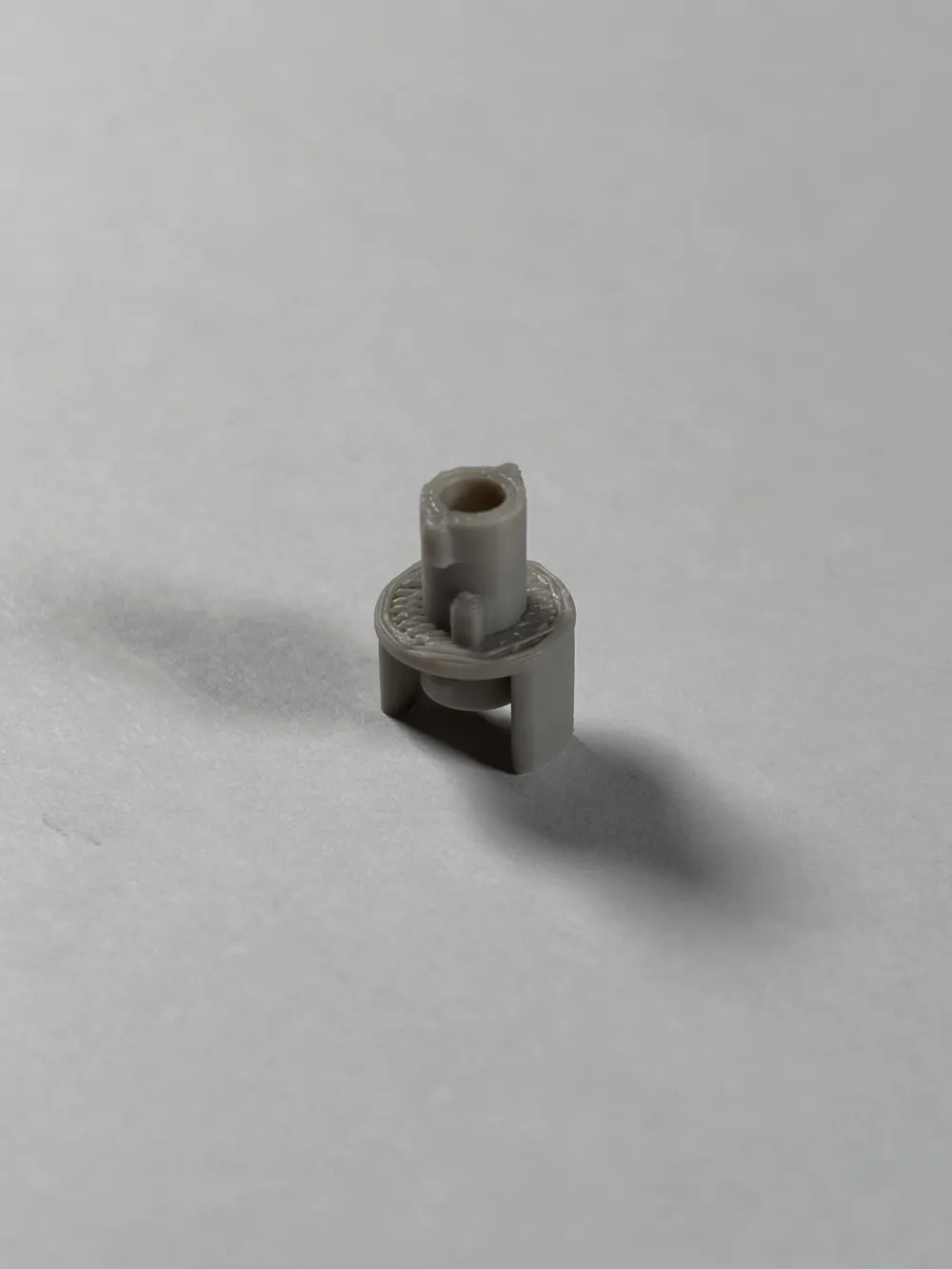

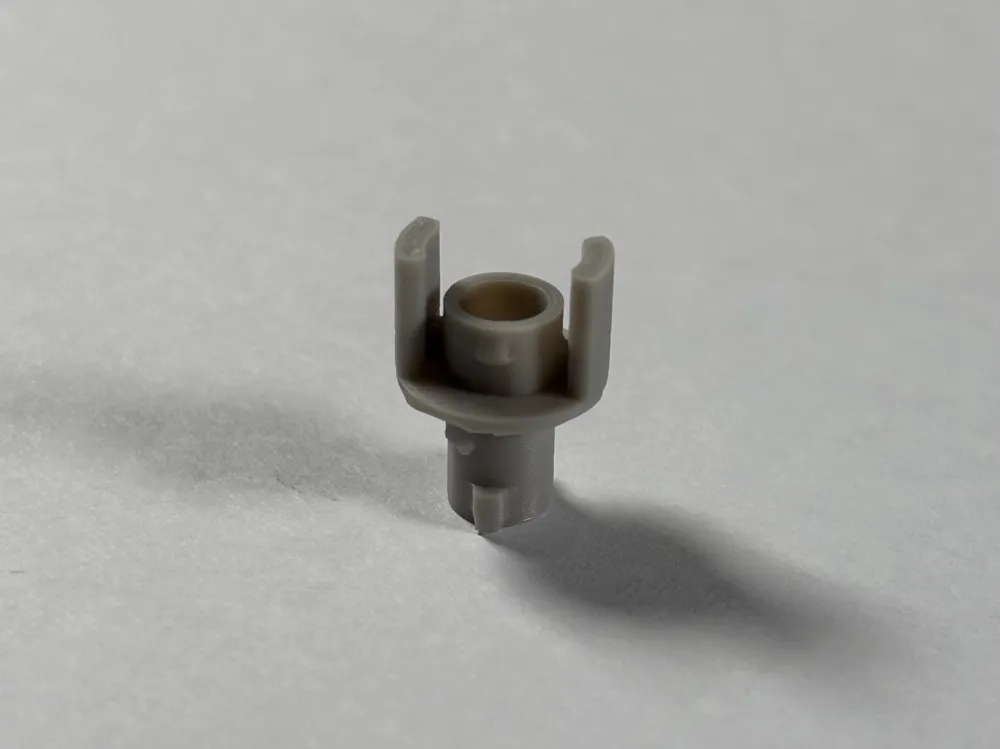

This is a replacement for the small internal latch inside the IDEC XA1E-BV emergency stop switch, the type commonly installed in Fanuc teach pendants. When a pendant is dropped, this latch is one of the most common failure points, even though the rest of the switch is still usable.

The typical fix is replacing the entire assembly (Fanuc A05B-2255-D001), which often means cost, lead time, and unnecessary downtime. This part allows you to repair the mechanism when everything else is still functional, helping get equipment back up and running faster.

What this part does

It restores the mechanical link between the button and the contact block when the original latch has broken.

Designed for

• IDEC XA1E-BV E-stop switches
• Fanuc teach pendant assembly A05B-2255-D001

Printing Guidelines

• Supports: required
• Material: PLA, ABS, ASA, etc. (all suitable)
• Infill: ~20% is usually enough

Notes & Safety

• This is a mechanical replacement part only.
• Always test the E-stop thoroughly after installation and confirm correct function before returning equipment to use.
• Follow your workplace maintenance and safety procedures.
• DIY Robotics is not responsible for incorrect installation, improper use, or failure to follow safety requirements or testing procedures. The user is responsible for verifying proper E-stop functionality before putting equipment back into operation.

Ideal For

• Reducing downtime
• Fast repairs
• Field service & maintenance
• Schools, robotics labs, and automation users

A simple repair can keep a working switch in service while avoiding long replacement delays.
