Thrustmaster T-LCM Brake Mod - 3 pack

Thrustmaster T-LCM Brake mod - 3 different variants

This mod replaces the pre-load spring on the T-LCM pedal set, with a TPU (95A) bumper.

Using this mod, you get a more direct and natural feel brake pedal, without a “dead-zone” that is present with the original spring setup.

3 Versions in the profile, which has different % of gyroid infill that results in different stiffness.

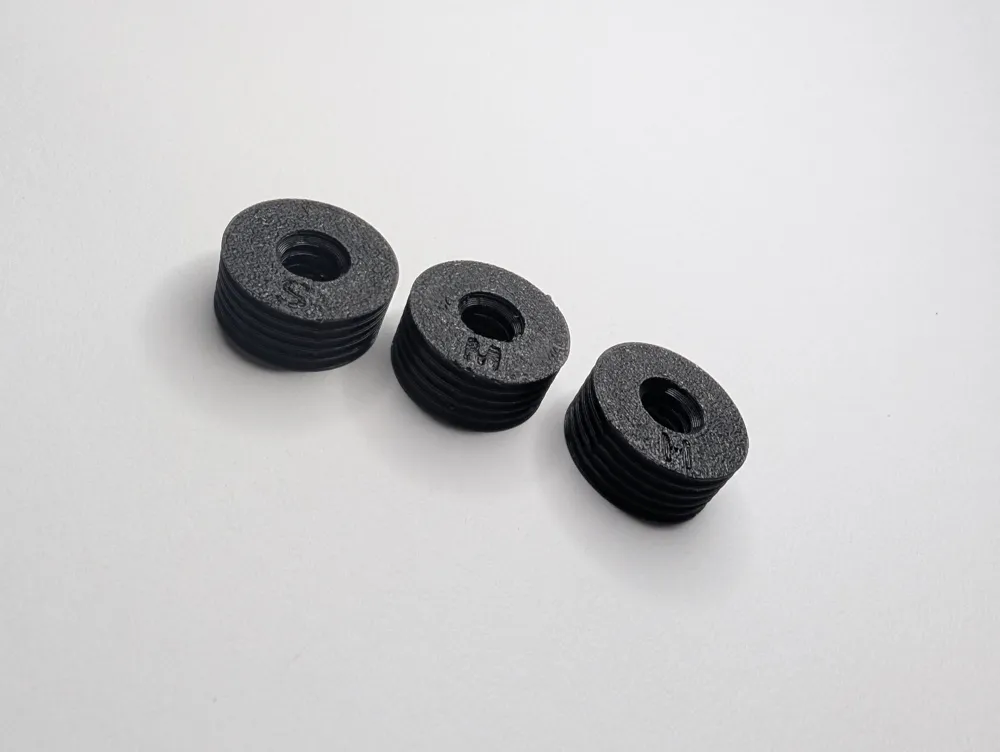

Each variant in the profile is marked with a letter S - M - H:

• Soft - 10% infill (gyroid)
• Medium - 20% infill (gyroid)
• Hard - 30% infill (gyroid)
• Tuned for TPU95A, if using softer or harder TPU, infill % can be adjusted.

It's possible to customize the stiffness by changing the infill %, but gyroid type is recommended due to the way it compresses.

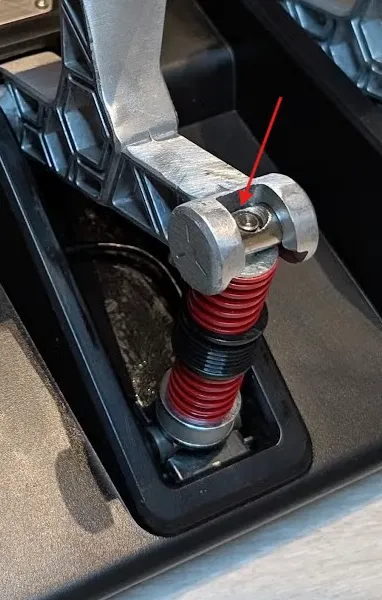

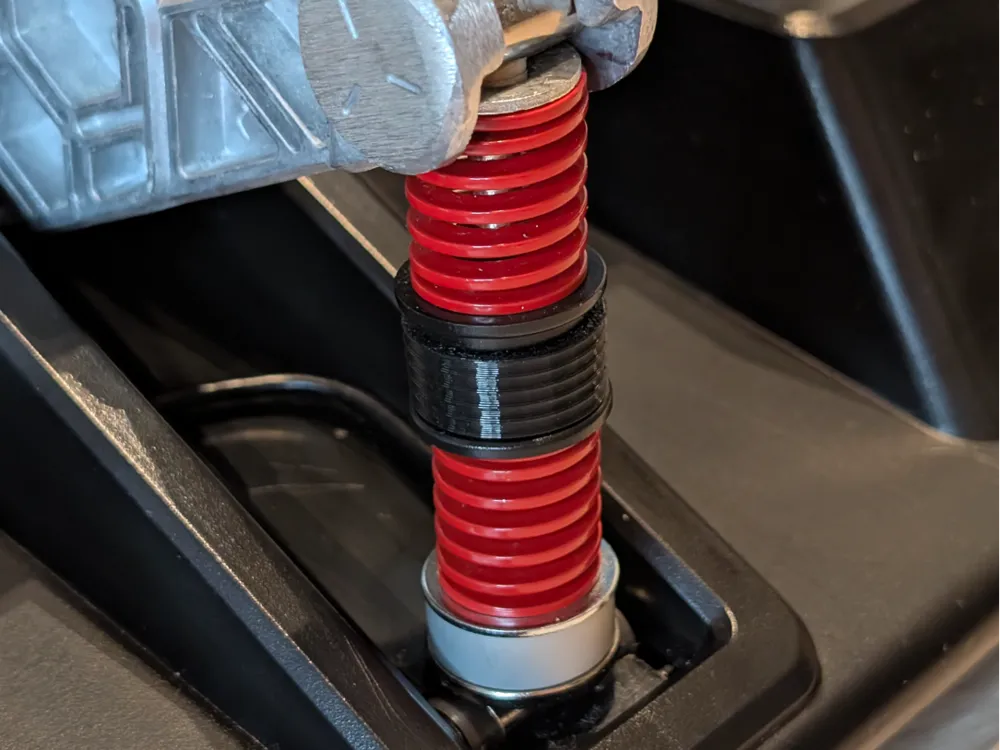

To mount, simply replace the silver pre-load spring with the TPU printed part.

Once fitted, it will be more difficult to release the spring assembly.

To release it, press down with a flat screwdriver on the inside, between the top of the spring support and the pedal. Then it can be compressed enough and released.
