Retractable mobile holder for your bed-time V2 - Free 3D Print Model

Search models, users, collections, and posts

Josef Vojtechovsky

Household>Other House Models

IP Report

Print Profile(5)

All

P1S

H2D Pro

H2C

P1P

X1E

H2S

H2D

X1 Carbon

P2S

X2D

A2L

A1 mini

Stiffer Jaws construction 0.2mm/2 w./15% - all printers

Designer

10.3 h

2 plates

4.4(57)

0.2mm layer, 2 walls, 15% infill

Designer

12.1 h

2 plates

4.2(35)

Thiner Clamp 10-30mm - 0.2mm layer,3 walls, 20% infill

Designer

3.6 h

1 plate

5.0(1)

Stiffer jaws construction 0.2mm layer, 2 walls, 15% infill

Designer

3.8 h

1 plate

4.0(1)

Click to see more

Open in Bambu Studio

Boost

3409

8731

242

2.9 k

1.4 k

Released

Description

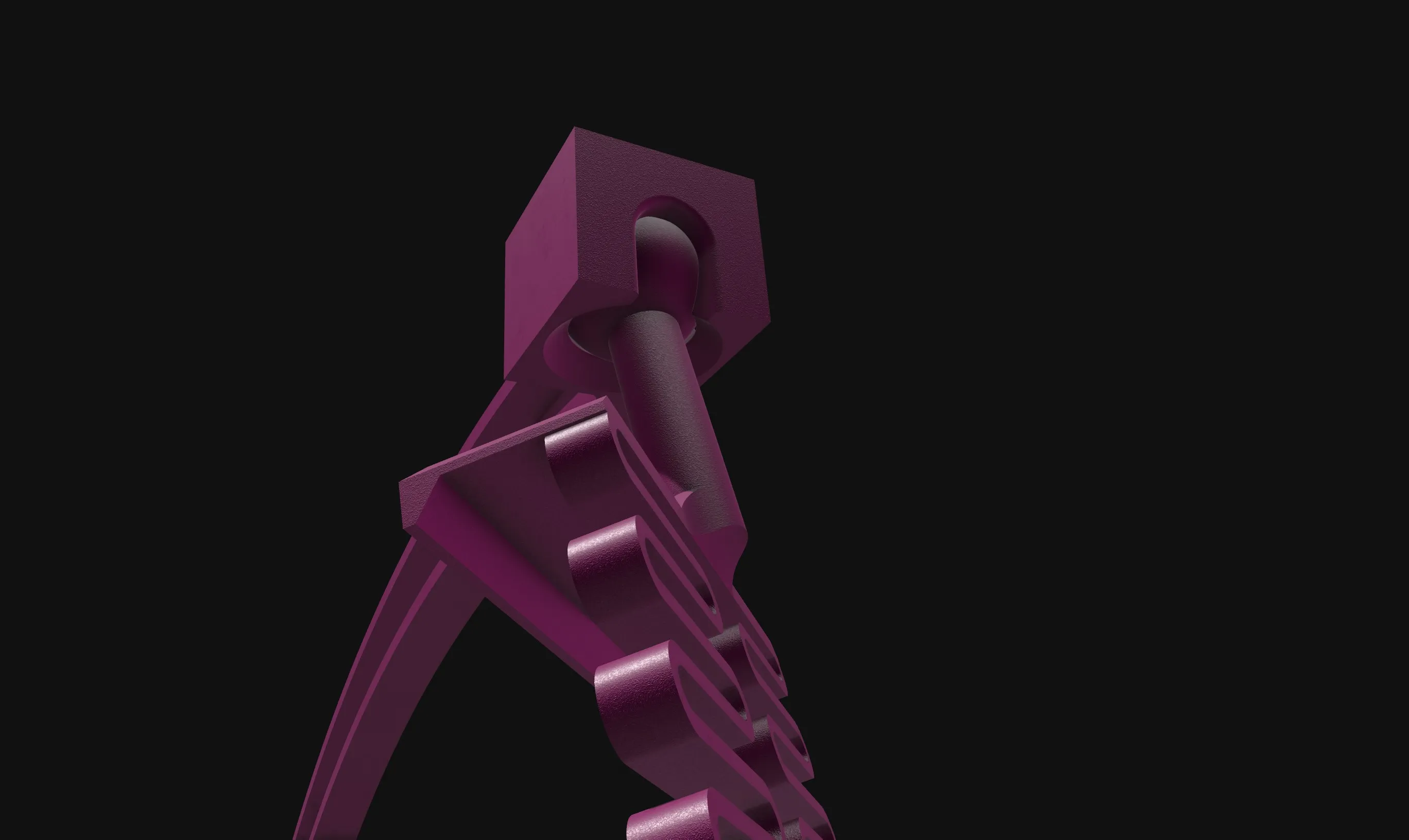

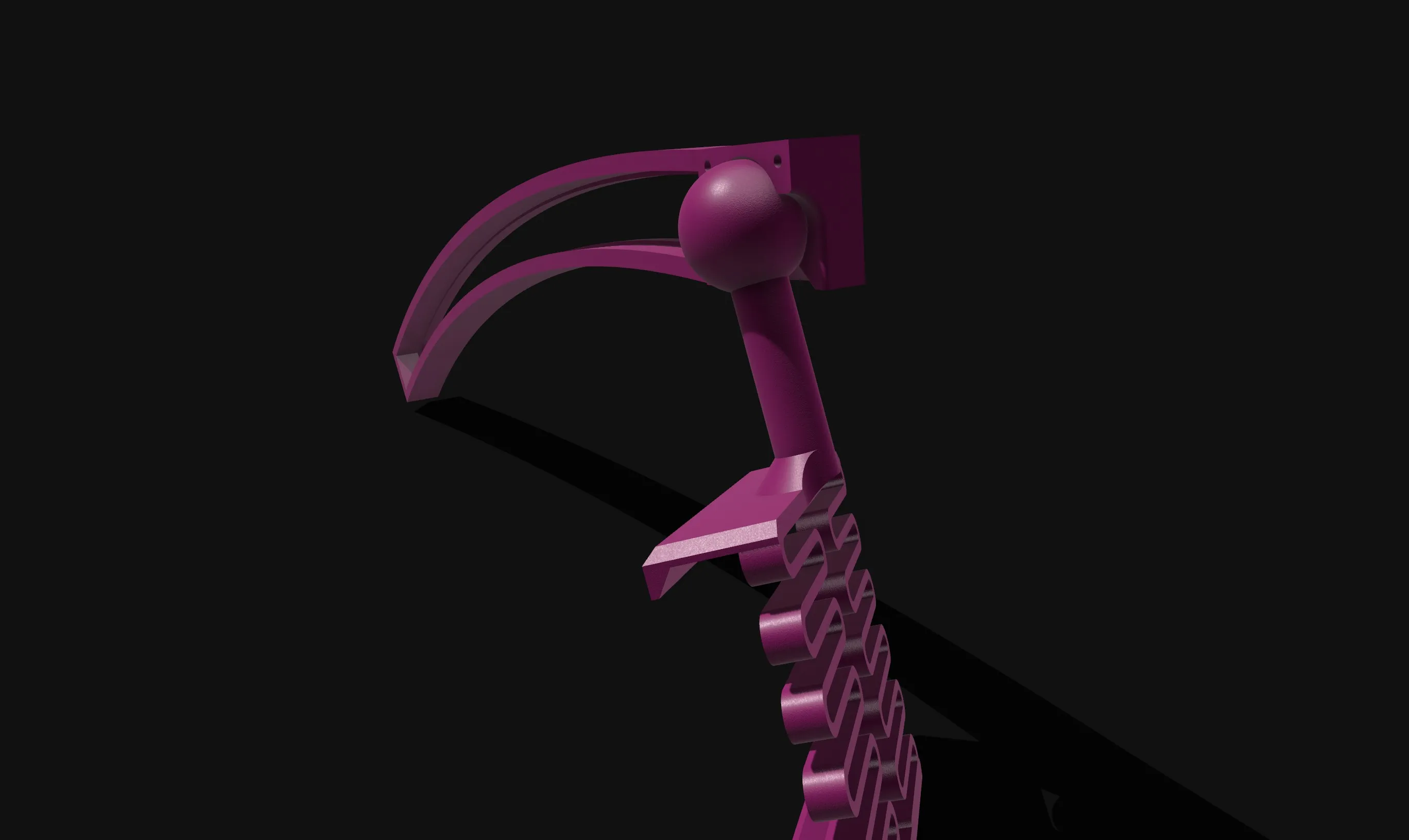

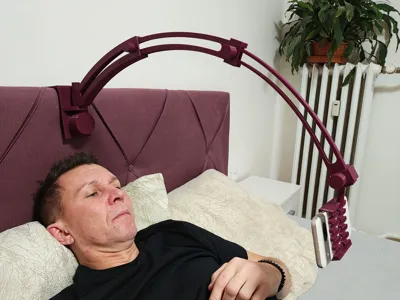

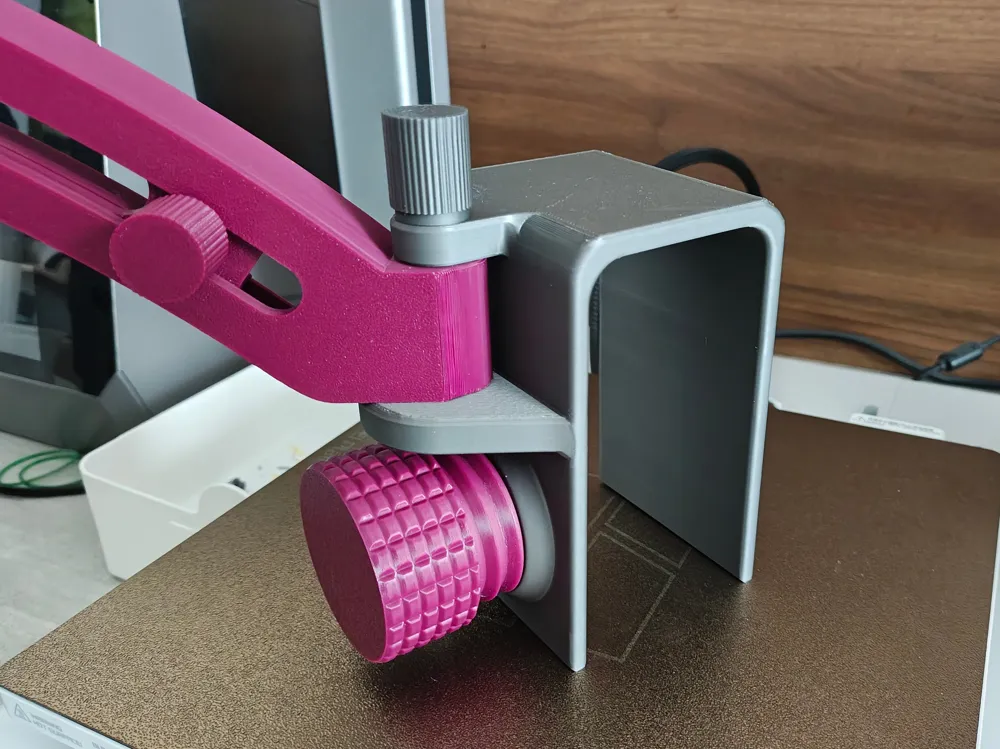

New V2 version of the phone holder with three part retractable arm that can be placed on hedboard (6cm width) and NEWLY stiffer jaws construction.

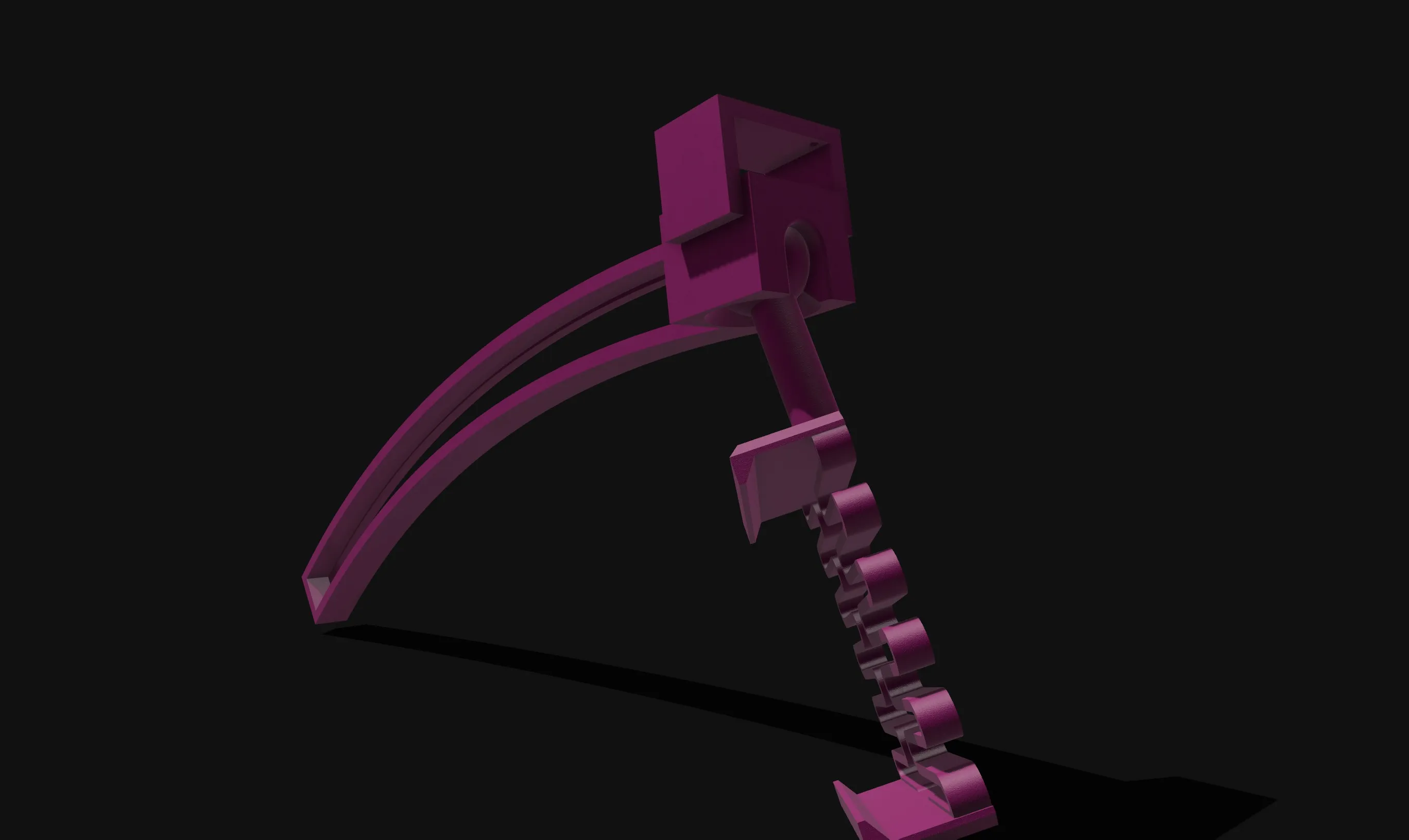

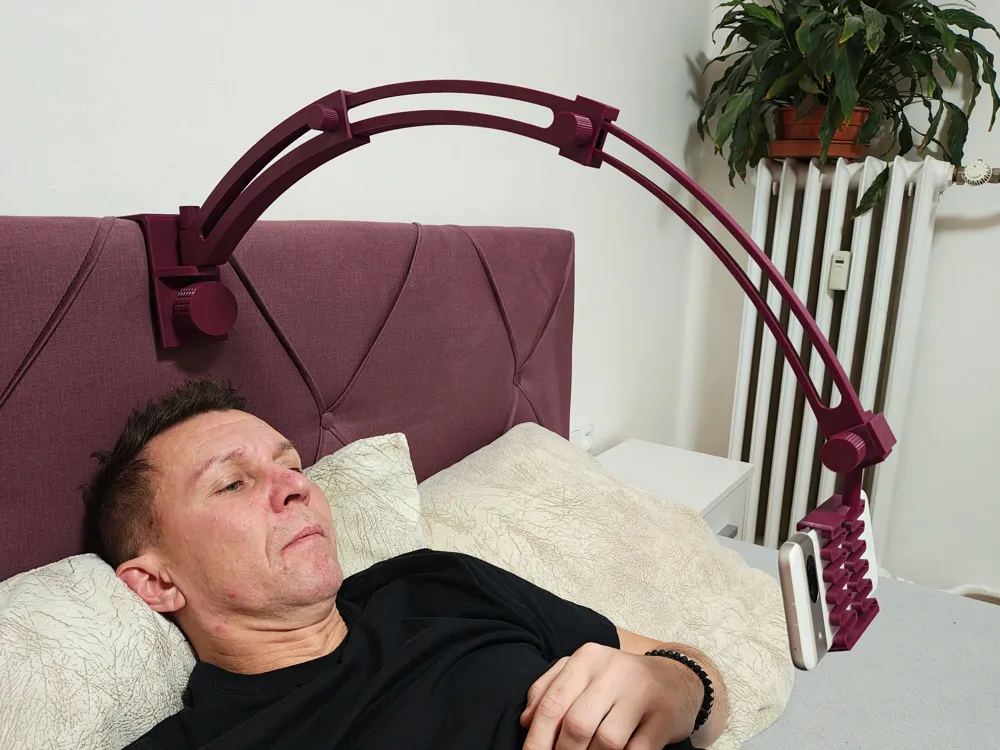

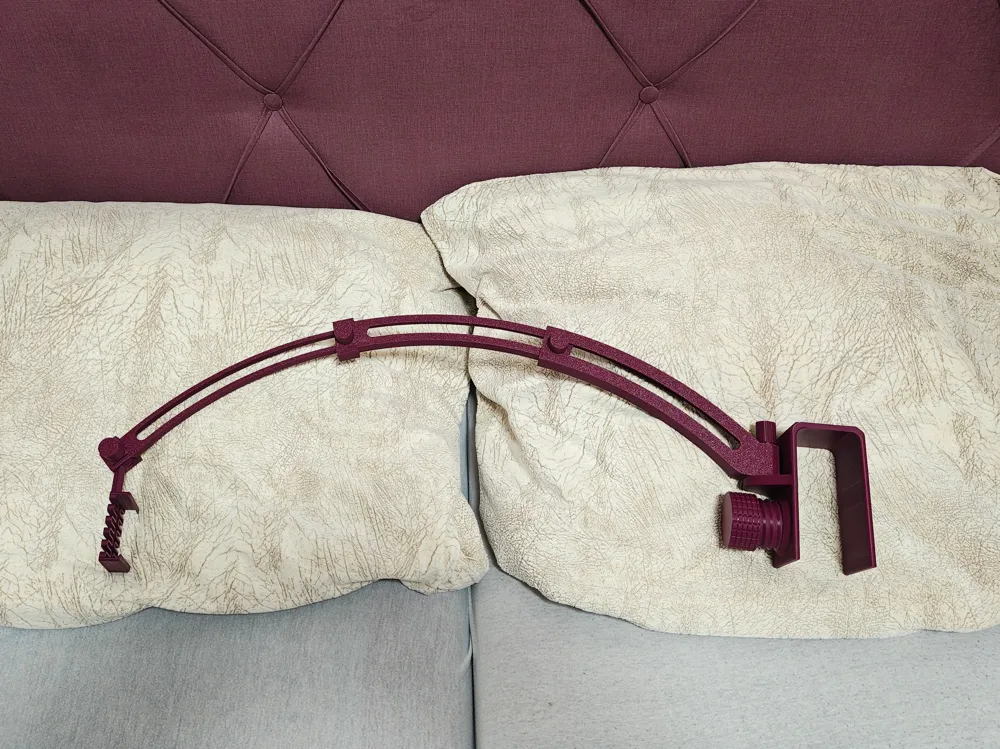

V2 brings three retractable arms again, this time with minimum reach of 30 cm and maximum enlarged reach 70 cm. Additionaly with screw lock feature.

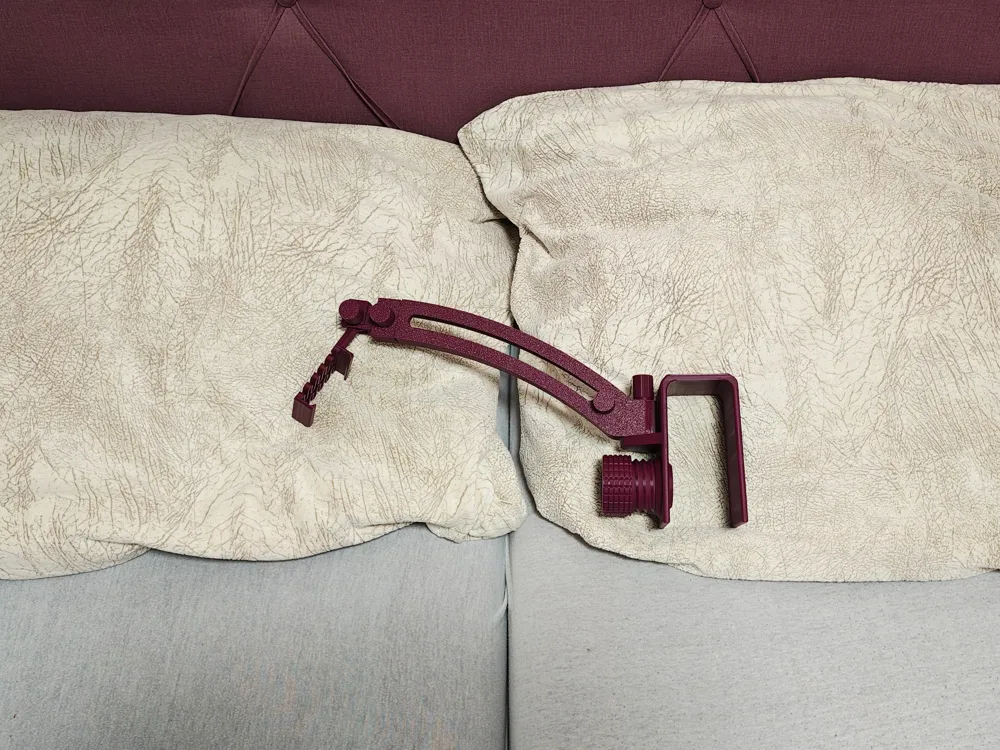

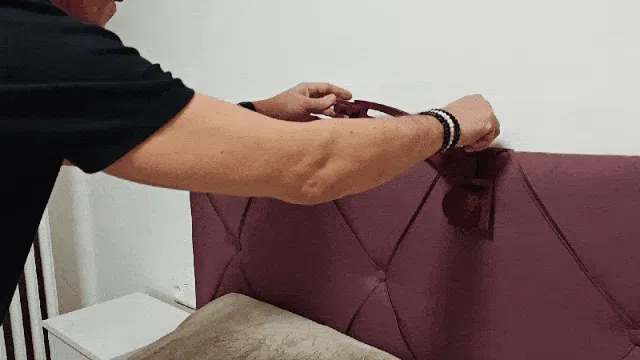

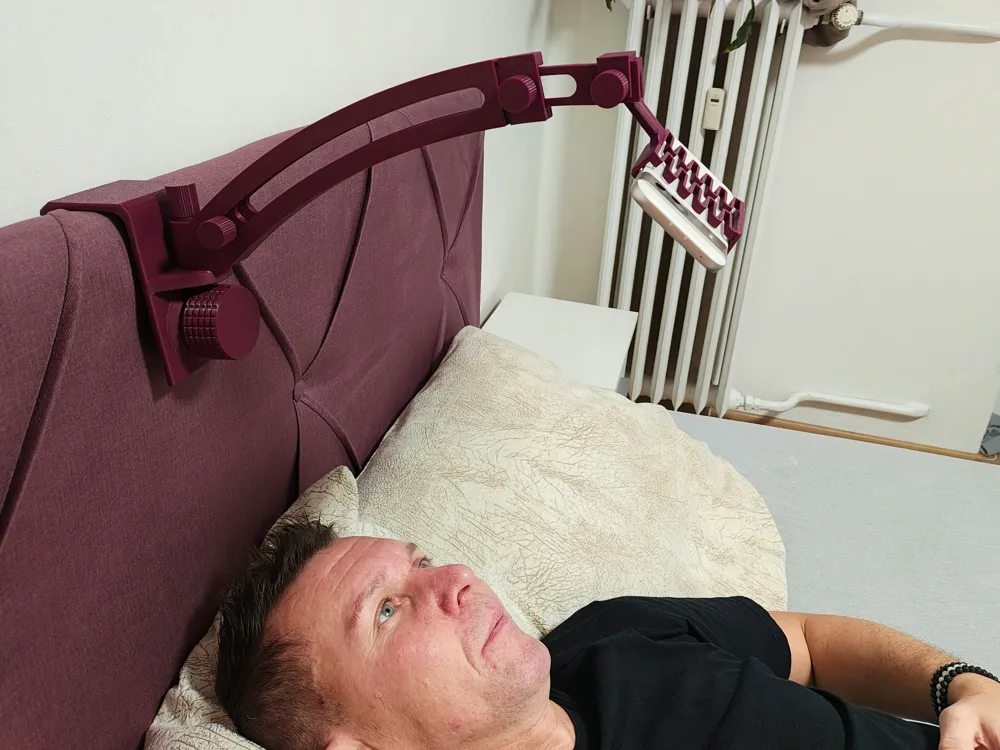

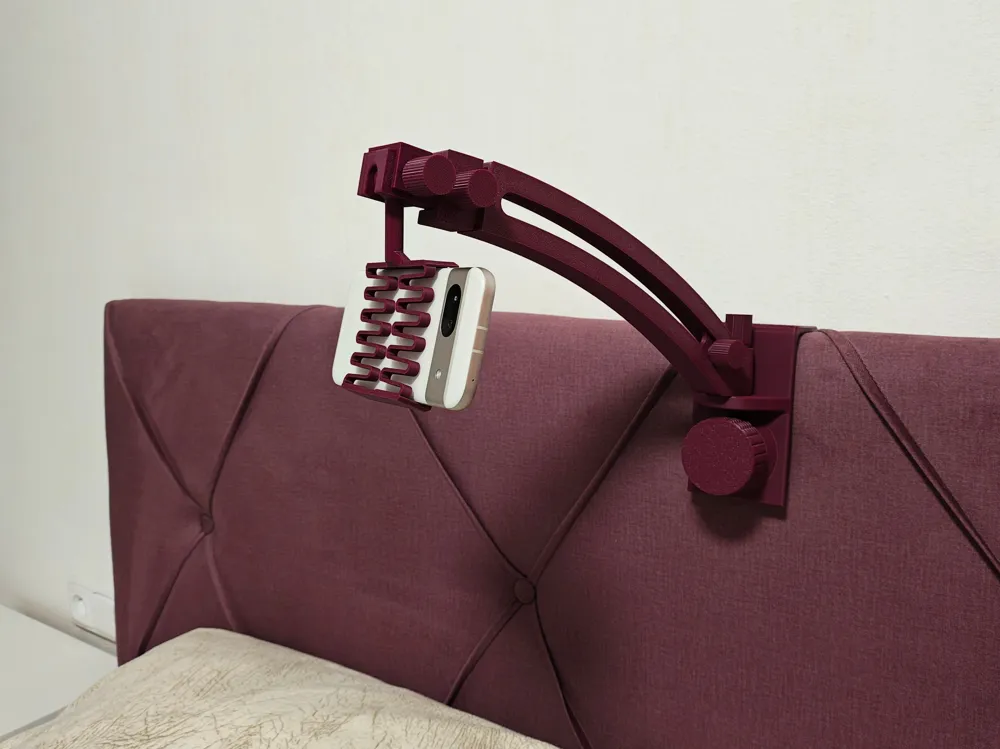

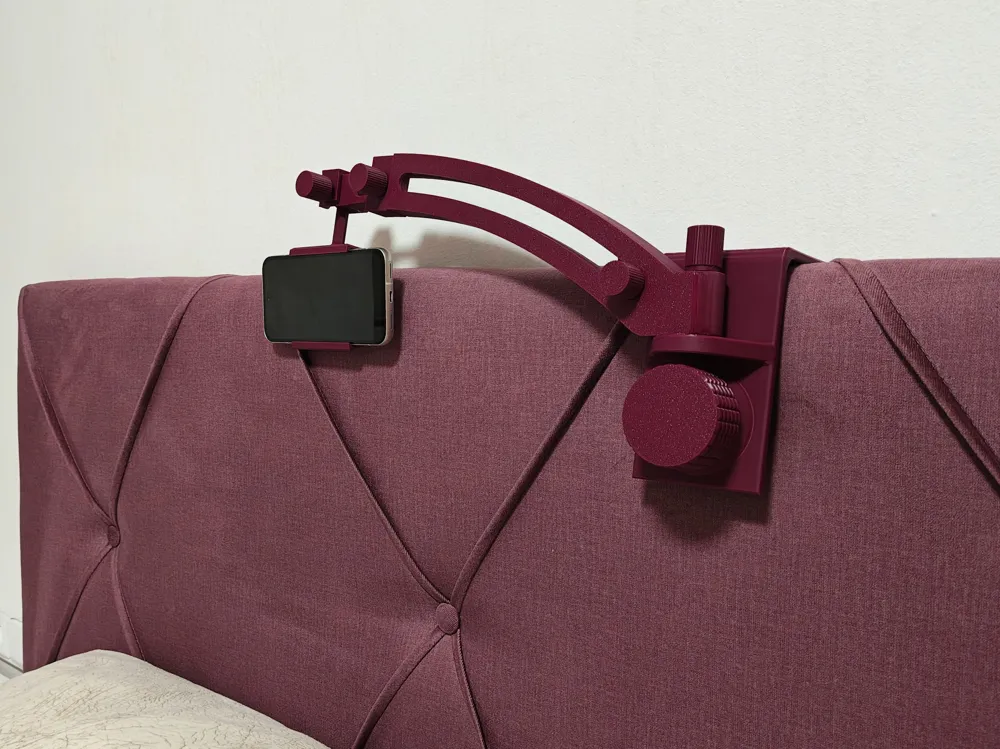

Newly V2 introduces even folding feature of the arm to the hedboard.

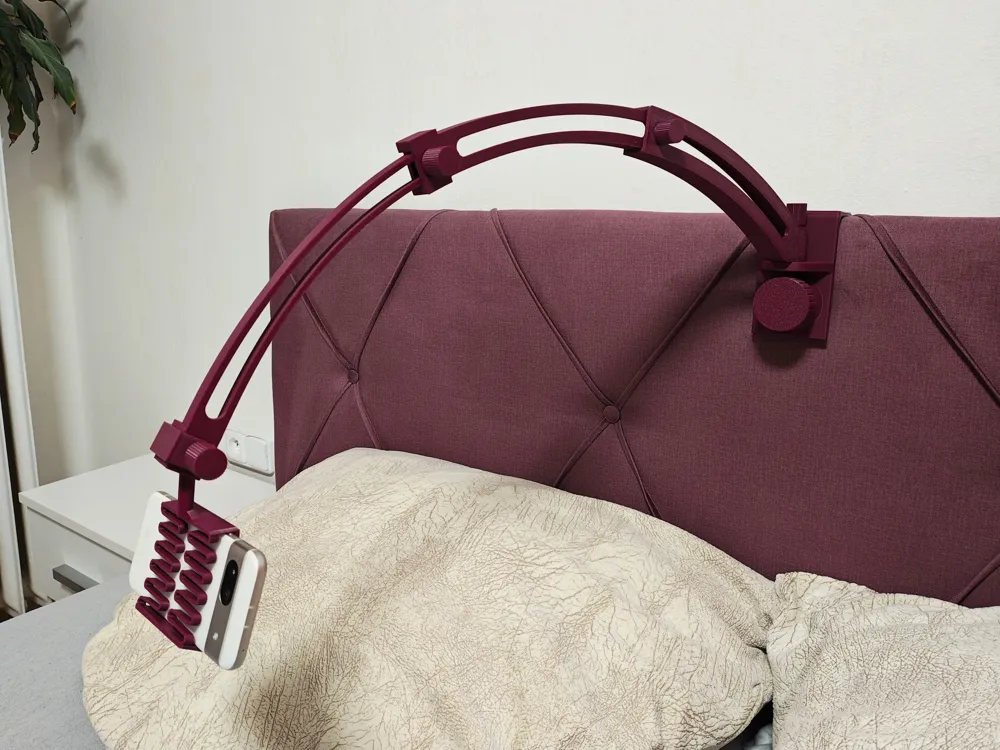

And more over V2 provides 360° of the phone around vertical axis.

I believe the pictures describes it clearly….

I hope you will enjoy the print.

Few people described difficulties during the print of closed mechanism. This version is opened and VERY EASY to print. At the other side, you will need to use glue.

ASSEMBLY INSTRUCTIONS:

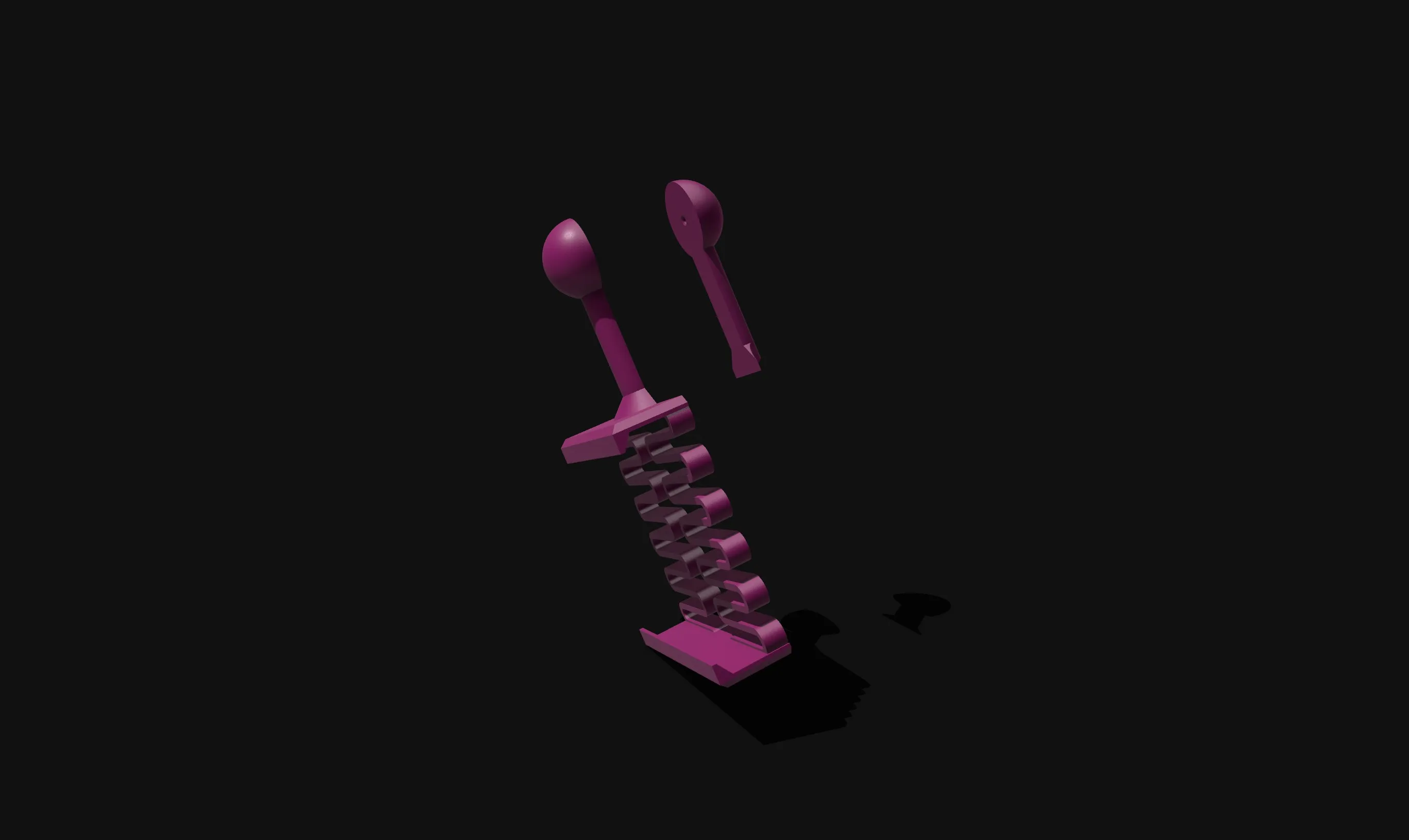

A) Please glue together MobileHolder1 and MobileHolder2. There is a “pin hole” that allows you to put short filament string as the guide.

B) Now, when the glue is set, you can put MobileHolder into it's place in the Arm3 and use again the guiding “pin holes”.

Please, do NOT overload the glue as you may end up with glued MobileHolder into Arm3. You don't want that.

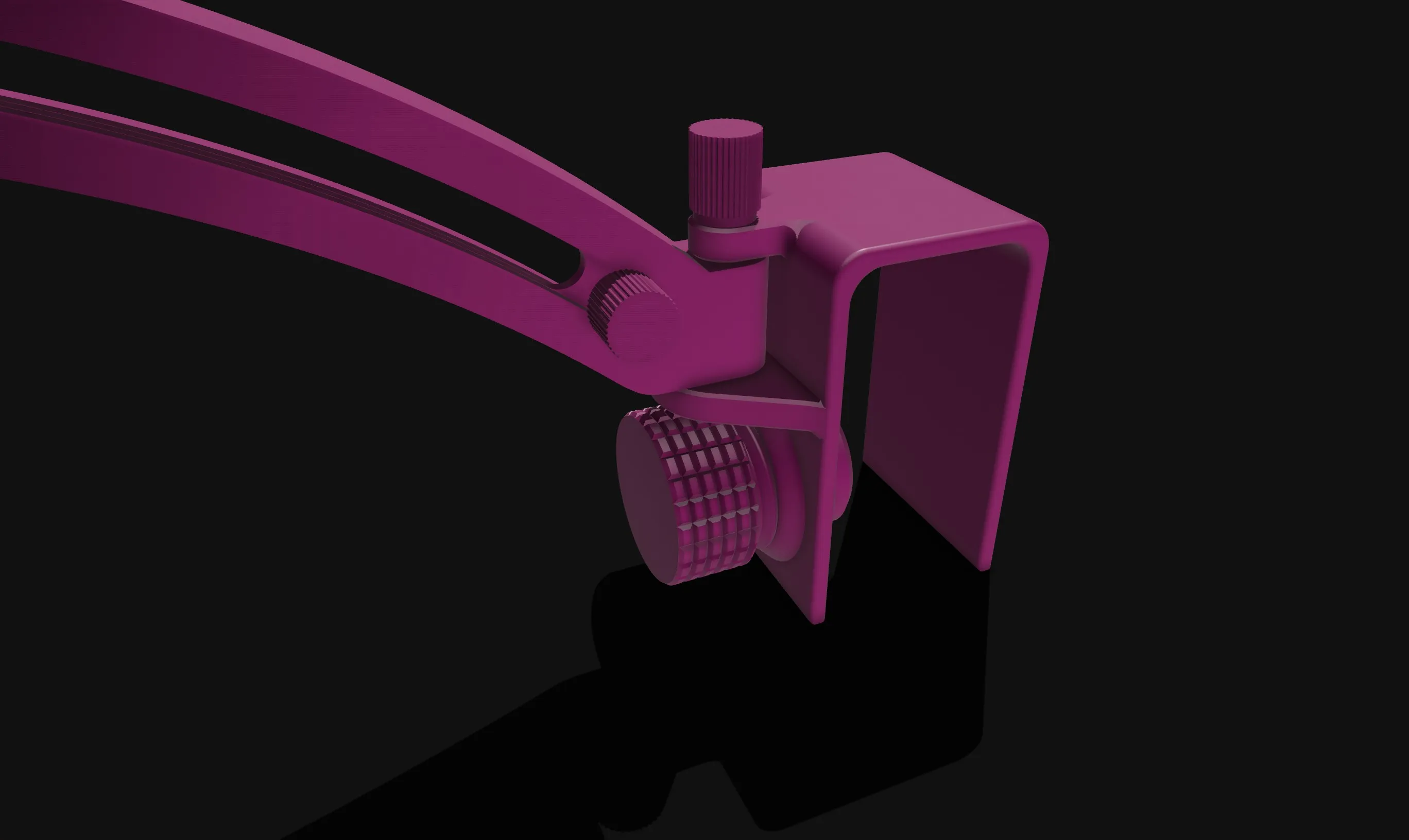

C) As the hread accommodating screw should not be long enough to provide sufficient force - there is a part labeled “LockToArm3” that provides prelonged thread. This part has to be glued to its place - you can use filament pin holes as the guide again.

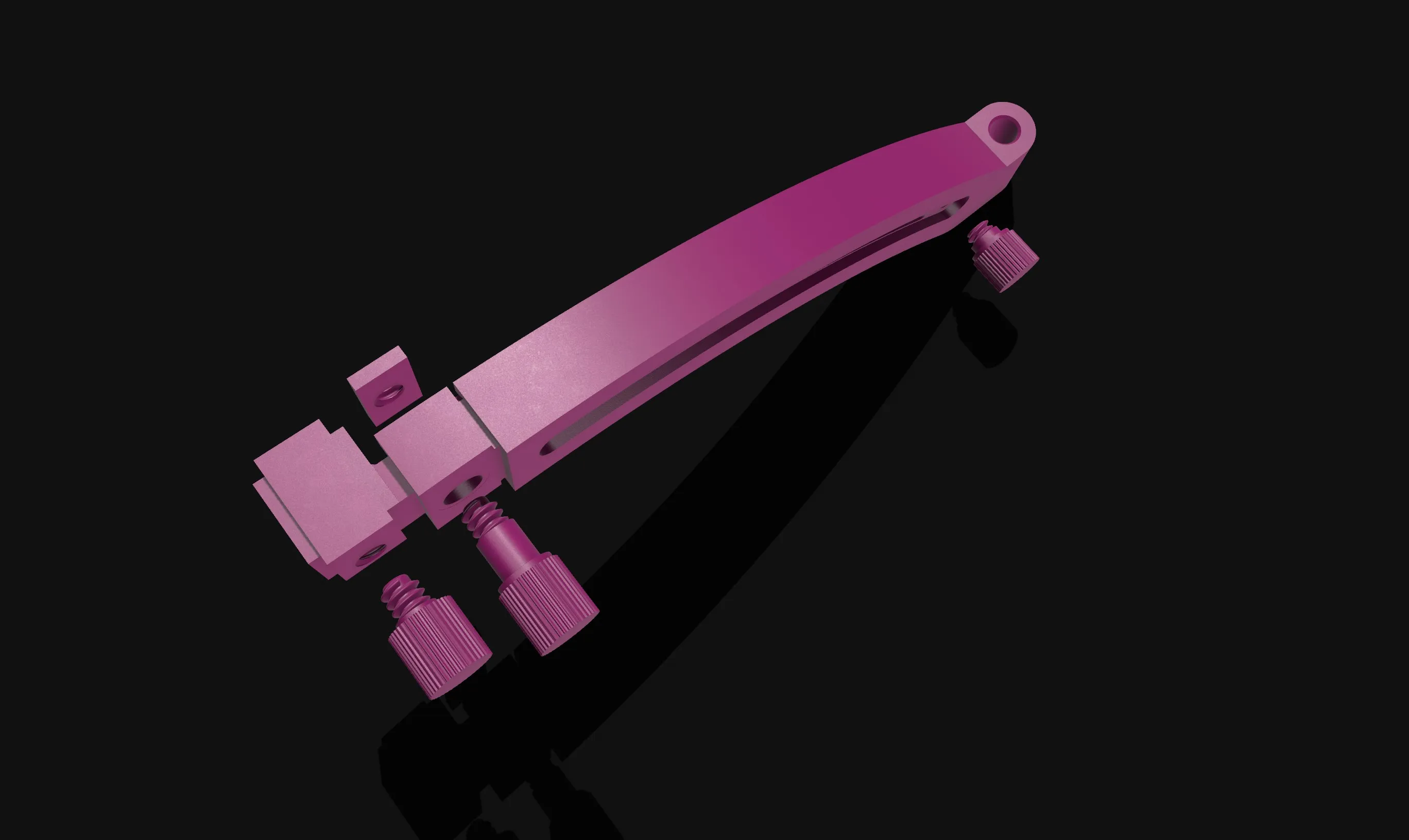

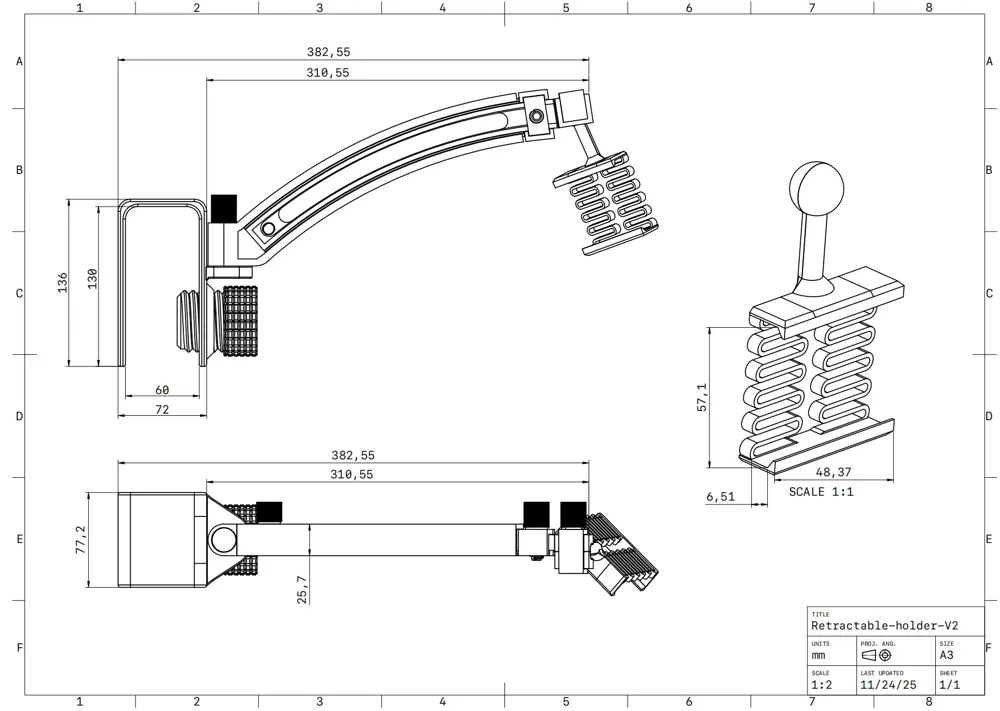

D) The very next step could be putting screws to their places. Labeled Screw1 into Arm1, Screw2 into Arm2 and Screw3 (guess what Arm) are as they follow from beginning to the end. You have to use thread created in part labeled “Chip”. It should be easy following this drawing for identification of screw lenghts:

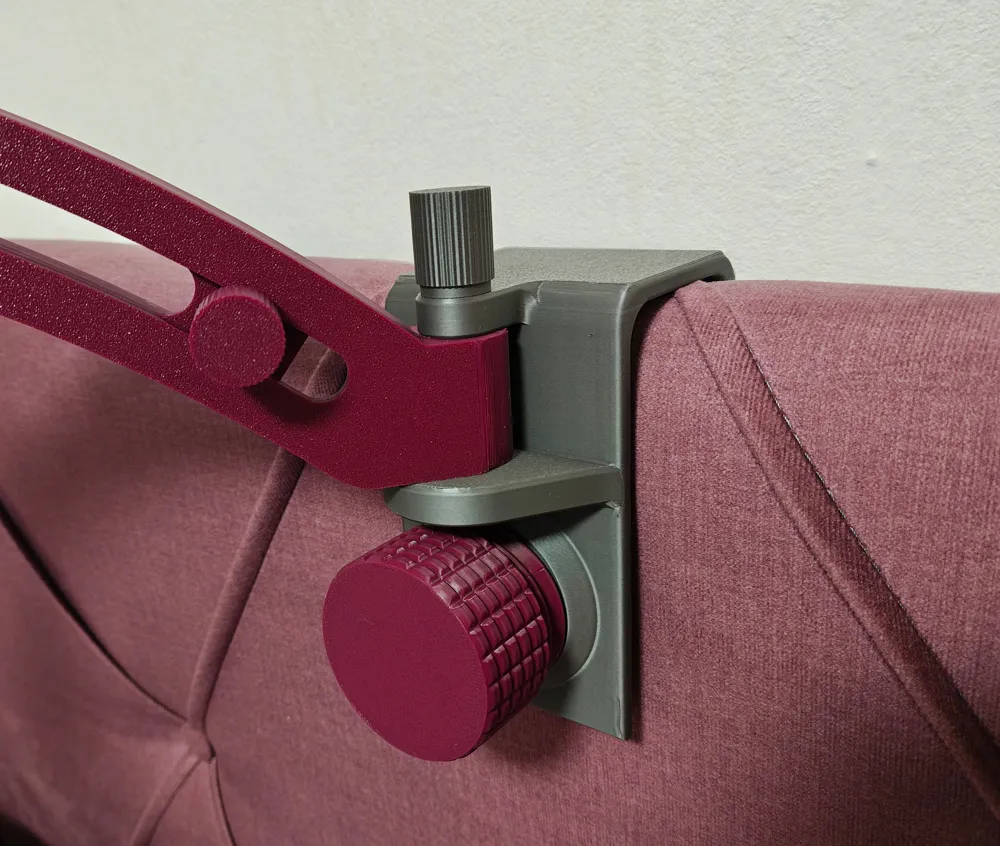

E) The NECESSARY screw of this design is “JawsToArmScrew” and this not only secures the Arms in their angle, but MOST of all provides safe lock tightening the arms to Jaws base spreading the force. Only than the force is not laying on threaded pin but mostly on Jaws plateau.

I realy trust that reported failures are caused that user do not place this screw as they consider it surplus. But it is not. PLEASE USE and TIGHTEN this top screw otherwise you will brake pin from "Jaws".

I hope you will enjoy this design and gadged.

Comment & Rating (242)

License

This user content is licensed under a Standard Digital File License.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
