Low-profile LED 6" Recessed Ceiling Light Can

Print Profile(1)

All
P1S
A1
P2S
P1P
H2S
X1
X1 Carbon
H2C
H2D
X1E
H2D Pro
A1 mini
X2D
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
1.5 h
1 plate

Open in Bambu Studio
Boost
3
4
0
0
2
1
Released

Description

In replacing my existing lighting which required a ballast and a large metal can, I instead went with inexpensive, low-profile LED lights that required simple direct wiring but the wires were too short to reach the old ballast wiring so I made these cans to replace the metal ones.

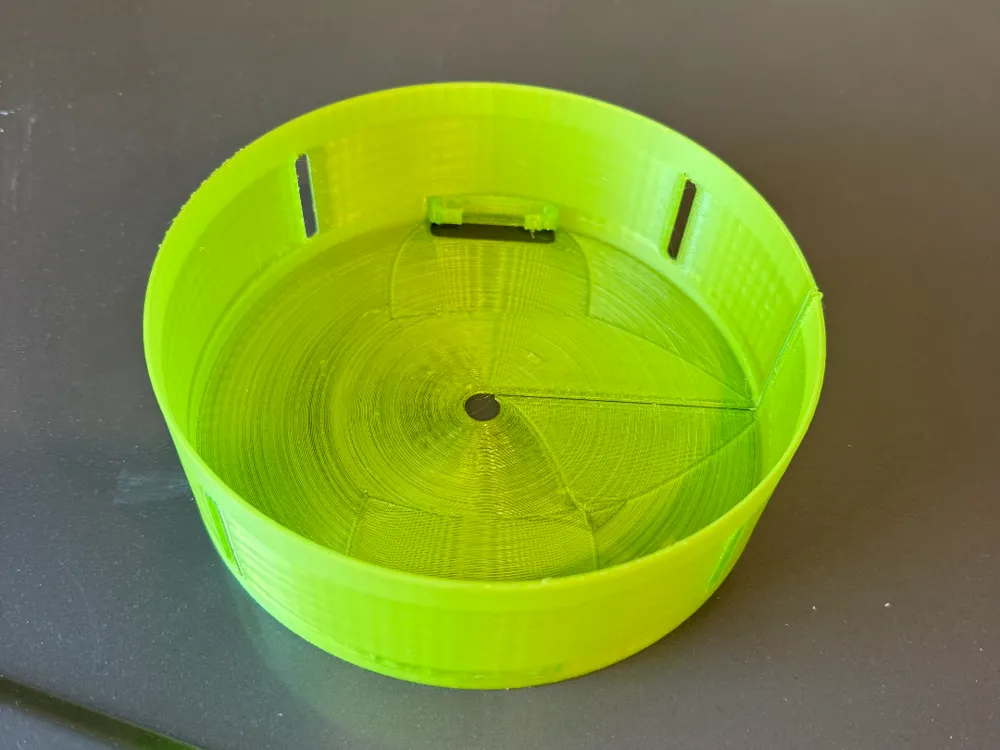

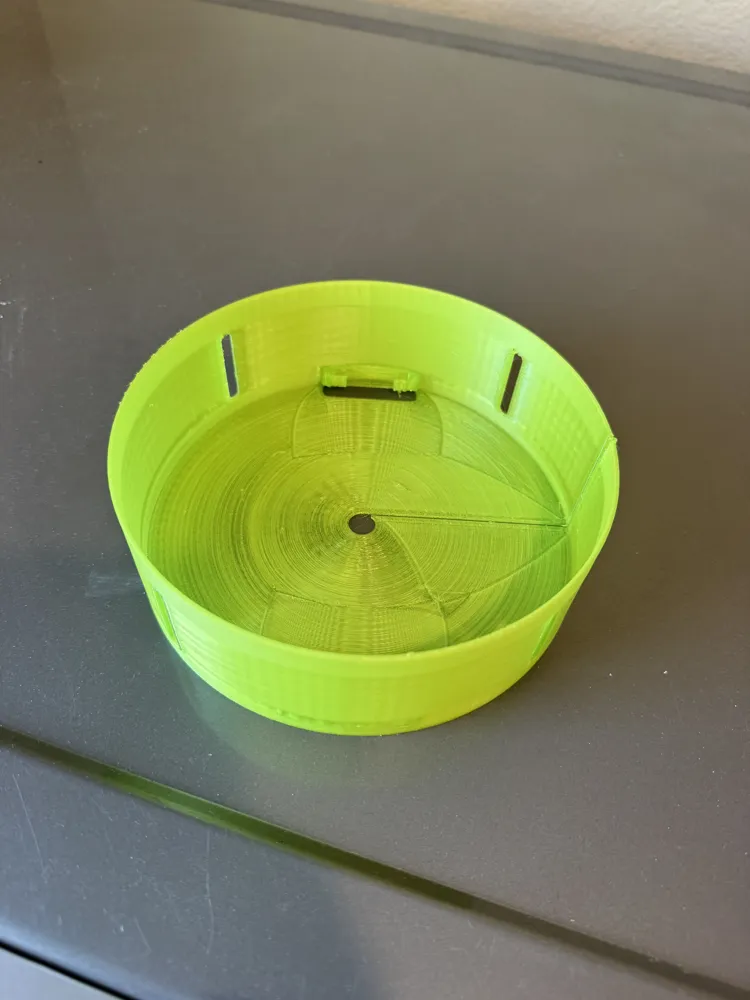

The original design had an open top but I found the loose ceiling insulation would just fall all over me if I ever needed to replace the light again, so I added more of an enclosure though there are still some large holes for the wiring and retaining springs.

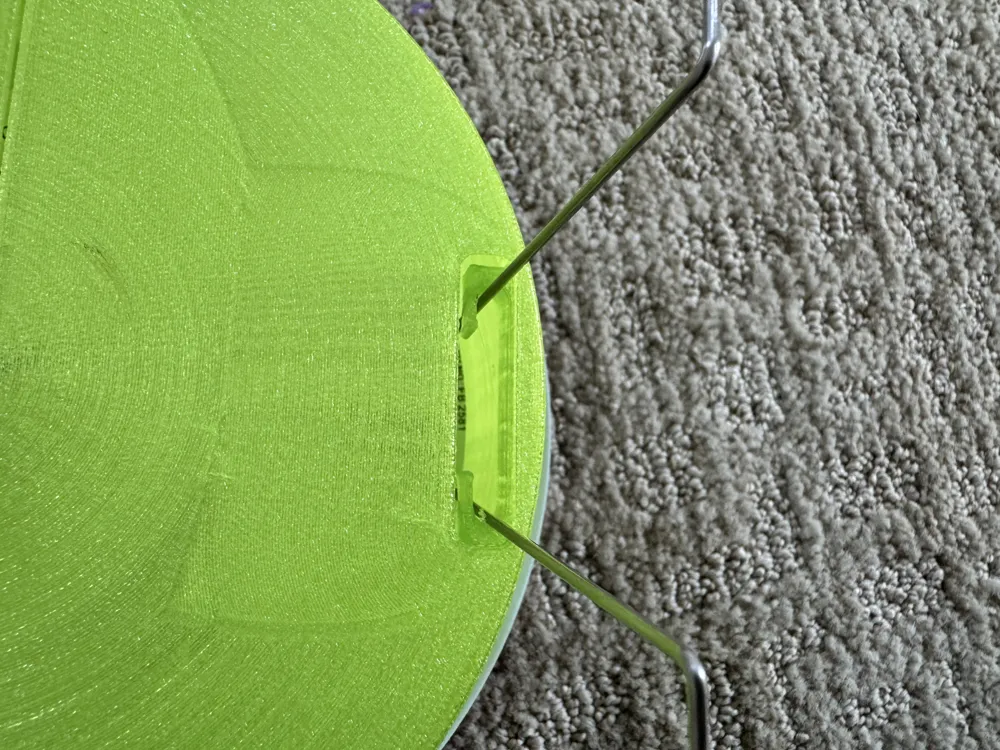

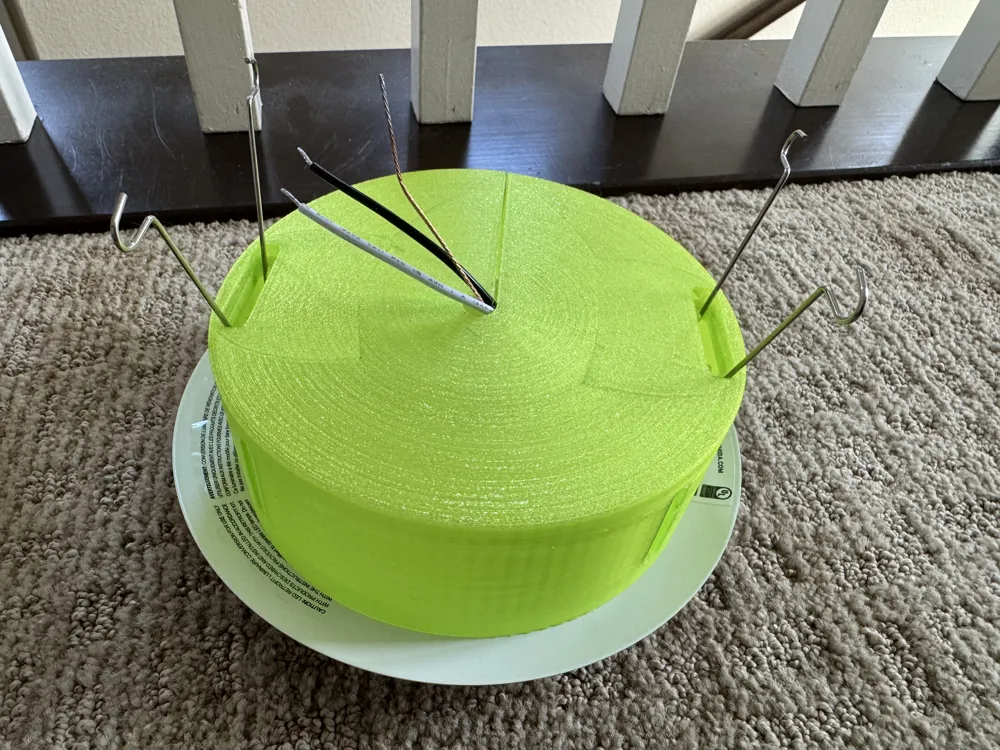

See the photos for how the retaining springs should be placed when installing.
