1:32 or mini 4wd running machine for running test

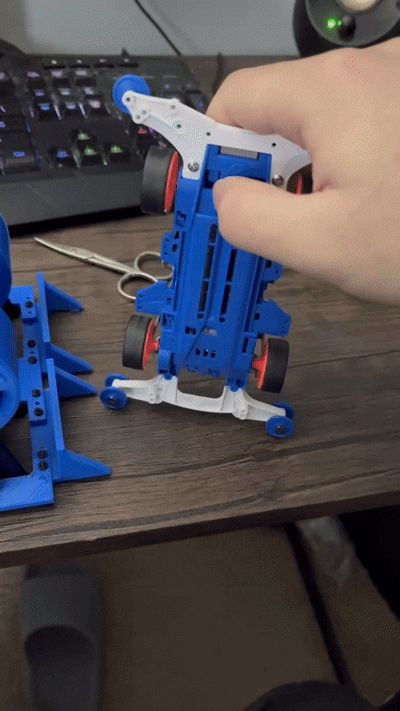

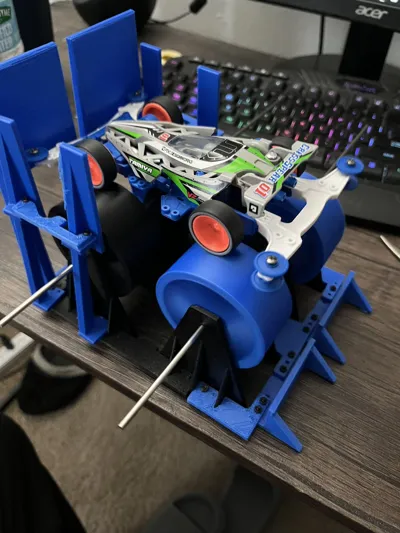

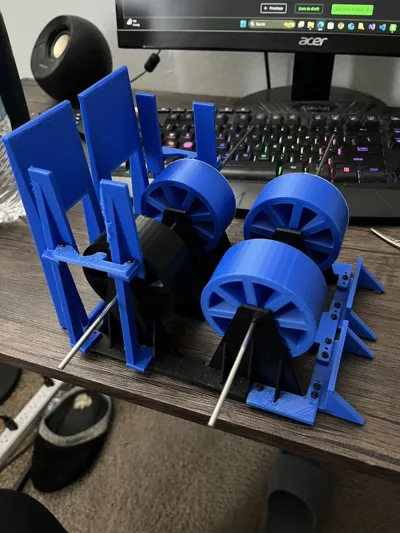

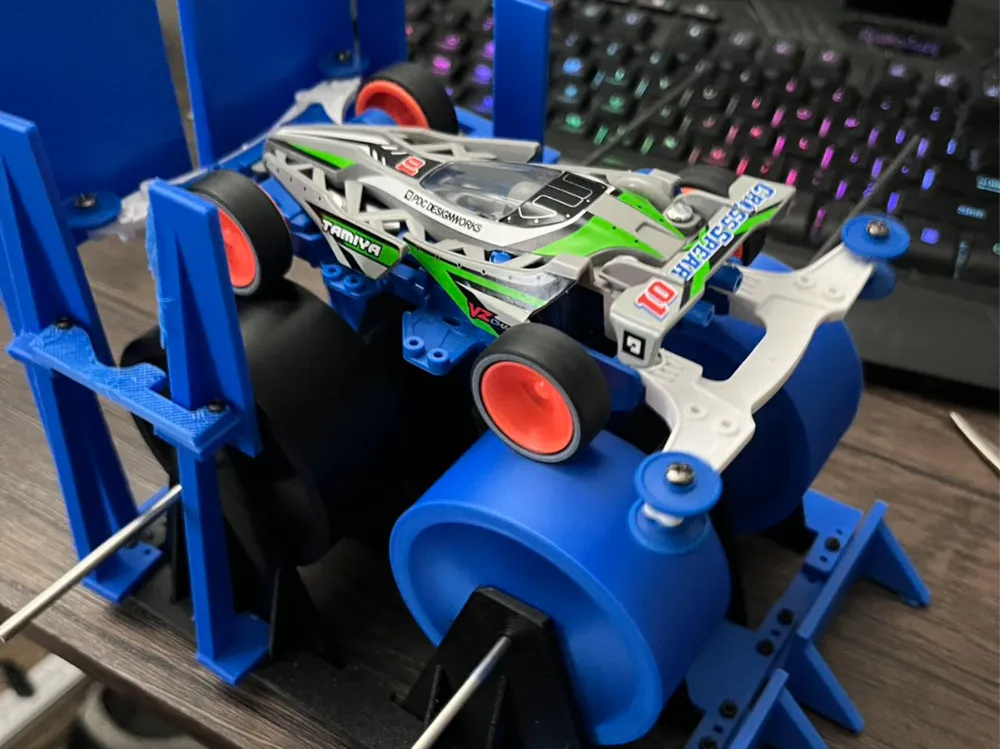

This is a sturdy design of running machine for tamita 1:32 mini 4wd cars. It can hold itself when car is running on it, you don't need to hold it with your hand much.

The width is around 104 mm, with washer can adjust to around 105 mm. You can modify the connection bits to make it wider.

You can redesign connection part to easily change the size if necessary

please set X-Y hole compensation according to filament. (0.25mm for wheels, 0.1mm for others)

Additional parts needed: M2 screws, M2 drill bit, M2 nuts, 3 mm rods

Optional parts: Screw washer (to adjust angle depending on surface quality), grease on the rod (to reduce noise)

I will upload more wheel parts once I have time

Please credit illusea for designing this model (need to follow makerworld rules if you want to modify or distribute)

迷你四驱车跑步机，稳定化设计，运行时不需要手扶。宽度大约104~105 mm，取决于组装时的角度调整。

玩家可以只要调整几个链接部件就，来设计不同的宽度和长度。

需要以下五金件来安装：M2螺丝，M2攻螺纹工具，3 mm直径金属棒

可选：M2垫片，润滑油（降低噪音）

X-Y孔径和外沿矫正需要根据用料调整。一般在0.1左右。轮子的孔径需要~0.25mm，否则3mm金属棒穿不过去

以后我会公布其它的轮子材质（例如越野类）以供替换

设计来自于illusea（请遵守MakerWorld规约）
