Yoradio / eradio simple fast case
Print Profile(1)
Description
This is simple case for yoradio project (https://github.com/e2002/yoradio)

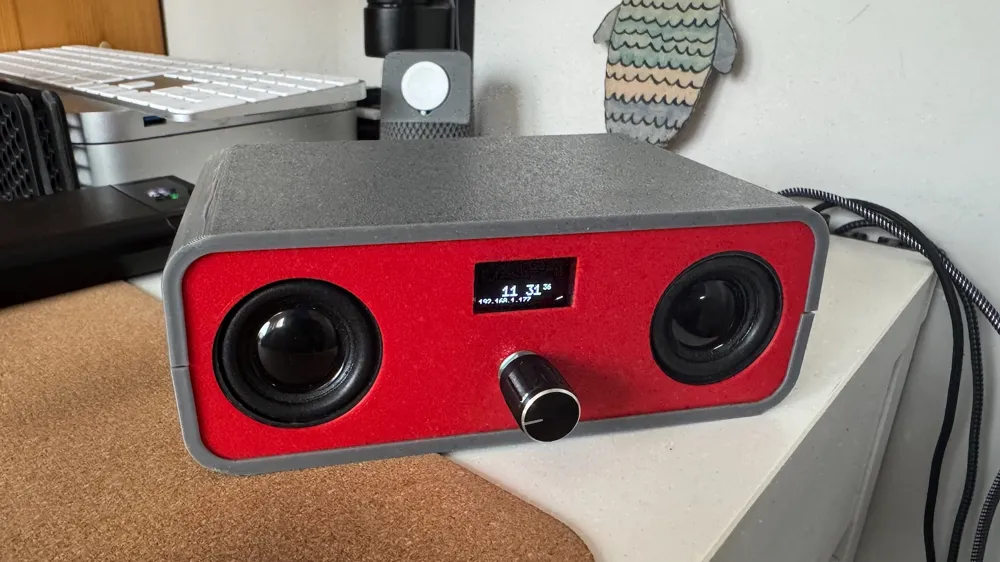

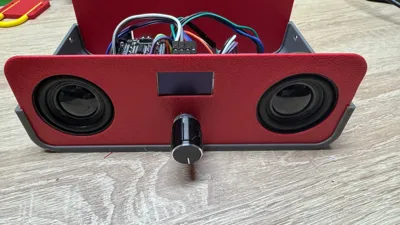

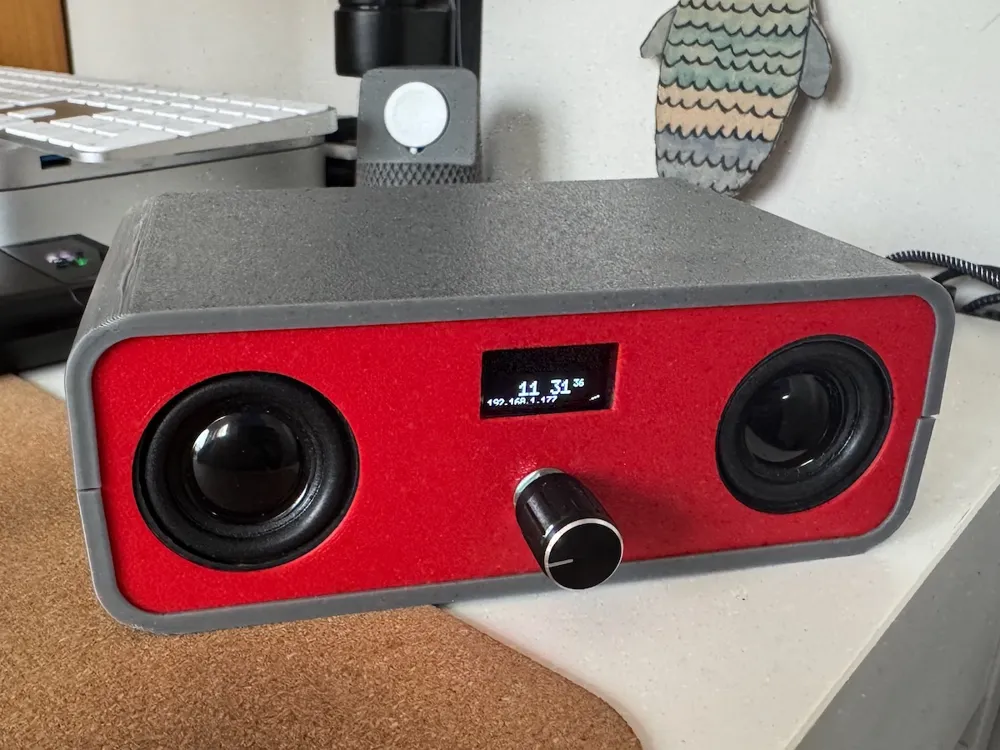

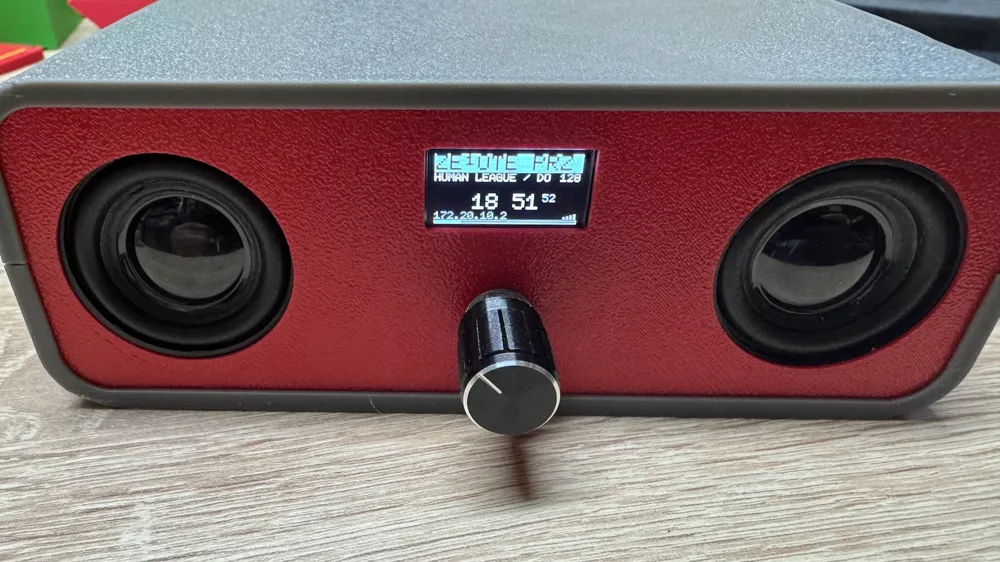

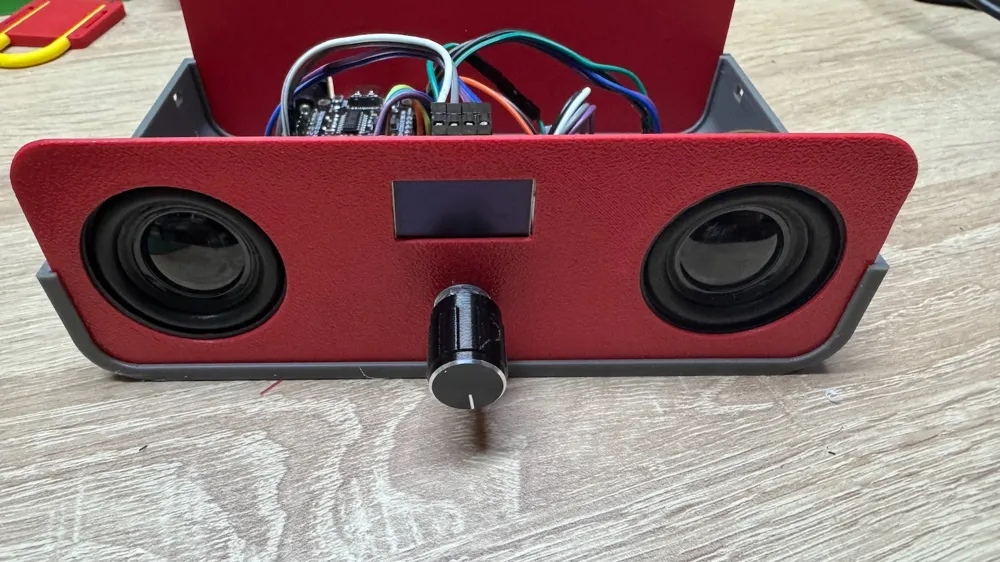

Priority was to make a case that fits my component and speaker + 0.96 inch oled screen. There are two version on plates - one with holes for zipties and other full, you can glue it or just press fit.
Components used for this project:
- esp32 + expansion board https://pl.aliexpress.com/item/1005007520851158.html?spm=a2g0o.order_list.order_list_main.39.51db1c24foIZtO&gatewayAdapt=glo2pol
- oled 0.96 inch screen - https://pl.aliexpress.com/item/1005008738379315.html?spm=a2g0o.order_list.order_list_main.21.51db1c24foIZtO&gatewayAdapt=glo2pol
- speakers 1.5 inch (40mm) - https://pl.aliexpress.com/item/32790211440.html?spm=a2g0o.order_list.order_list_main.10.51db1c24foIZtO&gatewayAdapt=glo2pol
- ky040 encoder - https://pl.aliexpress.com/item/1005006551162496.html?spm=a2g0o.order_list.order_list_main.33.51db1c24foIZtO&gatewayAdapt=glo2pol
- i2s decoder - https://pl.aliexpress.com/item/1005008899414848.html?spm=a2g0o.order_list.order_list_main.22.51db1c24foIZtO&gatewayAdapt=glo2pol
- audio amplifier - https://pl.aliexpress.com/item/1005006679095034.html?spm=a2g0o.order_list.order_list_main.27.51db1c24foIZtO&gatewayAdapt=glo2pol

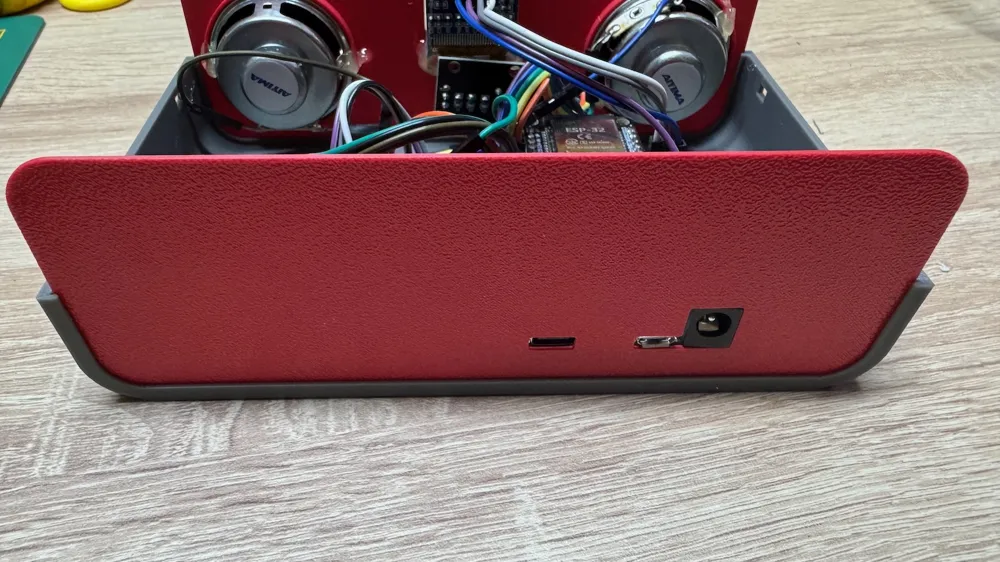

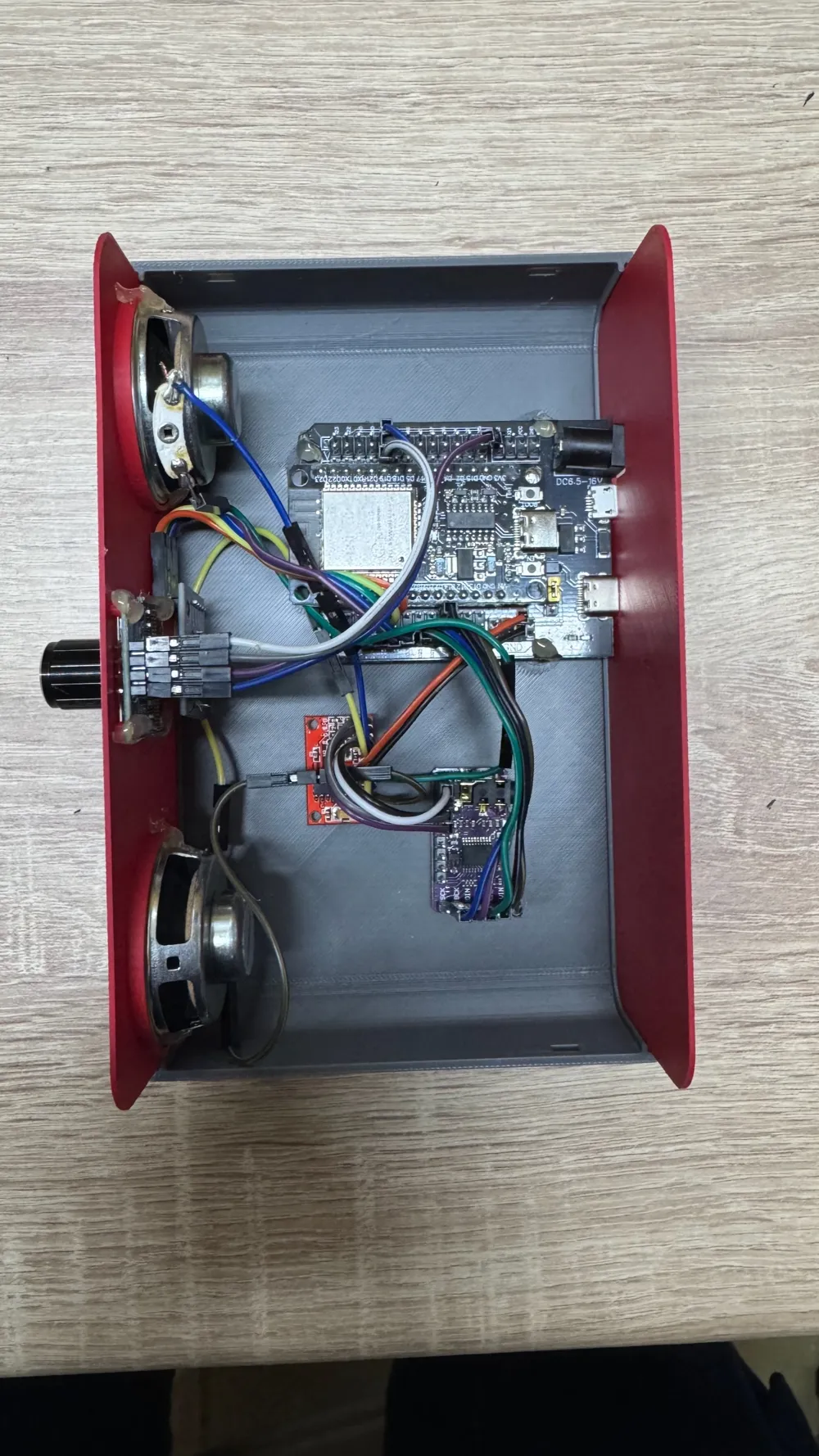

Pegs in the case are designed for above expansion board and connections on the back panel. For other board probably you should adjust mountings. Decoder and amplifier dont have any mounting points so they were hot-glued directly to bottom of case.
Have fun with yoradio!
