Bracket For Angled Ceiling Wardrobe

Clothes Rod Mount for Sloped Ceilings

This 3D‑printable design is a practical flange/mount specifically developed for installation on sloped ceilings. The construction allows a standard round rod to be securely fitted, creating a stable clothes rail for attic or sloped spaces. I printed this model in PETG, but it will certainly also work in PLA.

Features

• Angled mounting surface: The flange can be directly screwed onto the sloped ceiling.
• Rod holder: Central bore with Ø 23.5 mm, suitable for common round rods. Additional diameters can be provided upon request.
• Countersunk screw holes: Mounting holes are recessed so screw heads sit flush.
• Customizable: Holes can be drilled into the rod and dowels inserted to hold clothes hangers securely.
• Space‑saving: Perfect for rooms with sloped ceilings to add extra storage for clothing.

• Easy manufacturing: The model is optimized for 3D printing and can be printed without support structures.



Application

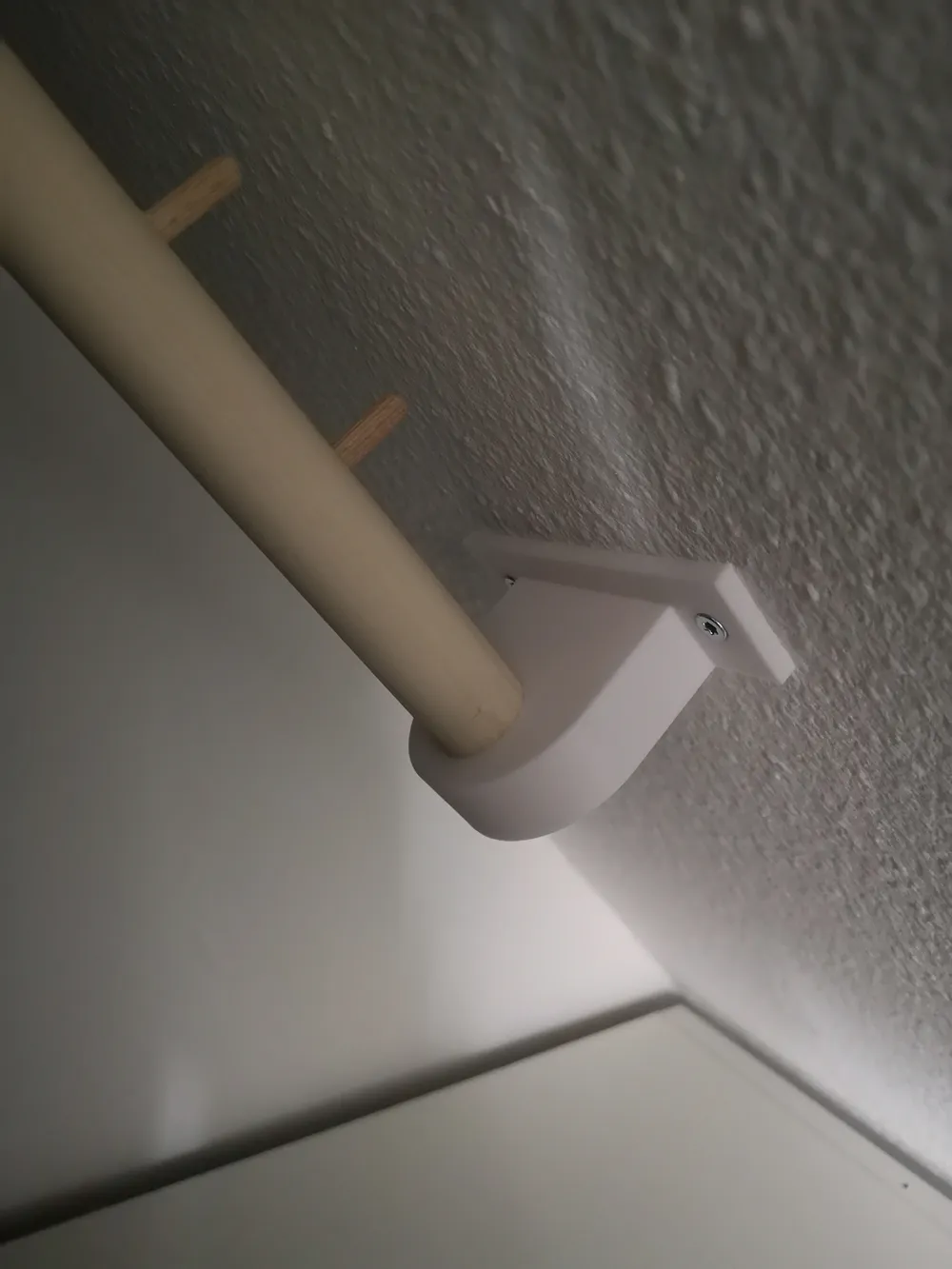

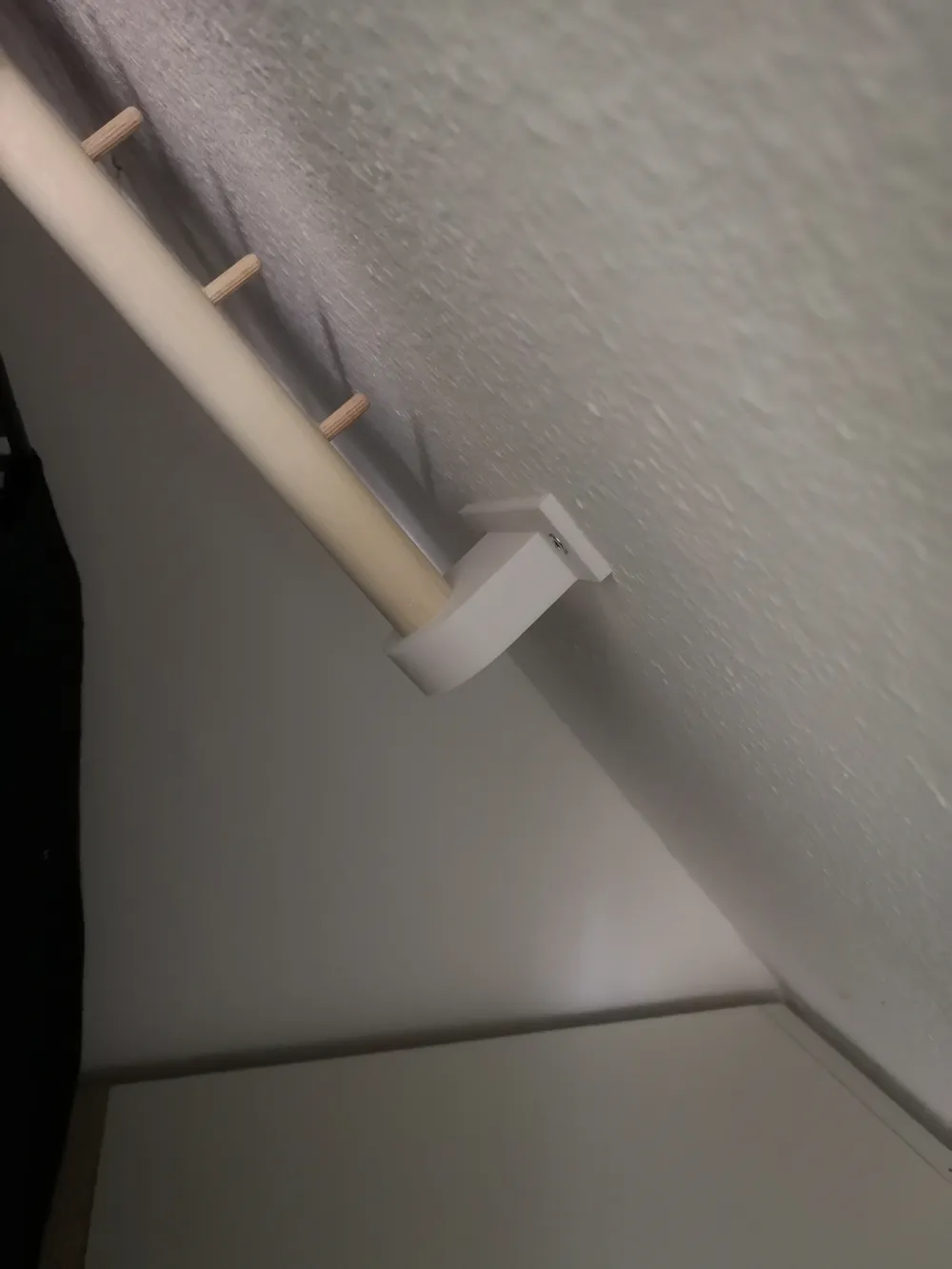

1. Attach the flange to the sloped ceiling using screws.
2. Insert the round rod (Ø 23.5 mm) into the bore; for extra stability, it can also be screwed from behind.
3. Drill holes in the rod and insert 6 mm dowels as needed to securely hang clothes hangers.

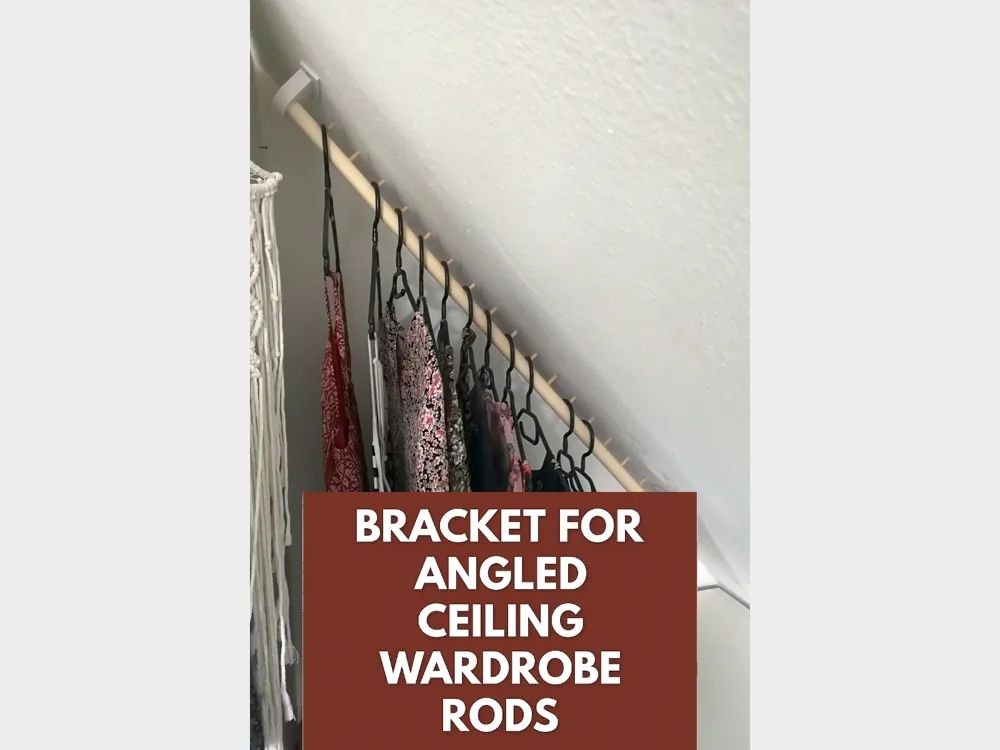

The result is a custom clothes rail for sloped ceilings.

I originally designed this model for my own use, which is why the rod holder is currently set to Ø 23.5 mm only. However, I am happy to adapt the bore to other diameters if needed and make the updated file available.
