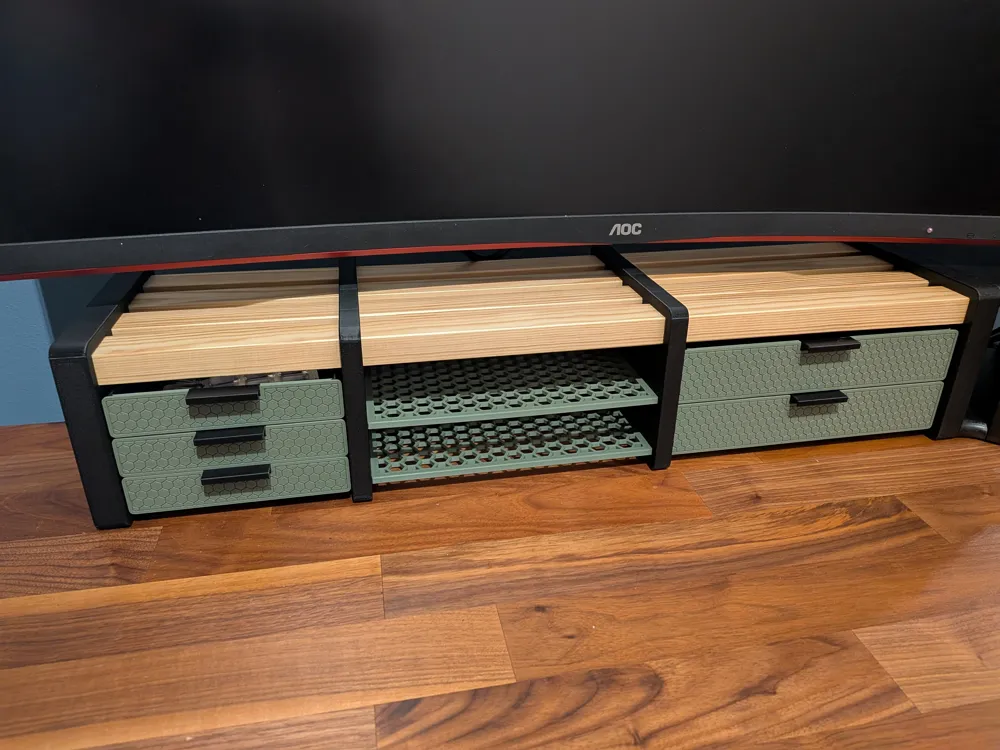

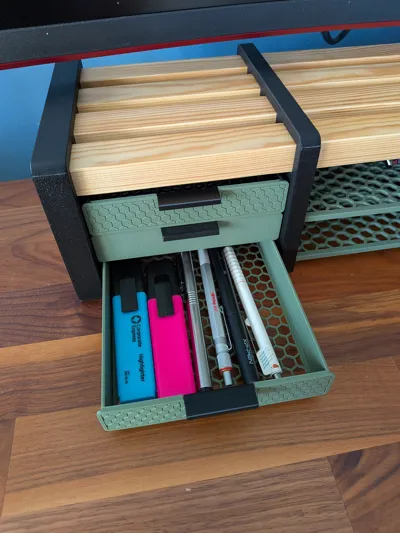

Modular Drawer System for my Modular Desk Shelf
This drawer system was specifically designed as an extension for my Modular Desk Shelf

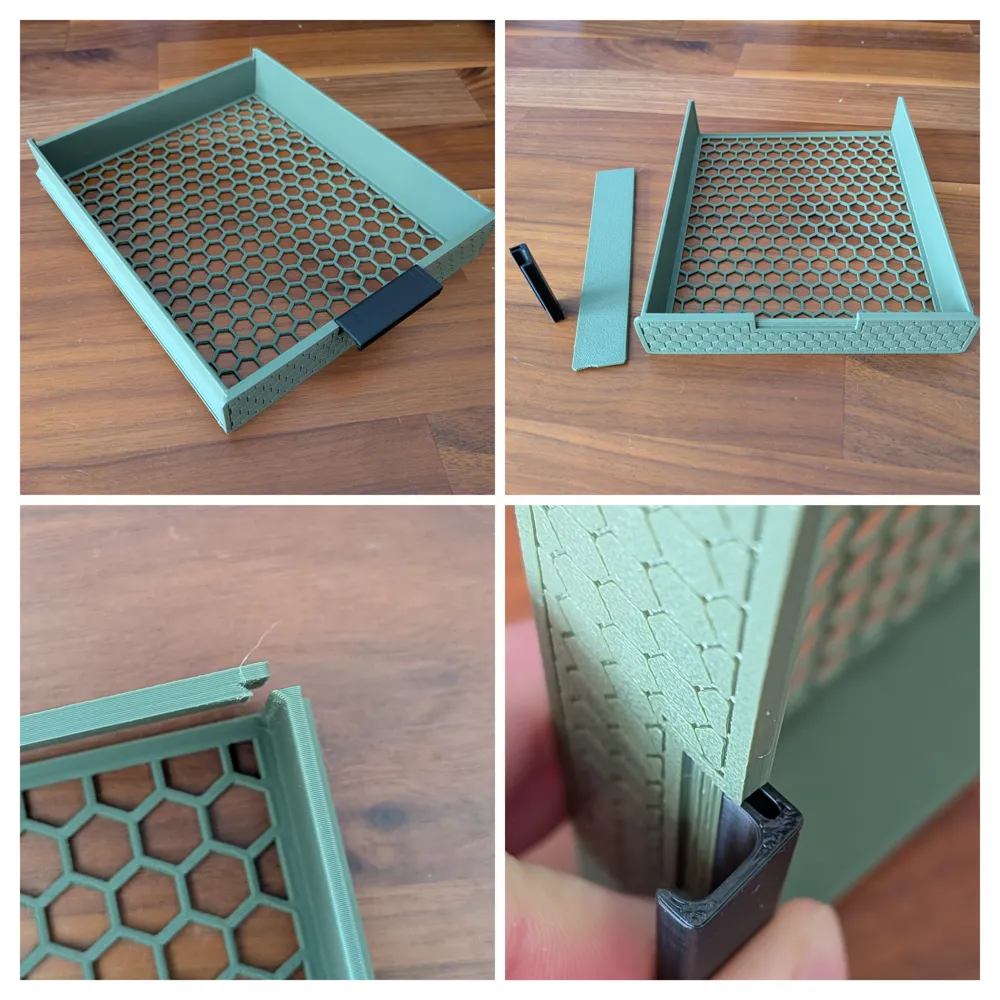

All parts are modular, robust, and designed for maximum flexibility
Gridfinity-Based Design
The base dimensions of the drawers are based on Gridfinity units:
- 3×4 Gridfinity
- 4×4 Gridfinity
- 4×5 Gridfinity
For the 170mm shelf variant, the drawers were shortened to approx 3.7 Gridfinity units to optimize space utilization
Variants by Shelf Depth
📦 190mm Version
- 2 guide rails
- Handle
- 3×4 Gridfinity – ⅓ Height
- 3×4 Gridfinity – ½ Height
- 4×4 Gridfinity – ⅓ Height
- 4×4 Gridfinity – ½ Height
- 5×4 Gridfinity – ⅓ Height
- 5×4 Gridfinity – ½ Height
📦 170mm Version (A1 mini compatible)
- 2 guide rails
- Handle
- 3×3.7 Gridfinity – ⅓ Height
- 3×3.7 Gridfinity – ½ Height
- 4×3.7 Gridfinity – ⅓ Height
- 4×3.7 Gridfinity – ½ Height
- 5×3.7 Gridfinity – ⅓ Height
- 5×3.7 Gridfinity – ½ Height
For the 170mm variant, I created a custom print profile for the A1 mini
All parts are included and printable, with the exception of the largest drawer
Compatibility
This drawer system is optimally matched to the ➡️ Modular Desk Shelf

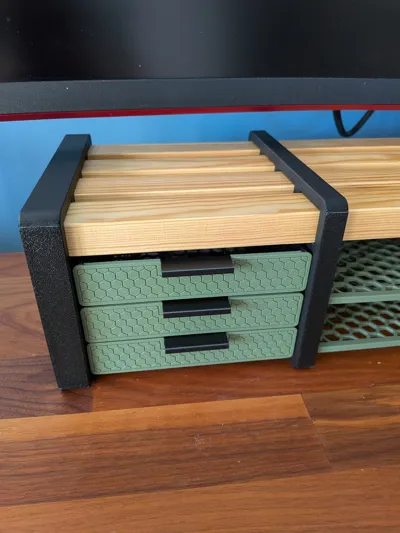

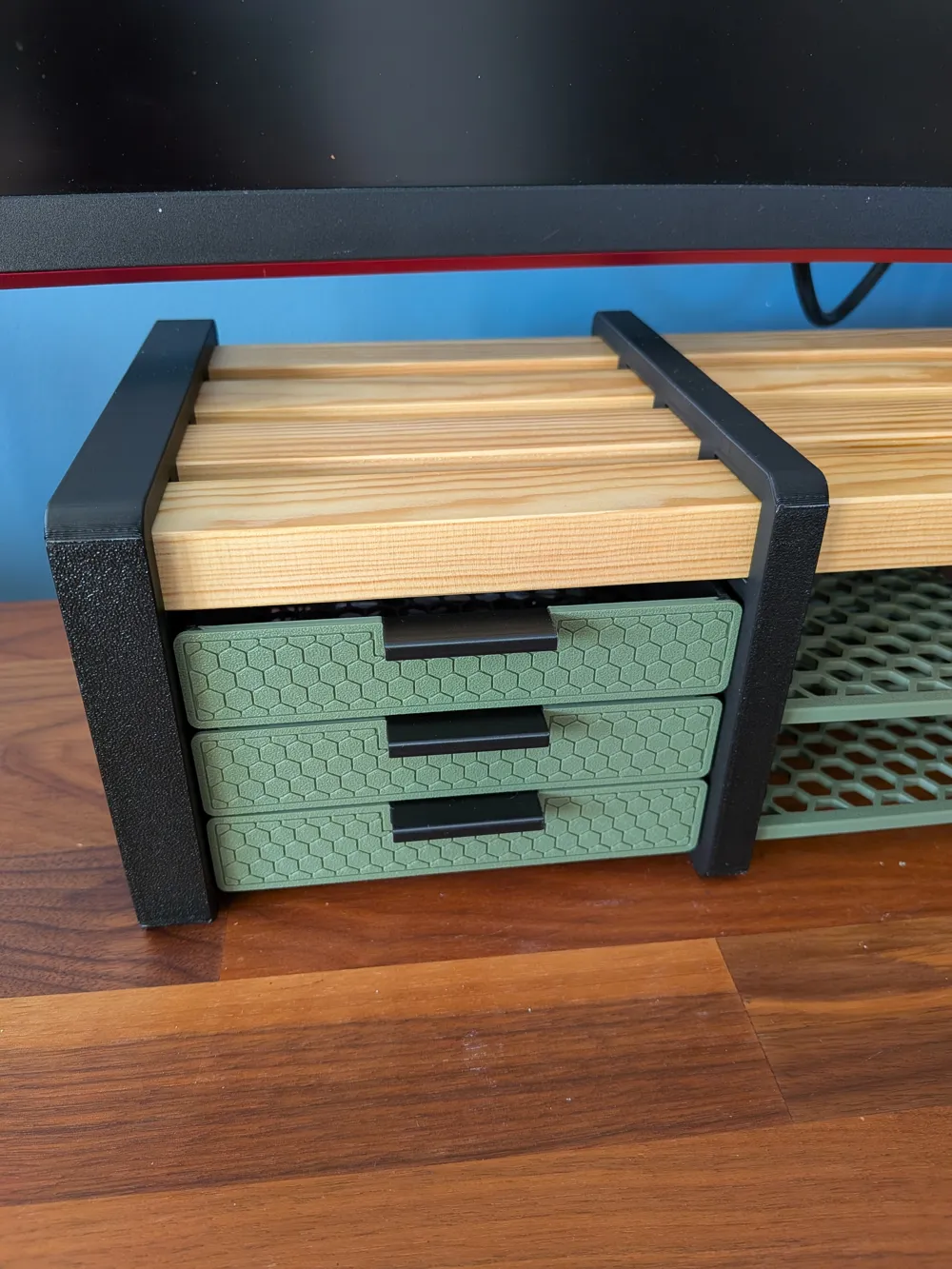

The rails can accommodate two or three drawers stacked, depending on the setup
Notes
- The print times specified in the print profile are hardly meaningful due to the large number of variants
The parts were designed and aligned in the print profile to be largely printable with no supports
I welcome your feedback and wish you happy printing!
