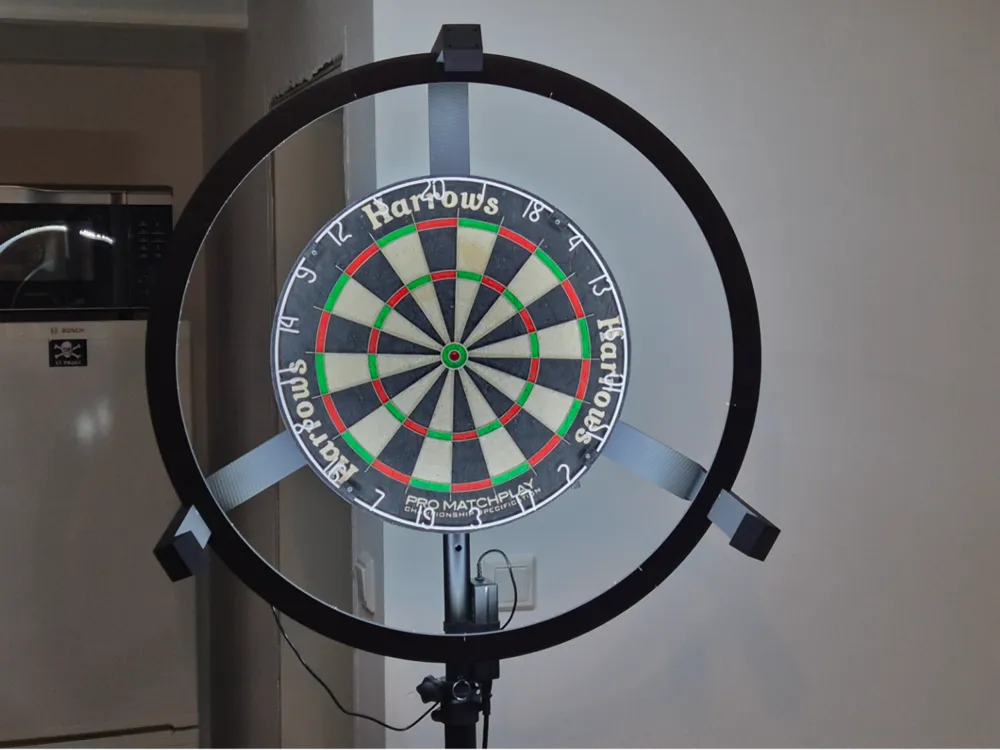

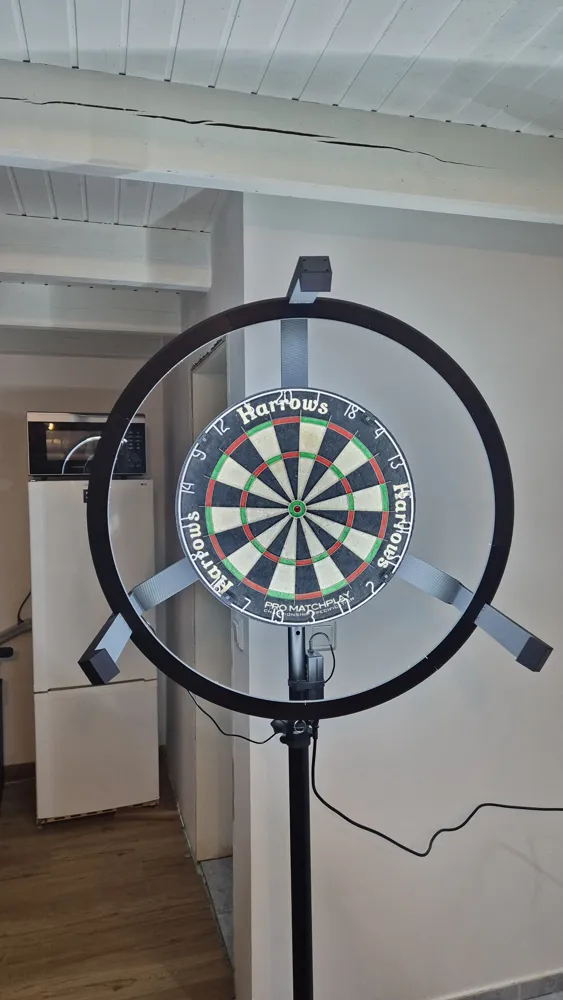

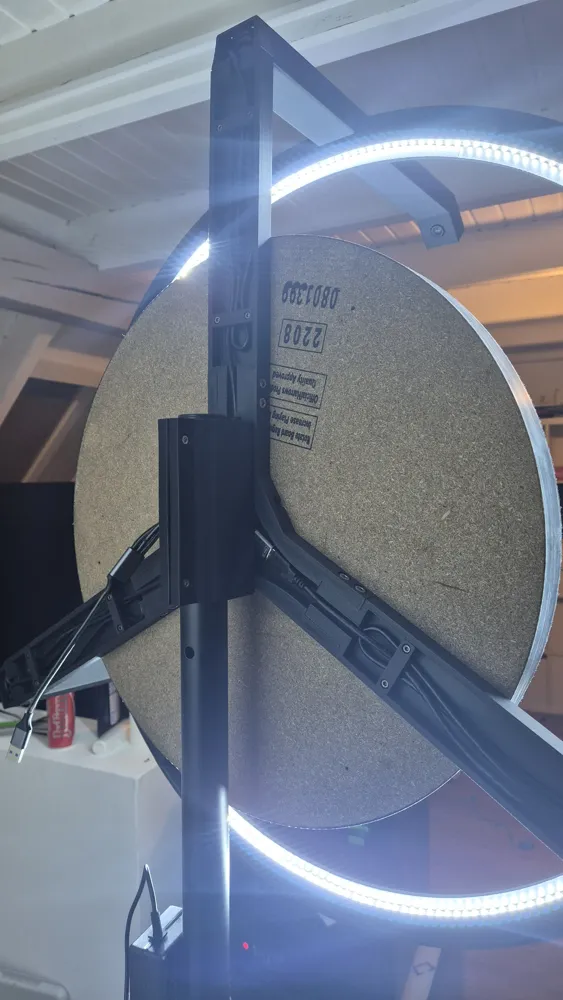

Autodart with LED ring

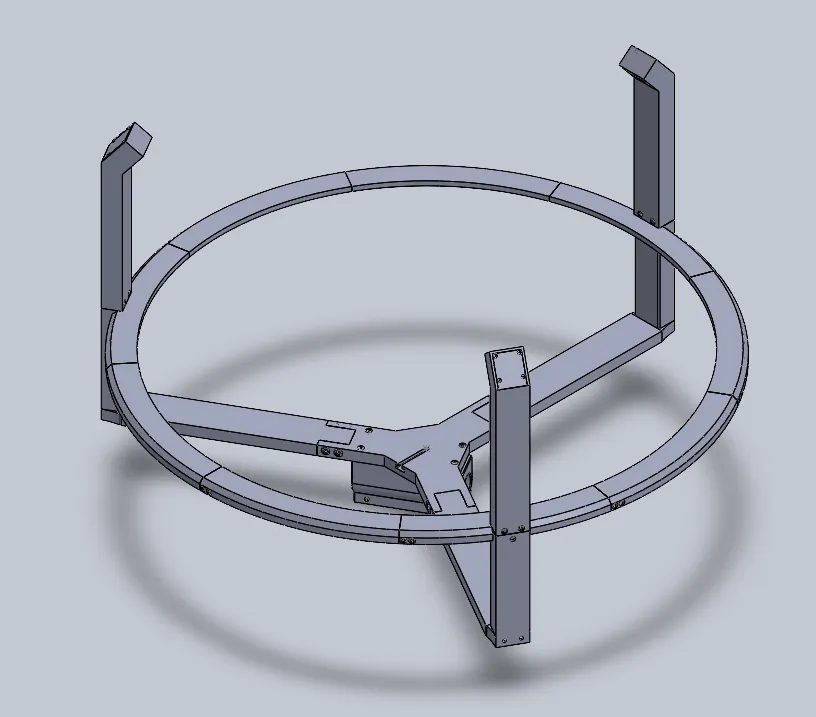

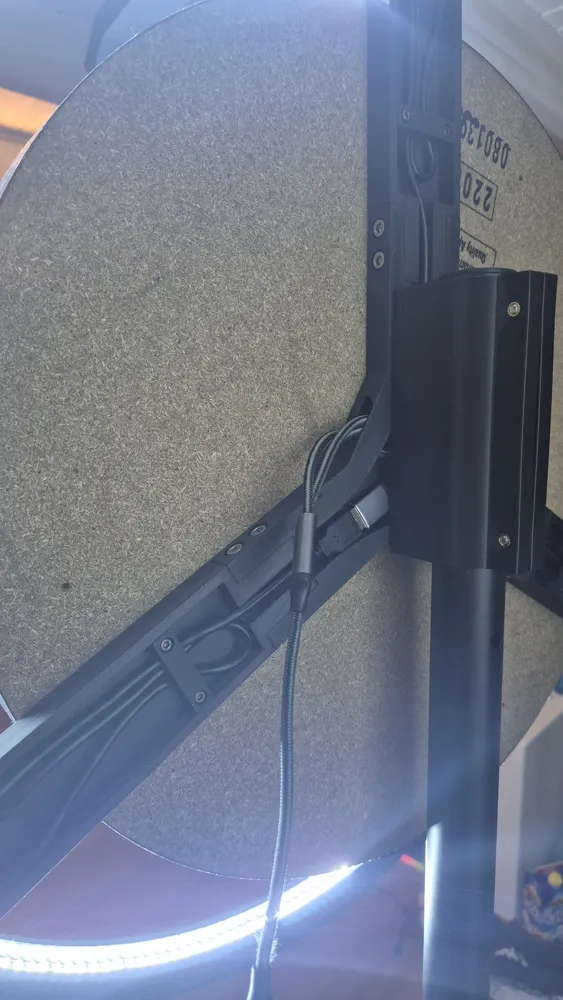

This Autodarts system was designed to be fully and stably secured with threaded inserts. All necessary components are listed in the bill of materials below, so you can immediately see which parts are required for assembly

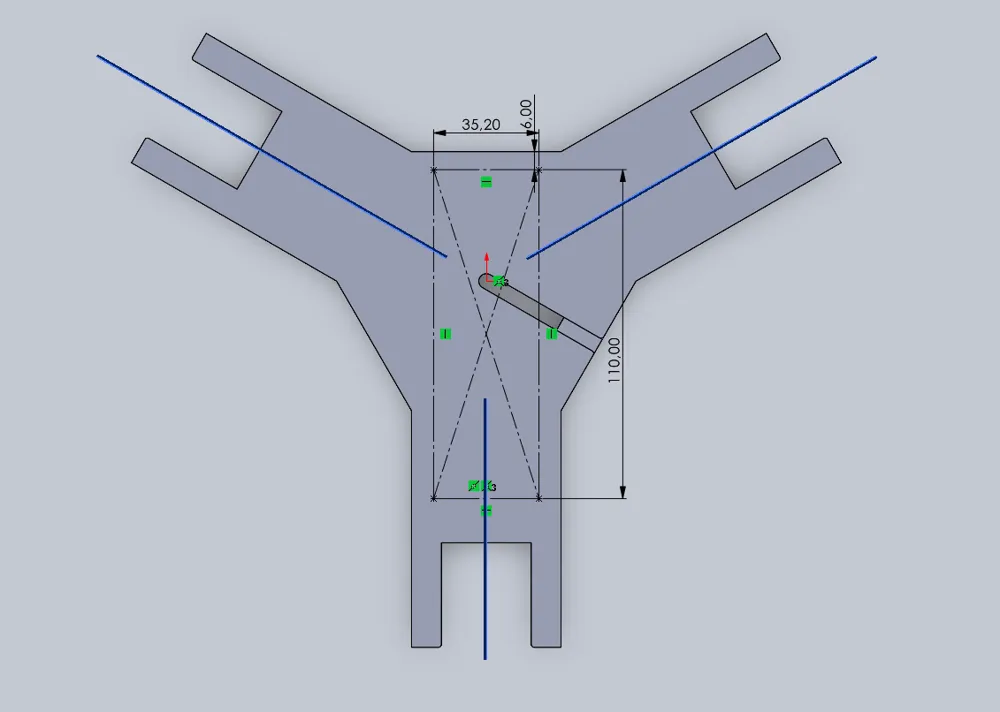

A suitable mount for a 34mm tube is already included for the middle plate. However, if you wish to design your own mount, you can find all relevant hole distances in one of the images and flexibly adapt the system to your requirements (DIN 912 M4 bore)

The system is designed for the camera modules: OV9732 modulated, with 28mm hole spacing

Camera:

https://www.amazon.de/dp/B0F9DWTVLW?ref=ppx_yo2ov_dt_b_fed_asin_title  (Frame must be removed as it won't fit into the camera arms otherwise)

USB Cable:

https://www.amazon.de/dp/B0DGTJ539B?ref=ppx_yo2ov_dt_b_fed_asin_title

LED Strip:

https://www.amazon.de/dp/B07PM4G21L?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

Threaded Inserts:

https://www.amazon.de/dp/B08K1BVGN9?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

Please note:

If you do not use the tube holder, you will need 6x M4x20 and 6x M4 threaded inserts fewer

The camera holders should be printed with additional supports (brim) as they may otherwise tip over during printing

UPDATE:

The middle plate has been adjusted so that the cameras are in the optimal position according to the Autodarts documentation

If you have already printed the model, you only need to replace the middle plate. The new version is available as a STEP and 3mf file

Since this is still a prototype and you have suggestions for improvement, please feel free to send me a message

I would greatly appreciate your feedback
