Fidget EDC Thin TITA Buckyball Long Track Slider

Personal Collection NO.104, Production Difficulty: ⭐⭐⭐

Original Author: PEL Studio

tita. The original model source Little Ye friendly shared, I adjusted the accessories according to personal needs, adjusted the tolerances and thickness, added decoration and details, and drew inspiration from Yi Qi Wu Yun Kong who added a magnet structure to the track, working with 5mm Buckyballs for better tactile feedback

PETG printing must use adhesive spray, otherwise there's a high chance of print failure!

Normal printing only requires 1-2 plates, plate 3 adjusts the single magnet on the track to 3mm*2mm, plate 4 is a version with a larger cutout on the front shell for easier observation of Buckyball movement, take as needed

The track supports have been specially set, the trick for easy removal is for the first layer of the support's bottom to run in the same direction as the track, if you don't know how to adjust it, it's not recommended to modify the plate arrangement

• Accessories required:
  • 2-3 M2*5 countersunk screws
  • 1 5mm Buckyball
  • 5 4*2mm magnets (N35 is usually sufficient, for stronger magnetism you can mix N52)
  • 1 6*6mm magnet (or 2 6*3mm magnets stuck together as a substitute)

  • If using plate 3, 1 additional 3*2mm magnet is needed

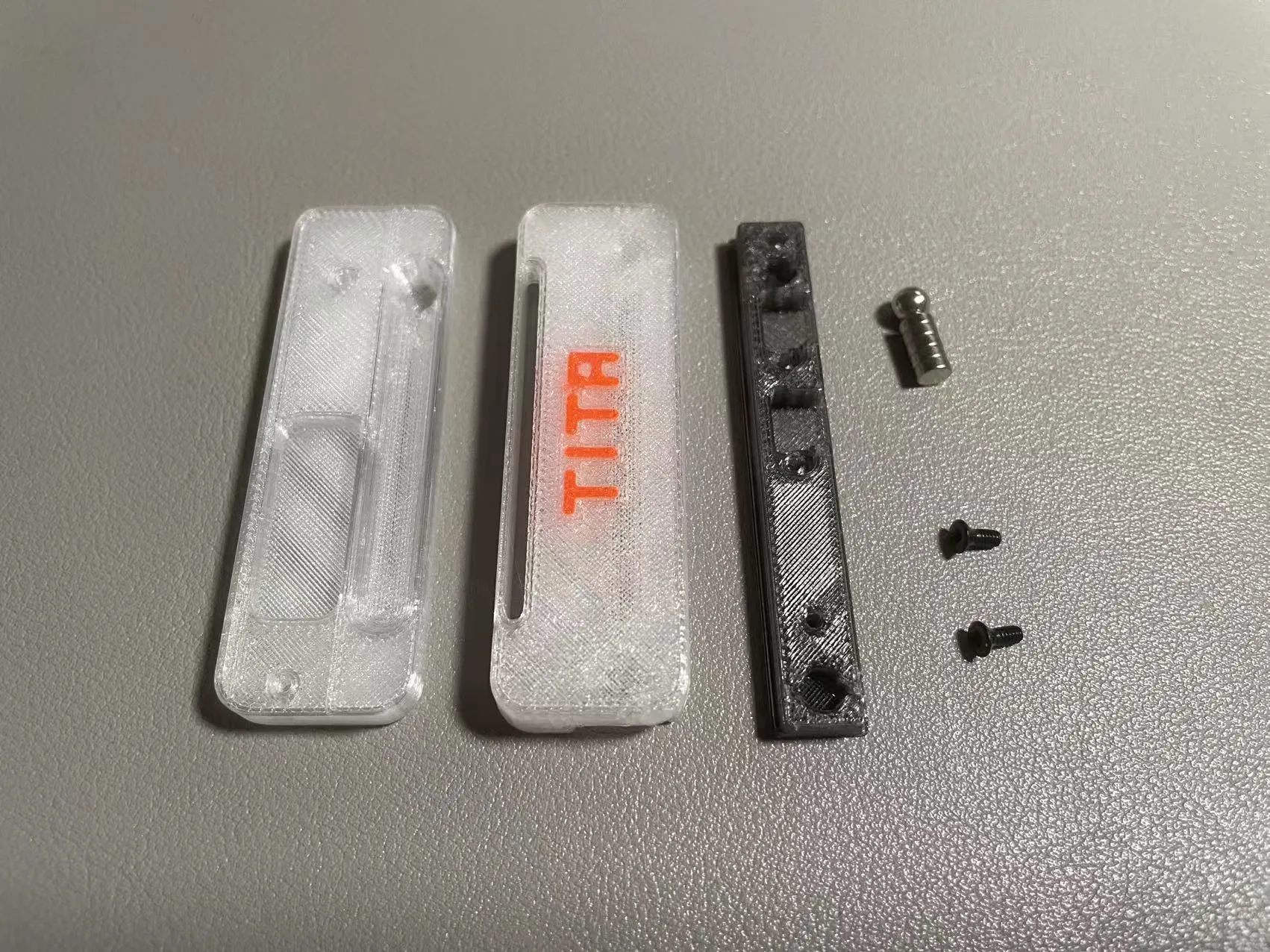

• Parts overview (6mm magnet not shown):





• Assembly steps:

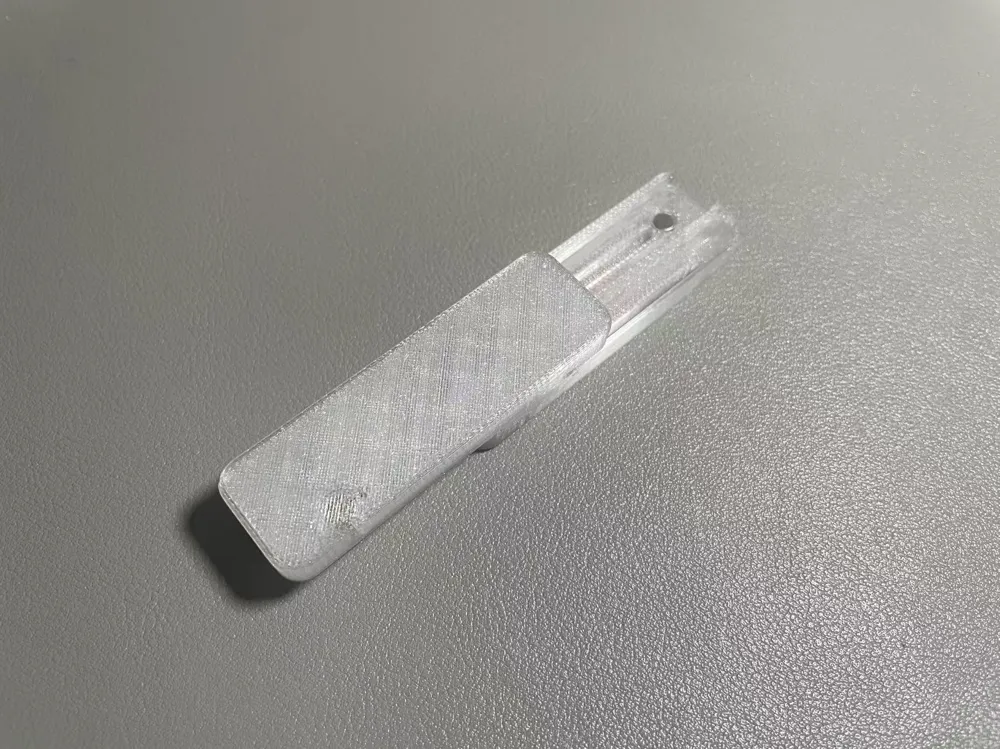

  ① Prioritize installing 5 4*2mm magnets into the holes, then slide the limit track into the main body for standby

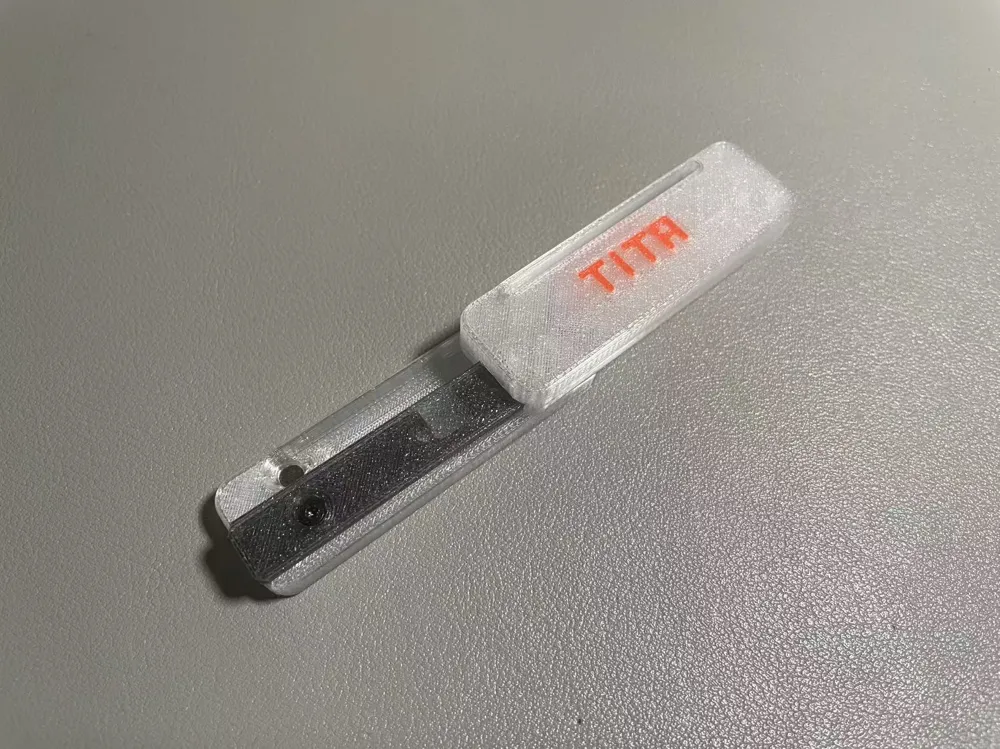

  ② Embed 1 6*6mm magnet into the limit slider, place the 5mm Buckyball onto the magnet of the track from the first step, and combine all parts

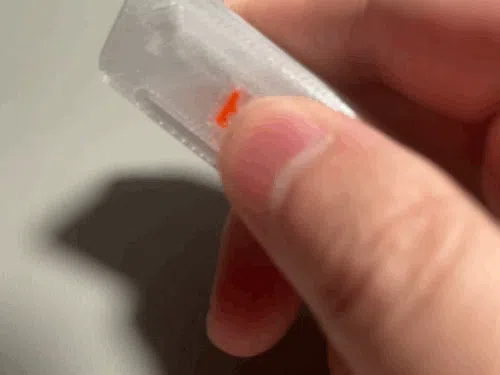

  ③ Slide the slider and test if the function is normal, then twist in 2 M2*5 countersunk screws, and it is complete
