NEMA 17 Mount for 4040 Extrusion
IP Report
Print Profile(1)
0.12mm layer, 3 walls, 15% infill
Designer
1.6 h
2 plates
Open in Bambu Studio
Boost
1
8
0
0
8
1
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
Description

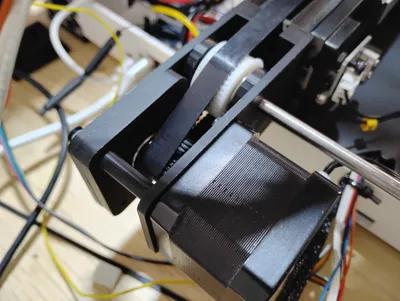

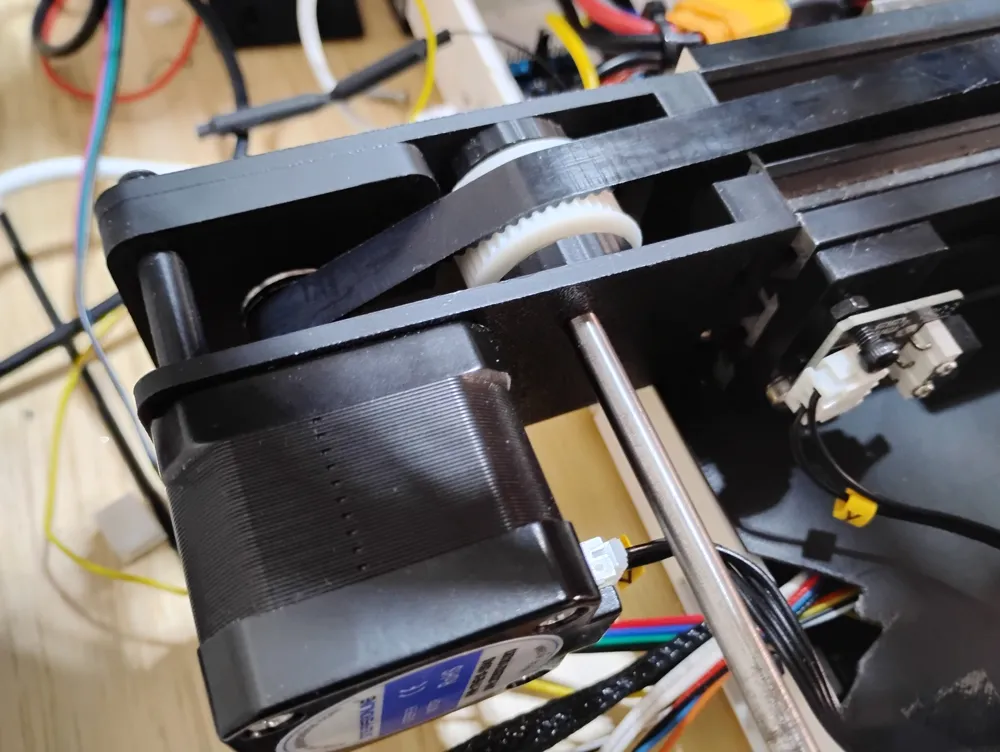

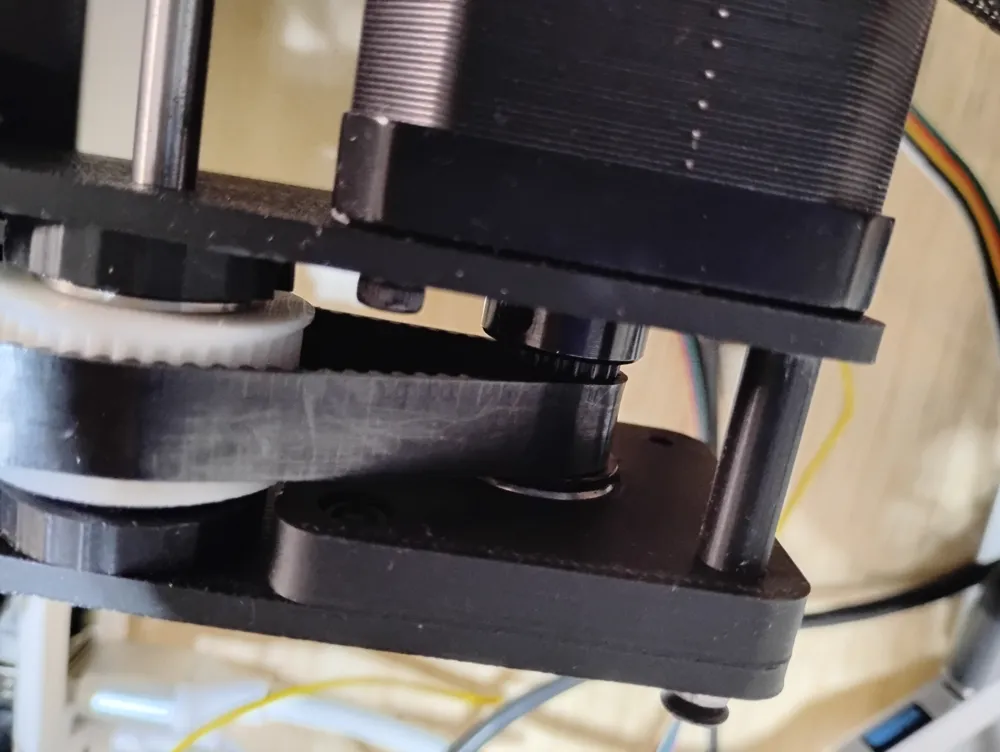

My Ender 3 Pro's Y-axis got upgraded to 9mm belts and I needed a new motor bracket. This is the result of a few weeks. Double shear support and live-shaft pulleys. Requires 9mm 20 tooth GT2 pulley, 10mm 40 tooth GT2 pulley AF-type (I printed mine), 5mm diameter shaft, an assortment of M3 screws, and 4 M5 screws. Also some F625 and 625 bearings.
