3Bearing Pocket Hole Jig (No metal pipe inserts)

Print Profile(1)

All
X1E
H2S
X1
H2D Pro
X1 Carbon
H2C
H2D
P1P
P2S
P1S
A1
A1 mini
X2D
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
45 min
1 plate
5.0(1)

Open in Bambu Studio
Boost
34
70
3
0
37
26
Released

Description

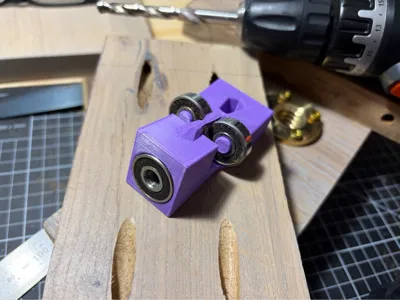

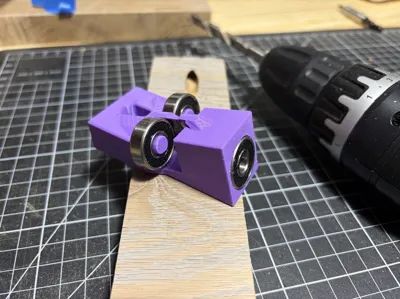

I didn't have meatl pipes to use to make a pocket hole jig, so instead I used 1 bearing to guide the drill bit and two more to keep it from slipping out of the hole at the end of the bit.

The model is not perfect at all. The print fails at the top of the support, but I thought I would share incase anyone else finds it useful and wants to take a shot at improving the design.

Includes a .blend file for easier modifications.
