Drill Bit Organizer (1-10mm) v1 for Multiboard

Drill Bit Organizer (1-10mm) v1 for Multiboard – Print in Place

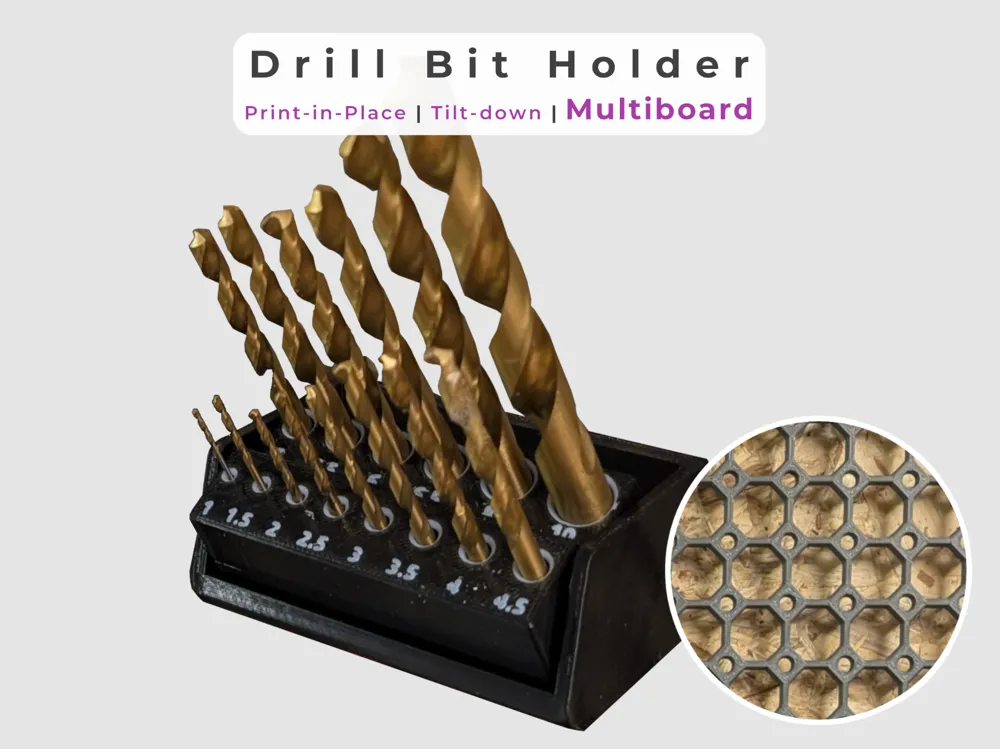

Organization is key – especially in the workshop! This compact drill bit holder for the Multiboard system was designed to store your most frequently used metal or wood drill bits in a space-saving and easily accessible way

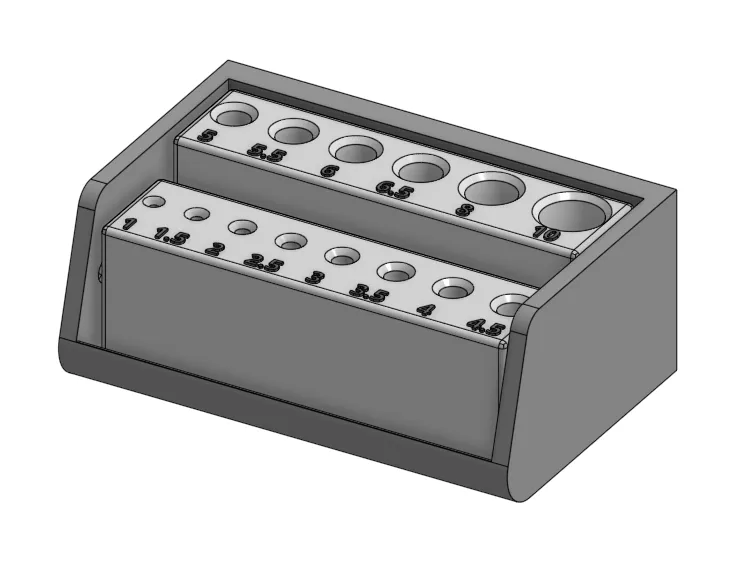

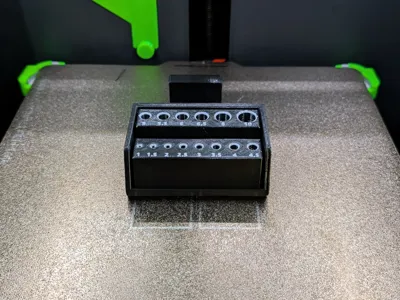

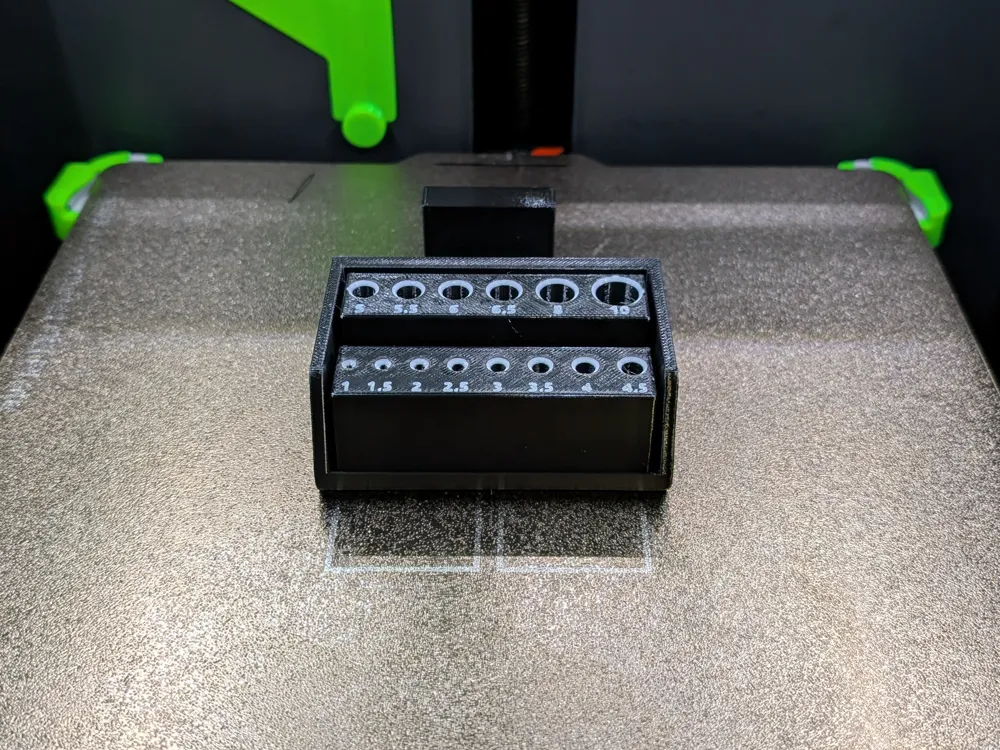

What makes it special: The holder is designed to be printed upright without supports. Thanks to the angled arrangement of the drill bits, you always have a perfect view of the size labels

✨ Features

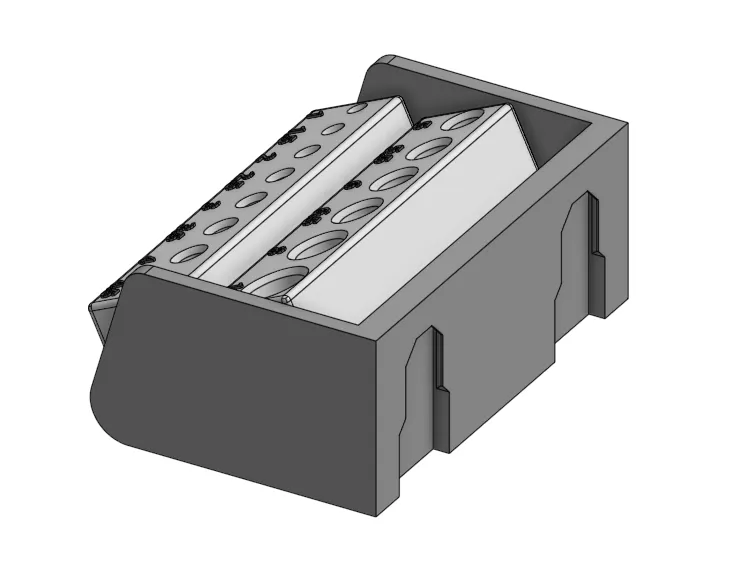

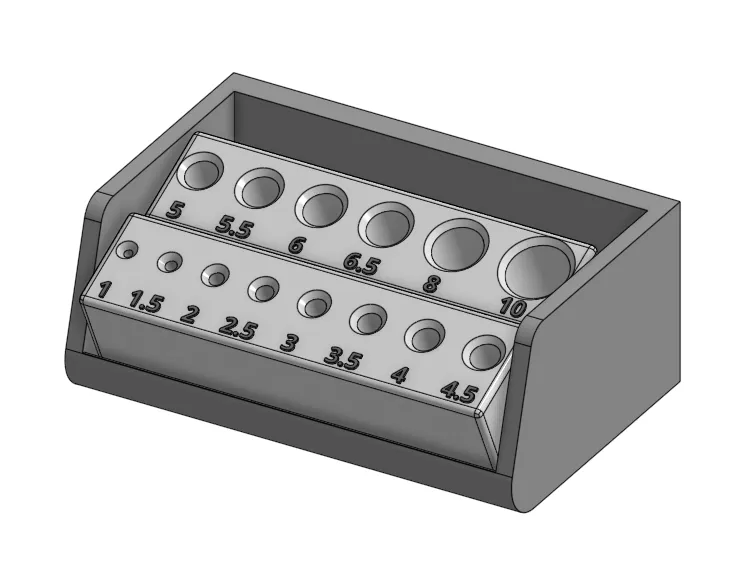

• Folding Mechanism (Print in Place): The holder is printed in one piece. The tool tray can be folded forward. This offers two significant advantages:
  1. The drill bit size labels are much easier to read
  2. Removing the drill bits is greatly simplified, especially if other boards or tools are hanging above them
• Big Thread Compatibility: Instead of fiddly small pins, this holder uses the original "Big Threads" of the Multiboard. This ensures maximum stability and significantly easier printability of the mounting screws
• Compact & Efficient: Optimally utilizes space on the board without appearing bulky

⚙️ Compatibility

• System: Optimized for the Multiboard system
• Capacity: Space for drill bits from 1 mm to 10 mm

🔧 Installation

Installation is incredibly simple and takes less than a minute:

• Preparation: You will need 2x Big Thread - Multipoint (available separately in the Multiboard system)
• Mounting the Big Thread: Screw the holder with the Big Threads into your Multiboard at the desired height.

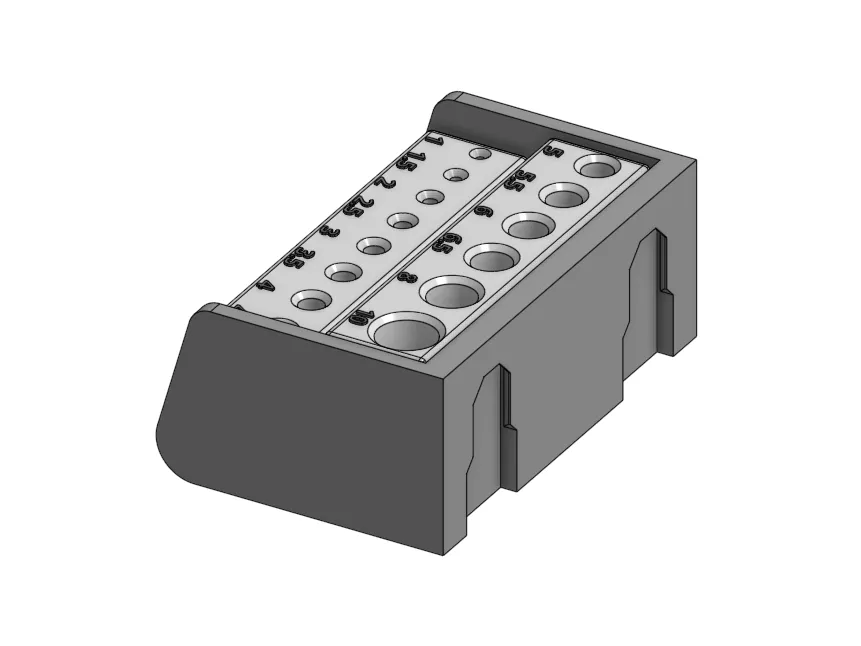

  💡 Tip: Make sure the distance between the screws precisely matches the cutouts on the back of the holder
• Securing the Holder: Place the holder onto the Big Threads and gently push it downwards until it sits firmly

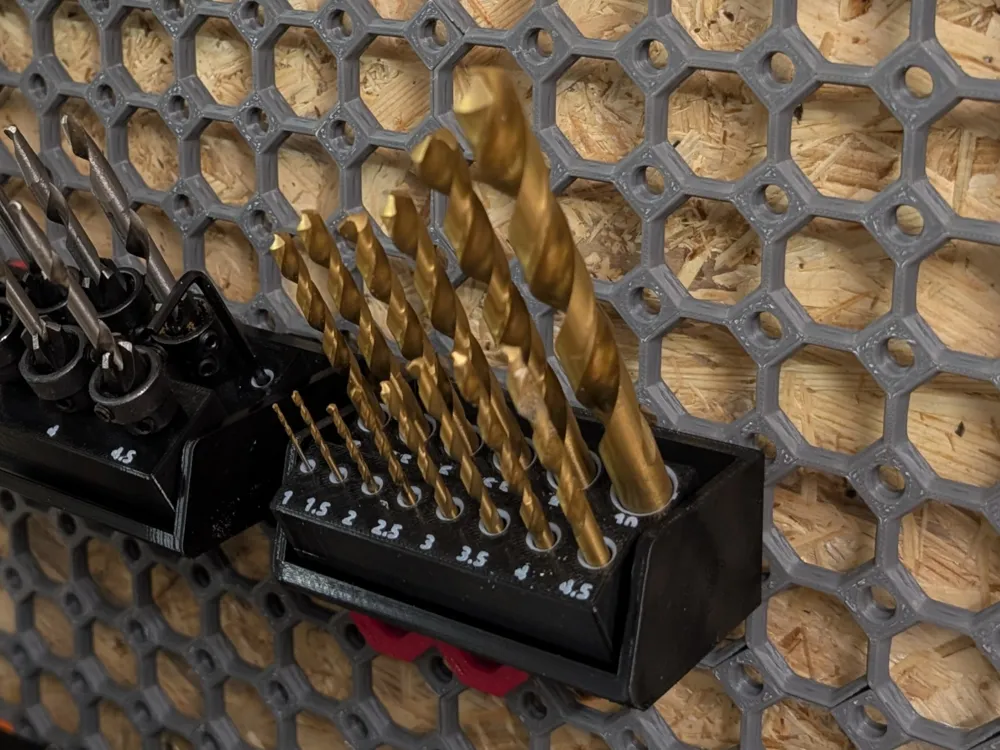

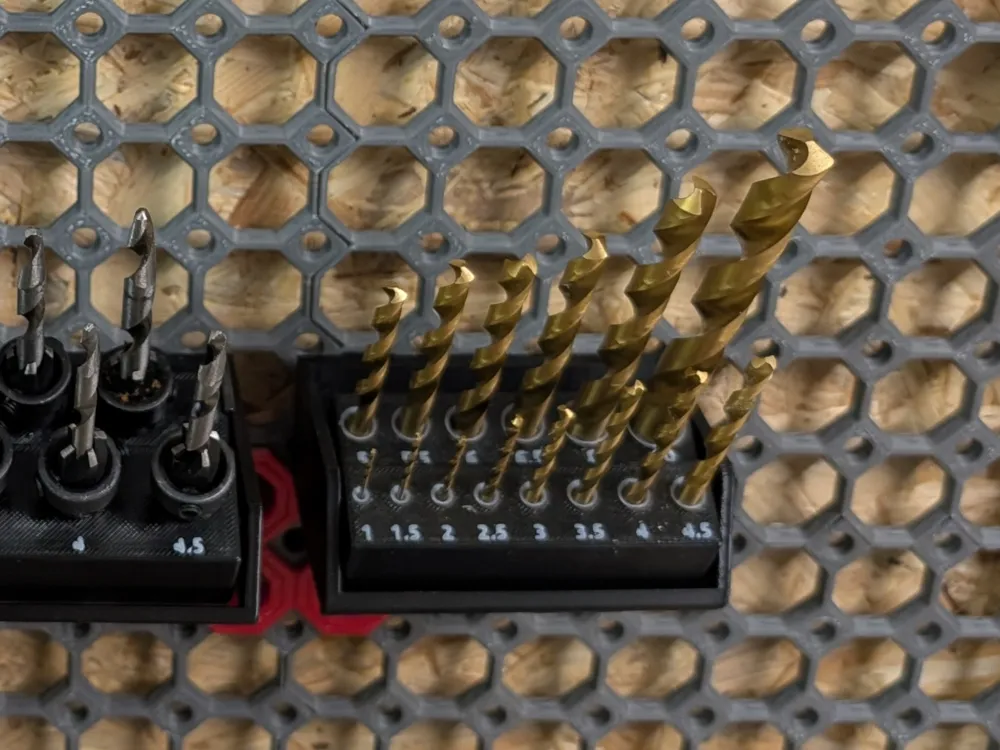

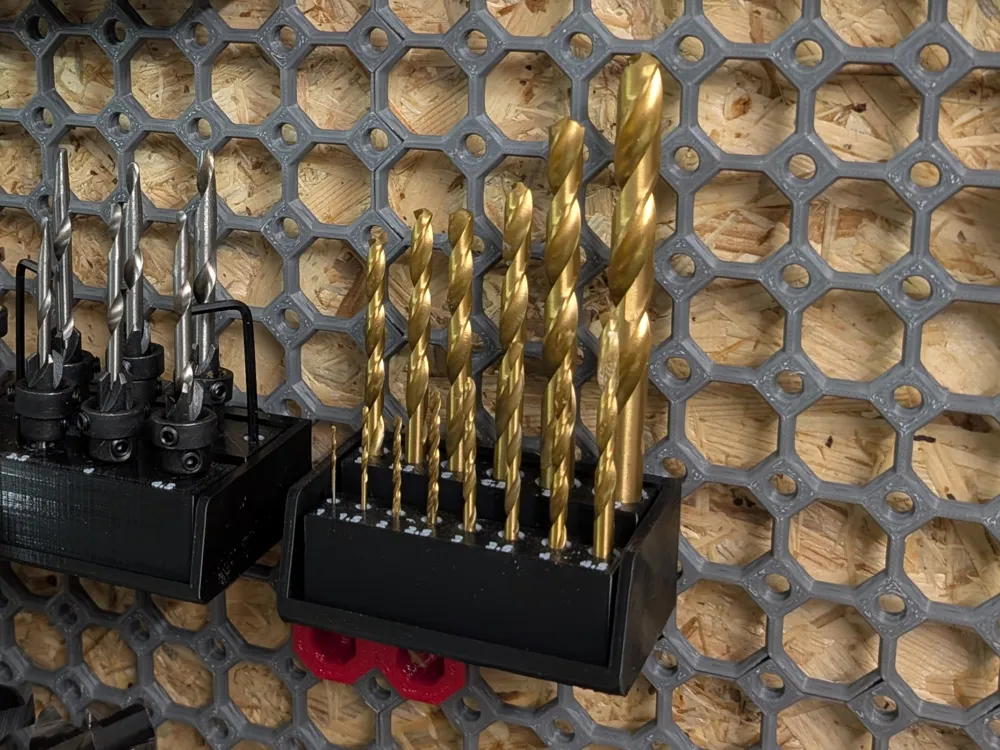

• Populate: Now populate the holder with your drill bits. From now on, you'll have everything organized and readily accessible

  Done!

ℹ️ Information

Feel free to check out my revised Version 2 of the drill bit holder as well.
Link: Drill Bit Organizer (1-10mm) v2 for Multiboard – Print in Place

Have fun organizing your workshop!
